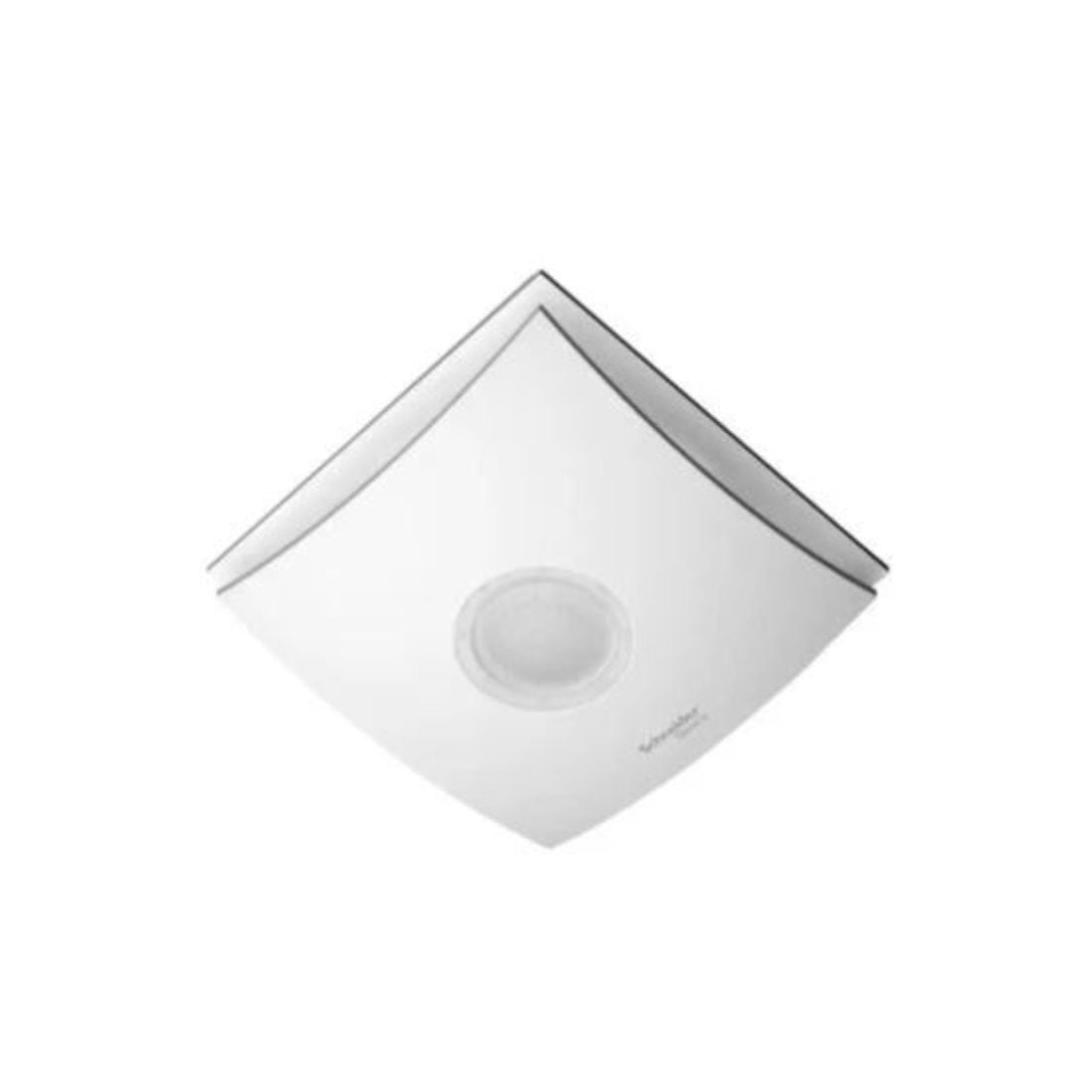

Schneider Electric ARGUS standard indoor 360 Degree (Carton) CCT56P002
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Movement Detector
Description
Schneider Electric CCT56P002 Standard Indoor Movement Detector is a type of motion sensor designed to detect movement in all directions within a given area. It's commonly used in security systems, home automation, and lighting control.
This type of sensor can detect motion in a full circle around its installation point. It doesn't have blind spots, making it ideal for covering a wide area. Most standard indoor movement detectors use PIR technology. PIR sensors detect changes in infrared radiation, which occur when a warm body moves within the sensor's field of view.
Features
- Detect movement in all directions within a given area
- Used in security systems, home automation, and lighting control.
- Easy to install
- Detection Angle-360
| Brand | Schneider Electric |
| Item Name | Movement Detector |
| Model | CCT56P002 |
| Color | White |
| Load Type | Capacitive: : 6 A, 28 µF, AC, halogen lamp: 1000 W, AC, compact fluorescent lamp: 4 x 23 W, AC, low voltage halogen lamp with wire-wound transformer: 500 VA, low voltage halogen lamp with electronic transformer: 315 VA, fluorescent tube: 250 VA, AC, incandescent lamp: 1000 W, AC |
| Package1 Length*Width*Height | 14.2 cm x 14.0 cm x 6.4 cm |
| Rated Operational Voltage | 220...240 V |
| Ambient Air Temperature For Operation | 0-40 °C |
| Condition of Use | Indoor Use Only |
| Detection Face Radius | 3.9 m |
| Detection Angle | 360° |
| IP Degree of Protection | IP20 |
| Light Intensity Adjustment | 5-2000 lux |
| Market Segment | Small Commercial, Residential |
| Material | ABS + PC Matt |
| Network Frequency | 50 Hz |
| Time Delay | 3 s...10 min |
| Type of Packing | Carton |
| Type of Setting | Time Adjustment, Light Sensitivity Adjustable |
| Mounting Height | 2.4-2.4 m |
| Mounting Support | Ceiling |
| Range | ARGUS |
| Weight | 316.0g |
