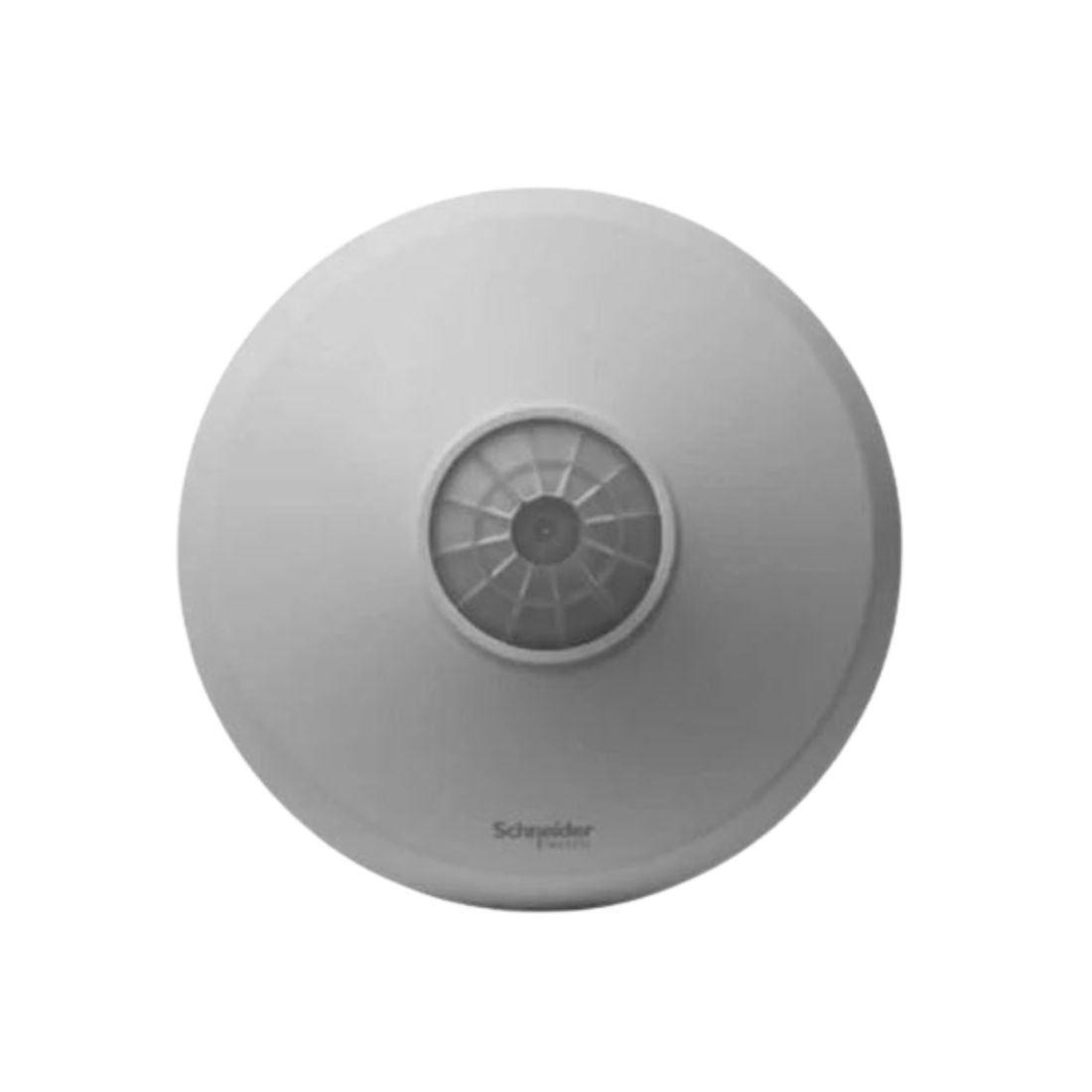

Schneider Electric ARGUS Occupancy Sensor Single Load 360 Degree PIR SAE-UE-MS-CSAWE
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Occupancy Sensor
Description
Schneider Electric SAE-UE-MS-CSA-WE PIR Single Load Occupancy Sensor is a device used in lighting control systems to detect human presence in a specific area and automatically control the lighting accordingly. The 360-degree specification indicates that the sensor has full circular coverage, meaning it can detect motion in all directions around its installation point.
PIR sensors detect infrared radiation emitted by or reflected from objects. They are passive because they don't emit any energy themselves, they only detect changes in the existing infrared levels in their field of view. The sensor is designed to control a single electrical load, such as a single light fixture or a group of lights wired together.
The PIR sensor is designed to detect occupancy, which means it can tell when someone is in the area it's monitoring. The sensor can detect motion in a full circle around its installation point. It doesn't have a specific line of sight but can cover an entire area around it.
Features
- Advanced Safety Motion Sensor
- It is very convenient, comprehensive, and intelligent
- 360-degree motion detection
| Brand | Schneider Electric |
| Item Name | Occupancy Sensor |
| Model | SAE-UE-MS-CSA-WE |
| Load Type | Halogen Lamp <= 1000 VA, energy saving lamp <= 80 VA, incandescent lamp <= 2000 W, low voltage halogen lamp <= 1000 VA, fluorescent lamp 100 µF <= 900 VA |
| Ambient Air Temperature For Operation | 0-45 °C Indoor, -20-45 °C Outdoor |
| Device Application | Lighting |
| Device Mounting | Flush, Surface |
| Detection Angle | 360° |
| Depth | 66mm |
| Electrical Shock Protection Class | Class II |
| IP Degree of Protection | IP40 Flush Mounting, IP44 Surface Mounting |
| Mounting Height | 2-3 m |
| Mounting Support | Ceiling |
| Diameter | 111 mm |
| Presence Detection Area PIR | 360°, 7 x 7 m |
| Ambient Air Temperature For Operation | 0-45 °C Indoor, -20-45 °C Outdoor |
| Range | ARGUS |
| Relative Voltage | 230-230 V +/- 10 % AC 50/60 Hz |
| Standards | EN 60669-1, EN 60669-2-1 |
