Schneider Electric Analogue Output Cartridge Modicon M221 2 Analog Voltage Outputs I/O Extension TMC2AQ2V
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Analogue Voltage Output Cartridge
Description

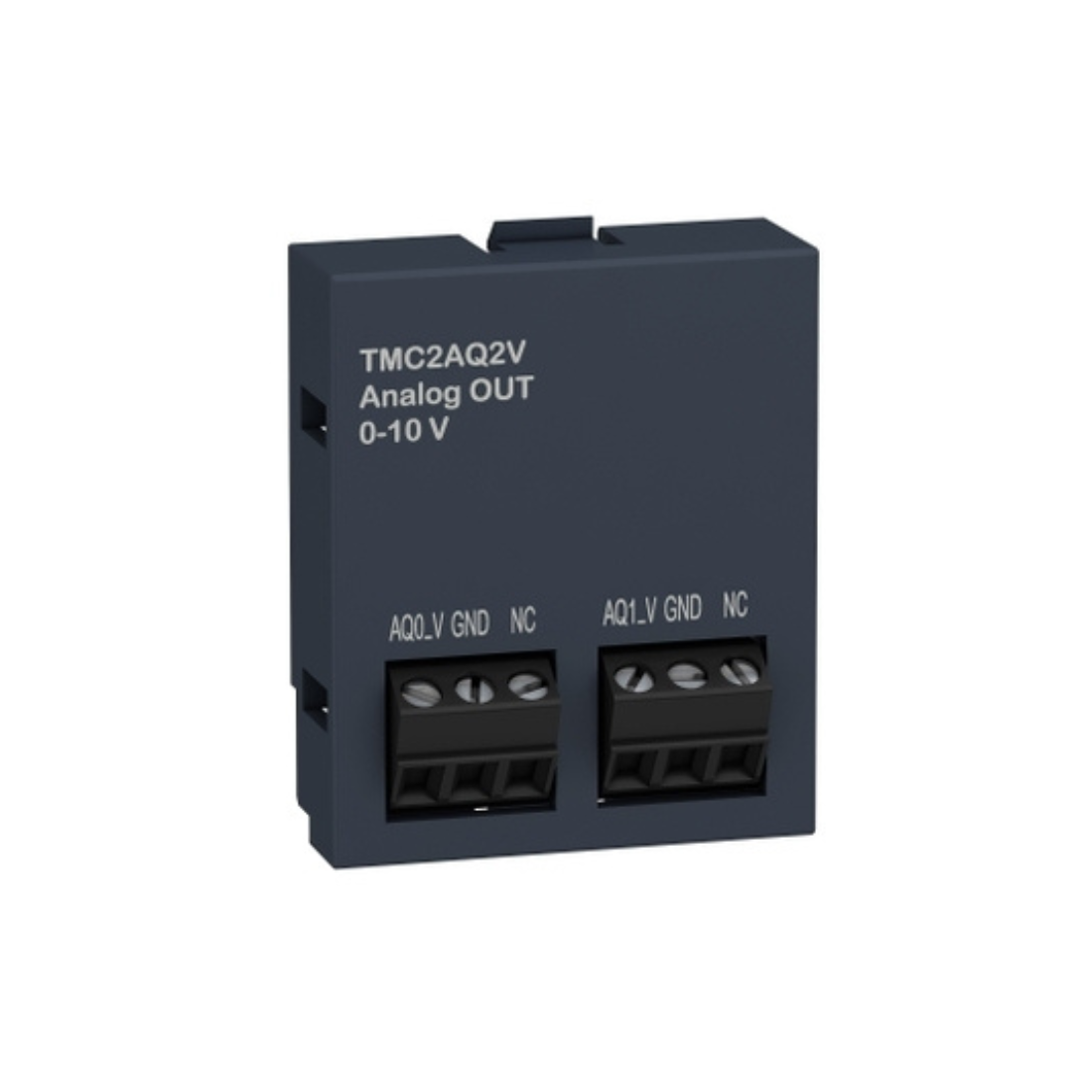

Schneider Electric TMC2AQ2V 2 Analogue Voltage Outputs Cartridge is part of the Modicon M221 series, a range of programmable logic controllers for wired architectures. This analog output cassette offers 2 outputs with 12-bit output resolution. The analog output voltage ranges from 0V to 10V. It requires minimal installation and offers enormous versatility. The maximum cable distance with shielded twisted pairs between devices is <30 m for the input, there is no isolation between the analog output and the internal logic.
Schneider Electric TMC2AQ2V Modicon M221 2 Analogue Voltage Outputs Cartridge has a screw terminal for electrical connection with a 3.81mm pitch for the outputs. Its dimensions are 35mm (width) x 15mm (depth) x 41mm (height). It weighs 0.015 kg. This cartridge is compatible with Modicon M221C-PLC. Achieve benchmark performance with the Modicon M221 while increasing profitability through intuitive machine programming with SoMachine Basic, ready-to-use applications, and function blocks.
Features
- It offers 2 outputs with a 12-bit output resolution.
- It requires minimal installation and offers enormous versatility.
- Equipped with a screw terminal for electrical connection with a 3.81mm pitch for the outputs.
| Brand | Schneider Electric |
| Item Name | Analog Output Cartridge |
| Model | TMC2AQ2V |
| Depth | 15 mm |
| Height | 41 mm |
| IP Degree Of Protection | IP20 |
| Range Of Product | Modicon M221 |
| Width | 35 mm |
| Temperature Drift | +/- 0.02 %FS/°C |
| Analogue Output Resolution | 12 bits |
| Analogue Output Number | 2 |
| Immunity To Microbreaks | 10 ms |
| Analogue Output Type | Current 4...20 mA, current 0...20 mA, voltage 0...10 V |
| Repeat Accuracy | +/- 0.4 %FS |
| LSB Value | 2.44 mV 0...10 V voltage |
| Conversion Time | 20 ms |
| Maximum cable distance between devices | Twisted shielded pairs cable: <30 m for output |
| Non-linearity | +/- 0.01 %FS |
| Absolute Accuracy Error | +/- 1 % of full scale, +/- 0.3 % of full scale at 25 °C |
| Stabilisation Time | 40 ms |
| Cross Talk | <= 1 LSB |
| Sampling Duration | 10 ms |
| Load Impedance Ohmic | >= 2 kOhm |
| Compatibility | Modicon M221C |
| Electrical Connection | 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs |
| Input Impedance | <= 250 Ohm current, >= 1 MOhm voltage |
| Insulation | Non-insulated between analogue output and internal logic |
| Load Type | Resistive |
| Type of Cable | Twisted shielded pairs cable |
| Weight | 0.015 kg |
