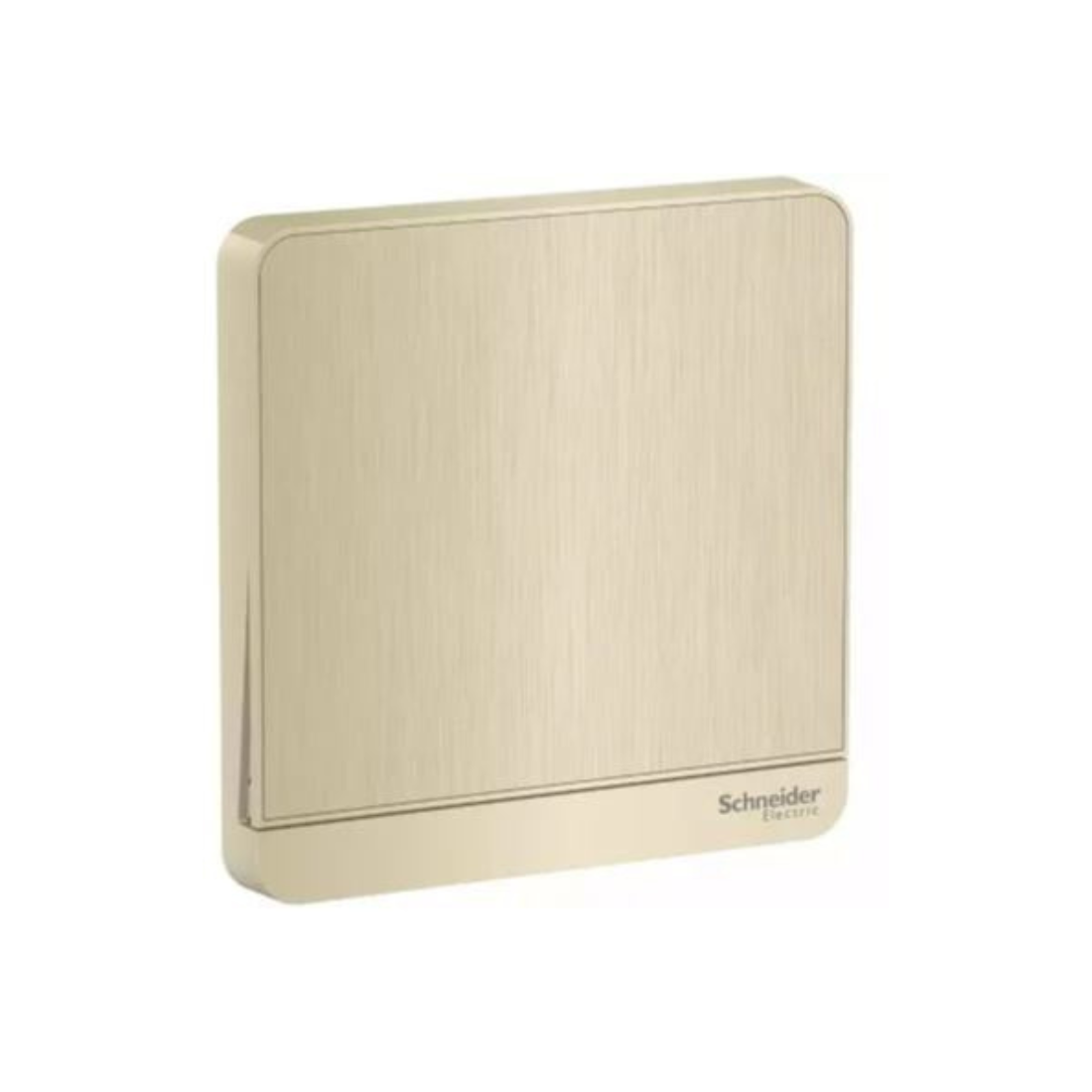

Schneider Electric 2 Way Switch 16AX 250V E8331L2_GH - Metal Gold Hairline
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8331L2_GH 2 Way Switch is a type of switch commonly used in electrical installations. It controls a single light or electrical device from two different locations. 16AX is the current rating, which means the switch can handle a maximum current of 16 amperes. This is a common rating for switches used in residential and light commercial applications. 250V is the maximum voltage the switch is designed to handle. Metal Gold Hairline is the finish or color of the switch.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8331L2_GH |
| Color | Metal Gold Hairline |
| Load Type | Inductive, Incandescent Lamp, Fluorescent Lamp, Resistive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.4 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: grid plate, polycarbonate: base, polycarbonate: dolly, polycarbonate: frame, polycarbonate + GF 20 %: actuator |
| Number Of Gangs | 1 Gang |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 2-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | SS 227-1, MS IEC 60669-1, BS EN 60669-1, IEC 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 82.0 g |
