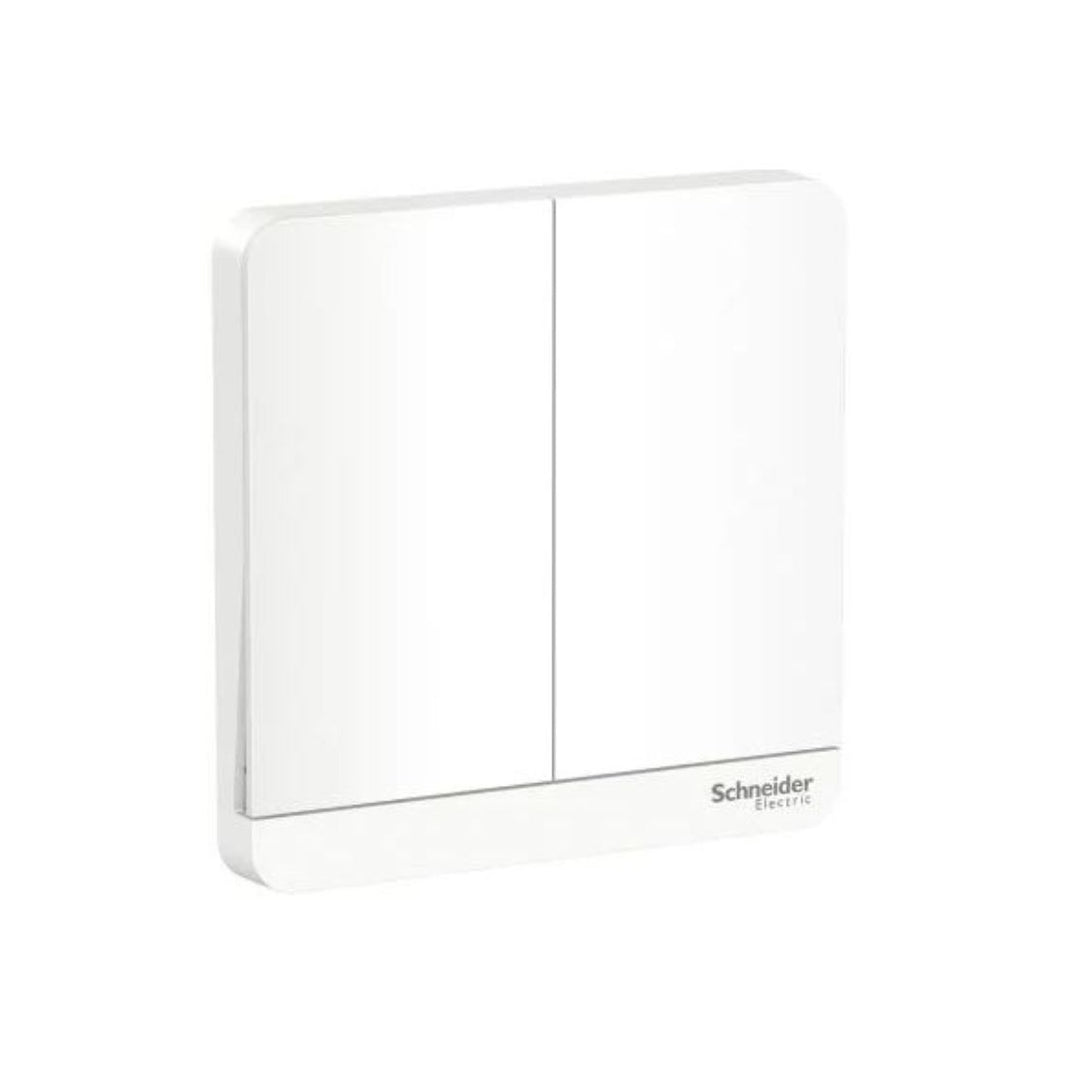

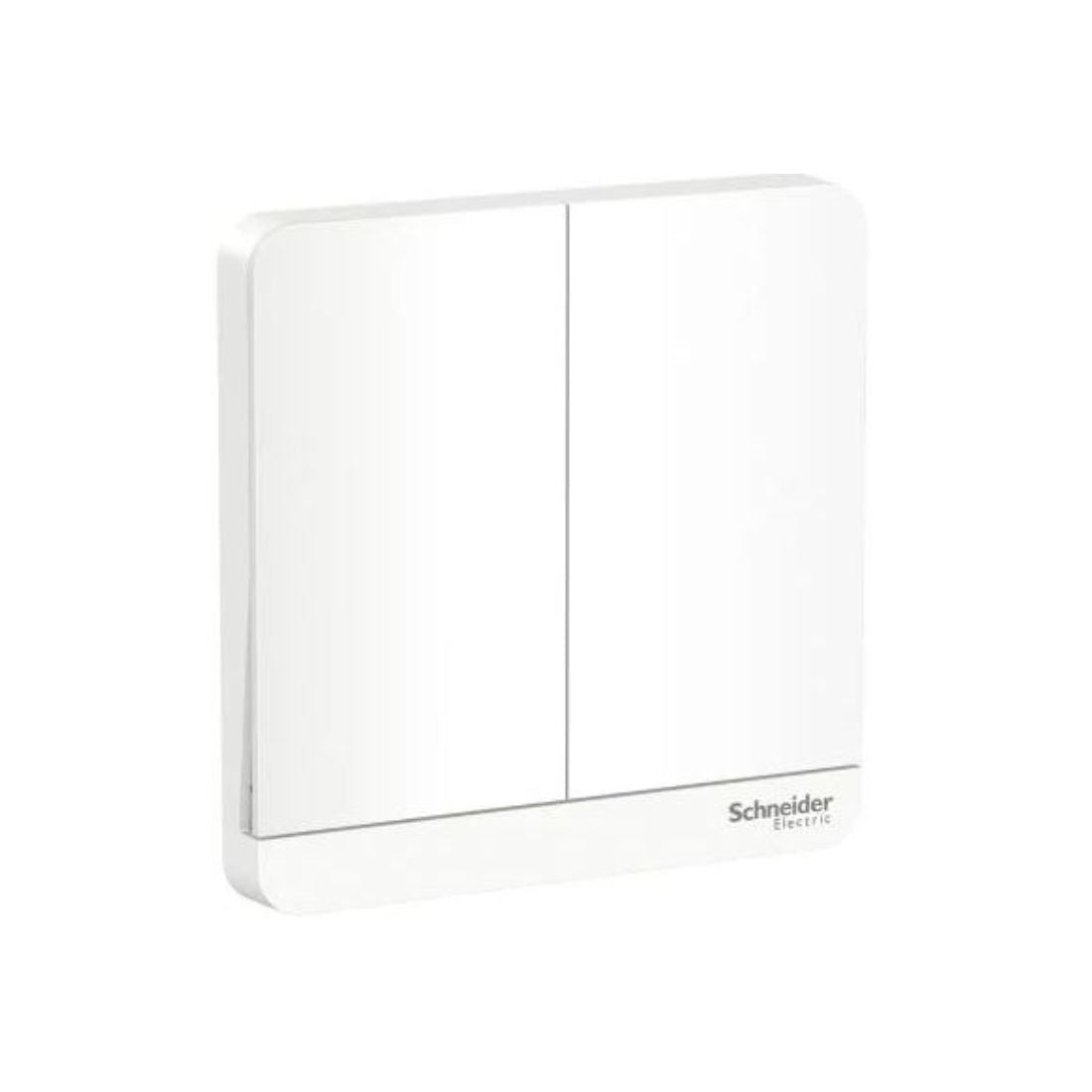

Schneider Electric 2 Way Switch 16AX 250V 2G E8332L2LED_WE - White

Schneider Electric 2 Way Switch 16AX 250V 2G E8332L2LED_WE - White

Regular price AED 36.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Type:Switches
Description

    Schneider Electric E8332L2LED_WE 2-Way Switch is a specific type of electrical switch commonly used in residential and commercial settings. A 2-Way Switch is used to control a single light or electrical device from two different locations. In electrical terminology, this is often referred to as a "two-way switch" or "three-way switch" depending on the number of control points. 16AX is the current rating of the switch.

    250V is the voltage rating of the switch. It is designed to work with electrical systems that operate at up to 250 volts (V). This switch has two individual switch mechanisms within a single wall plate. Each mechanism can control a separate electrical circuit or device. It's common to have multiple switches on a single wall plate for controlling different lights or devices in the same location. The switch includes an LED indicator. LED indicators are often used to show whether the connected light or device is on or off.

    In summary, Schneider Electric E8332L2LED_WE 2-Way Switch is a double-gang switch capable of handling up to 16 amperes of current at 250 volts. It has an LED indicator and is designed to control electrical devices or lighting from two different locations. The switch plate itself is white.

    Features
    • It is a double-gang switch
    • Premium Quality Materials
    • Control electrical devices or lighting from two different locations
    • It includes an LED indicator



Specifications

    Brand : Schneider Electric

    Item Name : 2 Way Switch

    Model : E8332L2LED_WE

    Color : White

    Load Type : Inductive, Incandescent Lamp, Fluorescent Lamp, Resistive

    Rated Current : 16 AX at 250 V AC 50/60 Hz

    Clamping Connection Capacity : 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s)

    Depth : 34.2mm

    Device Application : Control

    Device Mounting : Flush, Surface

    Height : 86mm

    Environmental Characteristic : UV Resistant

    IP Degree Of Protection : IP20

    Material : Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator

    Maximum Ambient Air Temperature for Operation : 45 °C

    Number Of Gangs : 2 Gangs

    Operating Altitude : 2000 m

    Number Of Rocker : 4

    Range : AvatarOn

    Relative Humidity : 0-95 %

    Switch Function : 1-Pole 2-Way

    Width : 86 mm

    Standards : BS EN 60669-1, IEC 60669-1, SS 227-1, MS IEC 60669-1

    Local Signalling Off : LED Indicator, LED (Amber)

    Environmental Characteristic : UV Resistant

    Connections - Terminals : Brass Terminal

    Quantity : 1 Pcs
