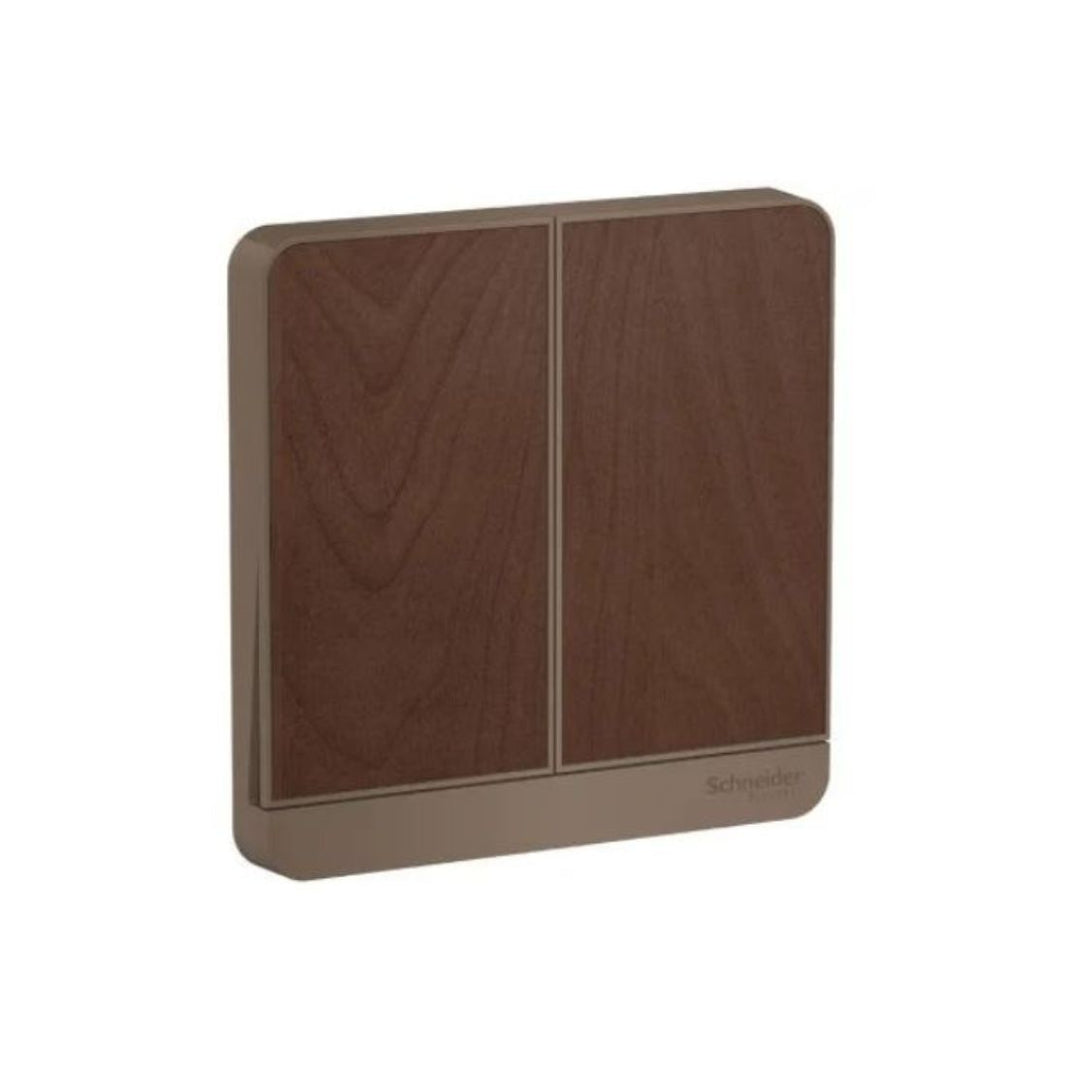

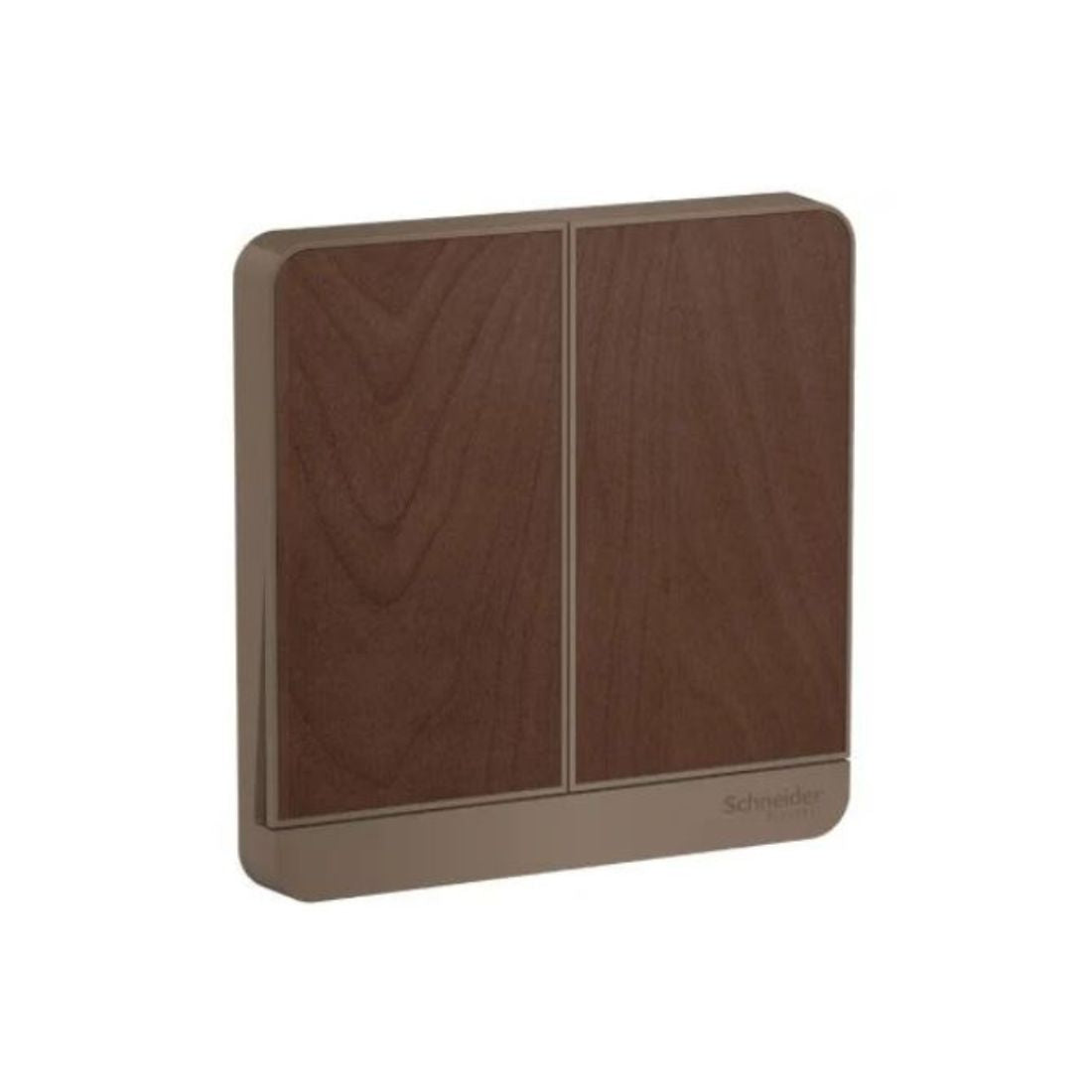

Schneider Electric 2 Switches 16AX 250V 1 Way E8332L1_WD - Wood
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8332L1_WD 1 Way 2 Switches is a type of electrical switch commonly used in homes or commercial buildings. It is a single switch that controls a single light or electrical fixture. The number of control points for the light or electrical fixture. Even though it's a "1-way" switch, there are two separate switches that can control it.
16AX is the current rating of the switch. It means the switch is designed to handle a maximum current of 16 amperes. This is a standard current rating for many switches used in homes. 250V is the voltage rating of the switch. It means the switch is designed to work with electrical systems that have a voltage of up to 250 volts.
So, Schneider Electric E8332L1_WD 1 Way 2 Switches is a switch that can handle up to 16 amps of current at 250 volts. It's designed for a single switch controlling a light or electrical fixture, but there are two separate switches controlling it. The switch plate has a wood finish.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | 1 Way 2 Switches |
| Model | E8332L1_WD |
| Color | Wood |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 2 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 2 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | MS IEC 60669-1, IEC 60669-1, SS 227-1, BS EN 60669-1 |
| Environmental Characteristic | UV Resistant |
