Schneider Electric 2 Gang Telephone Outlet with Shutter KB32TS_AS
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Telephone & Data Socket
Description

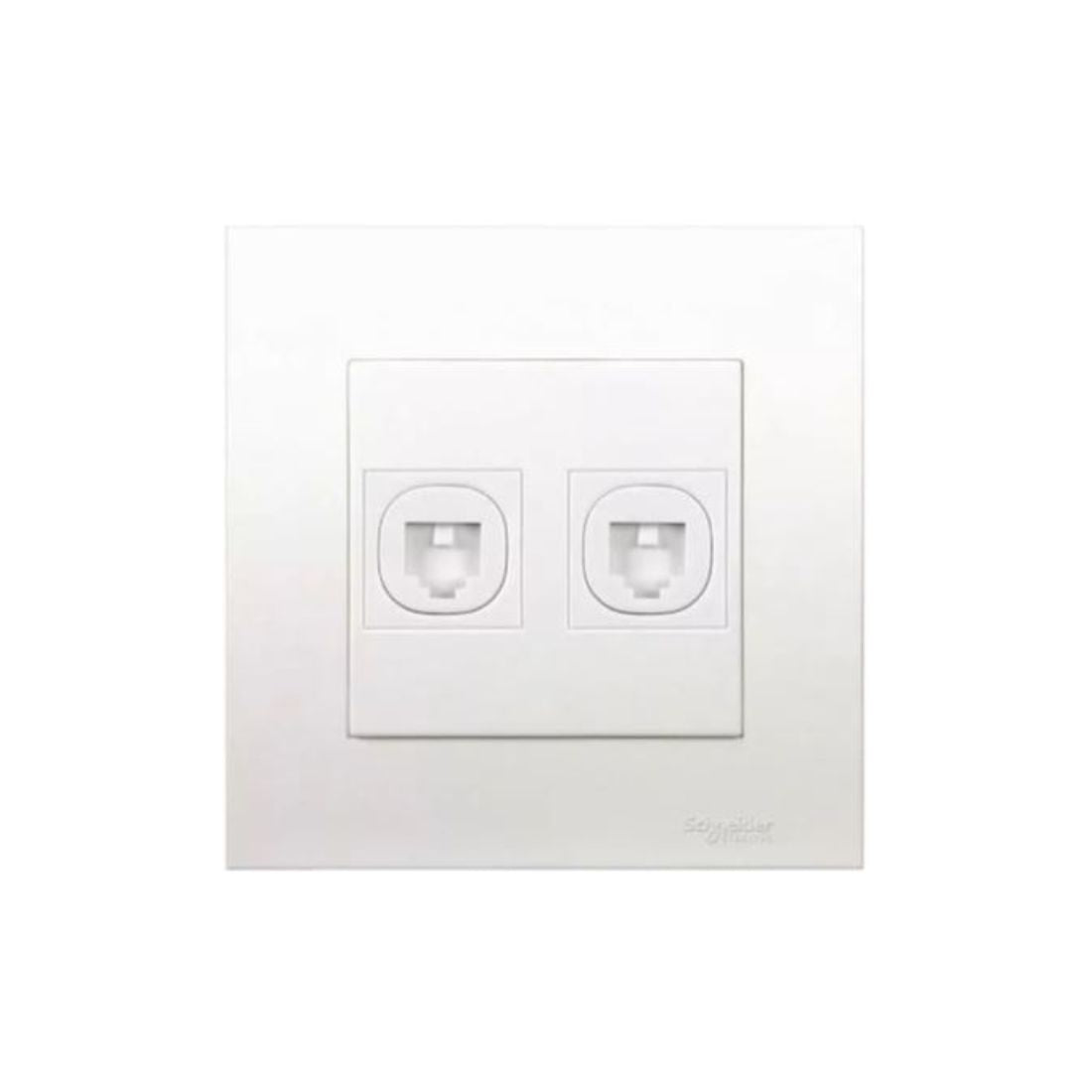

Schneider Electric KB32TS_AS 2 Gang Telephone Outlet With Shutter is a type of wall-mounted telecommunications outlet that provides two telephone ports or connections within a double-gang electrical wall box. These outlets are commonly used in residential and commercial buildings to facilitate telephone connections, allowing you to connect two separate telephone devices or lines.
The shutter is a protective cover or flap that can be opened and closed to cover the telephone ports when they are not in use. This helps to keep dust and debris out of the ports and can also act as a safety feature to prevent accidental contact with live electrical contacts. 2-Gang Plate is the wall plate that mounts onto a double-gang electrical box on the wall. It typically has two openings or cutouts for the telephone ports and the shutter.
Schneider Electric KB32TS_AS 2 Gang Telephone Outlet With Shutter is designed to accommodate standard telephone connectors and cables. They are commonly used in homes and offices where multiple telephone lines or devices need to be connected at the same wall location.
Features
- Clean, geometrically balanced design
- Screwless Design
- Long cycle life
- All sockets are inserted with shutter doors for safety
- Thin: 8mm slim
Brand | Schneider Electric |
Item Name | Telephone Socket |
Model | KB32TS_AS |
Colour | Aluminium Silver |
Rated Current | 13 A at 250 V AC, Resistive |
Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 2.2 cm |
Ambient Air Temperature For Operation | -5-40 °C |
Connections - Terminals | Clamp Terminal |
Embedding Depth | 35mm |
Device Mounting | Flush |
Device Presentation | Complete Mechanism |
Environmental Characteristic | Indoor Use |
Fixing Center | 60.3mm |
Height | 87mm |
Material | Polycarbonate: Grid Plate, Polycarbonate: Surround, Polycarbonate: Base |
Mounting Support | Wall Mounted |
Network Frequency | 50Hz |
Number Of Gangs | 2 Gang |
Outlet Poles Configuration | 2P + E |
Range | Vivace |
Projecting Depth | 8mm |
Relative Humidity | 0-95 % |
Width | 87 mm |
Tightening Torque | 0.4 N.m |
Weight | 91.0 g |
