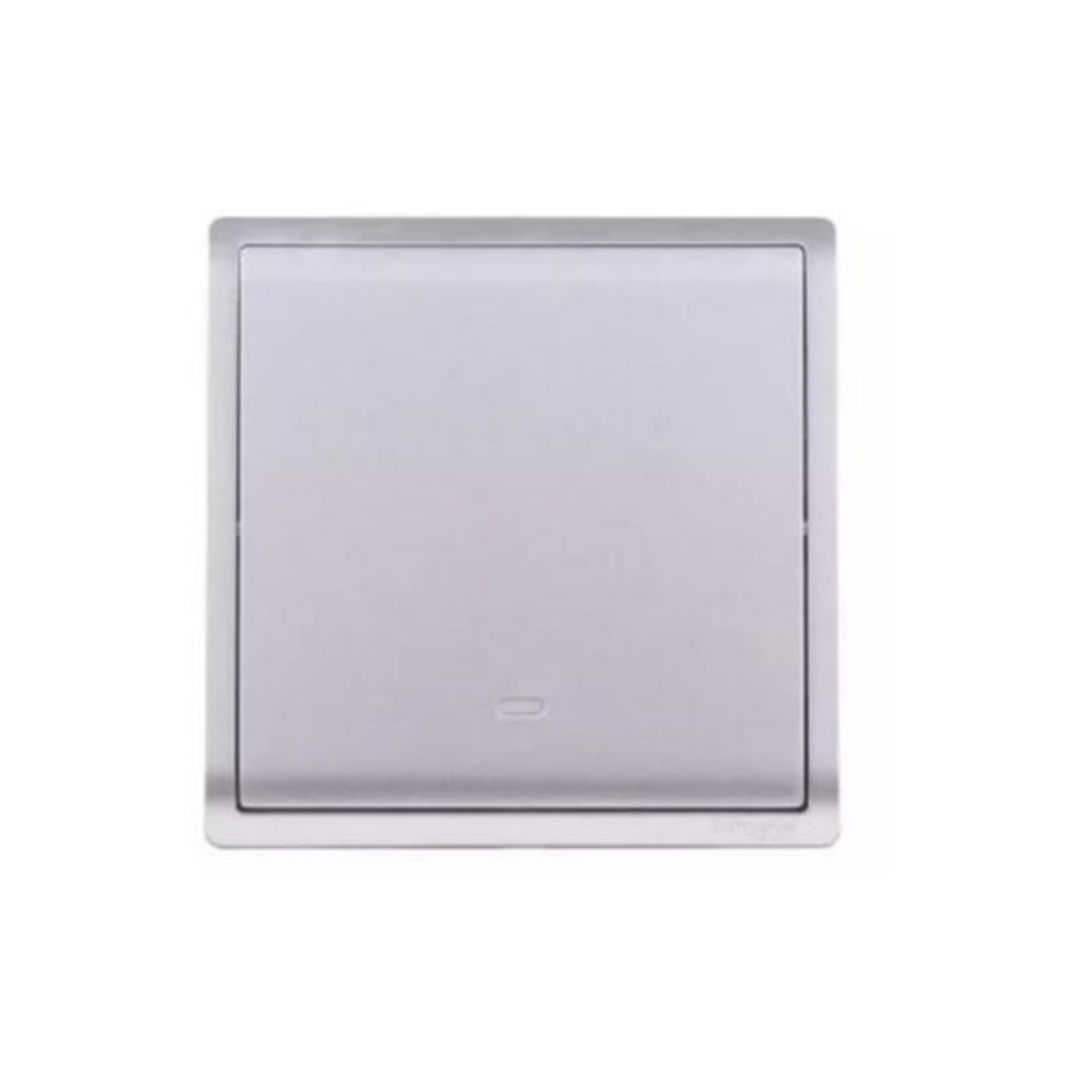

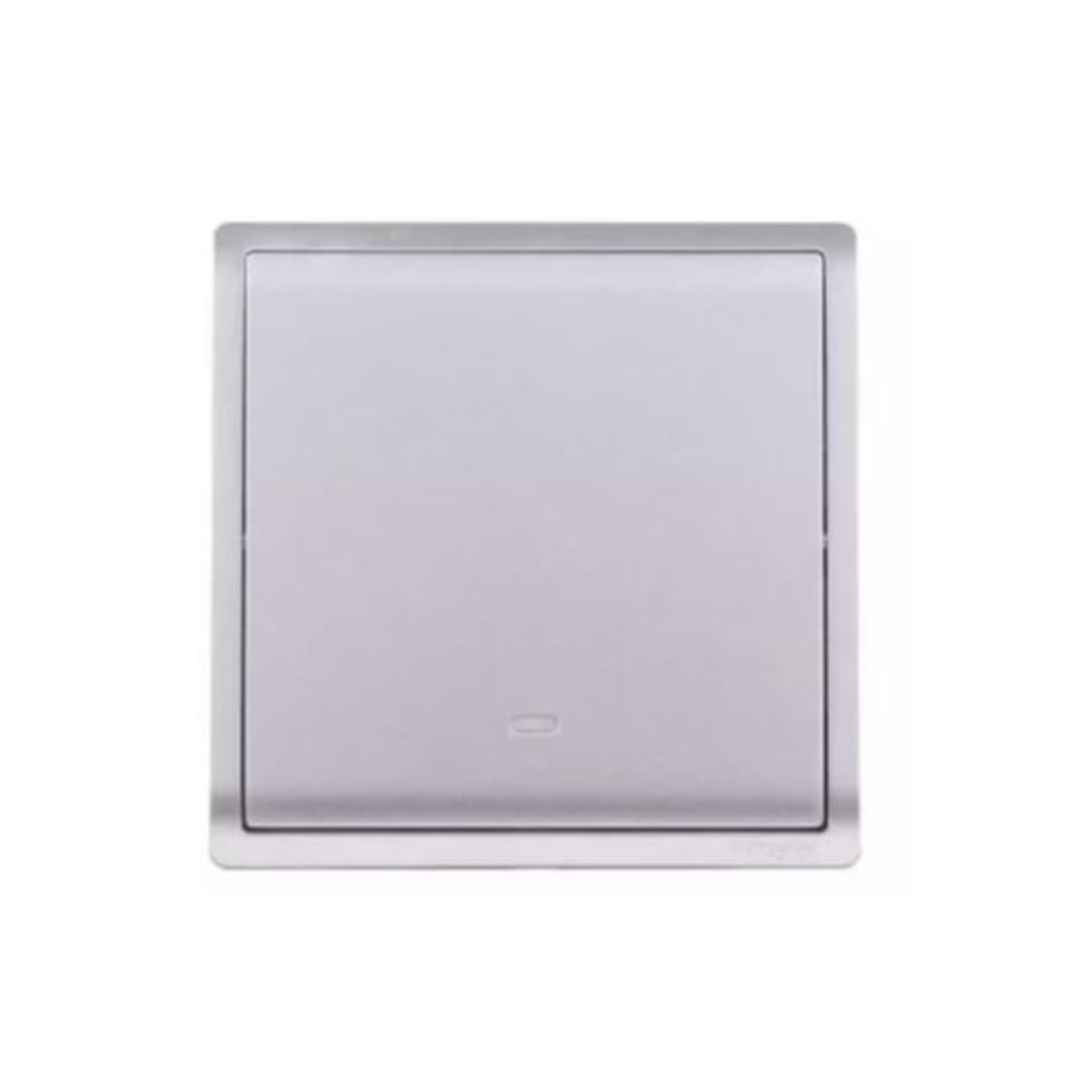

Schneider Electric 16AX 250V 1 Gang Intermediate Switched with Fluorescent Locator E8231MF_AS_G1 - Aluminium Silver
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8231MF_AS_G1 Intermediate Switched With Fluorescent Locator is a type of switch commonly used in lighting circuits, allowing control of a single light or group of lights from multiple locations. It's typically used in conjunction with two-way switches. It has a fluorescent locator.
This switch is rated for 16 Amperes, which means it can handle a load of up to 16A at 250V. It's designed for use with fluorescent lighting systems, which typically have specific requirements compared to incandescent or LED lighting.
Features
- Uncluttered Design with distinctive jumbo dolly
- Slim Profile
- SS Mechanism Technology allows for a 3-degree short throw switching angle and flutter-free switching
- Perfect face technology allows for perfect rocker alignment
| Brand | Schneider Electric |
| Item Name | Intermediate Switch |
| Model | E8231MF_AS_G1 |
| Color | Aluminium Silver |
| Load Type | Fluorescent, Resistive |
| Rated Current | 16 AX at 250 V AC 50 Hz |
| Package1 Length*Width*Height | 8.7 cm x 8.7 cm x 3.17 cm |
| Clamping Connection Capacity | 2 x 1.5 mm² for stranded cable(s), 2 x 2.5 mm² for solid cable(s) |
| Depth | 23 mm |
| Device Application | Control |
| Device Mounting | Surface, Flush |
| Embedding Depth | 19.6 mm |
| Height | 87mm |
| Material | Polycarbonate: Surround, Polycarbonate: Grid Plate |
| Local Signalling | Fluorescent (white) |
| Ambient Air Temperature for Operation | -5-40 °C |
| Number Of Gangs | 1 Gang |
| Range | Pieno |
| Relative Humidity | 0-95 % |
| Switch Application | Switch |
| Switch Function | Intermediate |
| Switch Function | 2-Way |
| Width | 87mm |
| Connections - Terminals | Pillar Terminal |
| Standards | GB 16915.1, MS IEC 60669-1, IEC 60669-1, SS 227-1, BS EN 60669-1 |
| Weight | 107.91g |
