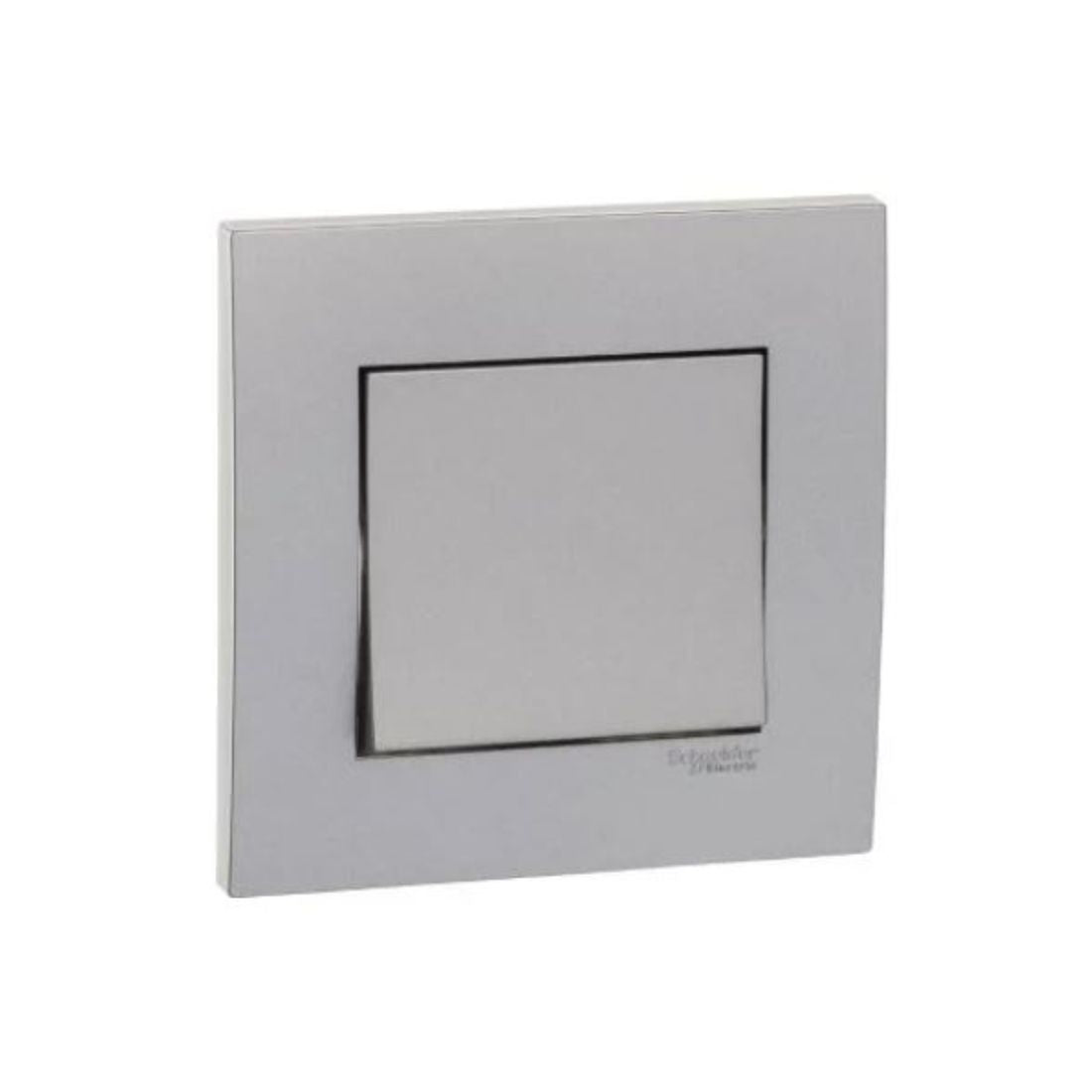

Schneider Electric 1 Gang 1 Way Switch 16AX 250V KB31_1_AS - Aluminium Silver
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric KB31_1_AS 1Gang 1Way Switch is a specific type of light switch commonly used in households or commercial buildings. 1 Gang is the number of switches on the plate. It is a single switch. The switch is a simple on/off switch. It controls one light or electrical device from a single location.
16AX is the current rating of the switch, which can handle up to 16 amperes of current. This is typically suitable for most household lighting circuits. 250V is the maximum voltage the switch is designed to handle.
So, Schneider Electric KB31_1_AS 1Gang 1Way Switch is a single switch designed to control a single light or electrical device. It can handle up to 16 amps of current at a maximum of 250 volts. The switch plate is silver and made of aluminum.
Features
- Ideally suited for new construction and refurbishment projects
- Clean, geometrically balanced design
- High fatigue resistance capacity
- Wall-mounted
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | KB31_1_AS |
| Color | Aluminium Silver |
| Rated Current | 10 AX at 250 V AC, Inductive, 10 AX at 250 V AC, Fluorescent, 10 AX at 250 V AC, Resistive |
| Clamping Connection Capacity | <= 2.5 mm² For Rigid Or Stranded Cable(s) |
| Depth | 37mm |
| Device Application | Control Switch |
| Device Mounting | Flush |
| Height | 86mm |
| Device Presentation | Complete Mechanism |
| Embedding Depth | 25mm |
| IP Degree Of Protection | IP20 |
| Fixing Center | 60.3mm |
| Fixing Mode | By Screw M3.5 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Surround, Nylon: Base |
| Number Of Gangs | 1 Gang |
| Mounting Support | Wall Mounted |
| Network Frequency | 50/60 Hz |
| Network Type | AC |
| Number Of Rocker | 1 |
| Number Of Terminals | 2 |
| Operating Altitude | 0...2000 m |
| Range | Vivace |
| Relative Humidity | 0-95 % |
| Surface Finish | Matt |
| Surface Treatment | Painted |
| Switch Application | On/Off Switching |
| Switch Function | 1-Way |
| Terminal Identifier | L2, L1, COM |
| Wire Stripping Length | 12mm |
| Technology Type | Electromechanical |
| Ambient Air Temperature For Operation | -5-40 °C |
| Environmental Characteristic | Indoor Use |
| Width | 86 mm |
| Connections - Terminals | Screw Terminal |
| Standards | SS 227, MS IEC 60669-1, IEC 60669-1 |
| Tightening Torque | 0.4 N.m |
