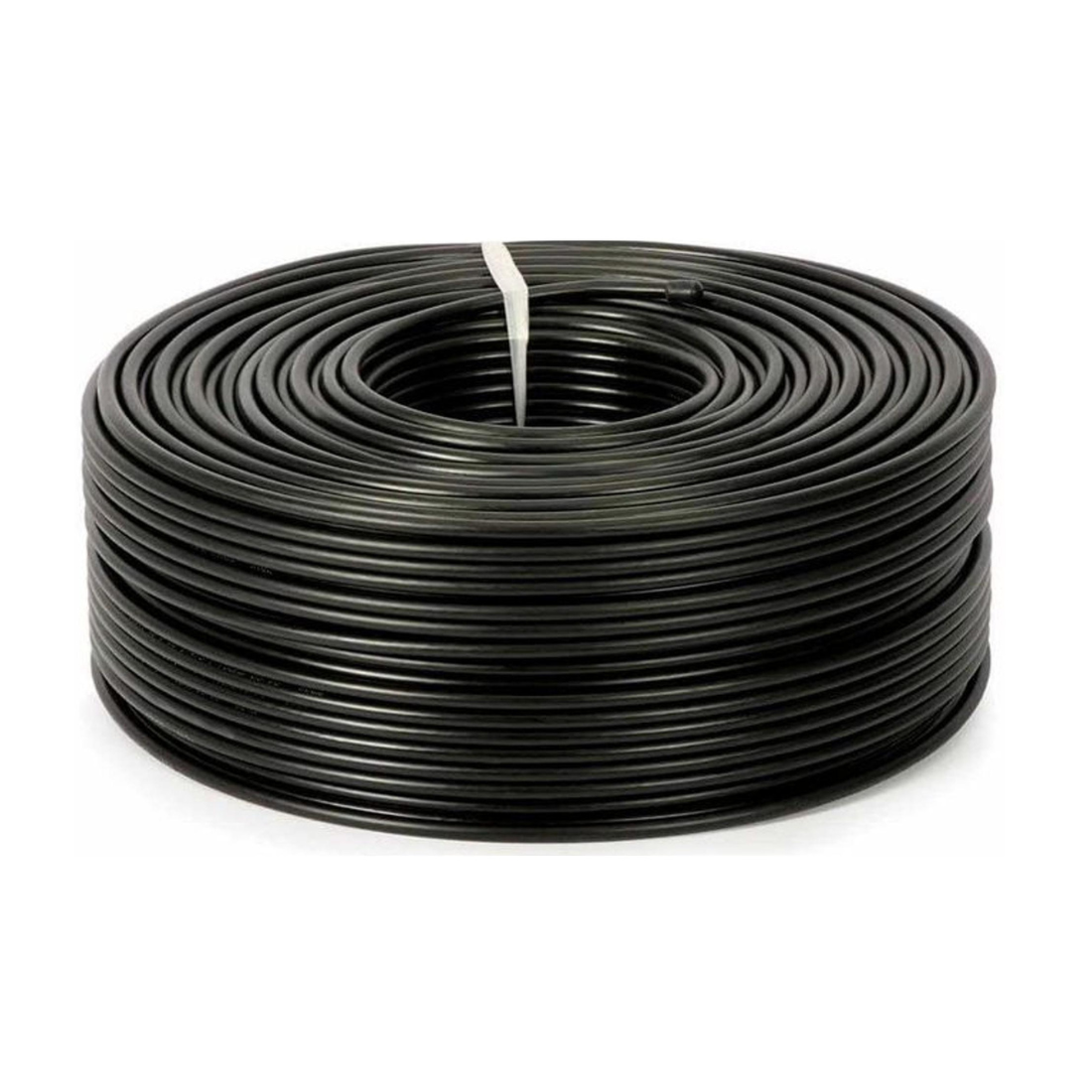

Oman Cables Single Core 6 sqmm PVC Wire Low Smoke Zero Halogen (LSZH) 450/750V 500 meter Roll
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Oman cables
Type : Electric Wire
Description
The LSZH (Low Smoke Zero Halogen) compound used in wires as per BS 7211 / BS EN 50525-3-41 is a thermosetting insulation material, classified as Type EI5 under BS EN 50363-5. It is designed for operating temperatures up to 90°C. Unlike traditional PVC, LSZH does not emit dense smoke or toxic, corrosive gases when burned, making it ideal for fire-safe applications. It is fire retardant, halogen-free, and engineered to produce minimal smoke and toxic emissions during combustion, while offering mechanical and electrical properties similar to PVC. The compound meets strict requirements with a halogen content below 0.5%, minimum pH of 4.3, and conductivity under 10 µS/mm. These wires use single-strand, solid, annealed plain copper conductors and are available in sizes from 1.5 sqmm to 35 sqmm.
| Brand | Oman cables |
| Conductor Diameter | 6 SQMM |

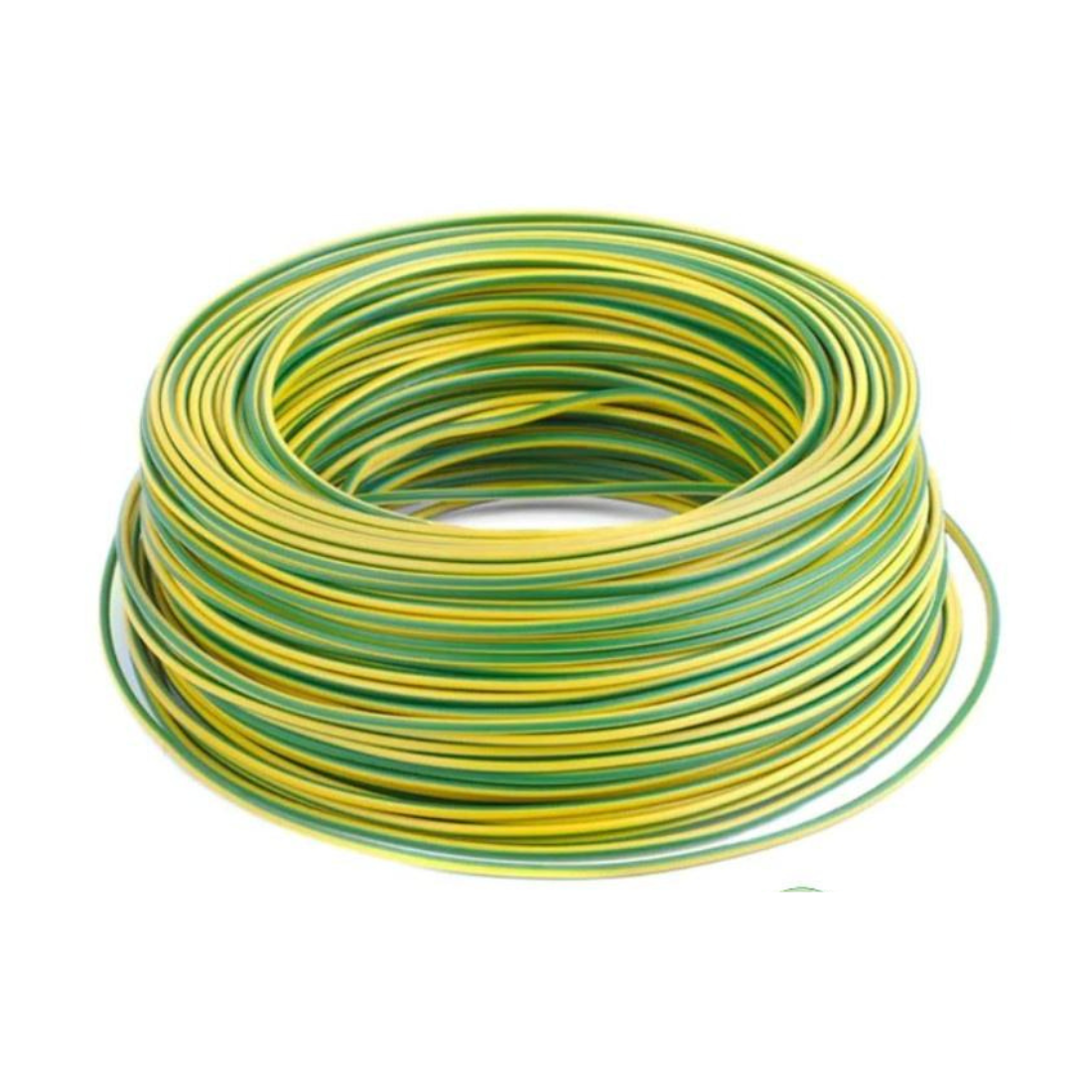

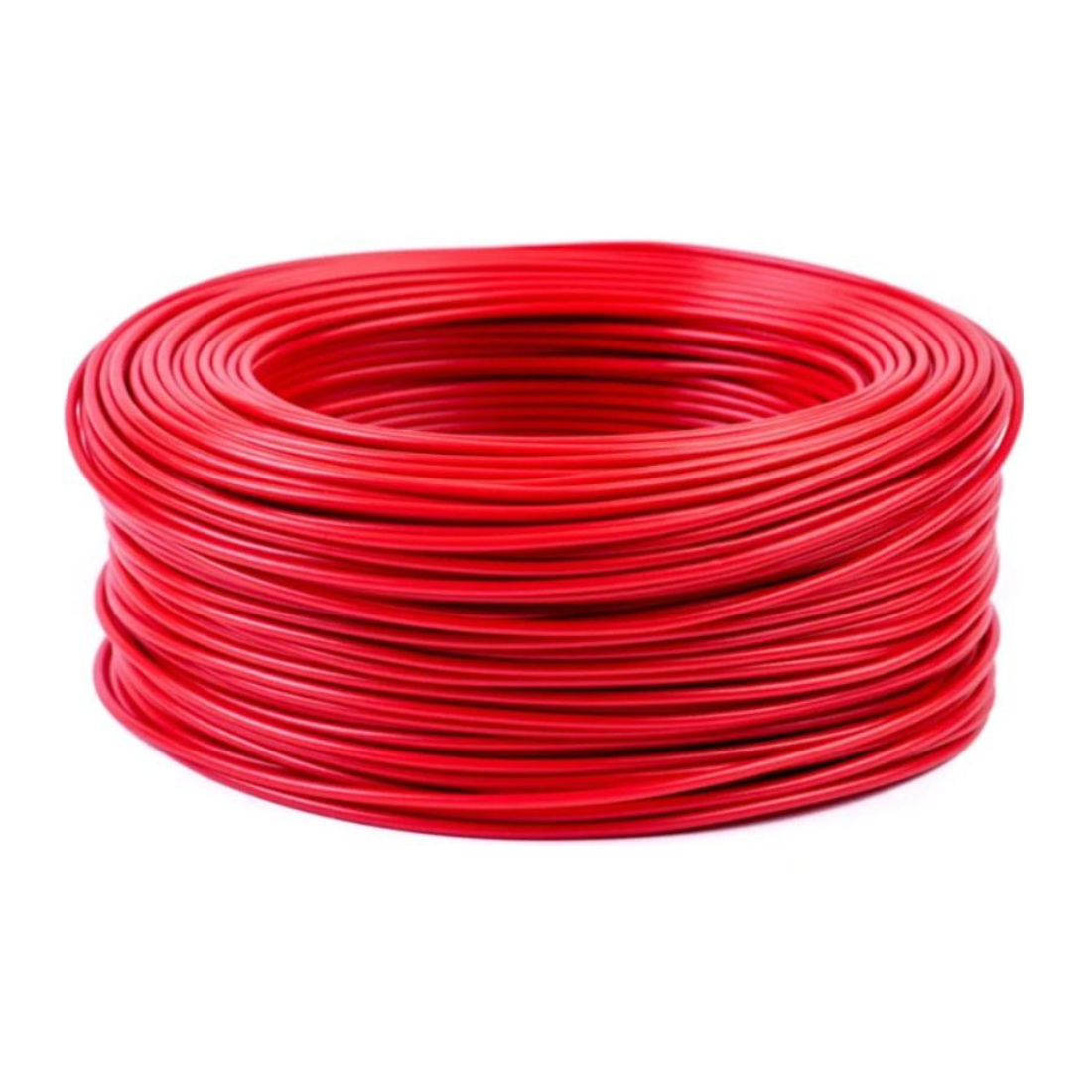

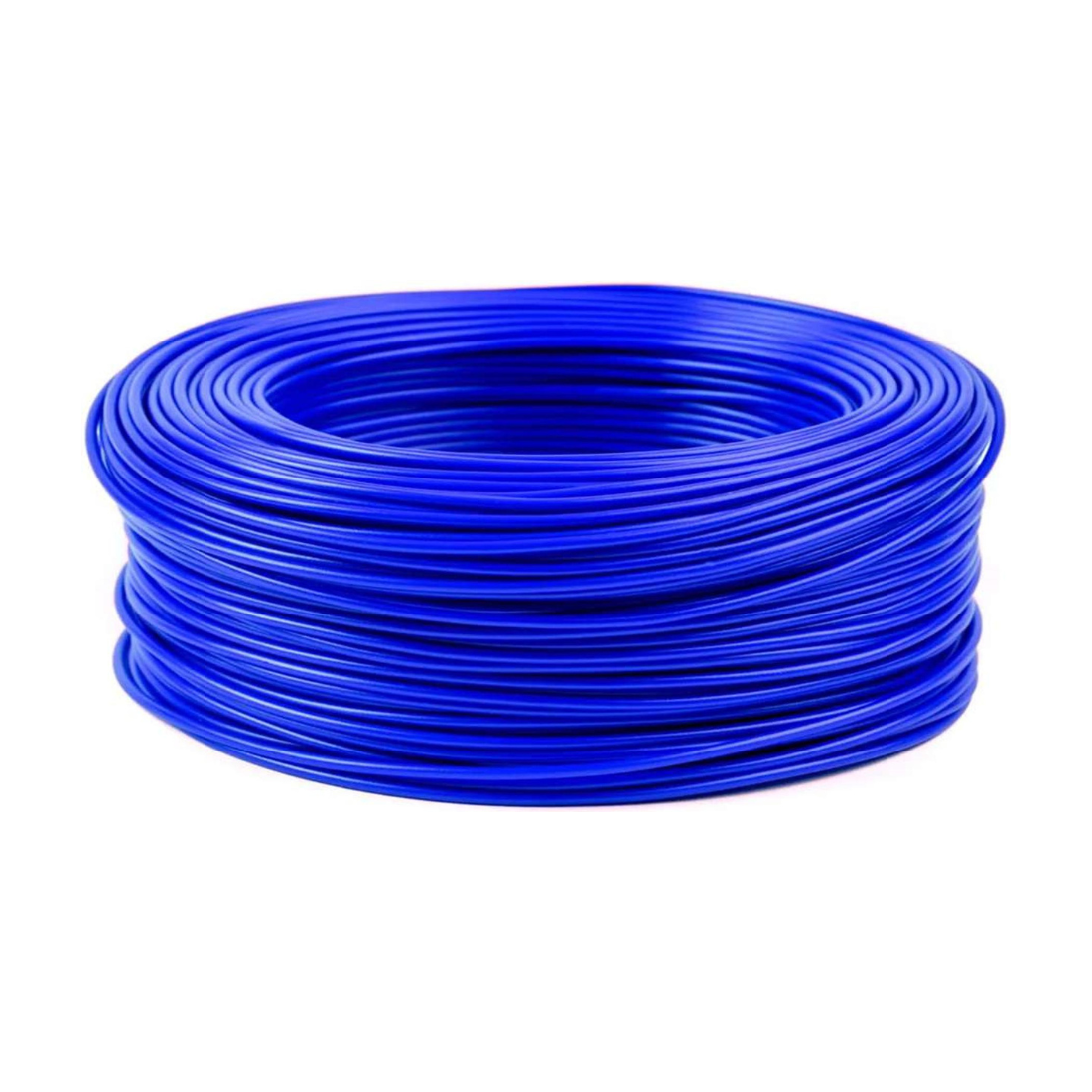

| Color | Black, Red, Blue, Yellow, Green/Yellow |
| Insulation Material | PVC (Low Smoke Zero Halogen) |
| operating temperature | 90°C |
| Length | 500 M |
| Voltage Rating | 450/750V |
| Conductor | Annealed plain copper (single-strand solid) |
