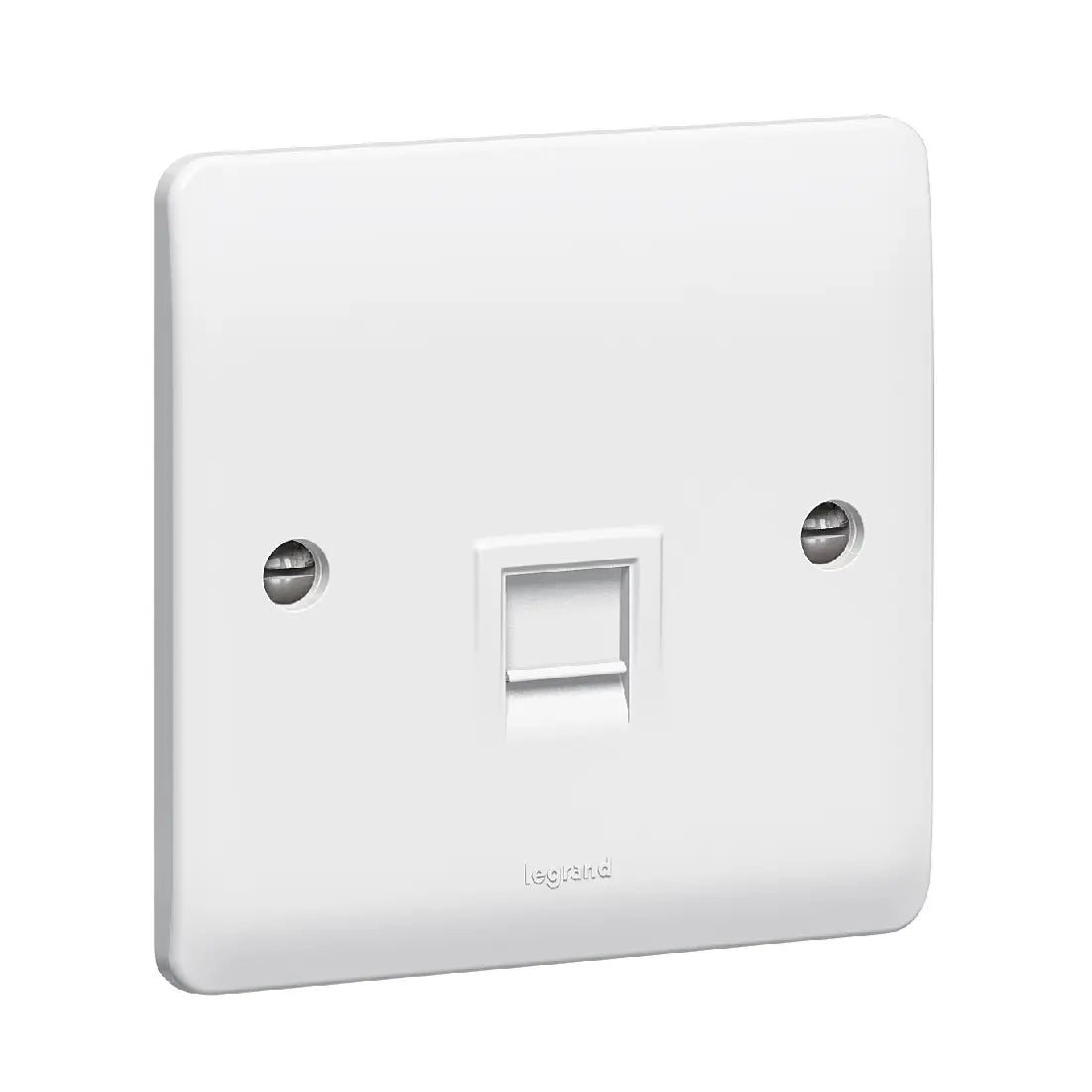

Legrand Synergy White Single RJ45 CAT 6 Data Socket 730056
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : Data Socket
Description
This Legrand Cat 6 compliant data outlet is designed for reliable and high-speed UTP network connectivity. Featuring a durable white thermoset front plate, it ensures a clean, modern appearance suitable for any interior. The unit supports rapid cable connection for efficient installation and is supplied with optional screw caps for a seamless finish. Designed for flush mounting, it requires a minimum back box depth of 35mm. Ideal for both residential and commercial data setups, this socket provides consistent performance and professional-grade quality.
| Brand | Legrand |
| Model | Synergy 730056 |
| Surface mounting | No |
| Flush-mounted installation | Yes |
| Duct installation | No |
| Floor box/subfloor mounted | No |
| Type of fastening | Screwing |
| Assembly arrangement | Basic element with full cover plate |
| Type of connector | RJ45 8(8) |
| With buses/couplings | Yes |
| Suitable for number of connectors | 1 |
| Category | 6 |
| Colour | White |
| RAL-number | 9003 |
| Connection type | Insulation displacement connector |
| Shielded buses | No |
| Separate earthing connection | No |
| With label space | No |
| Separate strain relief | No |
| Mounting method shielding connection | None |
| Outlet direction | Straight |
| With dust cover | Yes |
| Degree of protection (IP) | IP2X |
| Mechanical coding | No |
| Colour coding | Yes |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 32.2 mm |
| Built-in depth | 25.2 mm |
| degree of impact strength (IK) | IK01 |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Terminal marking indication | Yes |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Mounting method | Flush-mounted |
| Tube diameter for wall mounted product | 0-0 mm |
| Maximum Input cable diameter | 9 mm |
| Entry membrane gland type | Not applicable |
| Vertical fixing center distance | 0-0 mm |
| Horizontal fixing center distance | 0-0 mm |
| Cable support | Not applicable |
