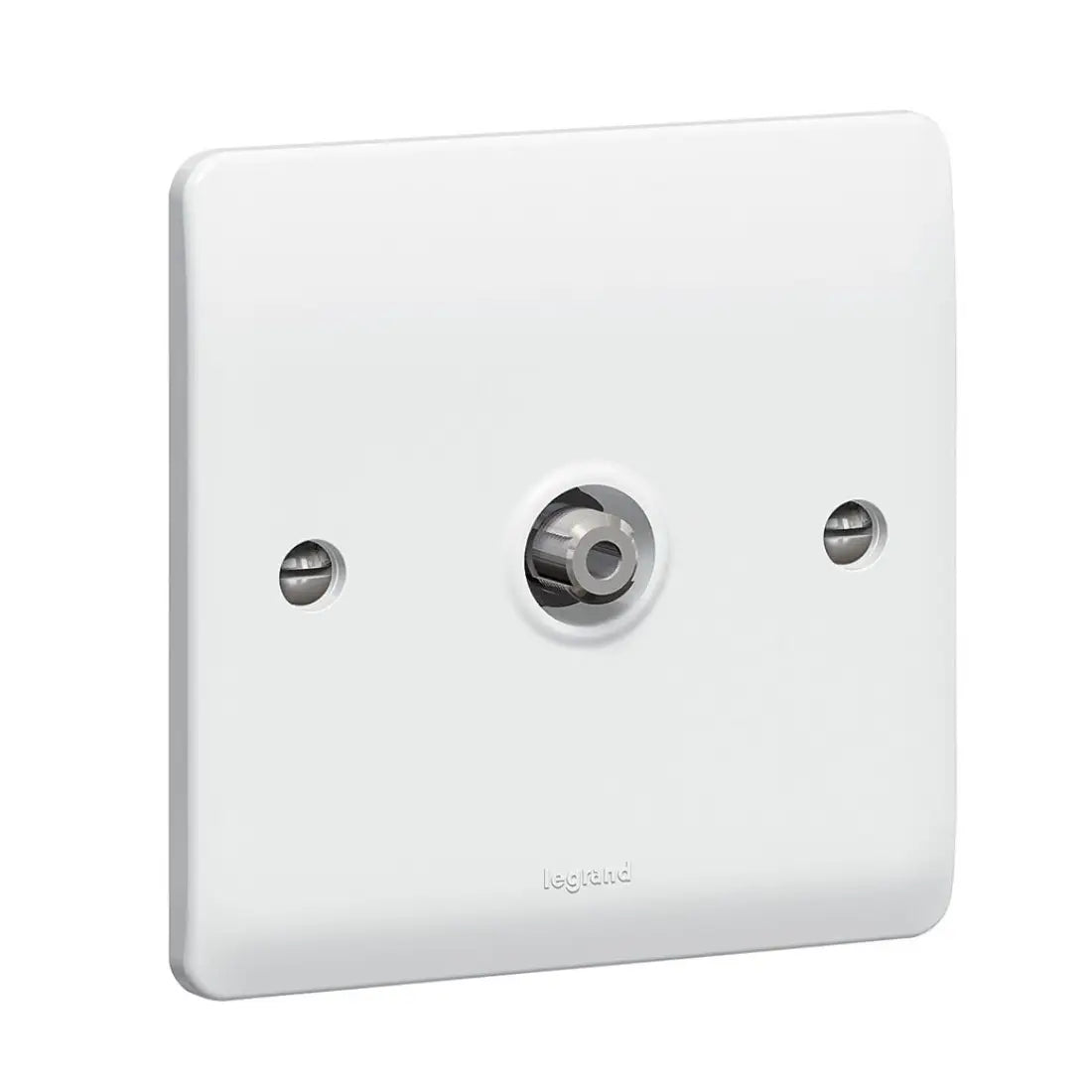

Legrand Synergy White SAT Socket Single F Type 730041
AED 31.31
(Price Includes VAT)
Notice: Pricing Updates
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Brand : Legrand
Type : Satellite Socket
Collections
Description
- Synergy - telephone, data and TV sockets - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximised wiring space - Supplied with faceplate screw caps
- TV sockets - For DVBT, Cablecast and satellite installation. UHD TV compatible - Class A shielded star sockets LTE Ready (4G protected) . Recommended coaxial cable : 17 VATC. Star cabling (1 socket = 1 cable to antenna, splitter or multiswitch) . Visual checking of the connection - Meet EN 50083 - 4 and EN 50083 - 2 European directive - TV : male connector (9.5 mm) - R : female connector (9.5 mm) - TV : 5 - 68 / 120 - 862 MHz - R : 87.5 - 108 MHz - SAT : 950 - 2400 MHz - 2 modules Single TV star sockets - TV F type
| Brand | Legrand |
| Model | Synergy 730041 (End socket) |
| Type of socket outlet | SAT |
| DAB+ | No |
| Mounting method | Flush-mounted |
| Cover | Full cover plate |
| Tap loss at 860 MHz | 1 dB |
| Tap loss at 2150 MHz | 1.5 dB |
| Number of outlets | 1 |
| Suitable for cable modem | No |
| Suitable for remote power supply | Yes |
| Colour | White |
| RAL-number (similar) | 9003 |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Degree of protection (IP) | IP21 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 33 mm |
| Min. depth of built-in installation box | 40 mm |
| Operating / setting temperature | 5–45 °C |
| Storage temperature | -25–70 °C |
