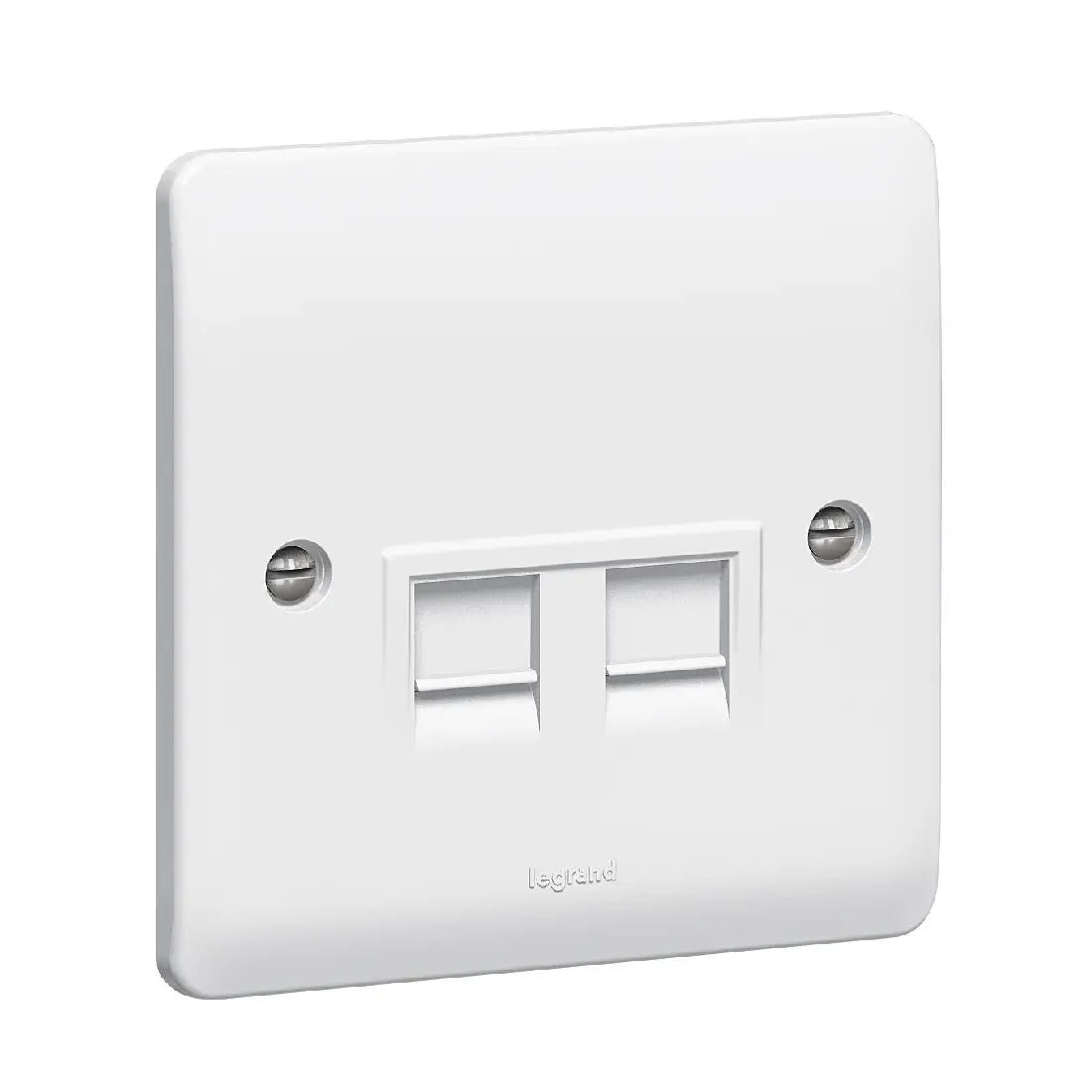

Legrand Synergy White Double RJ45 CAT 6 Data Socket 730057
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : Data Socket
Description
The Legrand CAT 6 UTP RJ45 Data Socket is engineered for high-speed and reliable Ethernet connectivity, making it ideal for both residential and commercial networks. It features a sleek white thermoset front plate that blends seamlessly with modern interiors and is supplied with optional faceplate screw caps for a clean, finished look. This CAT 6 compliant unit supports unshielded twisted pair (UTP) cabling and offers rapid cable connection for quick and secure installation. For optimal fitting, it is recommended to use a flush mounting back box with a minimum depth of 35mm.
| Brand | Legrand |
| Model | Synergy 730057 |
| Surface mounting | No |
| Flush-mounted installation | Yes |
| Duct installation | No |
| Floor box/subfloor mounted | No |
| Type of fastening | Screwing |
| Assembly arrangement | Basic element with full cover plate |
| Type of connector | RJ45 8(8) |
| With buses/couplings | Yes |
| Suitable for number of connectors | 2 |
| Category | 6 |
| Colour | White |
| RAL-number | 9003 |
| Connection type | Insulation displacement connector |
| Shielded buses | No |
| Separate earthing connection | No |
| With label space | No |
| Separate strain relief | No |
| Mounting method shielding connection | None |
| Outlet direction | Straight |
| With dust cover | Yes |
| Degree of protection (IP) | IP2X |
| Mechanical coding | No |
| Colour coding | Yes |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 32.2 mm |
| Built-in depth | 25.2 mm |
| degree of impact strength (IK) | IK01 |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Mounting method | Flush-mounted |
| Tube diameter for wall mounted product | 0-0 mm |
| Maximum Input cable diameter | 9 mm |
| Entry membrane gland type | Not applicable |
| Vertical fixing center distance | 0-0 mm |
| Horizontal fixing center distance | 0-0 mm |
| Cable support | Not applicable |
