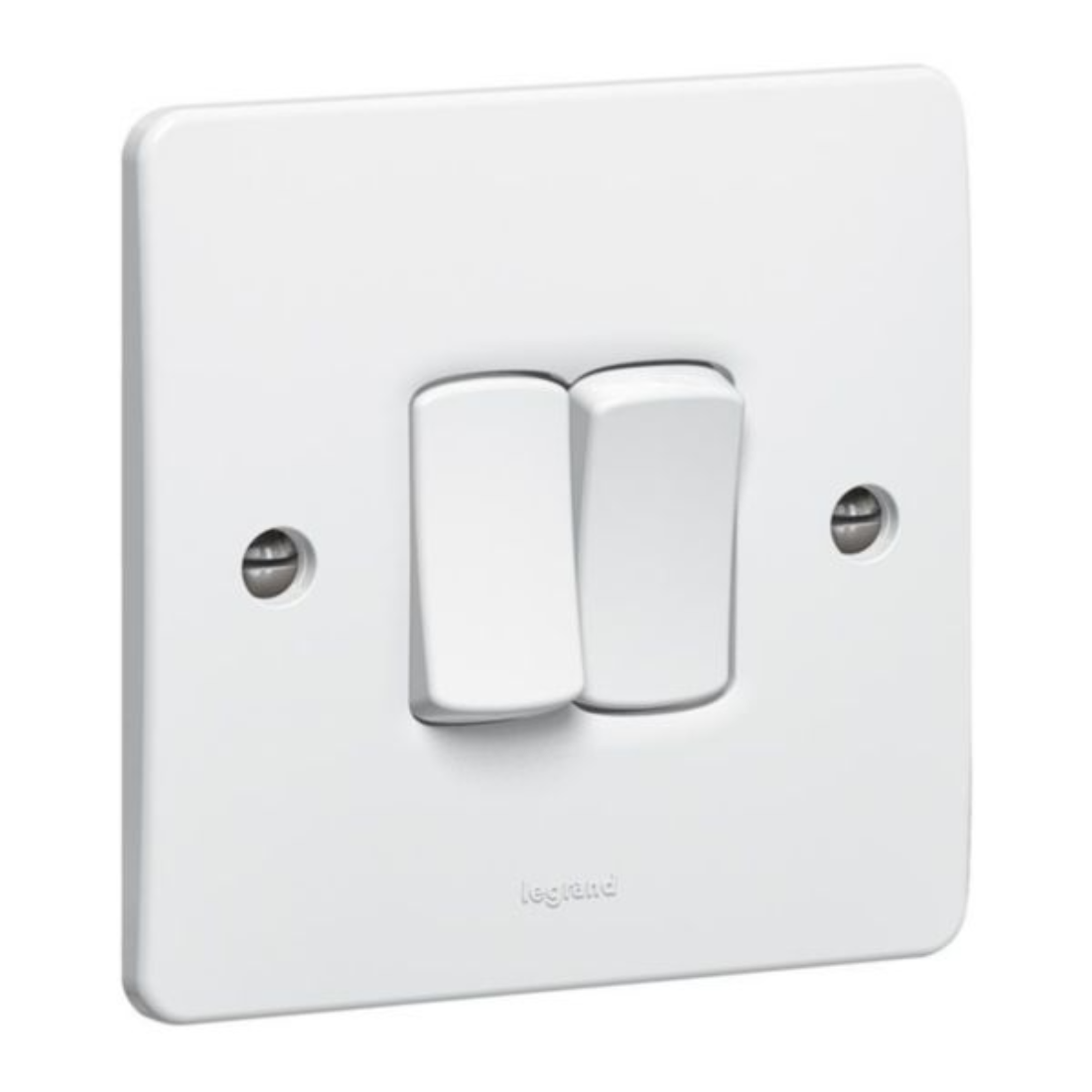

Legrand Synergy White 2 Gang 2 Way Single Pole Switch 20AX 250V 730132
AED 26.64
(Price Includes VAT)
Notice: Pricing Updates
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Brand : Legrand
Type : Switch
Collections
Description
- Synergy - single pole switches, single pole push and key switches, rotary dimmers - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximized wiring space - Supplied with faceplate screw caps
- Single pole plate switches 20 AX - 250 V - Conform to BS EN 60669 - 1 - For flush-mounting, back box to be min. 16 mm deep - Nominal plate dimensions : 86 x 86 mm - 2 gang - 2 way
| Brand | Legrand |
| Model | Synergy 730132 |
| Wiring system | Two-way switch |
| Method of operation | Rocker/button |
| Push button switch | No |
| Assembly arrangement | Basic element with full cover plate |
| Number of rockers | 2 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | No |
| Material | Plastic |
| Material quality | Duroplast |
| Halogen free | Yes |
| Surface finishing | Glossy |
| Color | White |
| RAL-number (similar) | 9003 |
| Label space/information surface | No |
| Suitable for degree of protection (IP) | IP2X |
| degree of impact strength (IK) | IK01 |
| Nominal voltage | 250 V |
| Rated current | 20 A |
| Switching current for fluorescent lamps | 20 AX |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 25.5 mm |
| Min. depth of built-in installation box | 30 mm |
| Built-in depth | 14 mm |
| Operating / setting temperature | -5 - 40 °C |
| Storage temperature | -5 - 40 °C |
| Voltage type | AC |
| Frequency | 50 - 60 Hz |
| Cable section | 4 - 4 mm² |
