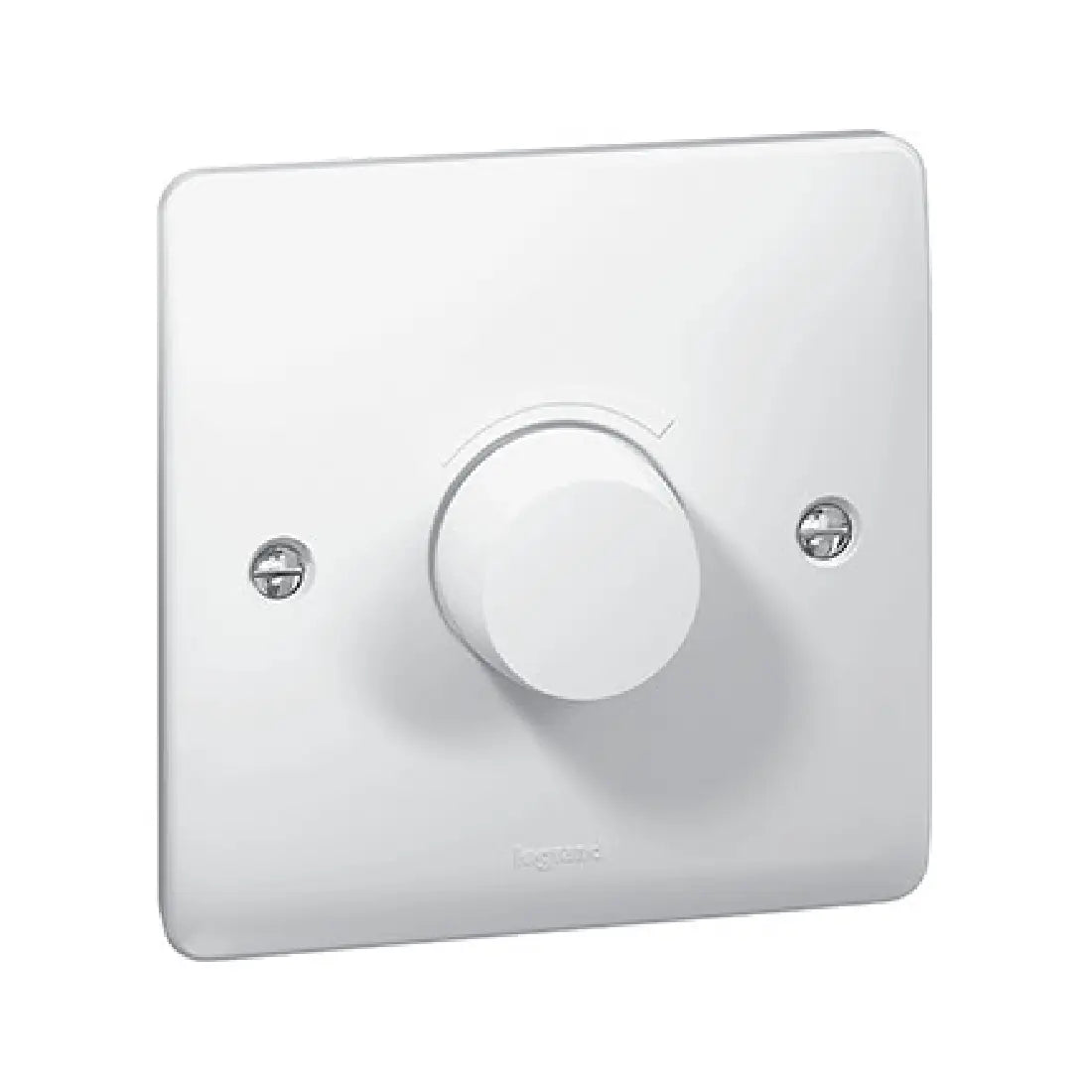

Legrand Synergy White 1 Gang Rotary Dimmer 100/240V 50/60Hz 731151
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : Rotary Dimmer
Description
The Legrand Synergy 1-Gang Universal Rotary Dimmer is a versatile and efficient lighting control solution suitable for a wide range of lamp types. Designed with a white thermoset front plate and a compact internal mechanism, it maximizes wiring space and offers smooth dimming performance. This push on/off rotary dimmer supports various lighting loads, including dimmable LEDs, CFLs, halogens, and fluorescent lamps. It features large angled terminal entries, captive screws backed off for quick cabling, and comes with faceplate screw caps for a clean finish. Built to conform with IEC 60669-2-1 standards, it also includes overvoltage and short-circuit protection for added safety. When switched on, the light gradually brightens to the previously set level, enhancing user comfort and energy efficiency.
| Brand | Legrand |
| Model | Synergy 731151 |
| Product Type | Universal Rotary Dimmer (Push On/Off) |
| Voltage Range | 100 – 240 V~, 50/60 Hz |
| Power Rating | 5 W – 300 W depending on load type |
| Supported Loads | Dimmable LEDs: 5–75 W, Dimmable CFLs: 5–75 W, Halogen with ferromagnetic/electronic transformers: 5–300 VA, Fluorescent tubes with ballast: 5–300 VA, Halogen & Incandescent (230 V): 5–300 W. |
| Mounting | Flush-mounted (min. 40 mm back box required) |
| Protection Features | Overvoltage and short-circuit protection |
| Terminals | Screw terminals with captive screws and large angled entries |
| Material | White thermoset |
| Surface Finish | Glossy, supplied with faceplate screw caps |
| Lighting Memory | Gradual light-up to previous level after switch-on (2 seconds) |
| Conformity | IEC 60669-2-1 |
| Compatibility | Can be associated with an active power compensator |
| Nominal Plate Dimensions | 86 x 86 mm |
