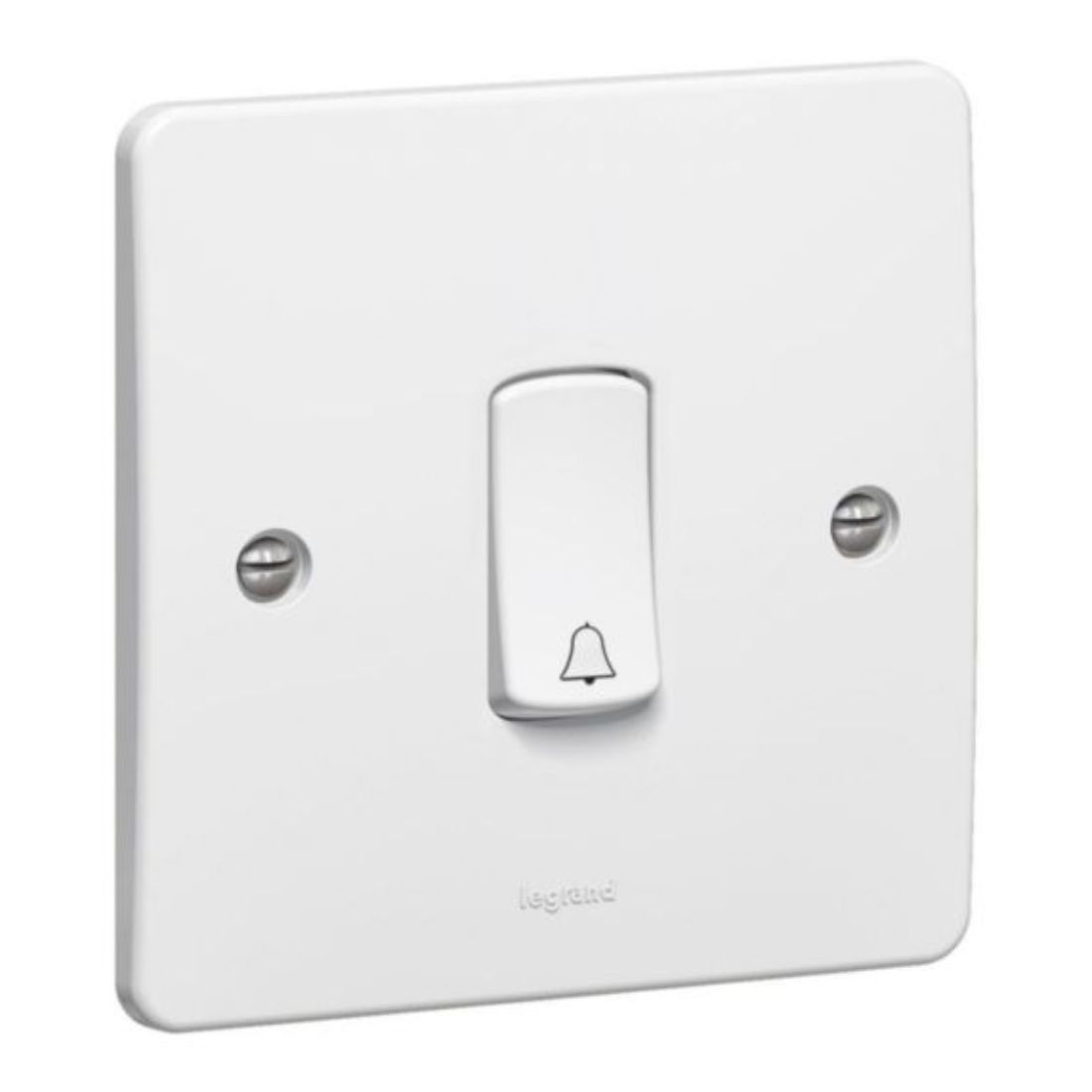

Legrand Synergy White 1 Gang 2 Way Single Push Switch with Bell Symbol 10AX 250V 730107
AED 14.00
(Price Includes VAT)
Notice: Pricing Updates
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Brand : Legrand
Type : Push Switch
Collections
Description
- Synergy - single pole switches, single pole push and key switches, rotary dimmers - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximized wiring space - Supplied with faceplate screw caps
- Single pole push switches 10 A - 250 V - Conform to BS EN 60669 - 1 - For flush-mounting, back box to be min. 16 mm deep - ASTA license - 1 gang - 2 way push switch with bell symbol
| Brand | Legrand |
| Model | Synergy 730107 (Single push button) |
| Method of operation | Rocker |
| Assembly arrangement | Basic element with full cover plate |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| Material | Plastic |
| Material quality | Duroplast |
| Halogen free | Yes |
| Surface finishing | Glossy |
| Color | White |
| RAL-number (similar) | 9003 |
| Color of switch operator | White |
| With lighting | Yes |
| With complementary luminous signal | Yes |
| Label space/information surface | Yes |
| Imprint | None |
| Suitable for degree of protection (IP) | IP2X |
| degree of impact strength (IK) | IK01 |
| Nominal voltage | 250 V |
| Rated current | 10 A |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 24.5 mm |
| Built-in depth | 14 mm |
| Operating / setting temperature | -5 - 40 °C |
| Storage temperature | -5 - 40 °C |
| Voltage type | AC |
| Frequency | 50 - 60 Hz |
| Cable section | 4-4 mm² |
