Legrand Synergy White 1 Gang 2 Way Single Pole Switch 10AX 250V 730001
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
Legrand are one of the top manufacturers worldwide when it comes to electrical and digital infrastructure. Whether it is cable management, wiring accessories or anything in between. Legrand is an excellent choice for reliable and quality products.

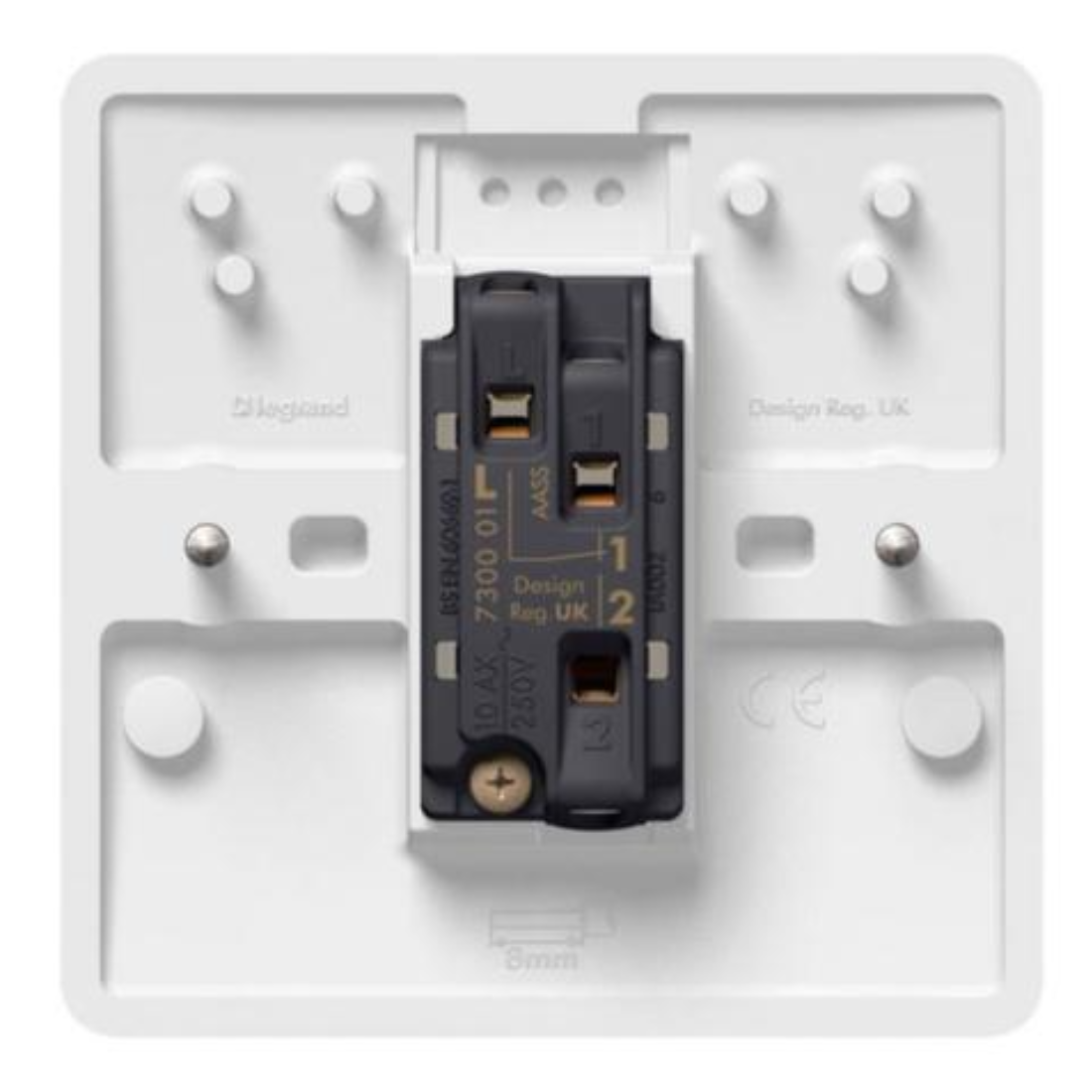

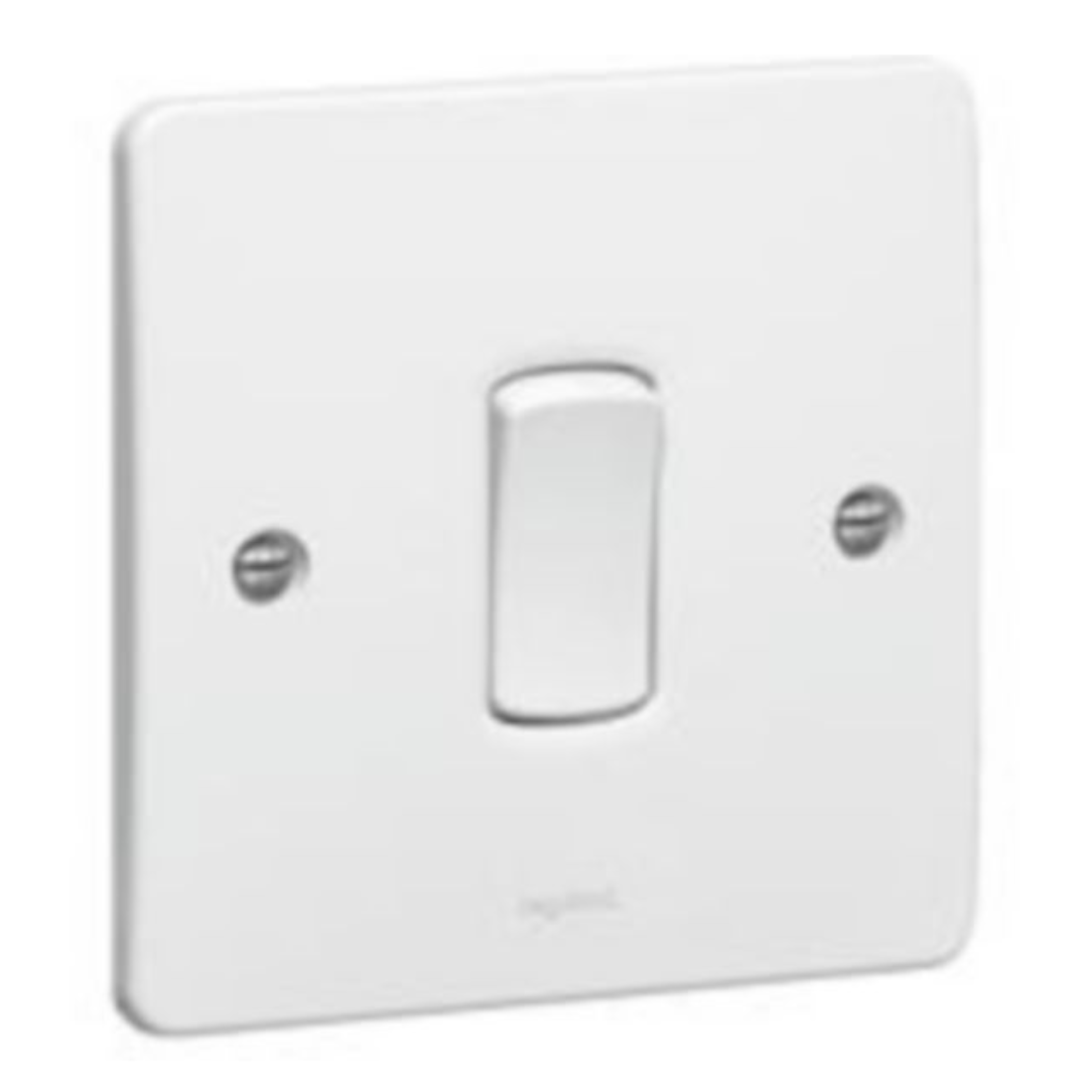

The Legrand 730001 is a 1 gang, 2 way, single pole plateswitch. It has a white finish and a 10A rating. It is part of the Synergy range and comes complete with terminal screws and caps so the screw heads are not visible on the plate.
| Brand | Legrand |
| Model | Synergy 730001 |
| Wiring system | Two-way switch |
| Method of operation | Rocker/button |
| Assembly arrangement | Basic element with full cover plate |
| Number of rockers | 1 |
| Mounting method | Flush mounted |
| Type of fastening | Screw mounting |
| With mounting plate | No |
| Material | Plastic |
| Material quality | Duroplast |
| Halogen free | Yes |
| Surface finishing | Glossy |
| Color | White |
| RAL-number (similar) | 9003 |
| Suitable for degree of protection (IP) | IP2X |
| Nominal voltage | 250 V |
| Rated current | 10 A |
| Switching current for fluorescent lamps | 10 AX |
| Connection type | Screwed terminal |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 25.5 mm |
| Built-in depth | 14 mm |
| Min. depth of built-in installation box | 30 mm |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -5-40 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
