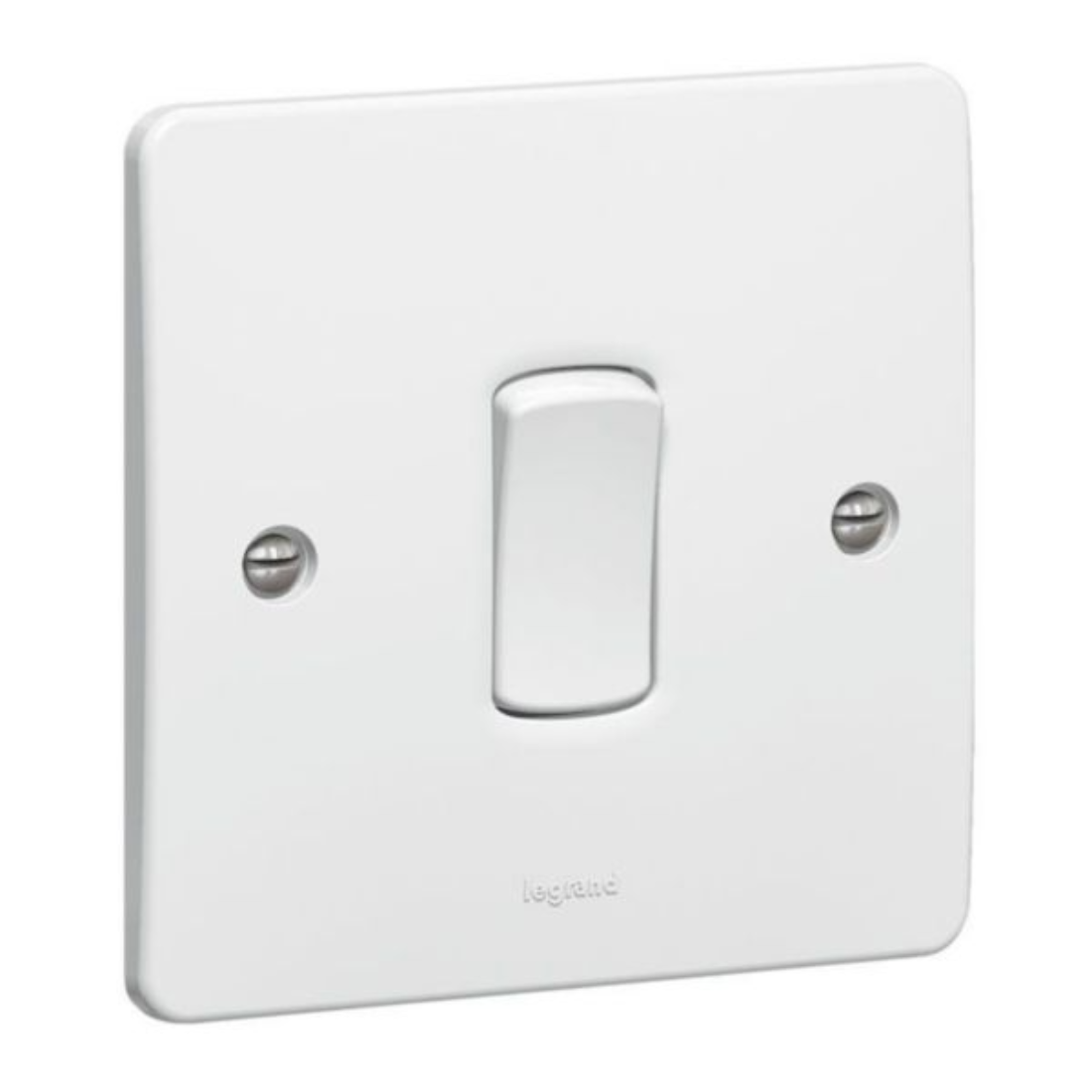

Legrand Synergy White 1 Gang 2 Way Single Pole Push Switch 10AX 250V 730007
AED 12.00
(Price Includes VAT)
Notice: Pricing Updates
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Brand : Legrand
Type : Switch
Collections
Description
- Synergy - single pole switches, single pole push and key switches, rotary dimmers - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximized wiring space - Supplied with faceplate screw caps
- Single pole push switches 10 A - 250 V - Conform to BS EN 60669 - 1 - For flush-mounting, back box to be min. 16 mm deep - ASTA license - 1 gang - 2 way push switch
| Brand | Legrand |
| Model | Synergy 730007 (Single push button) |
| Method of operation | Rocker |
| Assembly arrangement | Basic element with full cover plate |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Contactless type | No |
| Number of rockers | 1 |
| Number of modules (module system) | 2 |
| Connection type | Screwed terminal |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface finishing | Glossy |
| Color | White |
| RAL-number (similar) | 9003 |
| Suitable for degree of protection (IP) | IP20 |
| degree of impact strength (IK) | IK01 |
| Nominal voltage | 250 V |
| Rated current | 10 A |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 26 mm |
| Built-in depth | 14 mm |
| Min. depth of built-in installation box | 40 mm |
| Operating / setting temperature | -5 - 40 °C |
| Storage temperature | -5 - 40 °C |
| Voltage type | AC |
| Frequency | 50 - 60 Hz |
