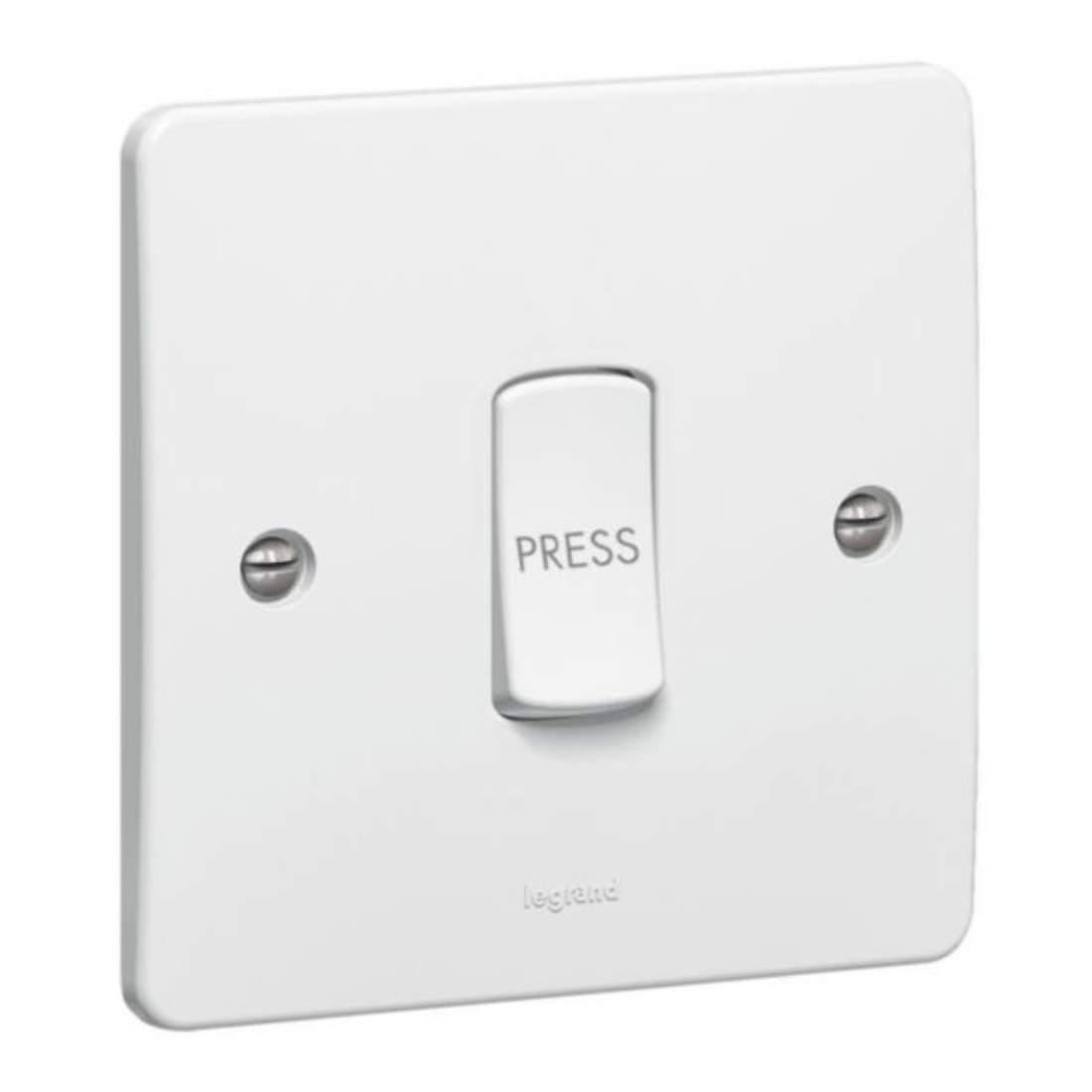

Legrand Synergy White 1 Gang 2 Way Push Switch with Press Marking 10AX 250V 730011
AED 22.57
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Due to heavy rainfall, delivery timelines may be affected. We are making every effort to ensure your order is delivered at the earliest possible time.
Brand : Legrand
Type : Push Switch
Collections
Description
- Synergy - single pole switches, single pole push and key switches, rotary dimmers - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximized wiring space - Supplied with faceplate screw caps
- Single pole push switches 10 A - 250 V - Conform to BS EN 60669 - 1 - For flush-mounting, back box to be min. 16 mm deep - ASTA license - 1 gang - 2 way push switch marked PRESS
| Brand | Legrand |
| Model | Synergy 730011 |
| Method of operation | Rocker |
| Assembly arrangement | Basic element with full cover plate |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface finishing | Glossy |
| Color | White |
| RAL-number (similar) | 9003 |
| Label space/information surface | Yes |
| Imprint | Symbol "bell" |
| Suitable for degree of protection (IP) | IP20 |
| degree of impact strength (IK) | IK01 |
| Nominal voltage | 250 V |
| Rated current | 10 A |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 26 mm |
| Min. depth of built-in installation box | 40 mm |
| Built-in depth | 14 mm |
| Operating / setting temperature | -5 - 40 °C |
| Storage temperature | -5 - 40 °C |
| Voltage type | AC |
| Frequency | 50 - 60 Hz |
| Cable section | 4-4 mm² |
