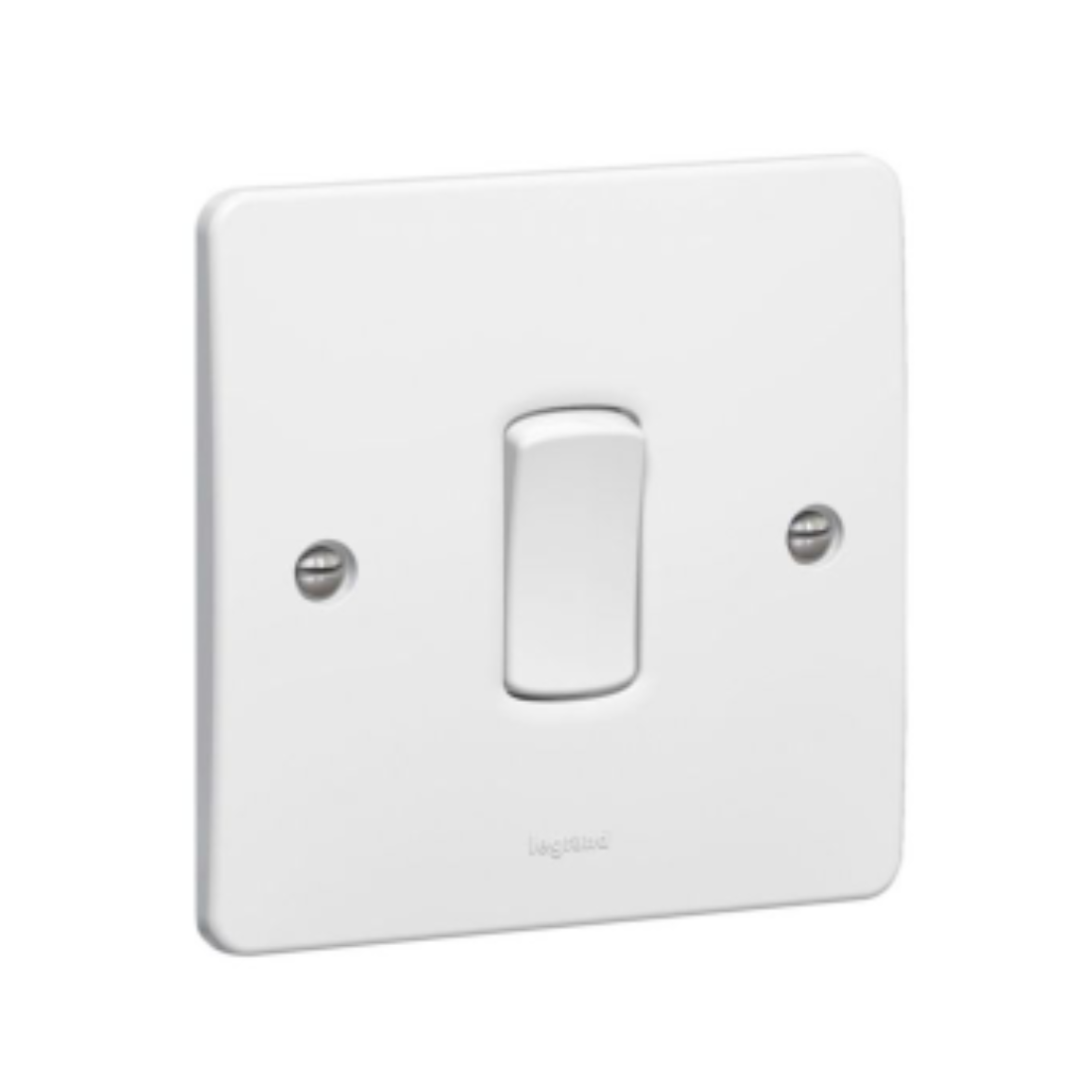

Legrand Synergy White 1 Gang 1 Way 10 AX 250V Single Pole Switch 730000
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
Synergy - single pole switches, single pole push and key switches, rotary dimmers - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximised wiring space - Supplied with faceplate screw caps
Single pole plate switches 10 AX - 250 V~ - Conform to BS EN 60669 - 1 - For flush-mounting, back box to be min. 16 mm deep - ASTA license Nominal plate dimensions : 86 x 86 mm - 1 gang - 1 way
| Brand | Legrand |
| Model | Synergy 730000 |
| Wiring system | Off switch 1-pole |
| Method of operation | Rocker/button |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | No |
| Material | Plastic |
| Material quality | Duroplast |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Color | White |
| Color of switch operator | White |
| Suitable for degree of protection (IP) | IP2X |
| Nominal voltage | 250 V |
| Rated current | 10 A |
| Switching current for fluorescent lamps | 10 AX |
| Connection type | Screwed terminal |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 25.5 mm |
| Built-in depth | 14 mm |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -5-40 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Cable section | 4-4 mm² |
