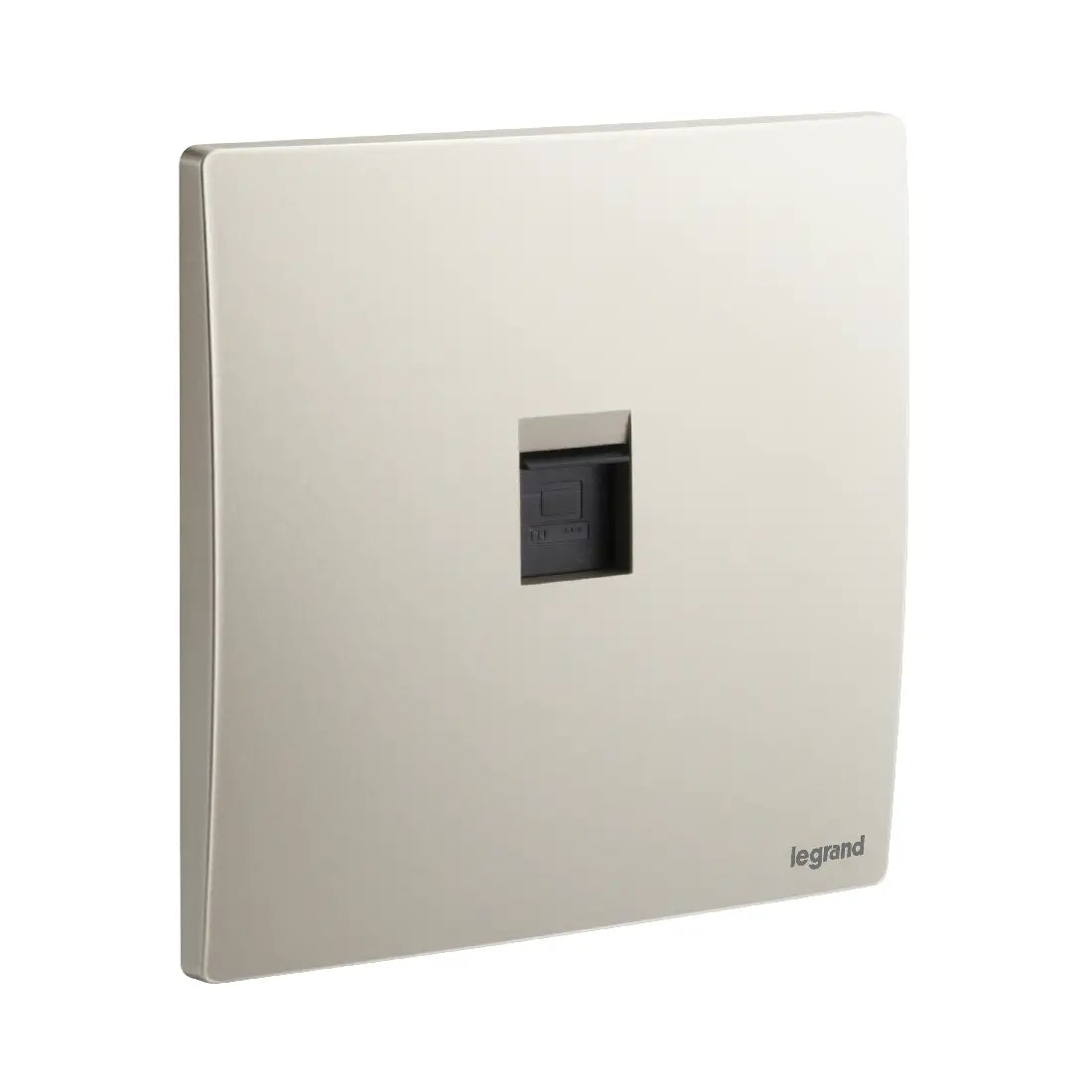

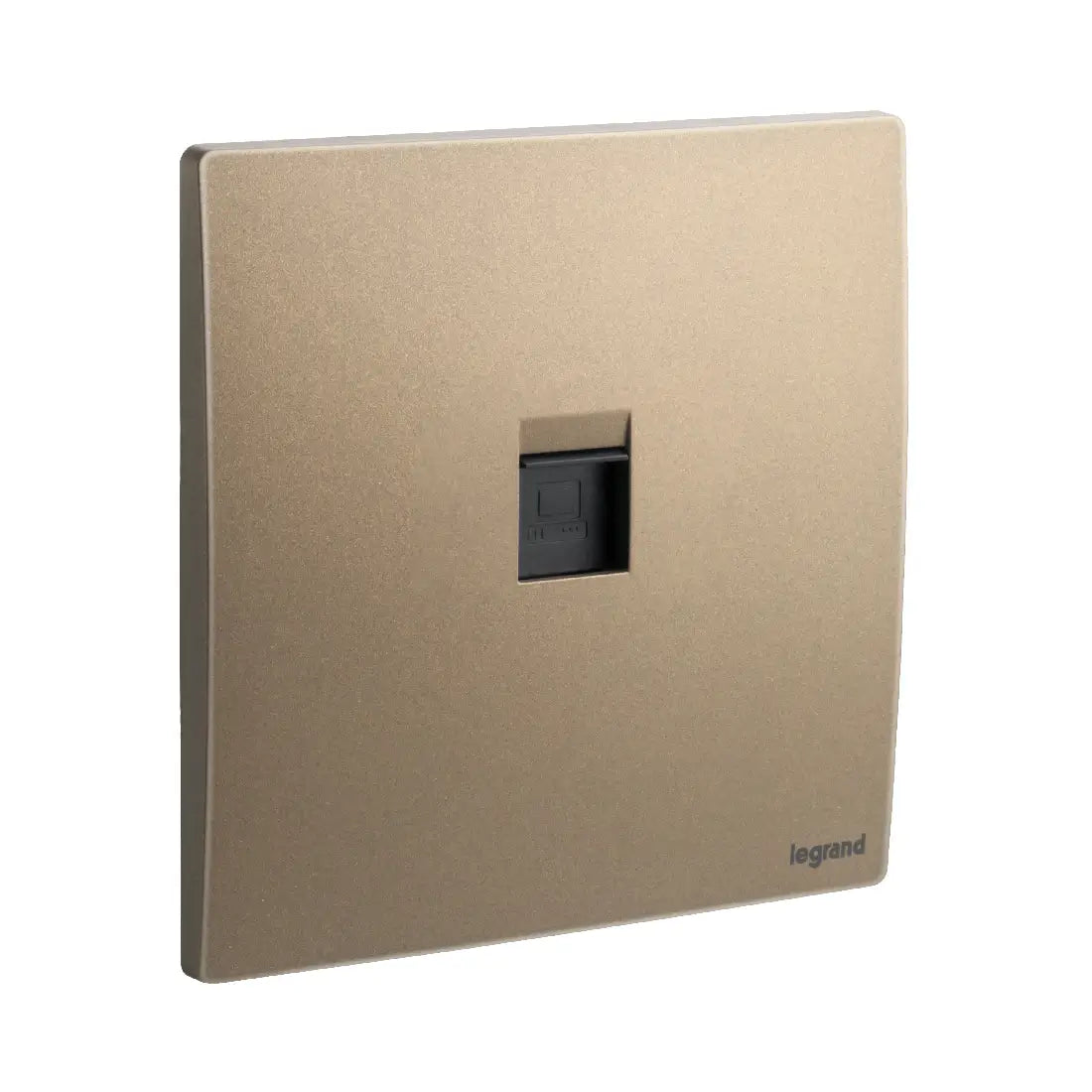

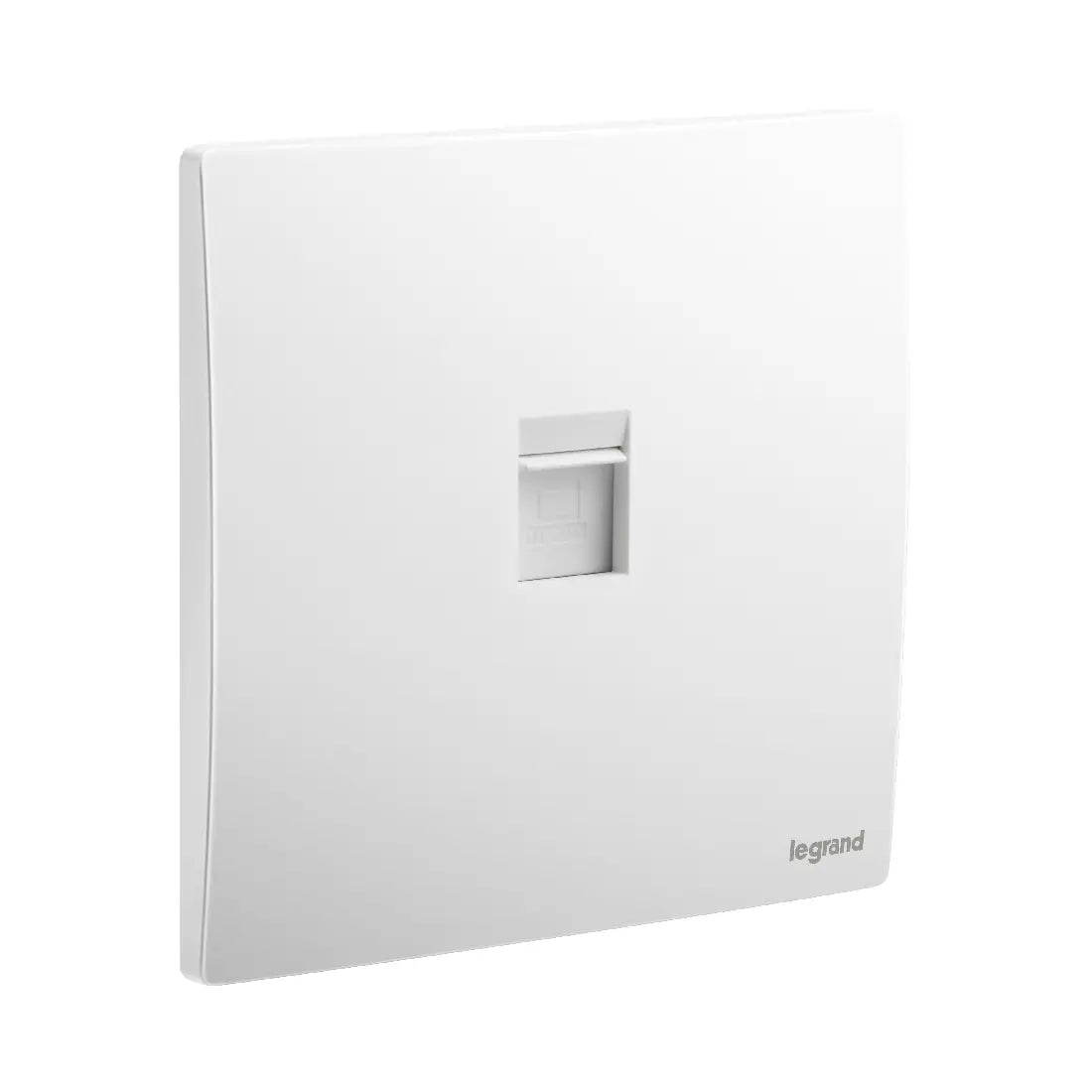

Legrand Mallia Senses Single RJ45 Socket Outlet Category 6 STP 281159
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Socket Outlet
Description
The Legrand Mallia Senses Single RJ45 Cat 6 STP Socket Outlet delivers high-speed data transfer up to 1 Gbps-ideal for streaming, downloading, and online gaming with low latency. It supports Power over Ethernet (PoE), allowing both data and power transmission through twisted pair cables. Equipped with Shielded Twisted Pairs (STP), a ground continuity bushing, and a shielding cap, it ensures full 360° EMC protection, making it suitable for Satellite or Hertzian TV applications as well. The toolless connector with integrated crimping allows for fast, secure installation, while the quick plate clipping system ensures hassle-free setup. Built for commercial and residential environments, this socket offers both robust performance and sleek integration into any modern space. Recommended for indoor use only.
| Brand | Legrand |
| Model | Mallia Senses |
| Surface mounting | No |
| Flush-mounted installation | Yes |
| Type of fastening | Engage (snap) |
| Assembly arrangement | Basic element with full cover plate |
| Type of connector | RJ45 8(4) |
| Category | 6 |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL-number | 9003 |
| Connection type | 110 |
| Shielded housing | No |
| Separate earthing connection | No |
| With label space | No |
| Mounting method shielding connection | None |
| Outlet direction | Straight |
| With dust cover | Yes |
| With terminal resistor | No |
| Degree of protection (IP) | IP20 |
| Colour coding | Yes |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 36.3 mm |
| Number of modules (module system) | 1 |
| Built-in depth | 28.7 mm |
| Degree of impact strength (IK) | IK04 |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Terminal marking indication | Yes |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Mounting method | Flush-mounted |
| Horizontal fixing center distance | 60.3–60.3 mm |
