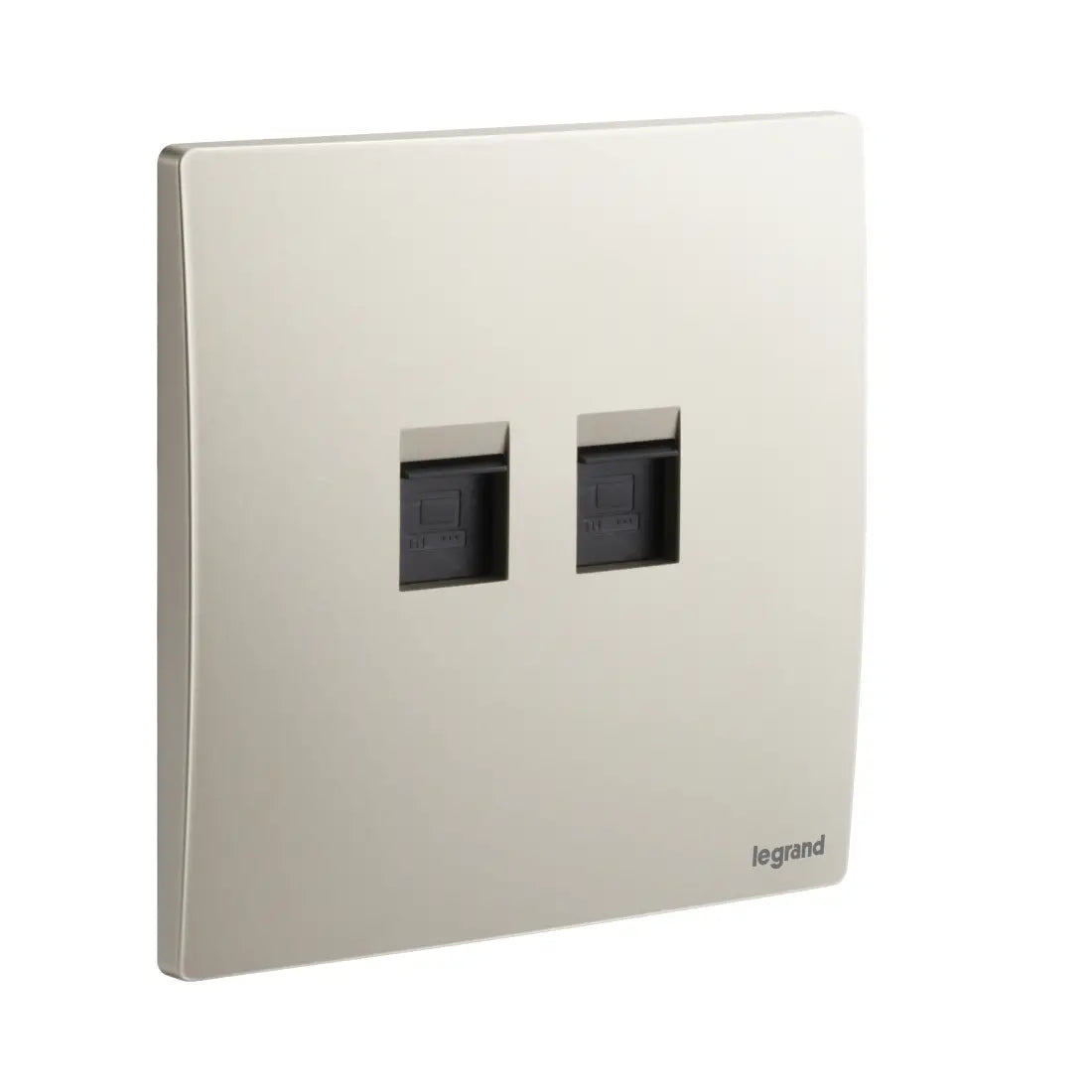

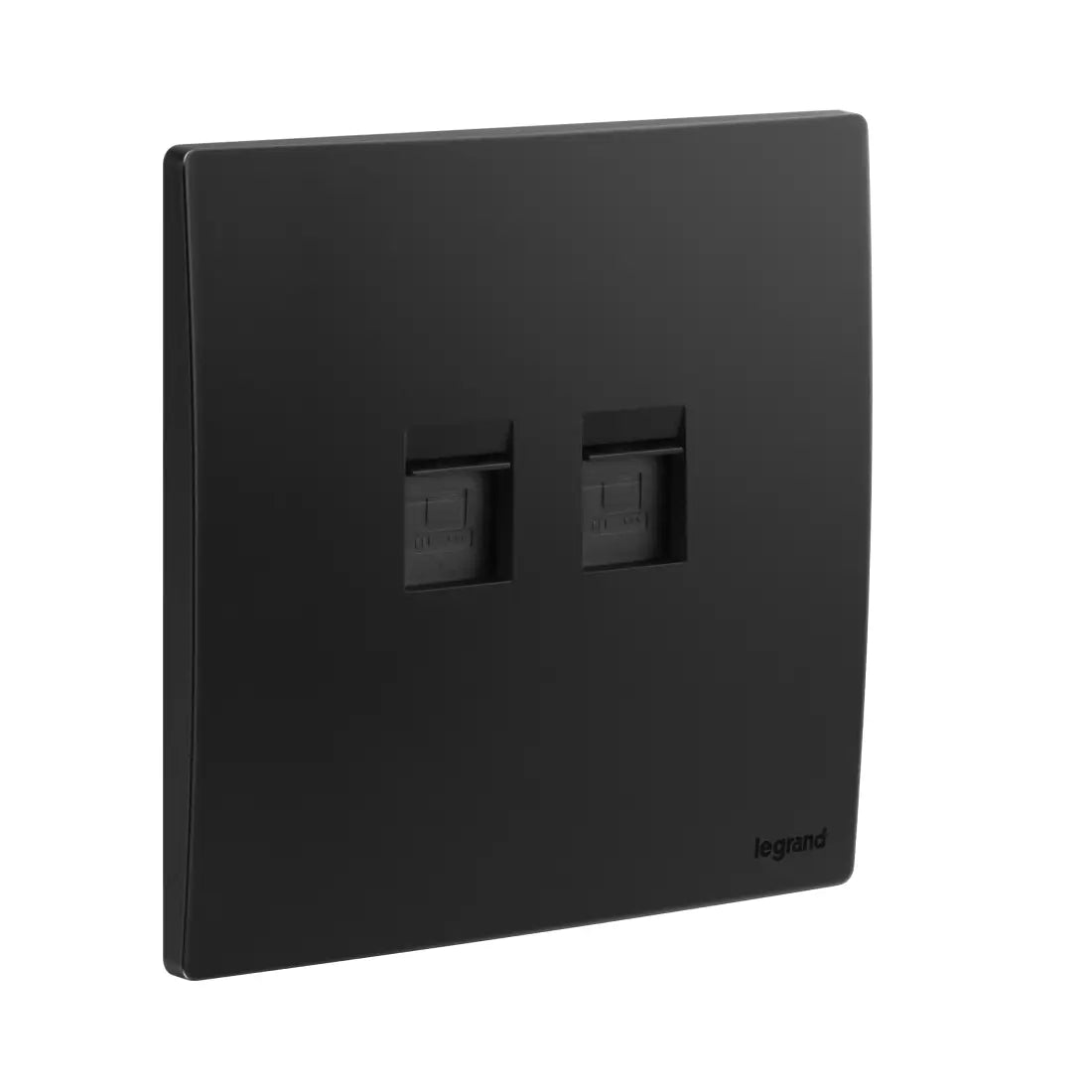

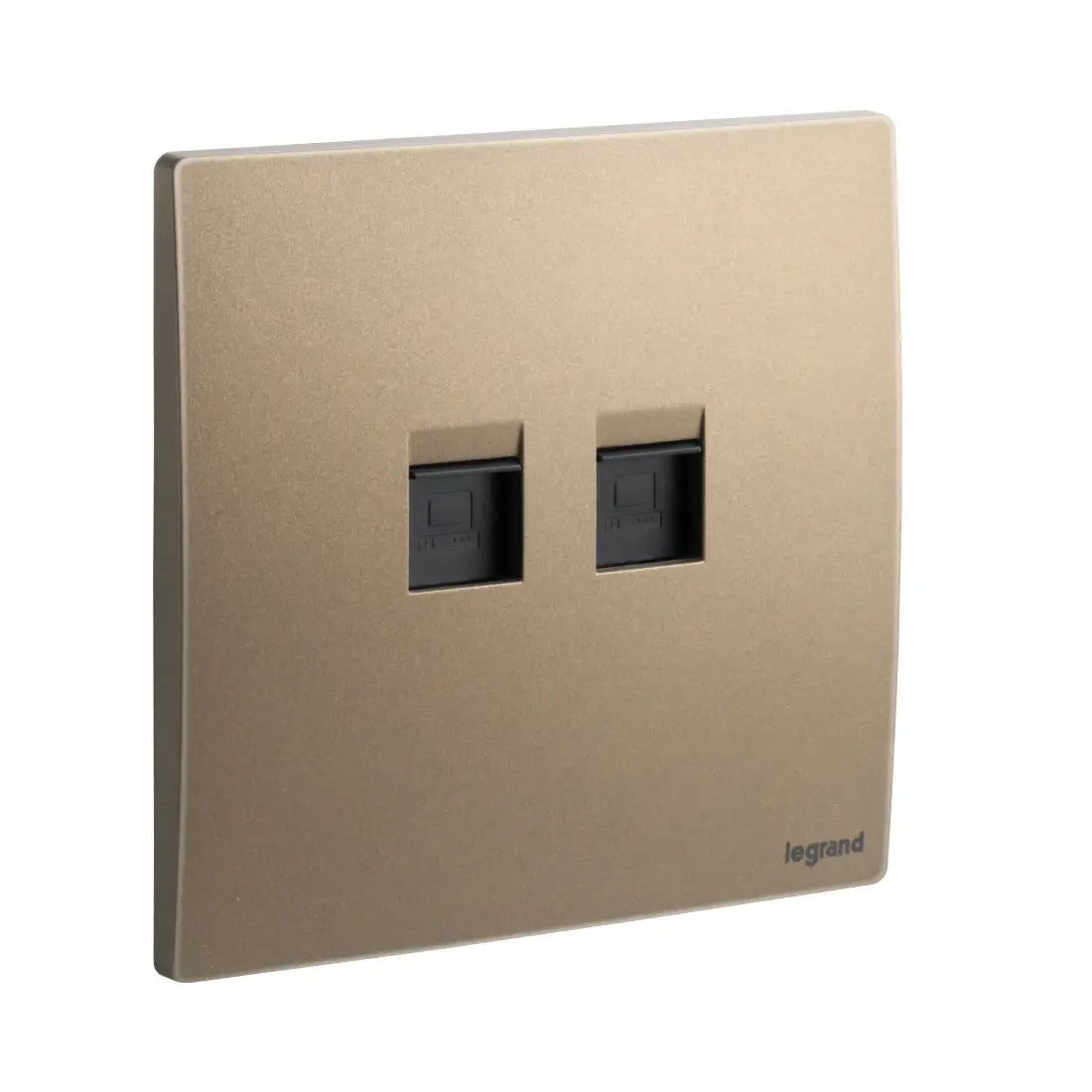

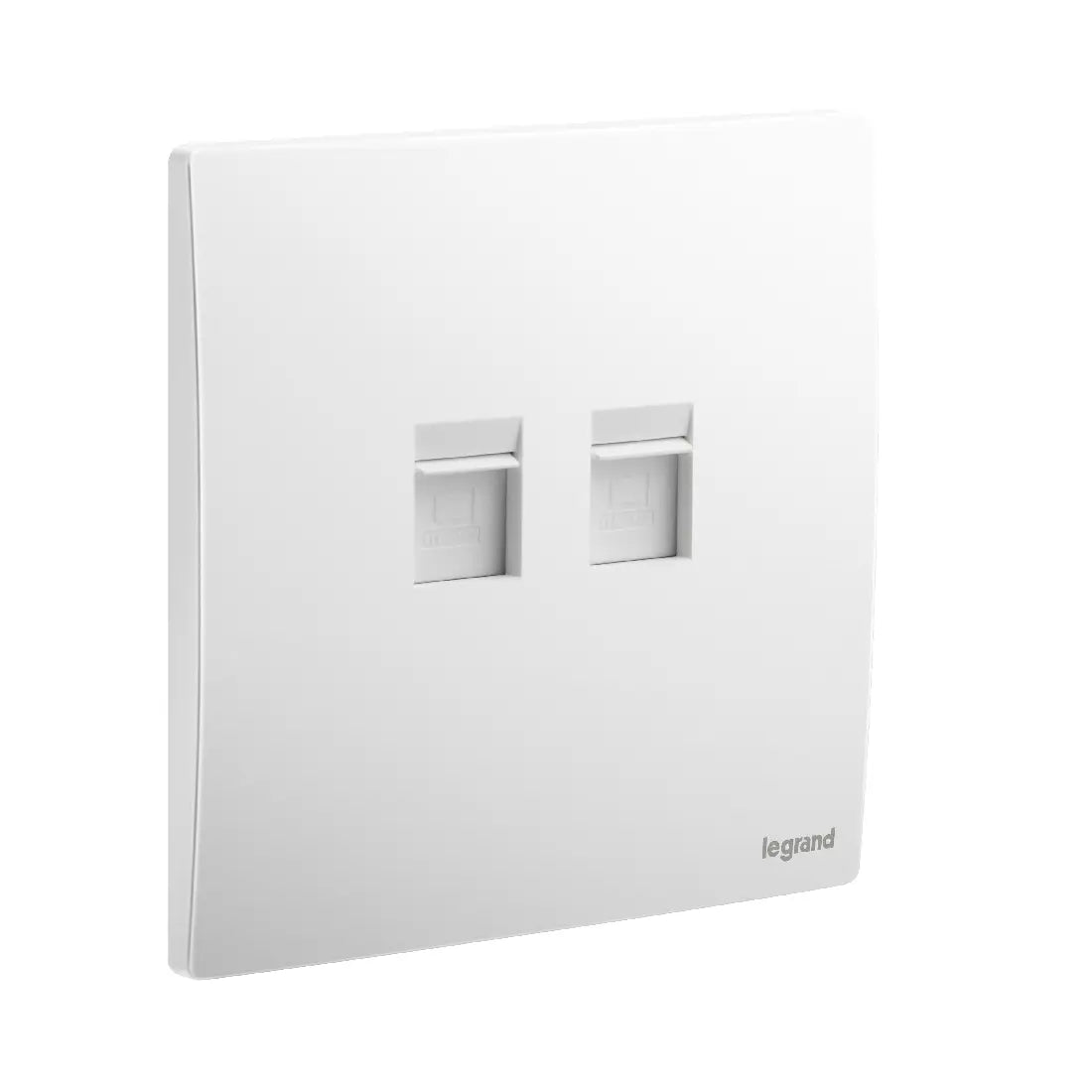

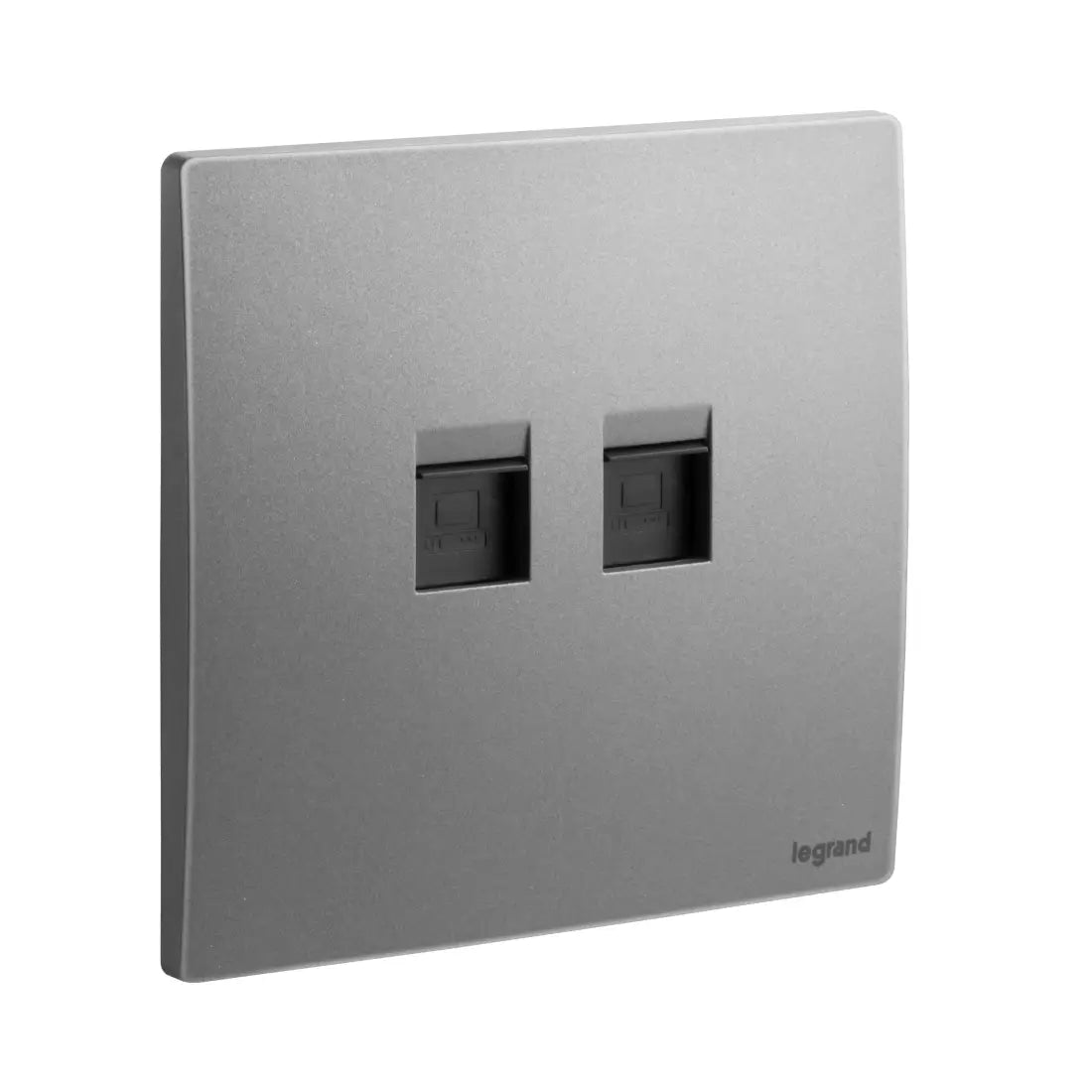

Legrand Mallia Senses Double RJ45 Socket Outlet Category 6 STP 281158
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : Socket Outlet
Description
The Legrand Mallia Senses 1 Gang RJ45 Cat 6 Socket Outlet delivers high-speed data transfer up to 1 Gbps, allowing you to download a 1 GB file in just 8 seconds. Sold as a complete set under one catalogue number, this socket supports high-capacity Power over Ethernet (PoE) applications, delivering power and data over twisted pair Ethernet cables. Equipped with Shielded Twisted Pairs (STP), a ground continuity bushing, and a 360° shielding cap, it offers full EMC protection and can also be used for Satellite or Hertzian TV. Ideal for both commercial and residential use, it supports IP and analog phones, streaming, downloads, and online gaming with low latency. The toolless connector ensures fast, secure wiring using the integrated crimping mechanism. With a robust support frame and slim, modern profile, it integrates seamlessly into any interior. Recommended for indoor use only.
| Brand | Legrand |
| Model | Mallia Senses |
| Surface mounting | No |
| Flush-mounted installation | Yes |
| Type of fastening | Engage (snap) |
| Assembly arrangement | Basic element with full cover plate |
| Type of connector | 2x RJ45 8(4) |
| Category | 6 |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL-number | 9003 |
| Connection type | 110 |
| Shielded housing | No |
| Separate earthing connection | No |
| With label space | No |
| Mounting method shielding connection | None |
| Outlet direction | Straight |
| With dust cover | Yes |
| With terminal resistor | No |
| Degree of protection (IP) | IP20 |
| Colour coding | Yes |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 36.3 mm |
| Number of modules (module system) | 2 |
| Built-in depth | 28.7 mm |
| Degree of impact strength (IK) | IK04 |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Terminal marking indication | Yes |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Mounting method | Flush-mounted |
| Horizontal fixing center distance | 60.3–60.3 mm |
