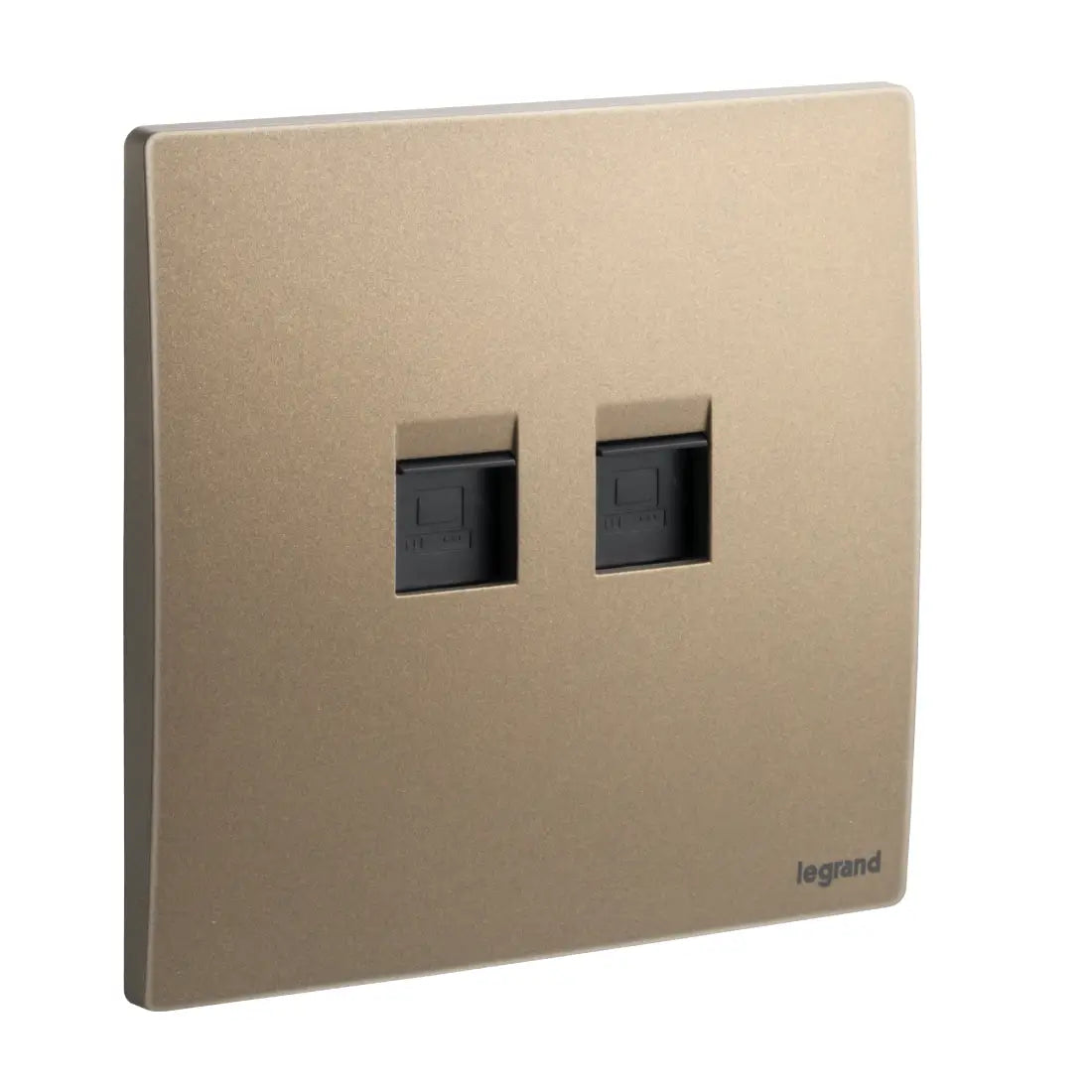

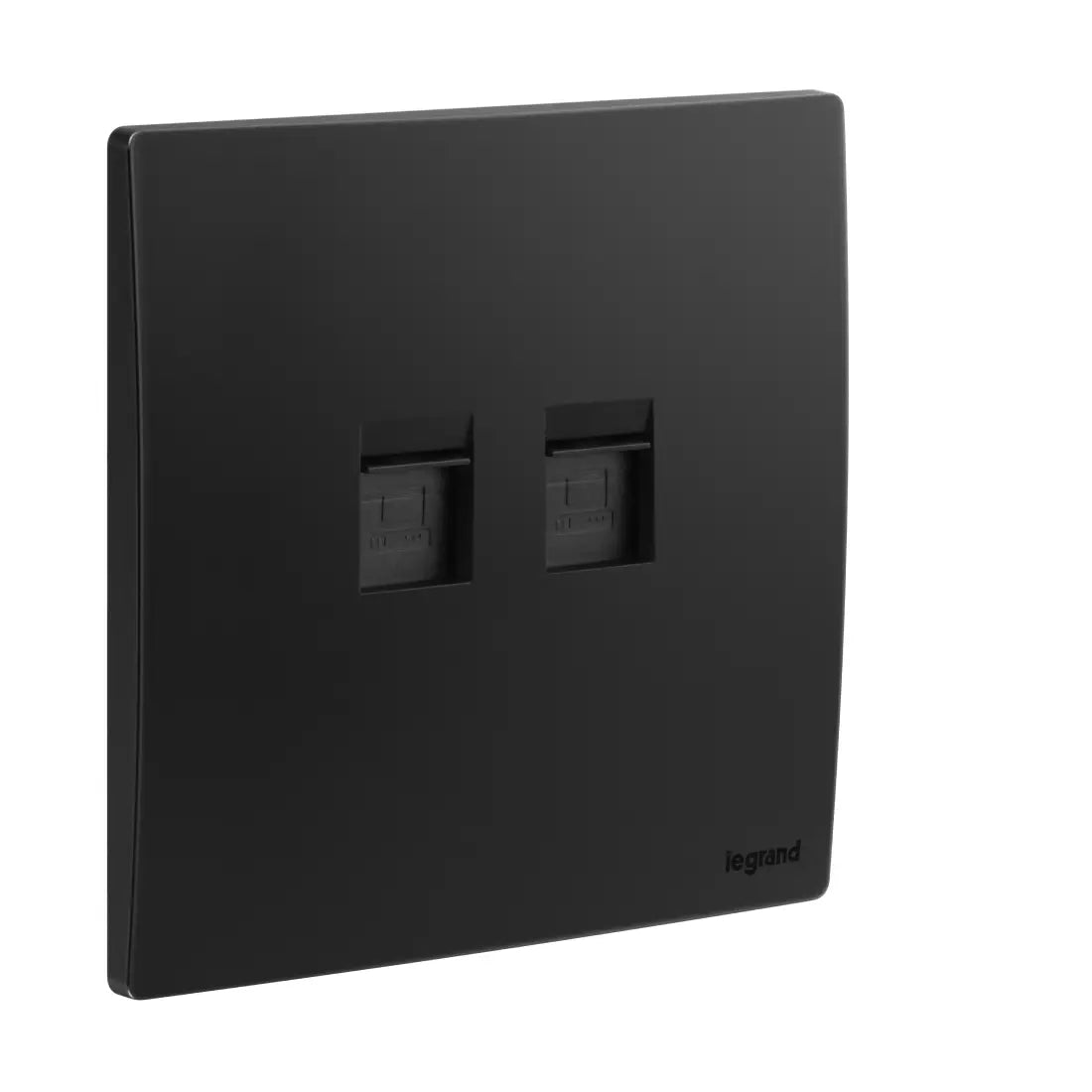

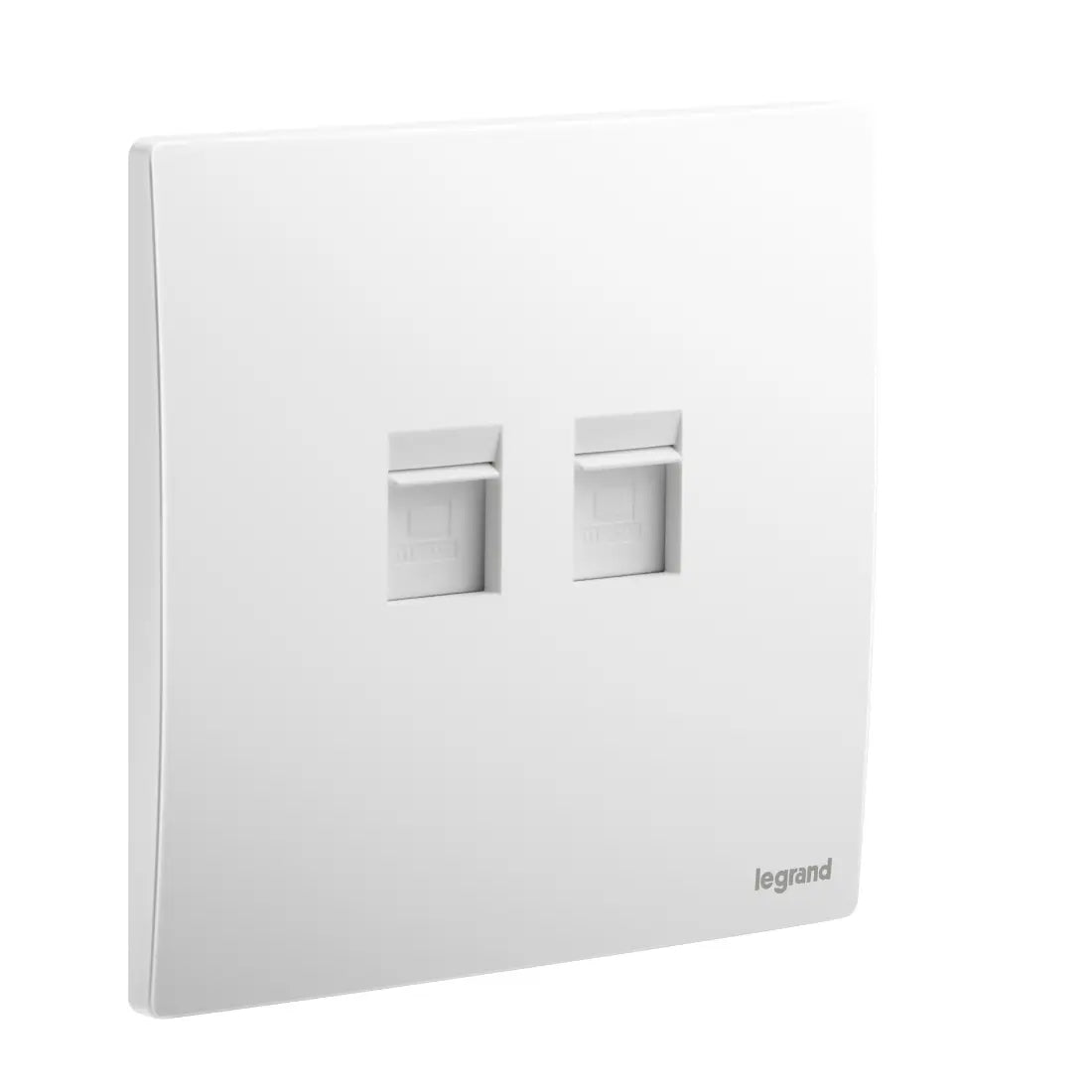

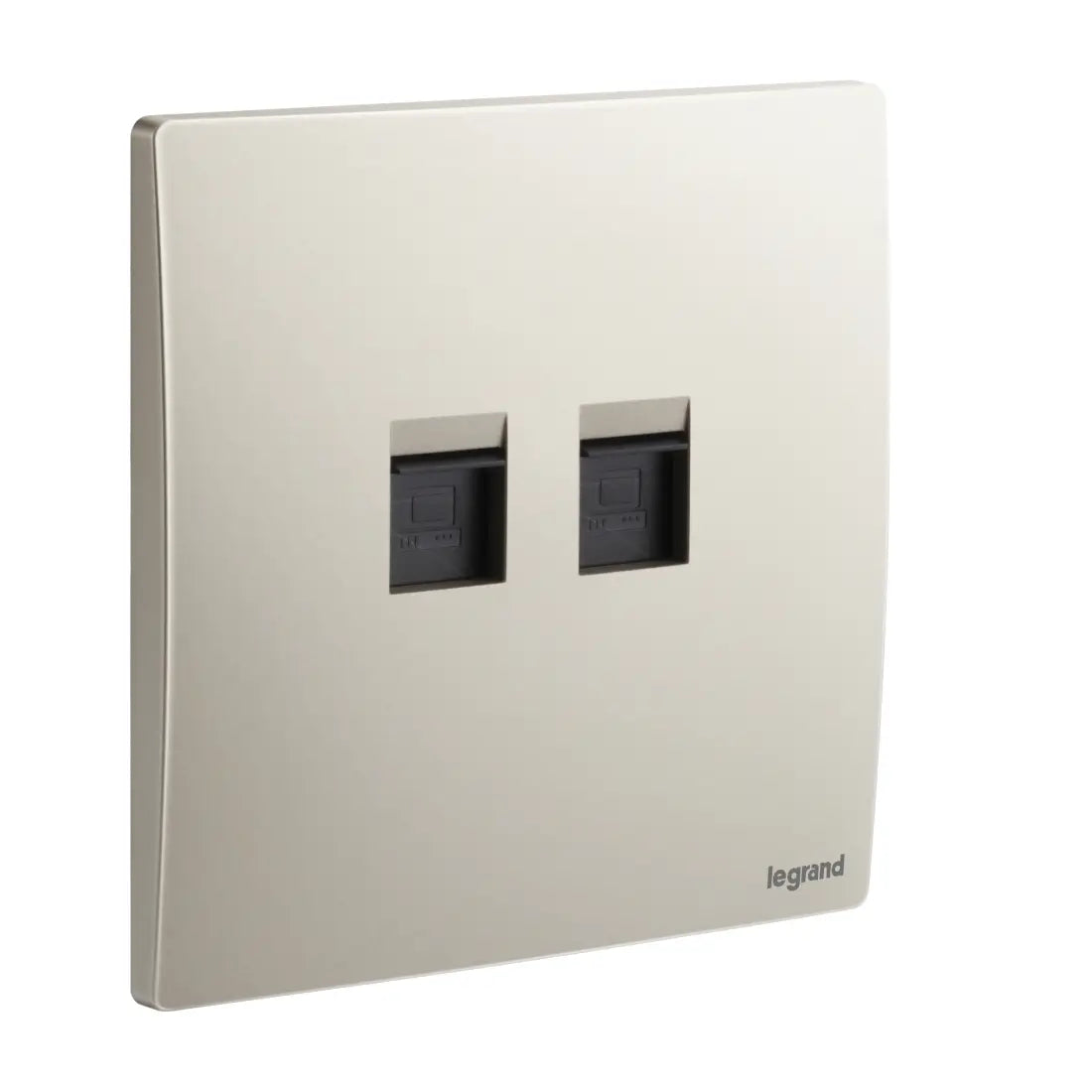

Legrand Mallia Senses Double RJ45 CAT6 UTP Socket Outlet 281165
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Data Socket
Description
The Legrand Mallia Senses RJ45 Cat 6 UTP Socket Outlet offers high-speed data connectivity with support for transfer rates up to 1 Gbps, allowing a 1GB file to be downloaded in just 8 seconds. Designed for both residential and commercial environments, it supports Power over Ethernet (PoE), enabling the simultaneous transmission of data and power over Ethernet cabling. Sold as a complete set under a single catalog number, it features TIA 568A/B color-coded contacts for standard wiring and a toolless connector with integrated crimping for quick and reliable installation. Its quick plate clipping system ensures fast setup, while the durable support frame and slim design blend seamlessly into modern interiors. Ideal for use with IP and analog phones, streaming, downloads, and low-latency online applications, it is recommended for indoor use only.
| Brand | Legrand |
| Model | Mallia Senses |
| Surface mounting | No |
| Flush-mounted installation | Yes |
| Type of fastening | Engage (snap) |
| Assembly arrangement | Basic element with full cover plate |
| Type of connector | 2x RJ45 8(4) |
| Category | 6 |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| Connection type | 110 |
| Shielded housing | No |
| Separate earthing connection | No |
| With label space | No |
| Mounting method shielding connection | None |
| Outlet direction | Straight |
| With dust cover | Yes |
| With terminal resistor | No |
| Degree of protection (IP) | IP20 |
| Colour coding | Yes |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 36.3 mm |
| Number of modules (module system) | 2 |
| Built-in depth | 28.7 mm |
| Degree of impact strength (IK) | IK04 |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Terminal marking indication | Yes |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Mounting method | Flush-mounted |
| Horizontal fixing center distance | 60.3–60.3 mm |
