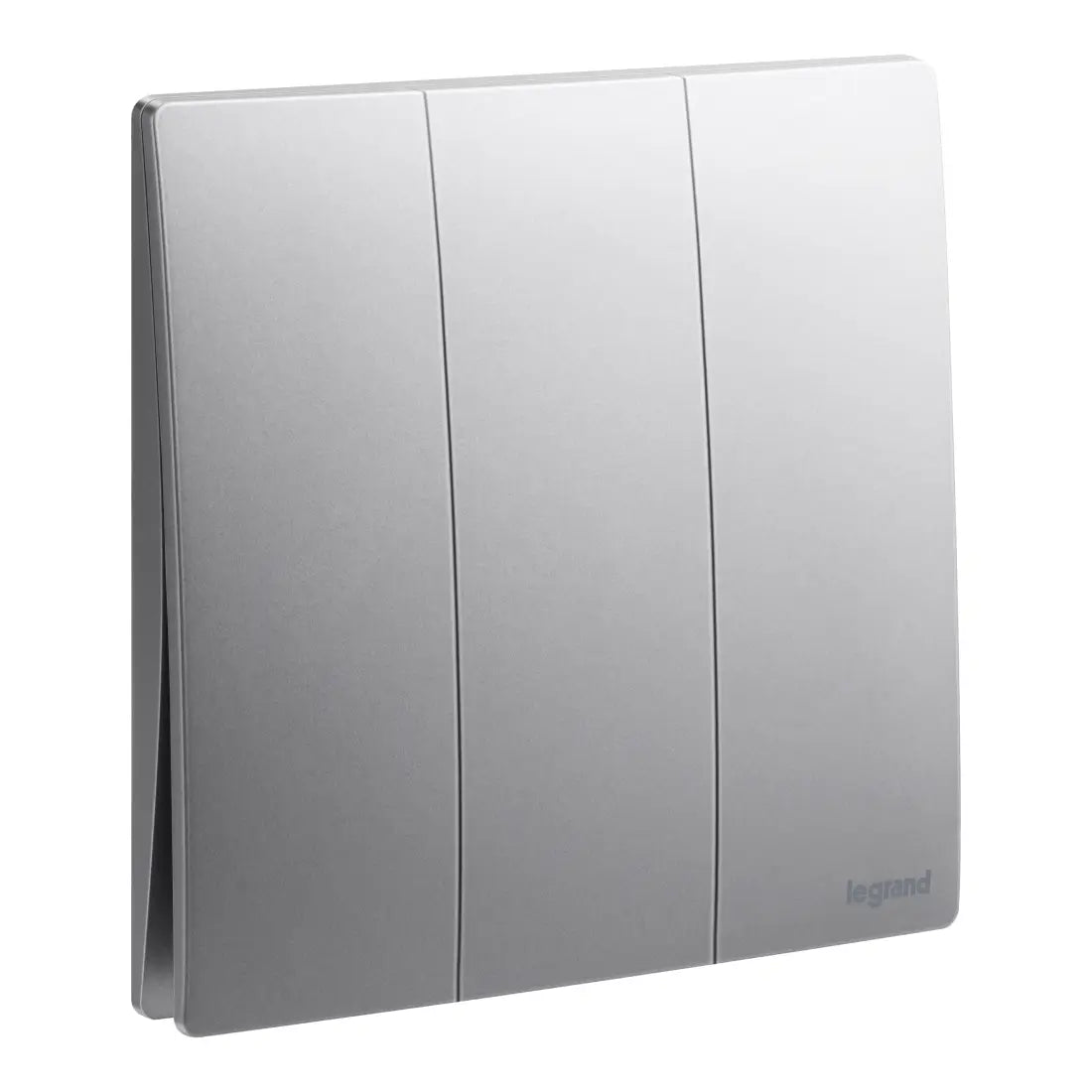

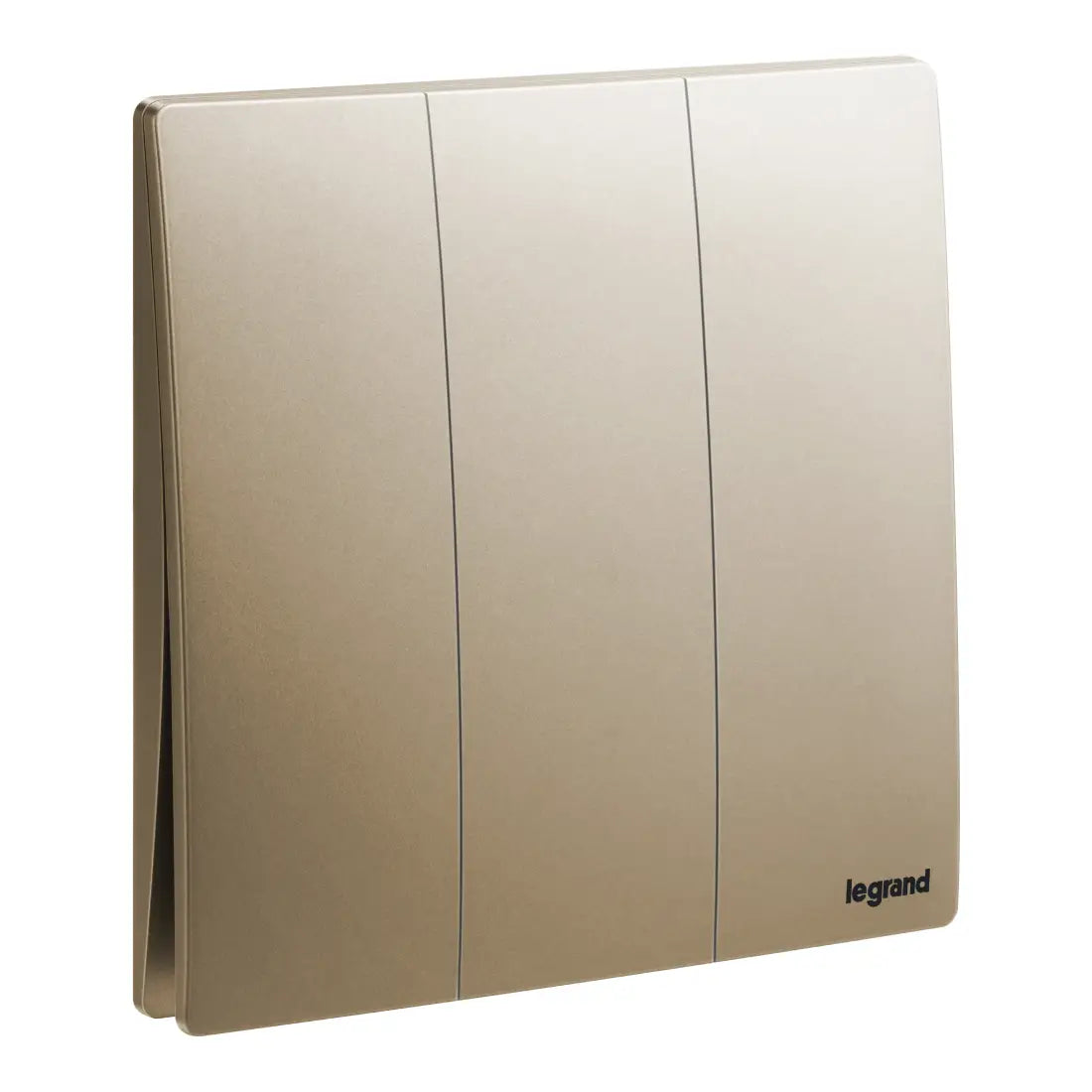

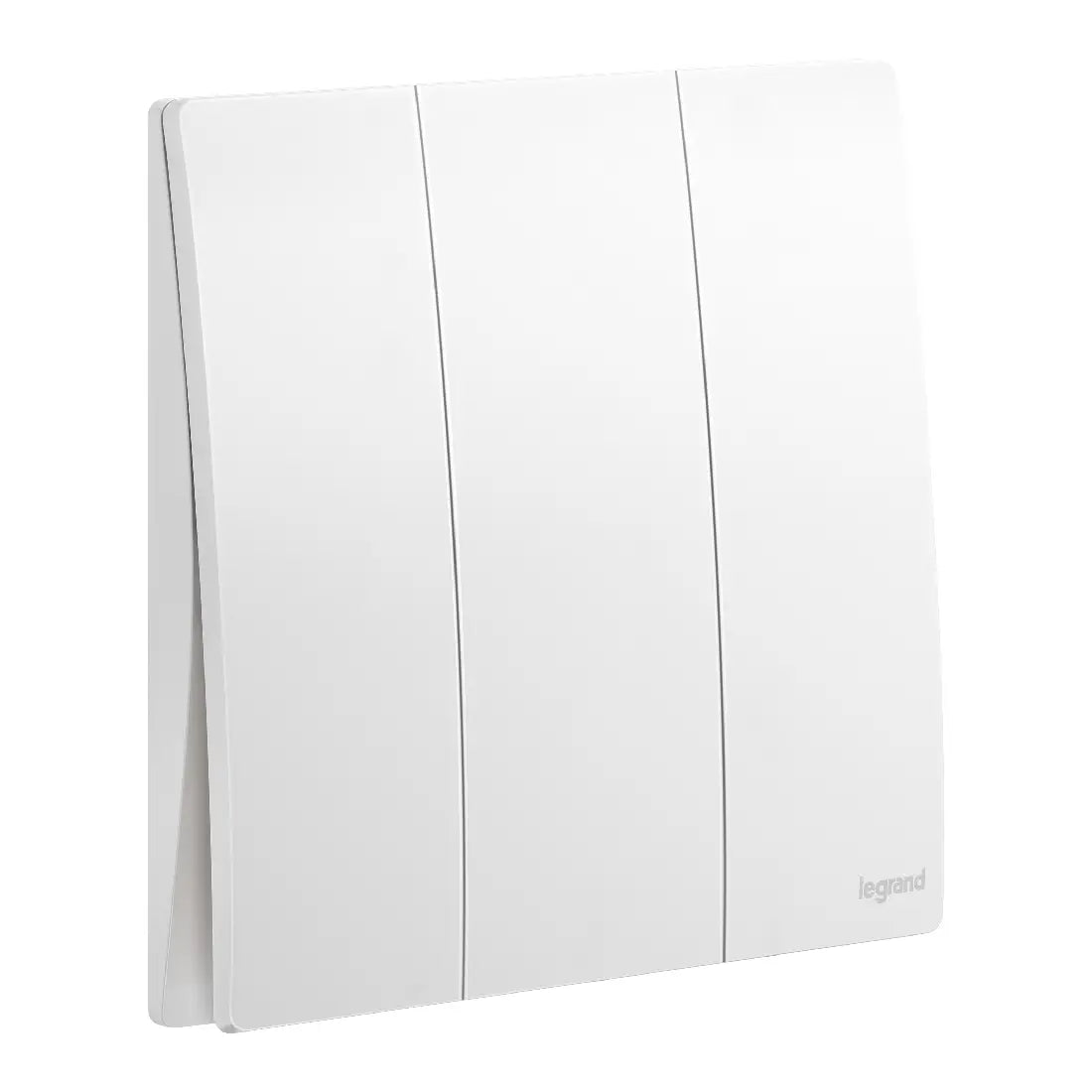

Legrand Mallia Senses 3 Gang 1 Way Switch 16AX 281004
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
The Mallia Senses 3 Gang 1 Way Switch 16AX, 250V is a high-quality lighting control solution designed to suit modern interiors. Offered as a complete set under a single catalog number, it includes screw-type terminals with clearly marked connections for safe, efficient wiring. Its quick and easy plate-rocker clipping system simplifies installation, and the 3-gang layout enables practical multi-point lighting control on one plate. The switch offers a soft-touch feel with distinct motion and audible feedback, enhancing user experience. Built with a robust support frame and a slim, contemporary profile, it is ideal for seamless integration into any interior setting. Recommended for indoor use only.
| Brand | Legrand |
| Model | Mallia Senses |
| Wiring system | Off switch 1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 3 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | White |
| RAL-number (similar) | 9003 |
| Illumination | No |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| Switching current for fluorescent lamps | 16 AX |
| Feedback-signal contact | No |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 34.6 mm |
| Built-in depth | 24.9 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
