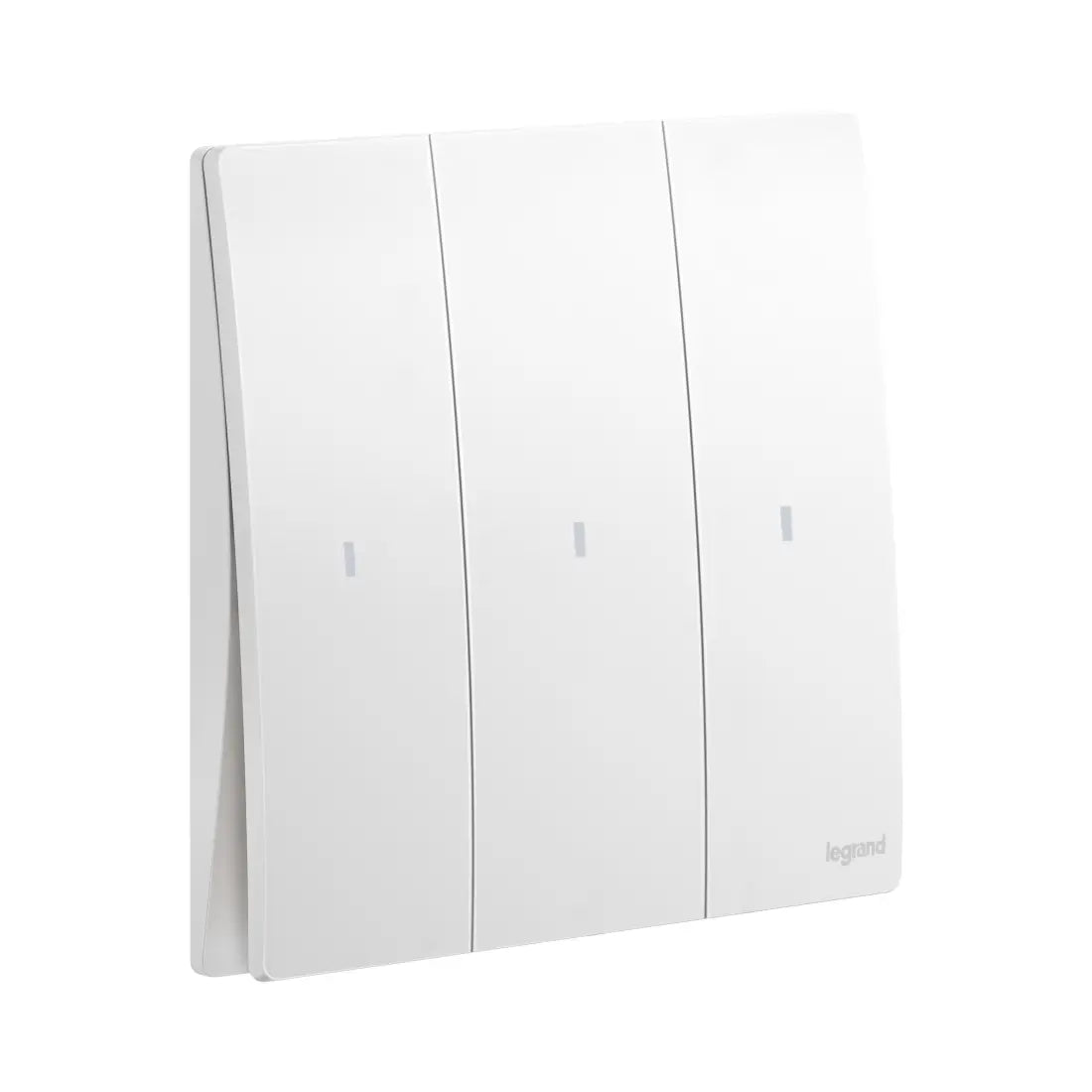

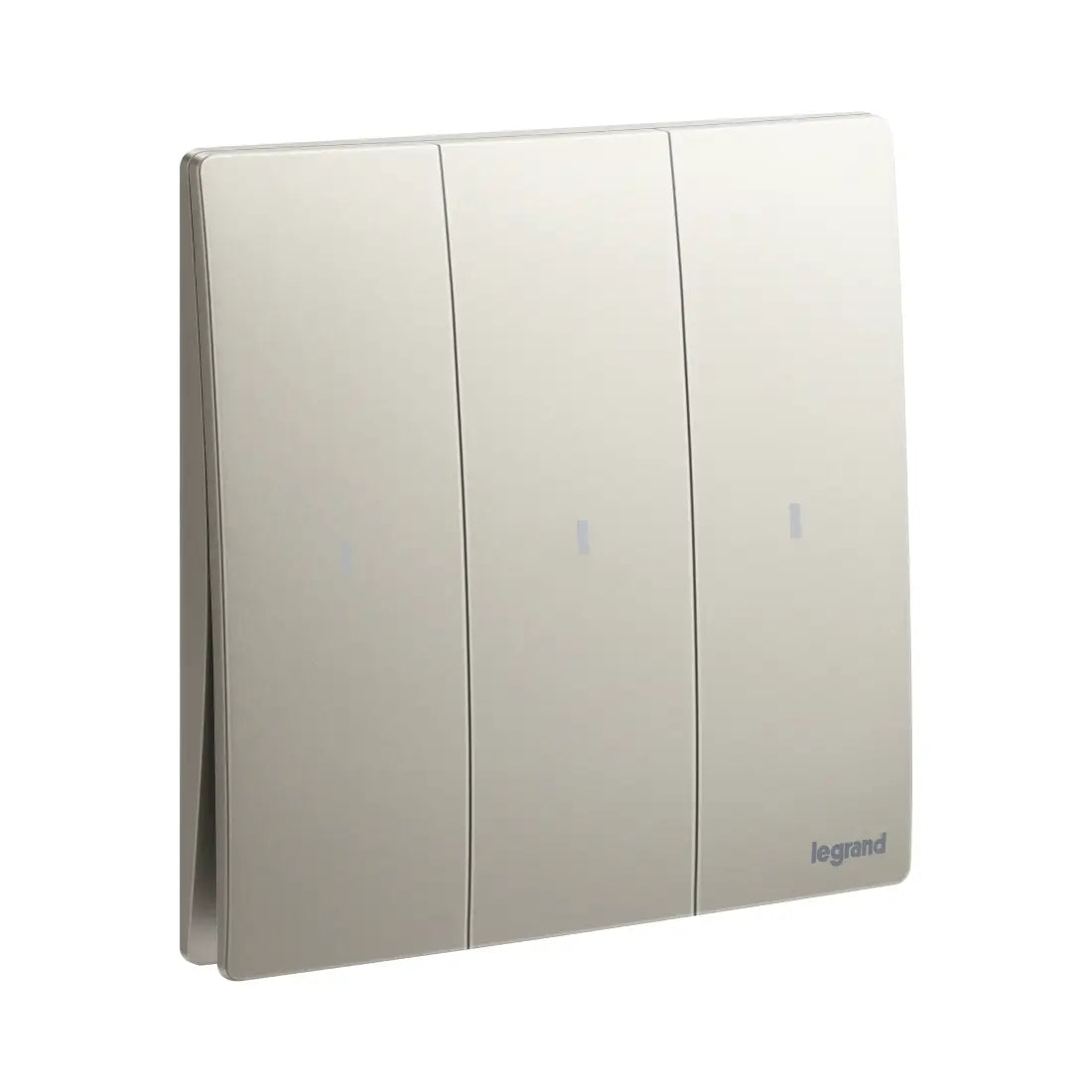

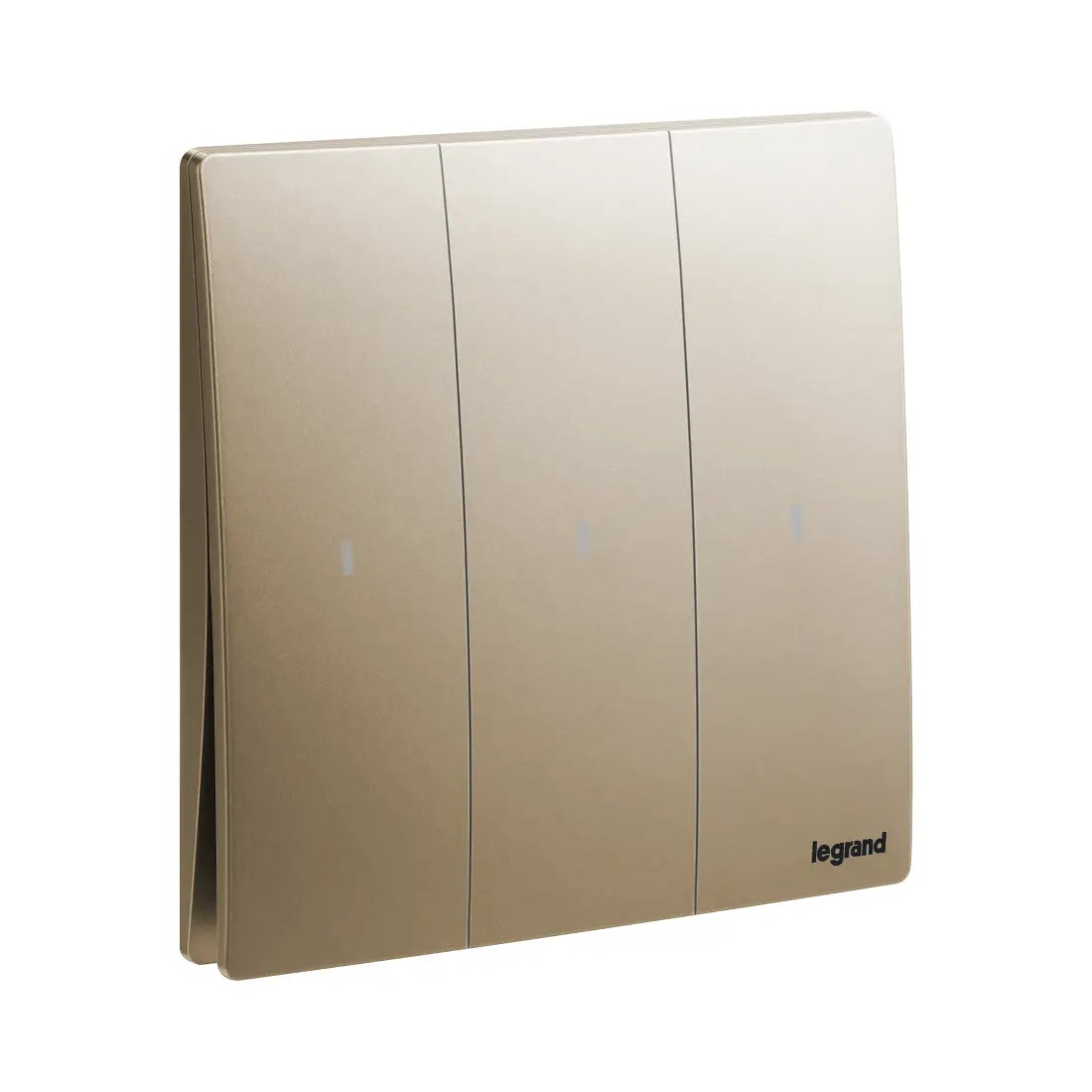

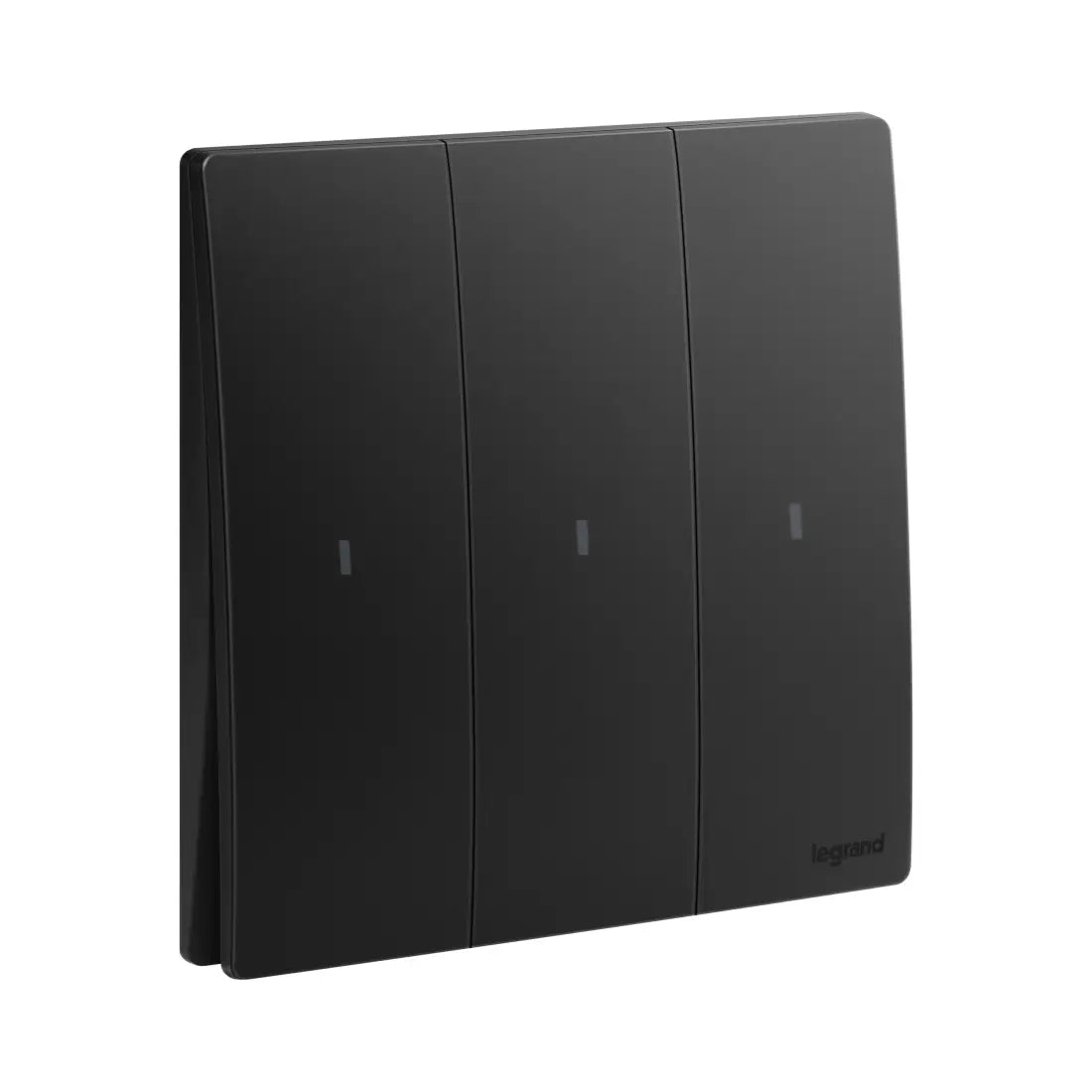

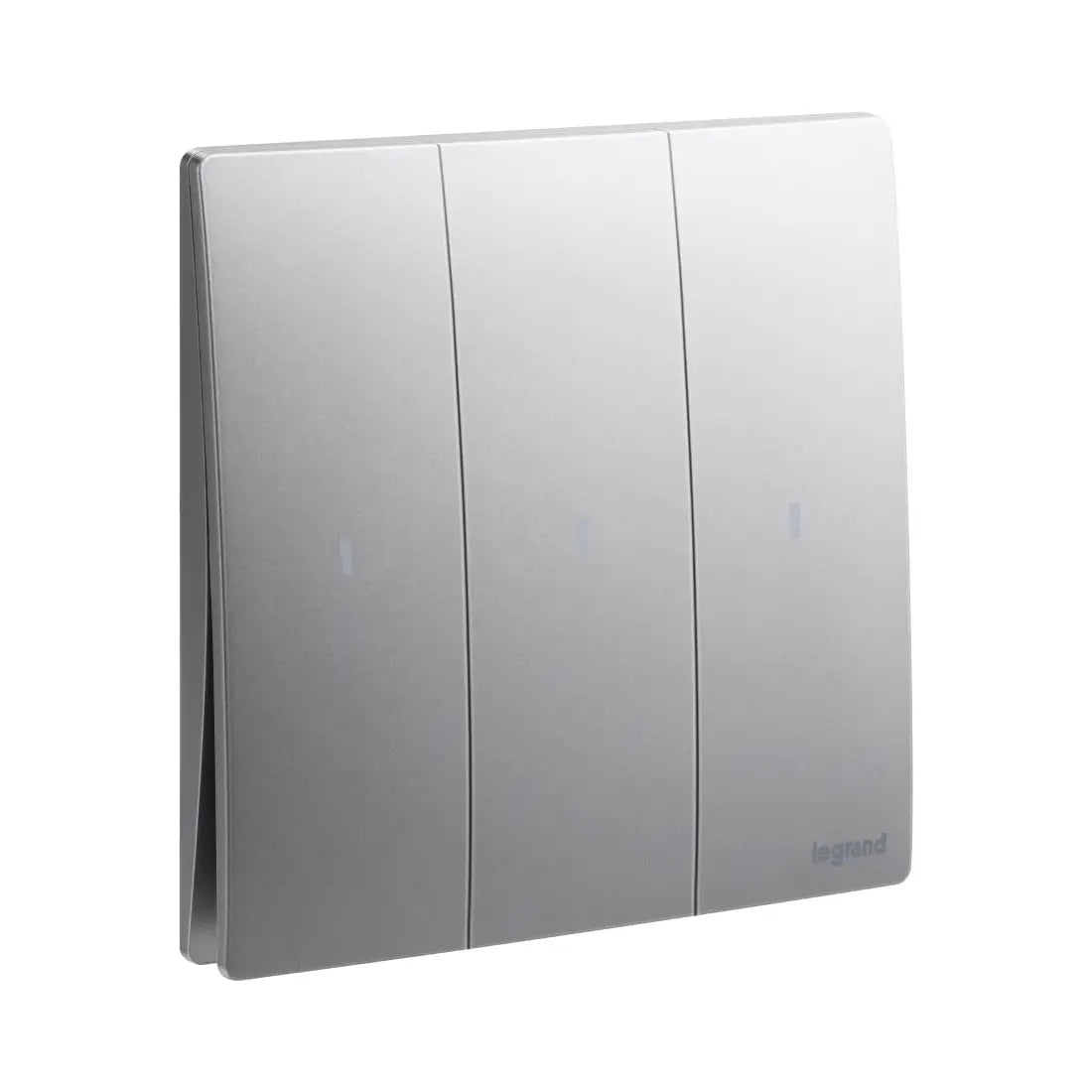

Legrand Mallia Senses 3 Gang 1 Way Illuminated Switch 16AX 281014
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
The Legrand Mallia Senses 3 Gang 1 Way Illuminated Switch (model 281014) is a premium-quality switch designed for controlling three individual lighting circuits from a single point, suitable for both residential and light commercial settings. Each rocker functions independently as a 1-way switch, offering straightforward on/off control for various lighting loads including LED, fluorescent, and resistive types, all supported by its 16AX 250V AC rating. A standout feature is its configurable LED illumination, which can act either as a locator (on when off) or an indicator (on when on), enhancing usability in low-light environments. Constructed from halogen-free thermoplastic with a smooth, matte lacquered finish, it combines style and functionality in a compact 86 x 86 mm form that fits standard back boxes of 35 mm depth. Designed for safety and reliability, it includes IP20 ingress protection, IK04 impact resistance, an operating temperature range of –5°C to 50°C, and supports screw terminal connections for cables from 1 to 4 mm², all without the need for a neutral wire.
| Brand | Legrand |
| Model | Mallia Senses |
| Wiring system | Intermediate switch |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 3 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Lacquered |
| Color | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| Function lighting | Control and orientation |
| Type of lighting | LED exchangeable |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| Switching current for fluorescent lamps | 16 AX |
| Feedback-signal contact | No |
| Connection type | Screwed terminal |
| Heating switch | No |
| Monitoring contact | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 34.6 mm |
| Built-in depth | 24.9 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
