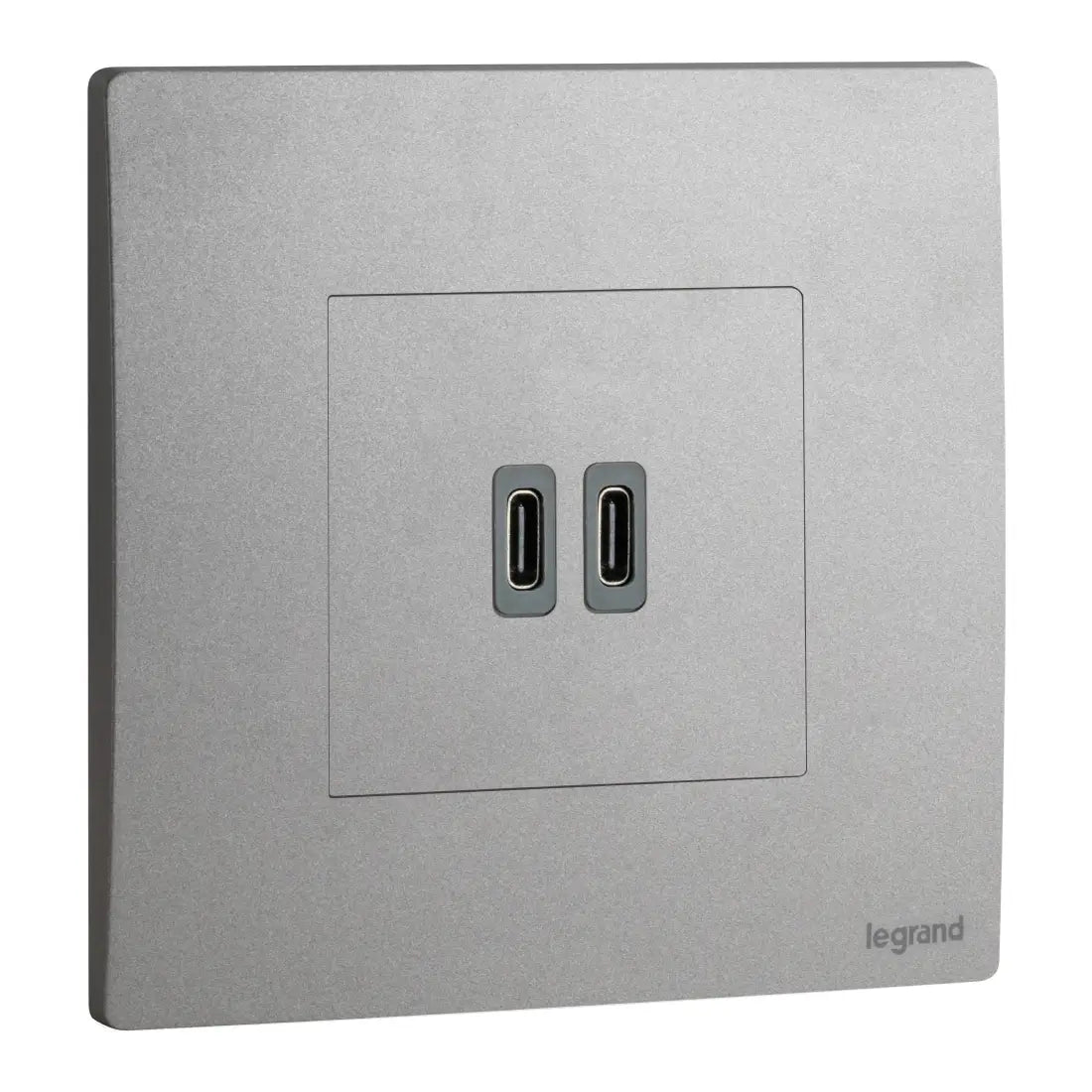

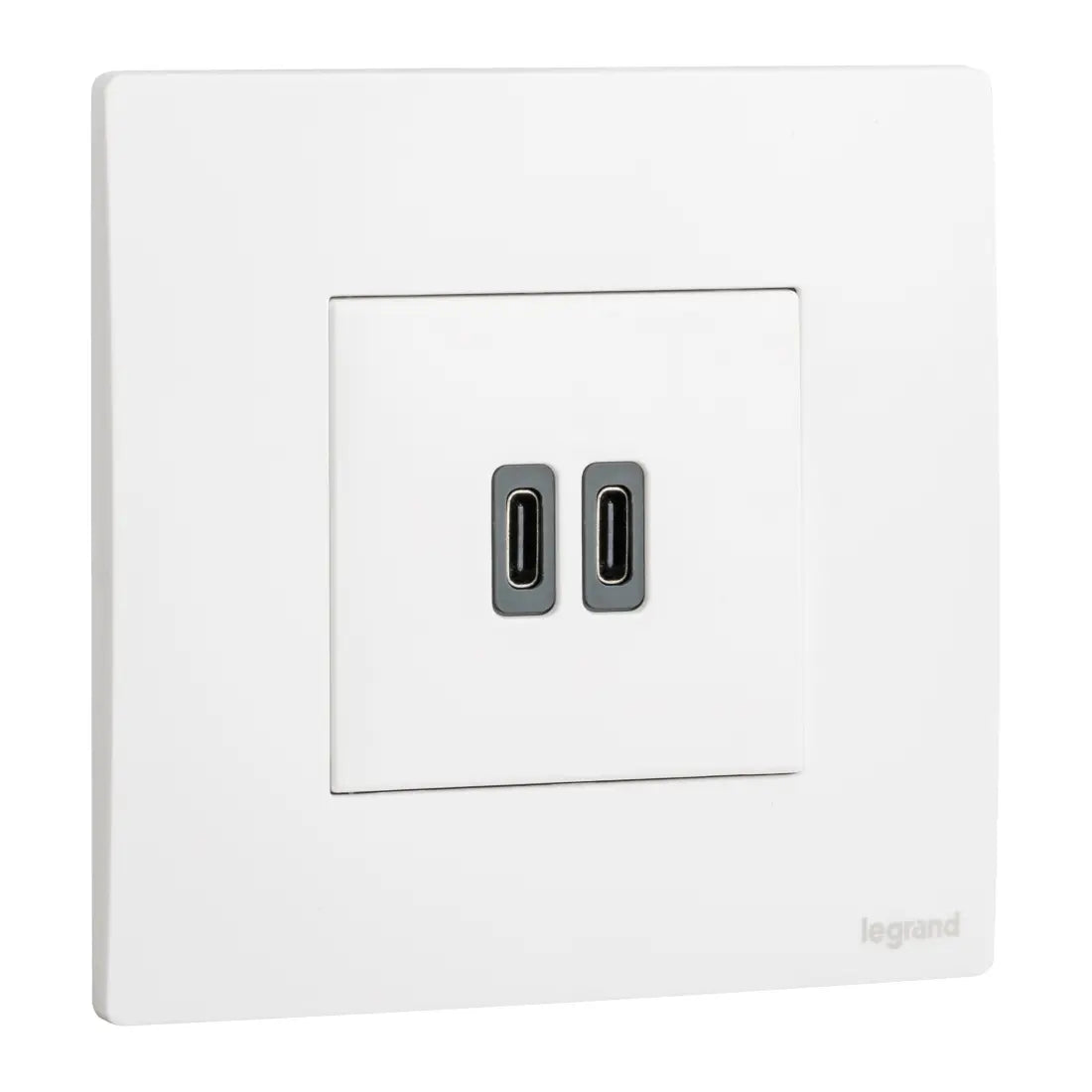

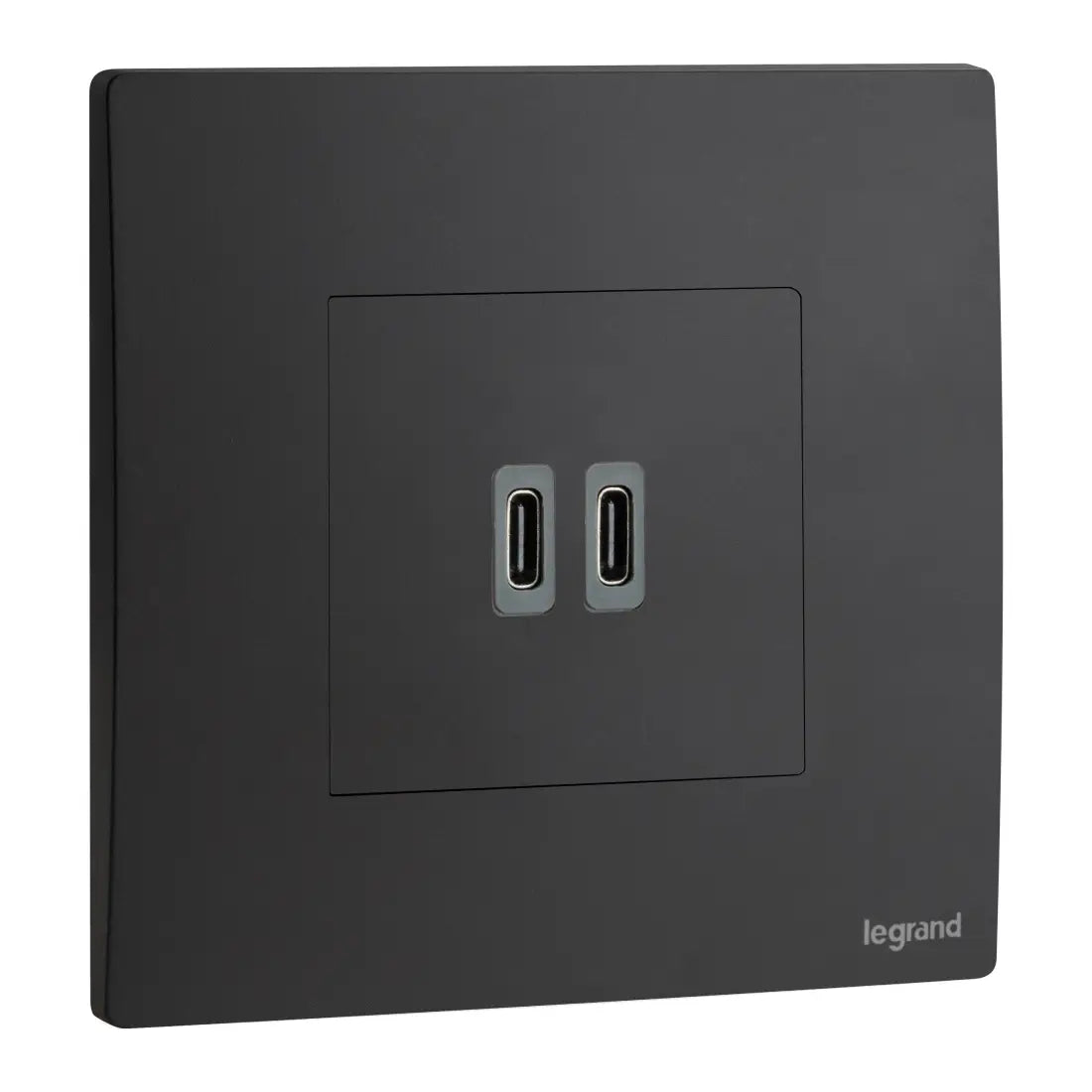

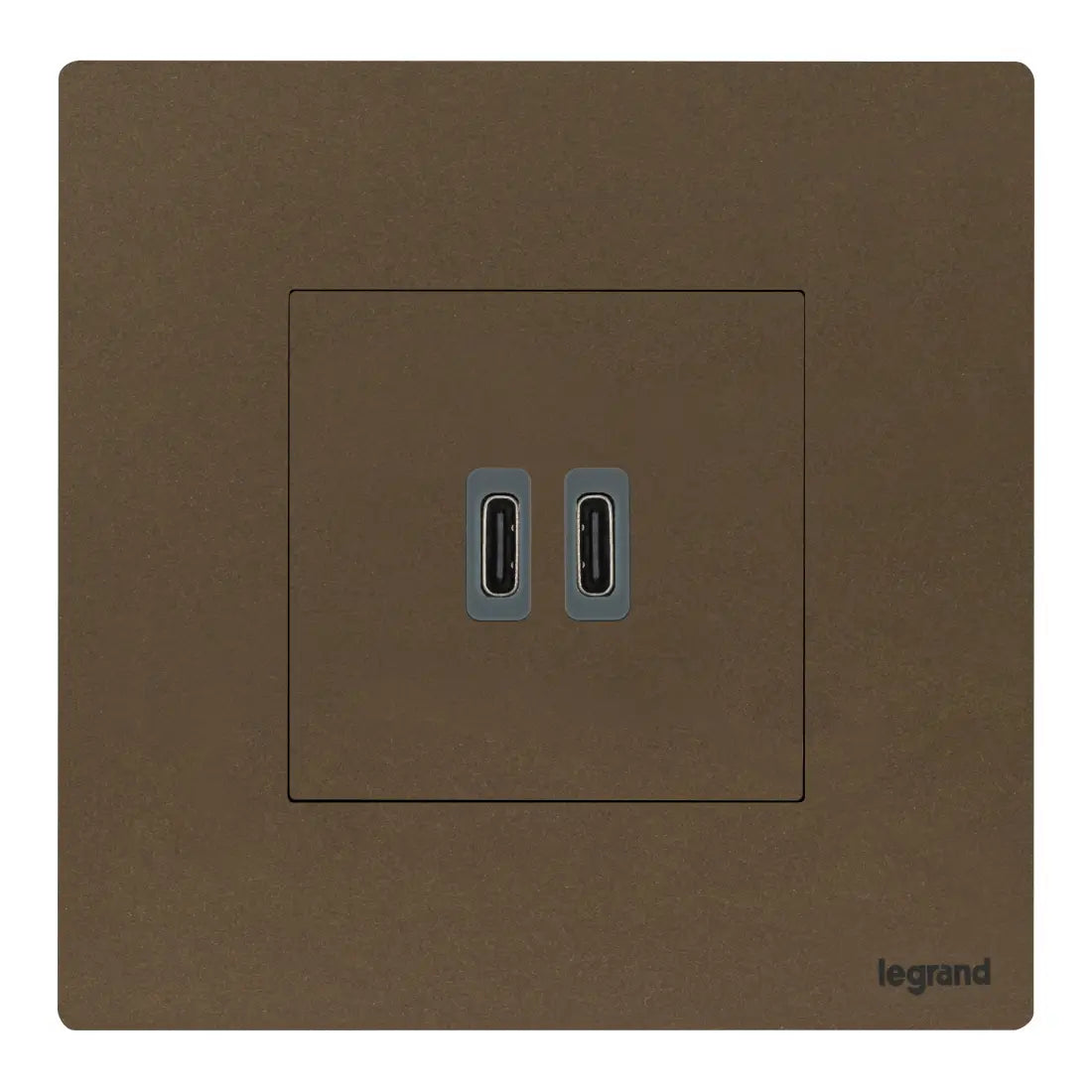

Legrand Mallia Senses 2 Modules 30W C and C Power Delivery USB Charger 281210
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Socket Outlet
Description
The Legrand USB Type-C Charger Module features dual 30W Type-C USB outlets with Power Delivery and Quick Charge support across 5V, 9V, 12V, and 15V, making it ideal for fast and efficient charging of laptops, tablets, and smartphones. Designed for indoor use, it offers low standby power consumption at just 0.07W and supports 2.5mm² terminals for secure connections. Compatible with 40mm mounting boxes, this module combines performance, energy efficiency, and universal charging in a compact and reliable format.
| Brand | Legrand |
| Model | Mallia Senses |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 2 |
| Operating voltage | 100–240 V |
| Frequency | 50–60 Hz |
| Max. output current | 3000 mA |
| Output voltage | 5–20 V |
| Power consumption | 0.063 W |
| Connection type | Screwed terminal |
| Mounting method | Flush-mounted |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL-number | 9003 |
| Min. depth of built-in installation box | 40 mm |
| Suitable for degree of protection (IP) | IP40 |
| Degree of impact strength (IK) | IK04 |
| Antimicrobial treatment | No |
| Wireless | No |
| Operating / setting temperature | 5–40 °C |
| Storage temperature | -20–70 °C |
| Voltage type | AC |
| Power Delivery | Yes |
| USB Output Power | 30 W |
| Supply current | 1–1 A |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Stress test conformity (1000V) | No |
| Halogen free | Yes |
| Number of terminals | 2 |
| Terminals capacity | 1.5–2.5 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1.5–2.5 mm² |
