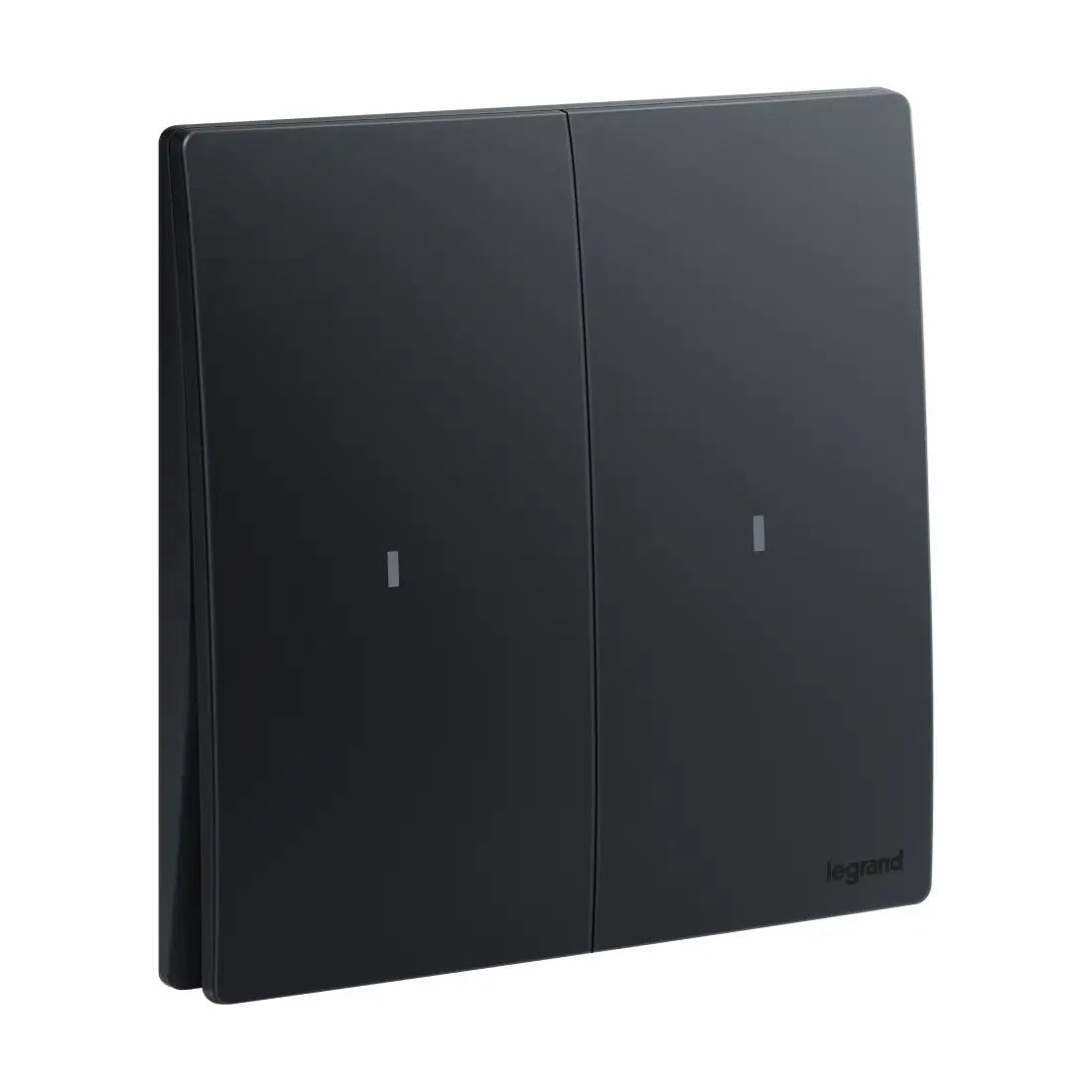

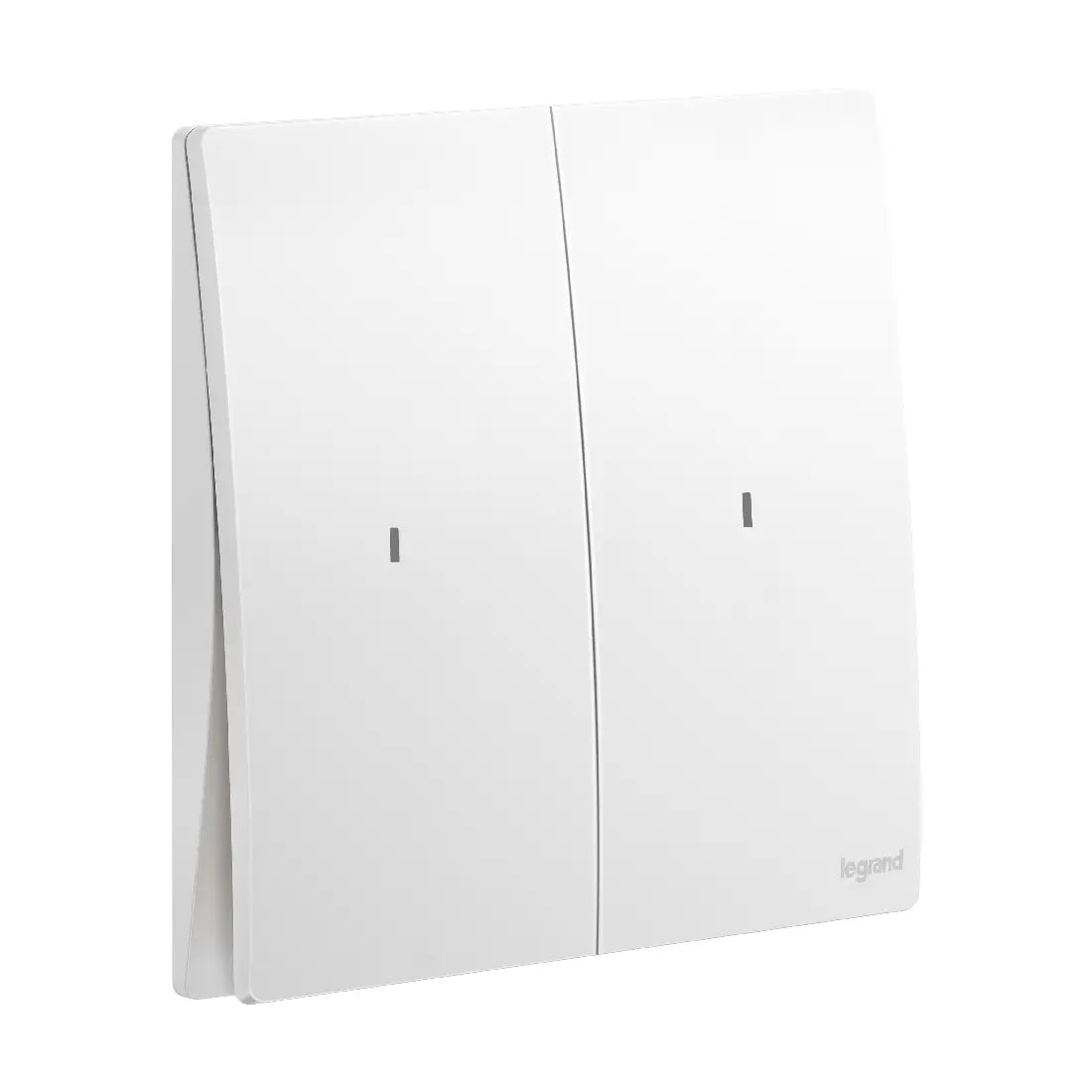

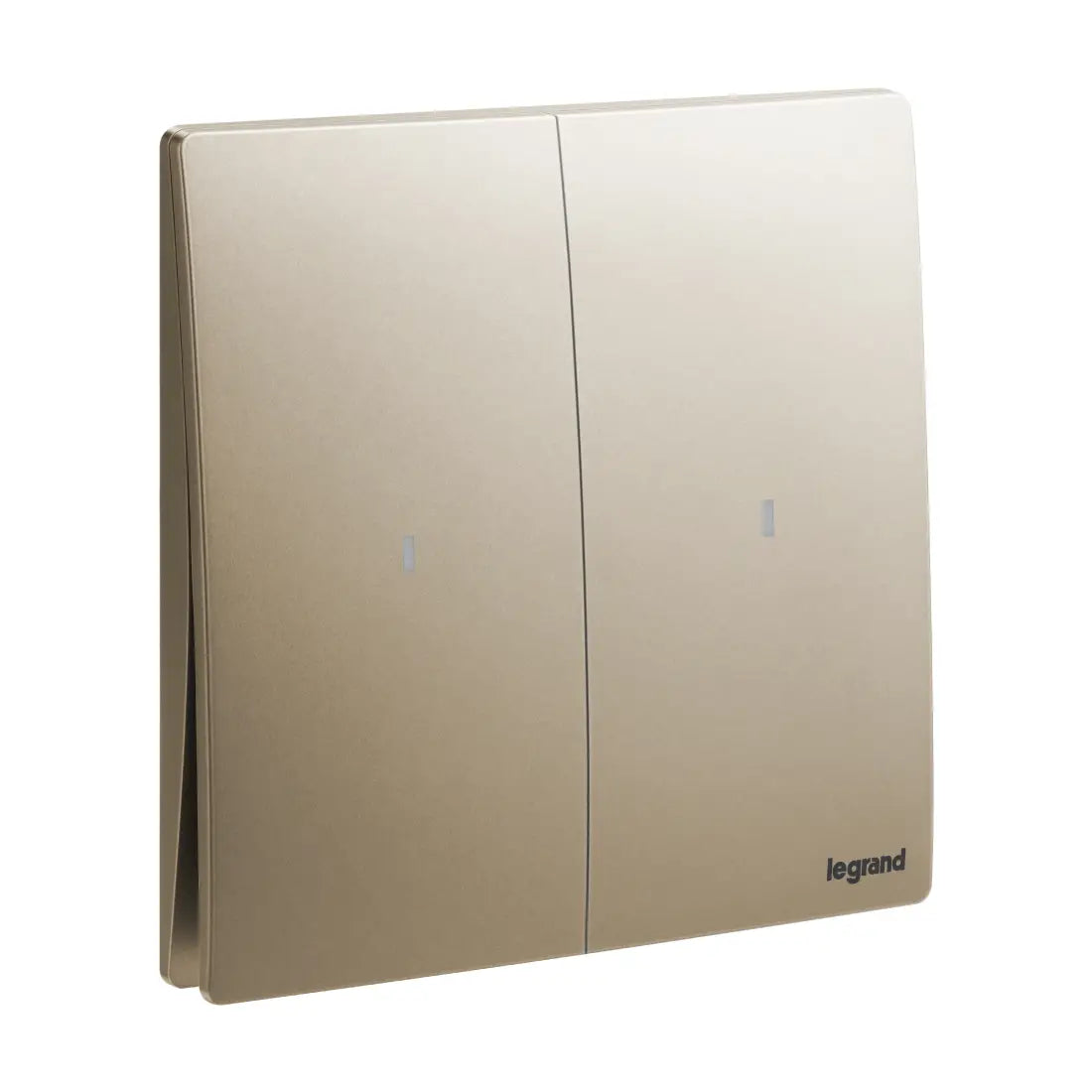

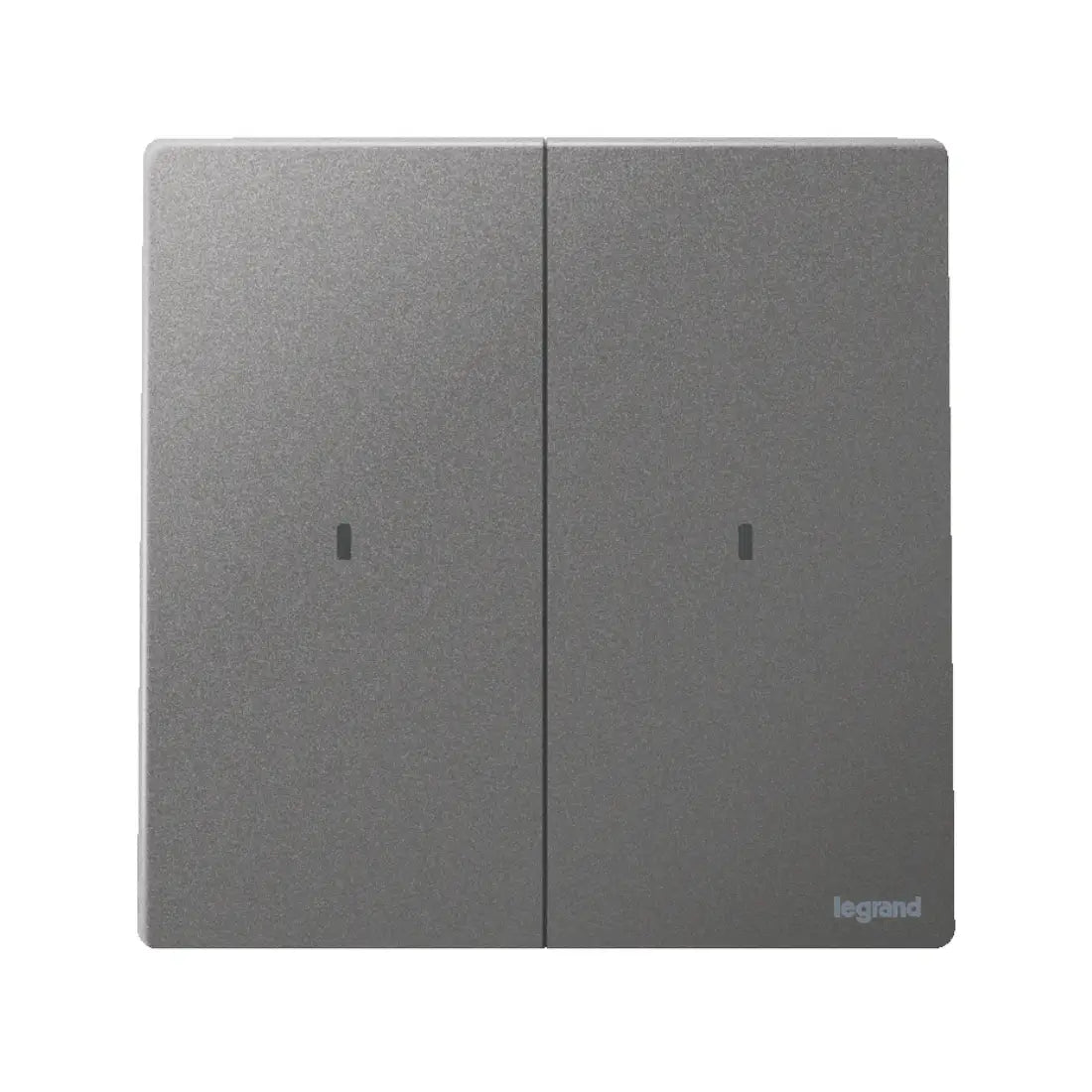

Legrand Mallia Senses 2 Gang 2 Way Illuminated Switch 16AX 281013
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
The Legrand Mallia Senses 2 Gang 1 Way Illuminated Switch (16AX, 250V) is engineered for safe, efficient control in residential and commercial spaces. Delivered as a complete unit under one catalog number, it features screw-type terminals for strong and reliable connections, along with clearly marked terminals for easier identification and wiring. Its quick plate-rocker clipping system enables fast, secure installation. Designed with safety in mind, the switch includes no accessible electrical contact beneath the rockers, ensuring added protection. It provides a soft-touch operation with a defined, quiet click, enhancing user experience. Built on a robust support frame with a slim profile, it integrates seamlessly into any modern interior. Recommended for indoor use only.
| Brand | Legrand |
| Model | Mallia Senses |
| Wiring system | Switch 1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 2 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL-number (similar) | 9003 |
| Lighting | Optional |
| Function lighting | Control and orientation |
| Type of lighting | LED exchangeable |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| Switching current for fluorescent lamps | 16 AX |
| Monitoring contact | No |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 36.8 mm |
| Built-in depth | 24.9 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50–60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
