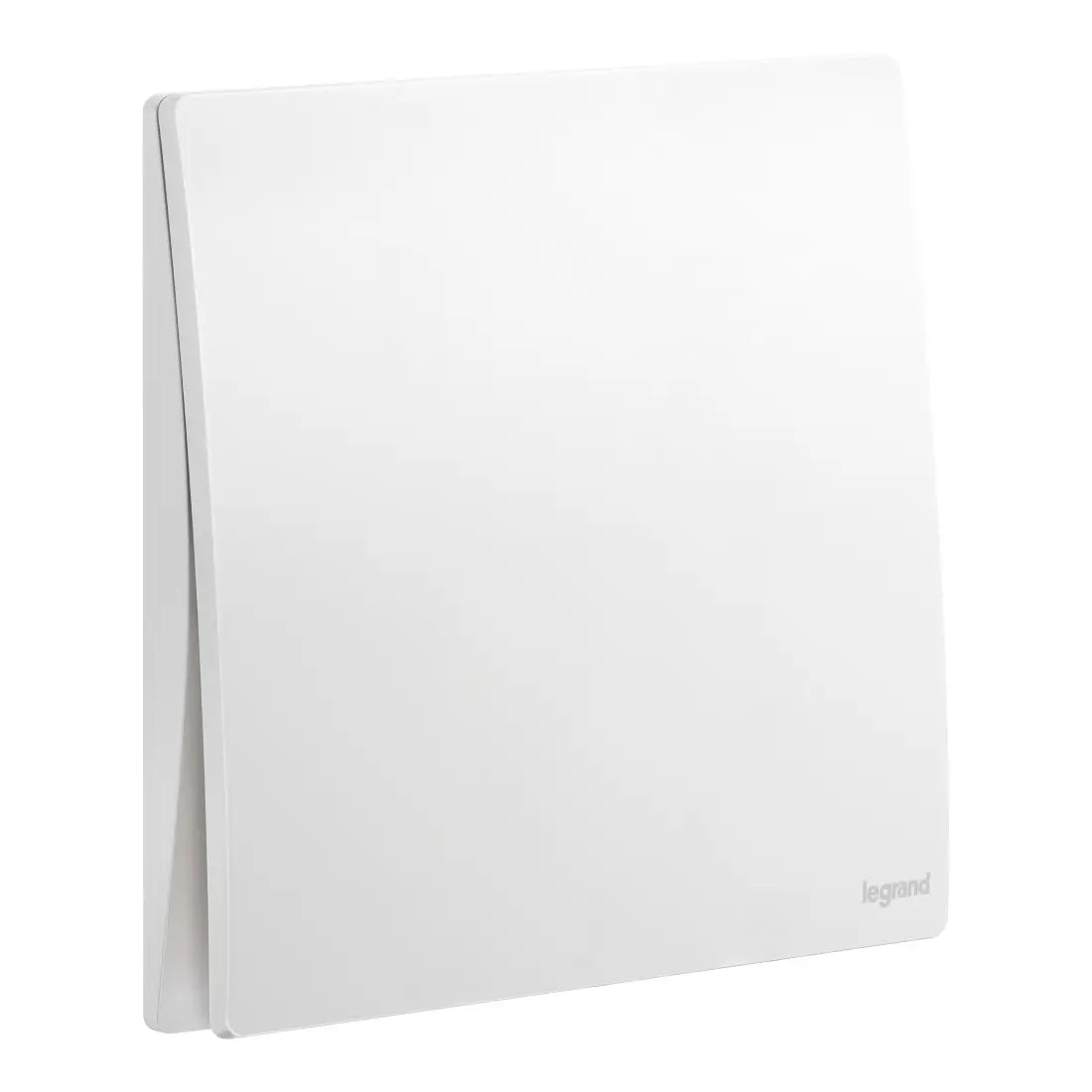

Legrand Mallia Senses 10A 1 Gang Push Button 281041
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
The MALLIA SENSES 1 Gang Push Button Switch (10A, 250V) is a complete and durable indoor switch solution, sold under a single catalog number. It features screw-type terminals for enhanced contact and clearly marked terminals for easy identification during installation. Designed with a quick and simple plate-rocker clipping system, the switch ensures effortless mounting and a neat finish. Its slim, modern profile with a matt white surface blends seamlessly into any contemporary interior. With no accessible electrical contacts beneath the rocker, it offers added safety, while the subtle yet definite motion provides a smooth user experience. The marking on the rocker can be customized to suit various applications, and the robust support frame ensures long-term performance, making it ideal for both residential and commercial use.
| Brand | Legrand |
| Model | Mallia Senses |
| Assembly arrangement | Basic element with complete housing |
| Model | Single push button |
| Method of operation | Rocker |
| Contactless type | No |
| Number of rockers | 1 |
| Number of poles | 1 |
| Nominal voltage | 250 V |
| Rated current | 10 A |
| With lighting | No |
| With light source | No |
| Monitoring contact | No |
| Connection type | Screwed terminal |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Matt |

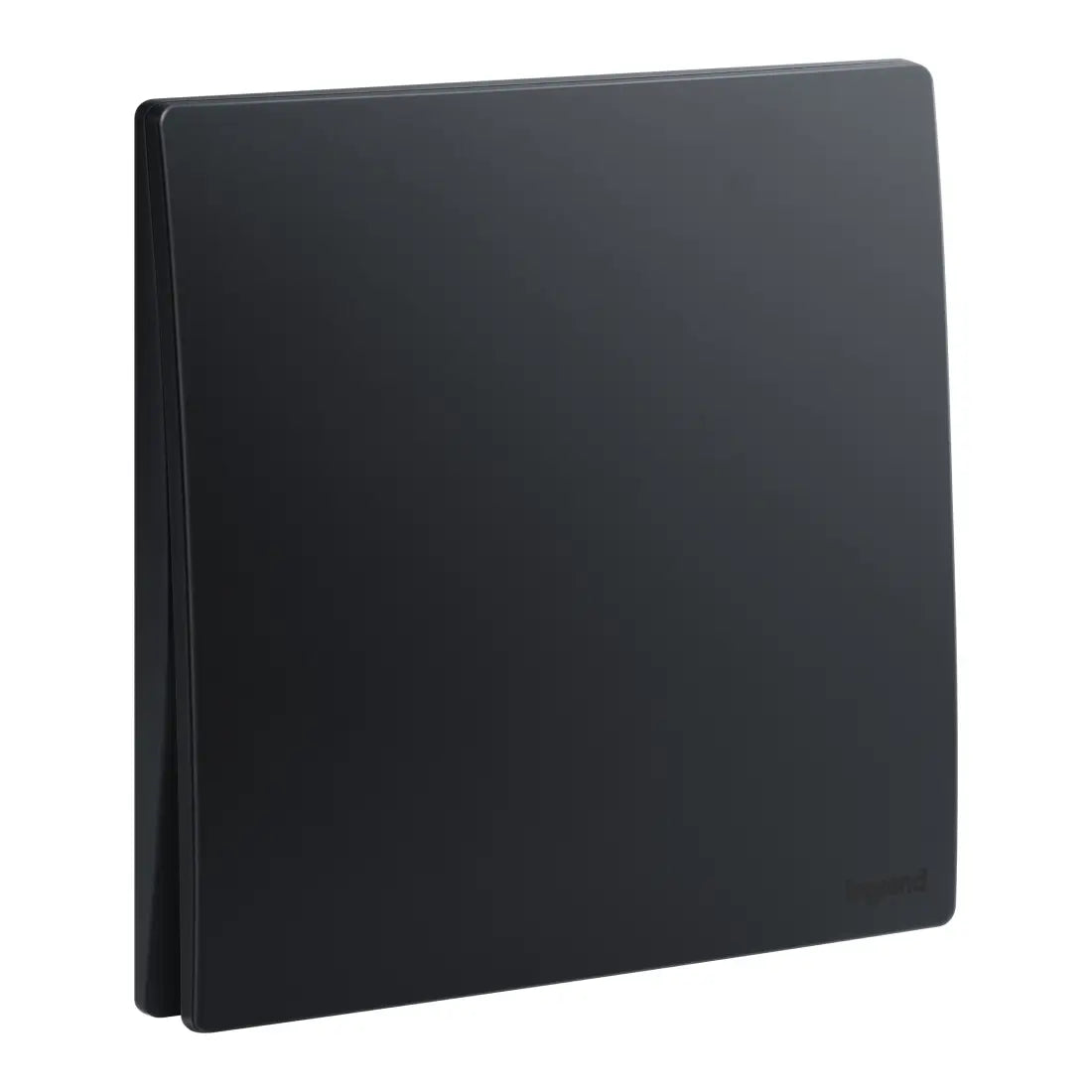

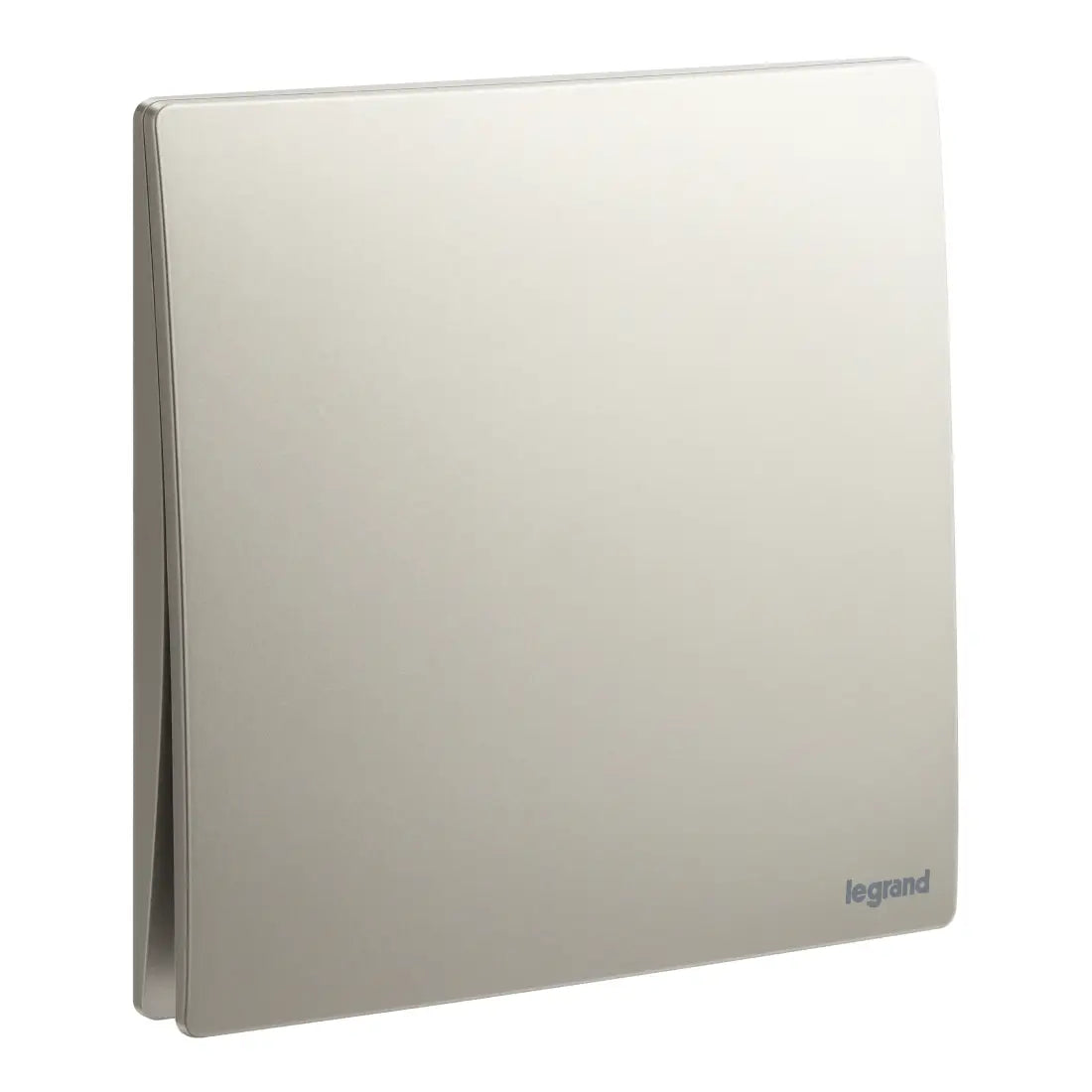

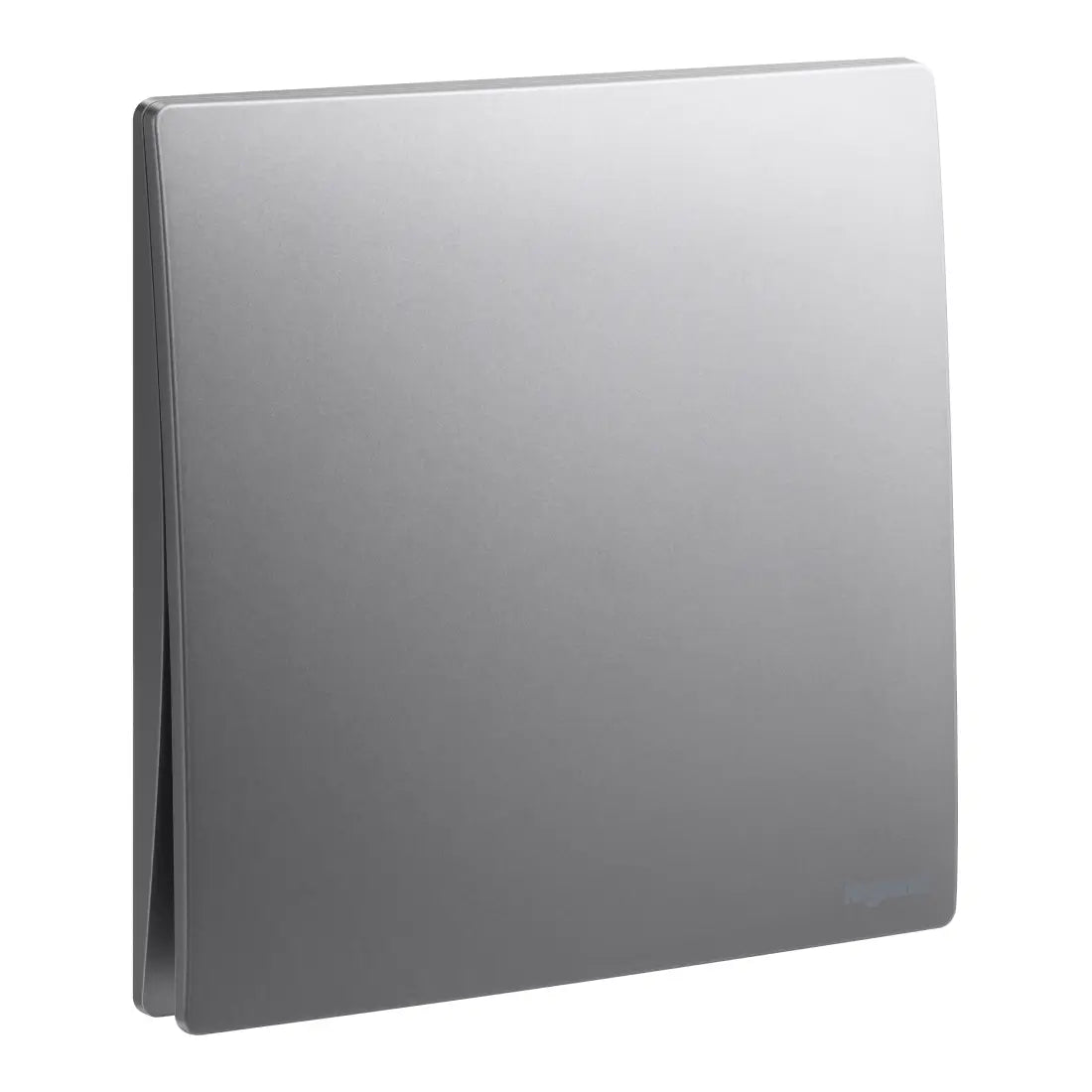

| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Label space/information surface | Yes |
| Imprint | None |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 34.6 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 24.9 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
