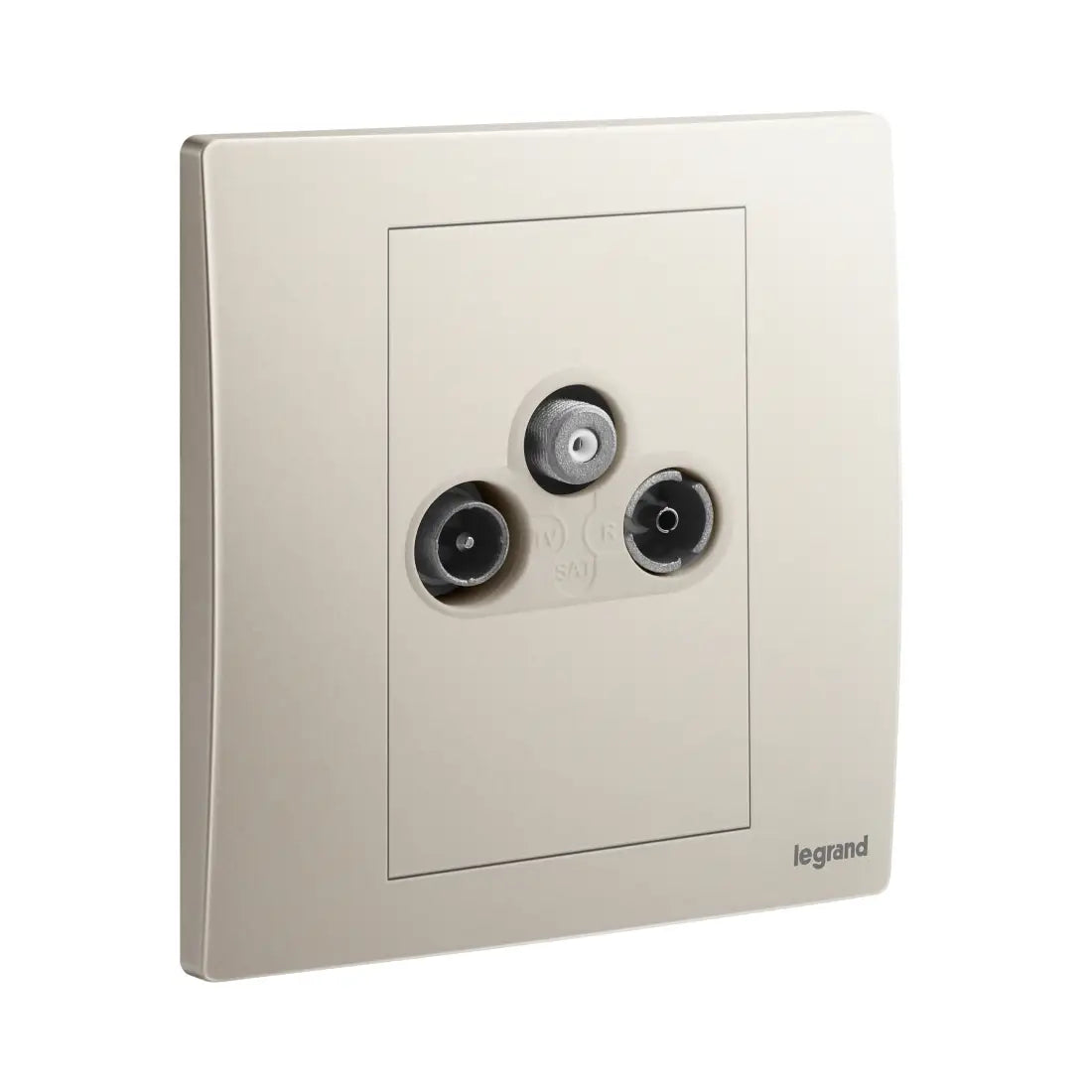

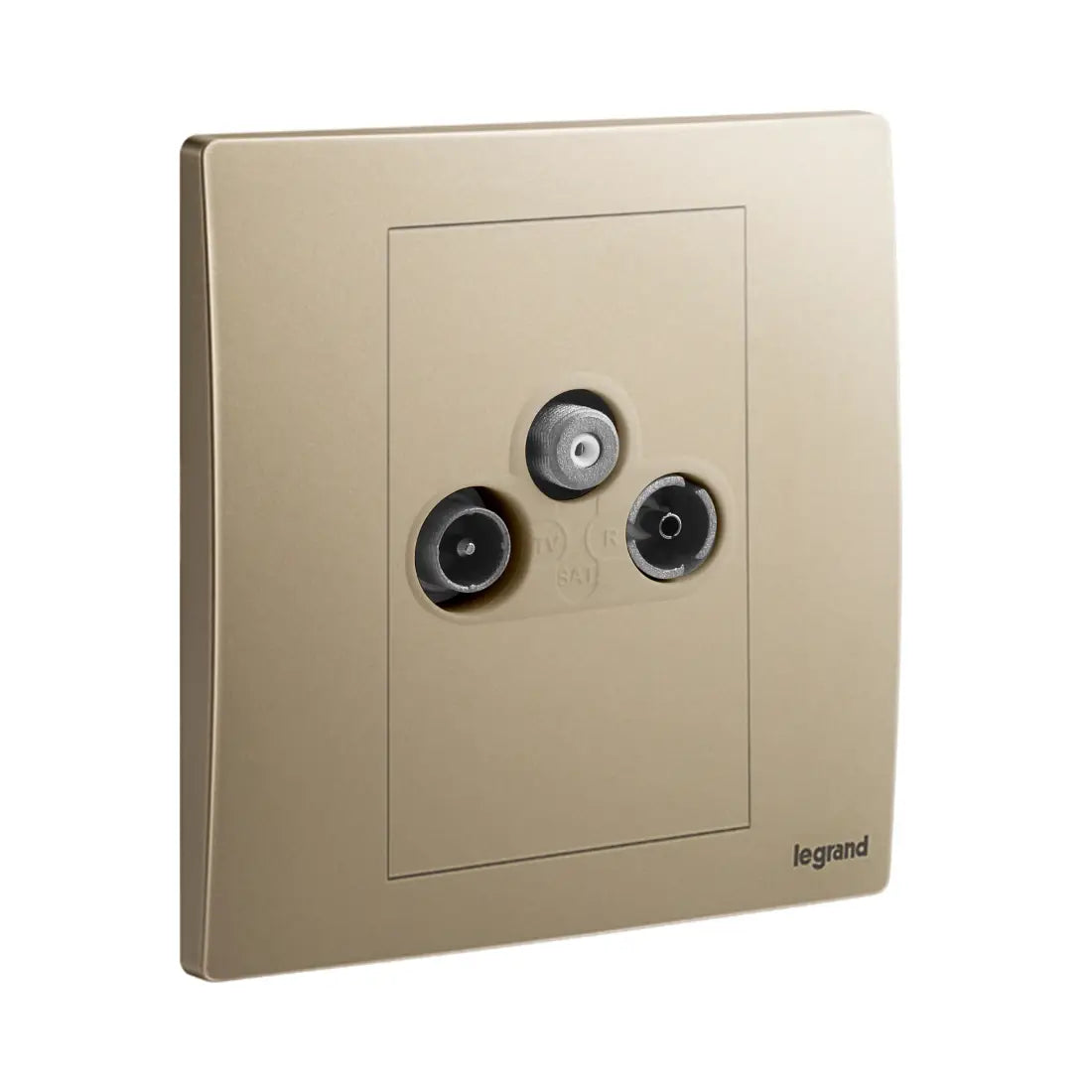

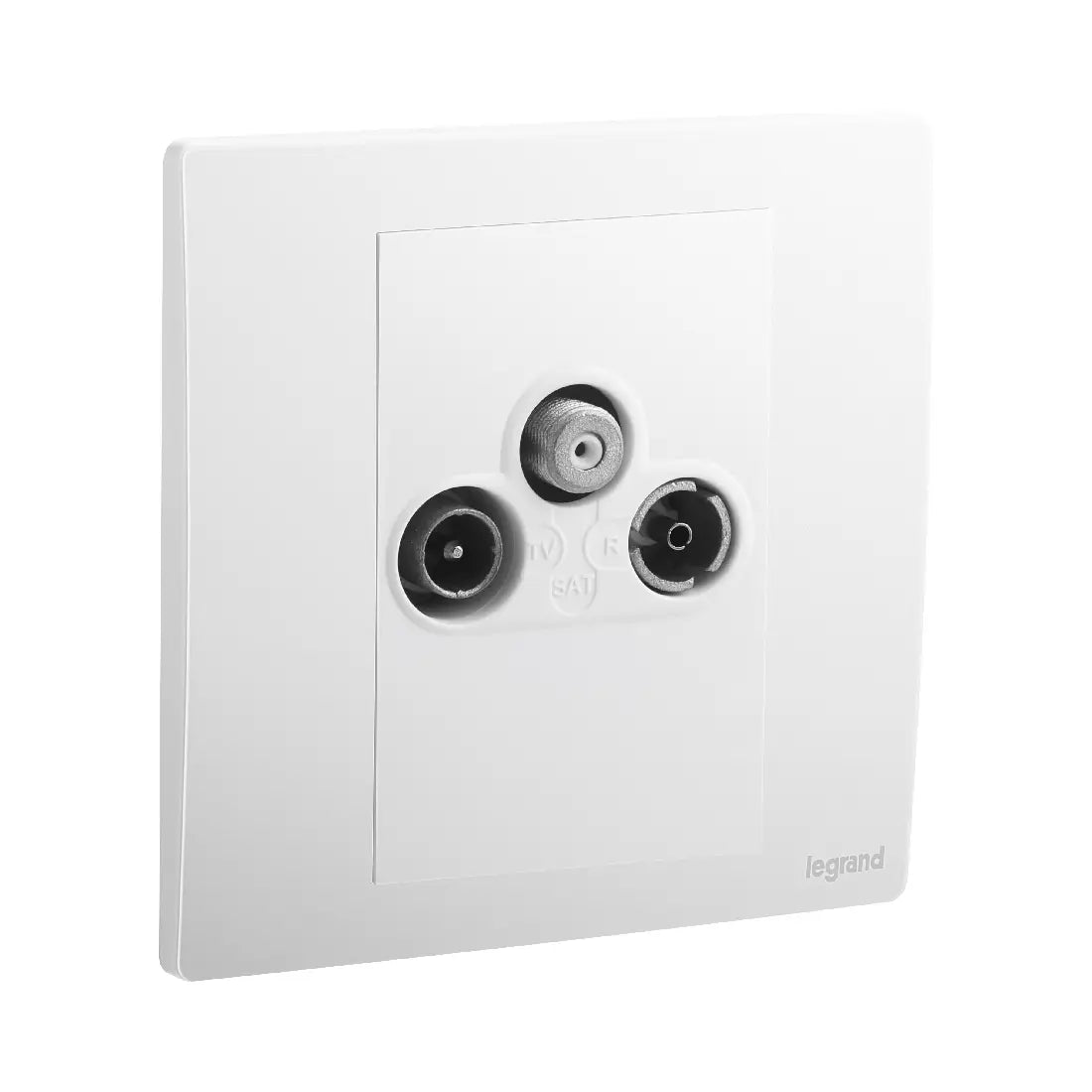

Legrand Mallia Senses 1 Gang TV-R-SAT Socket Outlet 281157
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : TV/FM/SAT Socket
Description
The Legrand Mallia Senses 1 Gang TV-R-SAT Socket Outlet combines a TV (9.5mm male), Radio (9.5mm female), and SAT (F-type screw connector) in one complete unit, offering a reliable solution for high-quality multimedia signal distribution. It features LTE protection at Class A level and ensures minimal signal disruption with an attenuation loss of just 1.5 dB. Compliant with EN-50083-4 and EN-50083-2 standards, this socket outlet is designed for indoor use and is not suitable for looping connections. Installation is straightforward with secured screw terminals and a visual check option for proper connection. Engineered to reduce attenuation losses through limited cable bend radius, it is also fully shielded against EMC disturbances such as 3G, 4G, and 5G, minimizing the risk of signal pixelation. Its slim, modern design ensures seamless integration into any contemporary interior.
| Brand | Legrand |
| Model | Mallia Senses |
| Assembly arrangement | Basic element with full cover plate |
| Type of socket outlet | TV/RD/SAT |
| Mounting method | Flush-mounted |
| Number of modules (module system) | 1 |
| Number of outlets | 1 |
| Through loss at 860 MHz | 1.5 dB |
| Through loss at 2150 MHz | 1.5 dB |
| Type of fastening | Mounting with screw |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL-number (similar) | 9003 |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 39.7 mm |
| Min. depth of built-in installation box | 29.7 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
