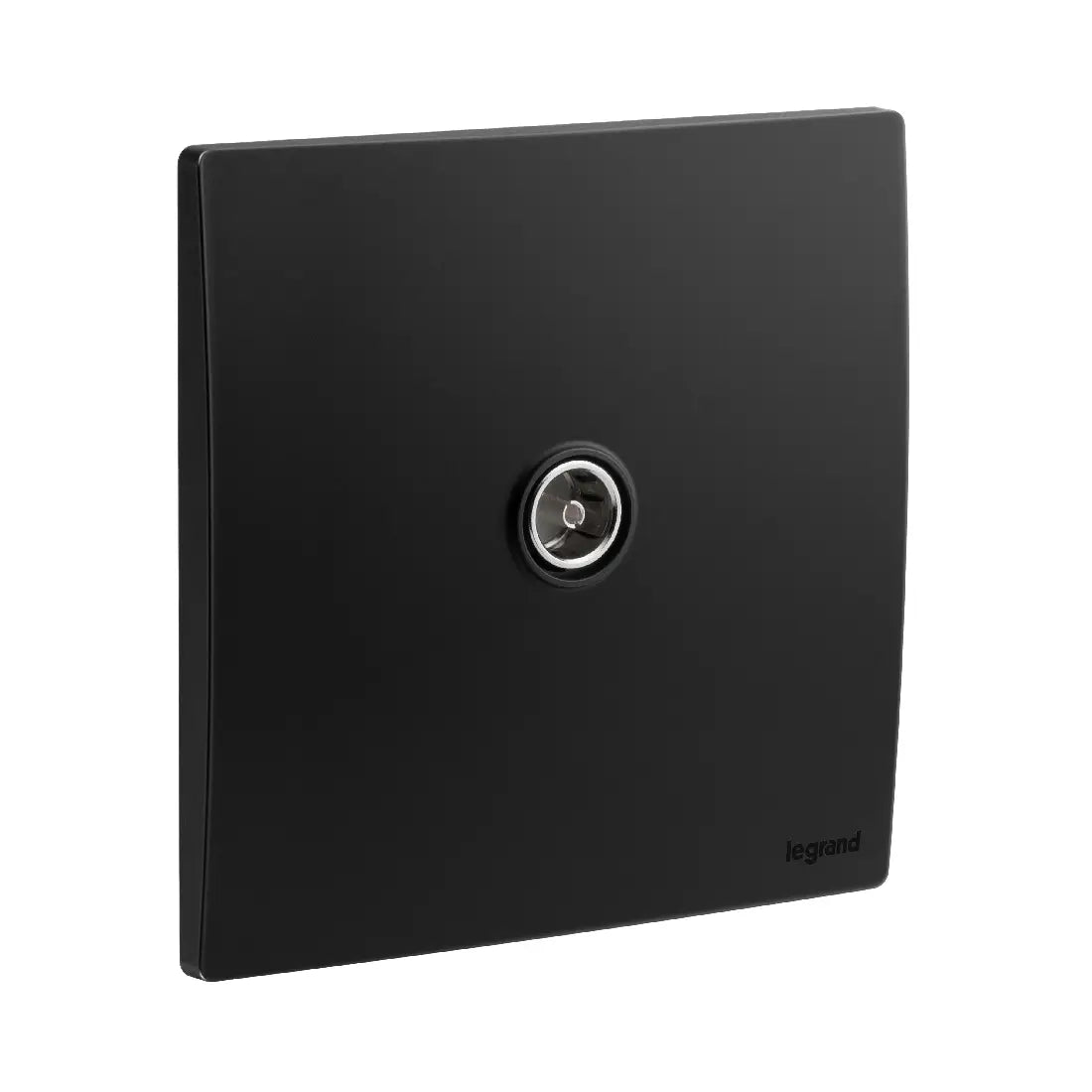

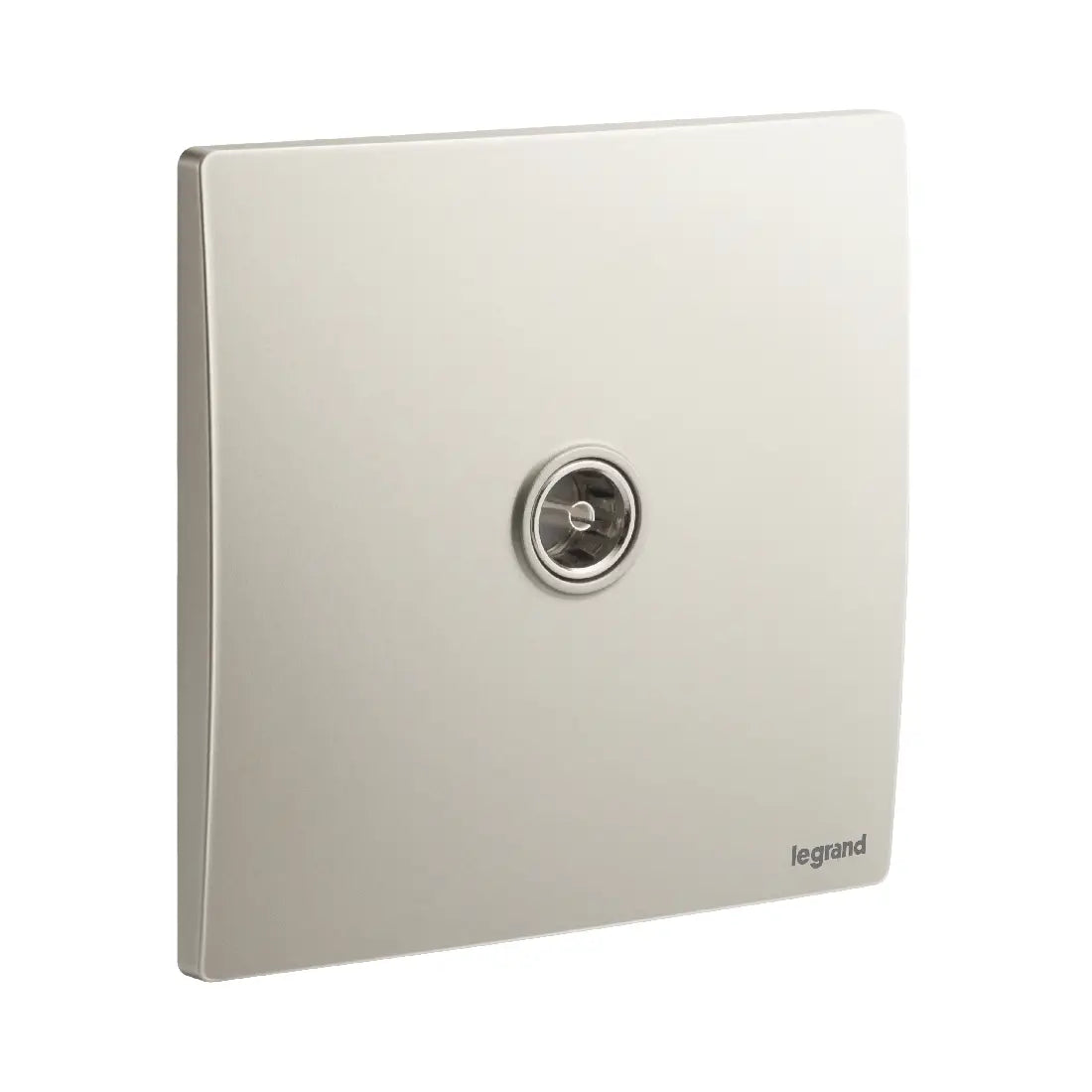

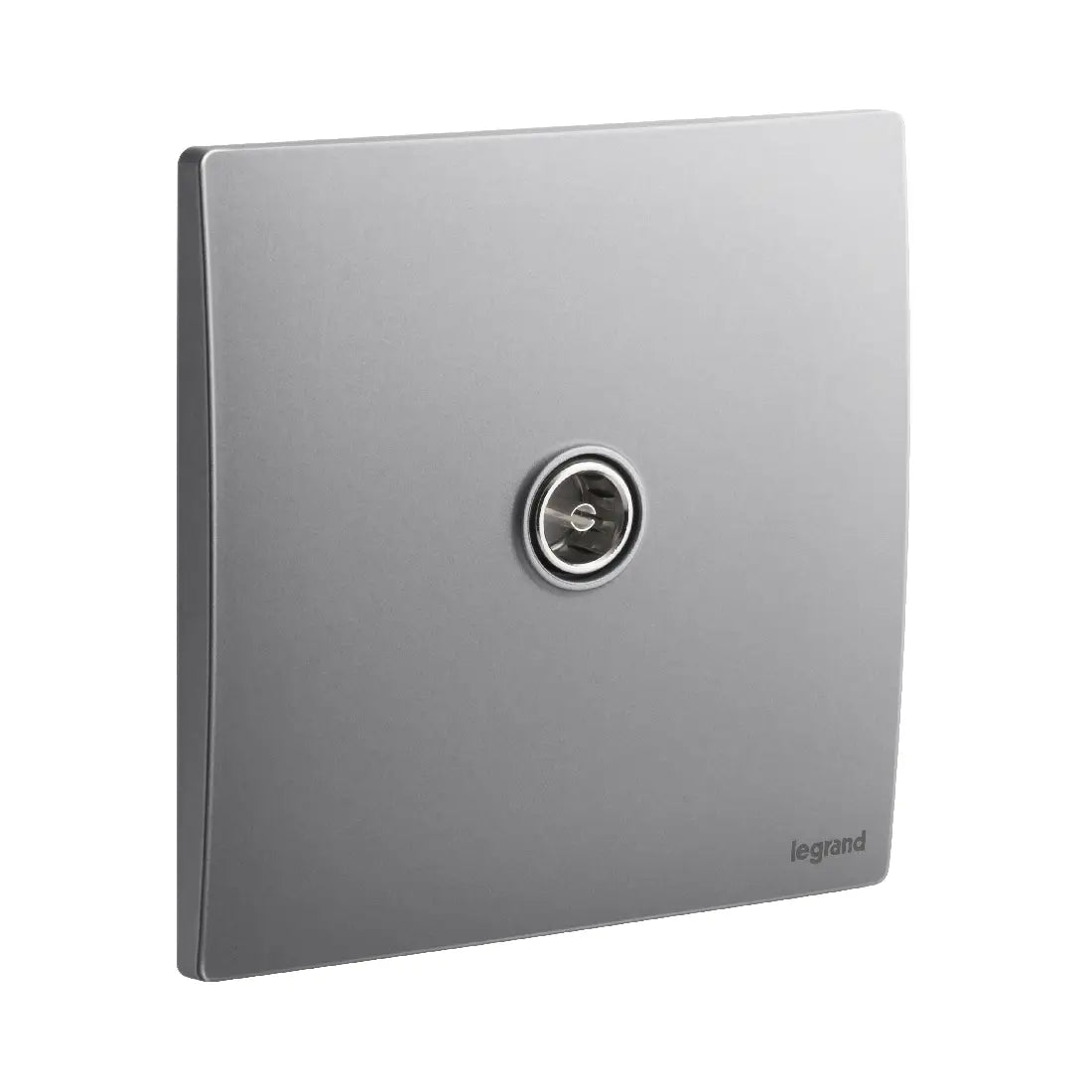

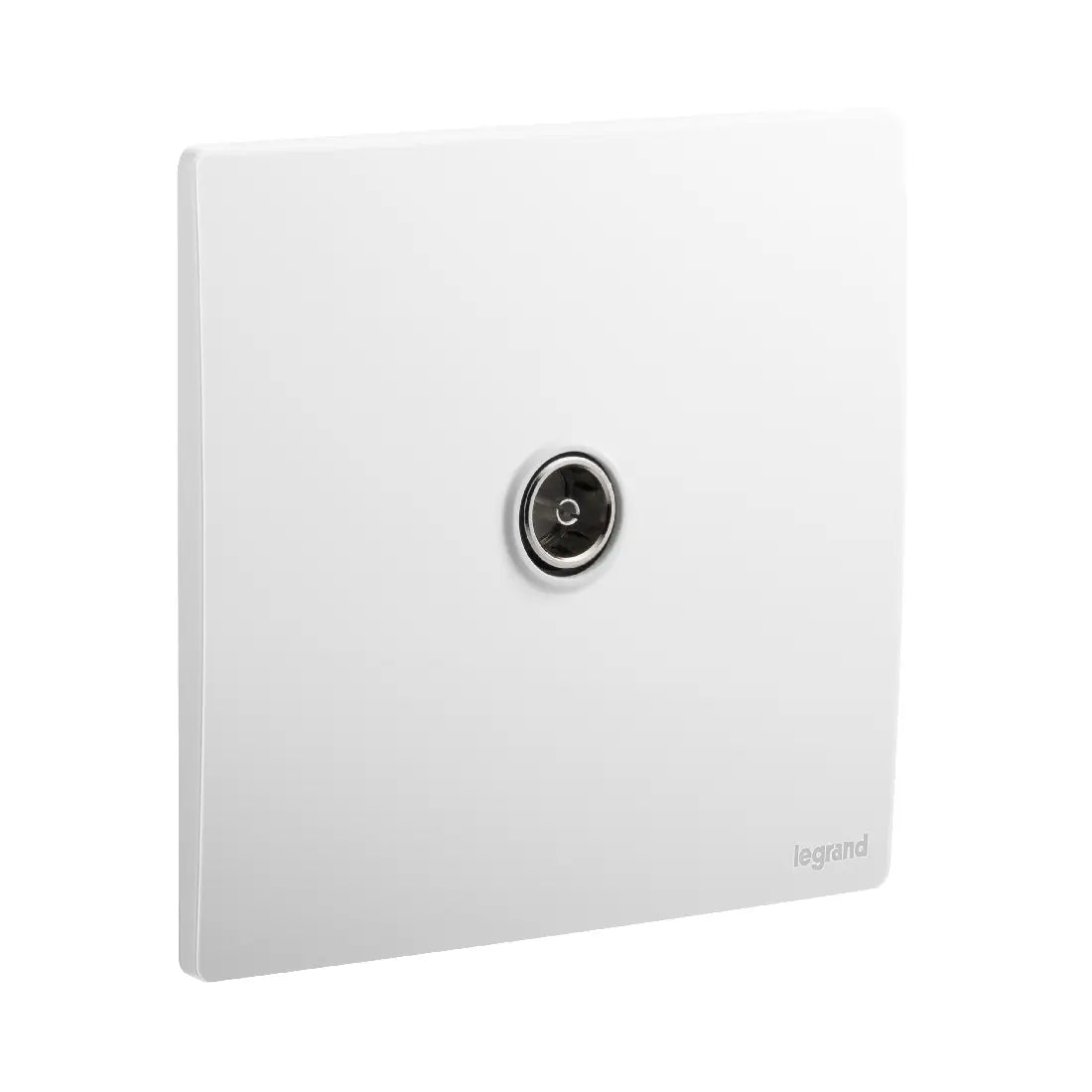

Legrand Mallia Senses 1 Gang TV Female Terminal Socket Outlet 281151
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : TV Socket
Description
The Legrand Mallia Senses 1 Gang TV Socket Outlet with a 9.5mm female terminal is a complete unit designed for clear and stable TV signal transmission. With an attenuation loss of just 1 dB, it ensures minimal signal disruption and complies with EN-50083-4 and EN-50083-2 standards. The socket features a secure screw connection and supports a limited cable bend radius to help reduce signal loss. It is fully protected against EMC disturbances (such as 3G, 4G, and 5G), helping to prevent image pixelation. Designed for flush mounting, this unit combines technical performance with a slim, modern profile that integrates seamlessly into contemporary interiors. Recommended for indoor use only. Note: not suitable for looping connections.
| Brand | Legrand |
| Model | Mallia Senses |
| Type of socket outlet | TV |
| DAB+ | No |
| Mounting method | Flush-mounted |
| Number of modules (module system) | 1 |
| Cover | Full cover plate |
| Number of outlets | 1 |
| Through loss at 860 MHz | 1 dB |
| Type of fastening | Mounting with screw |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 29.3 mm |
| Min. depth of built-in installation box | 21.2 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
