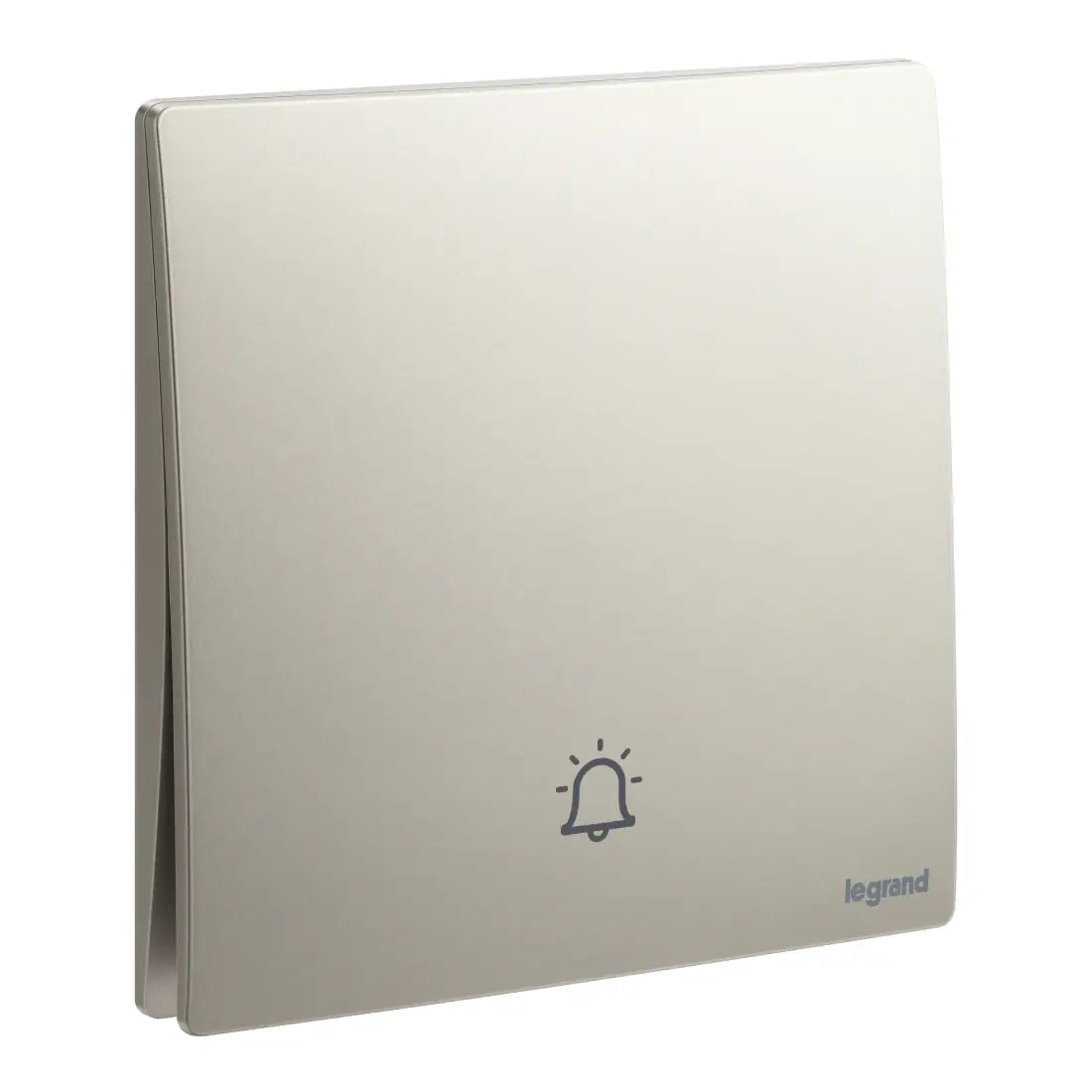

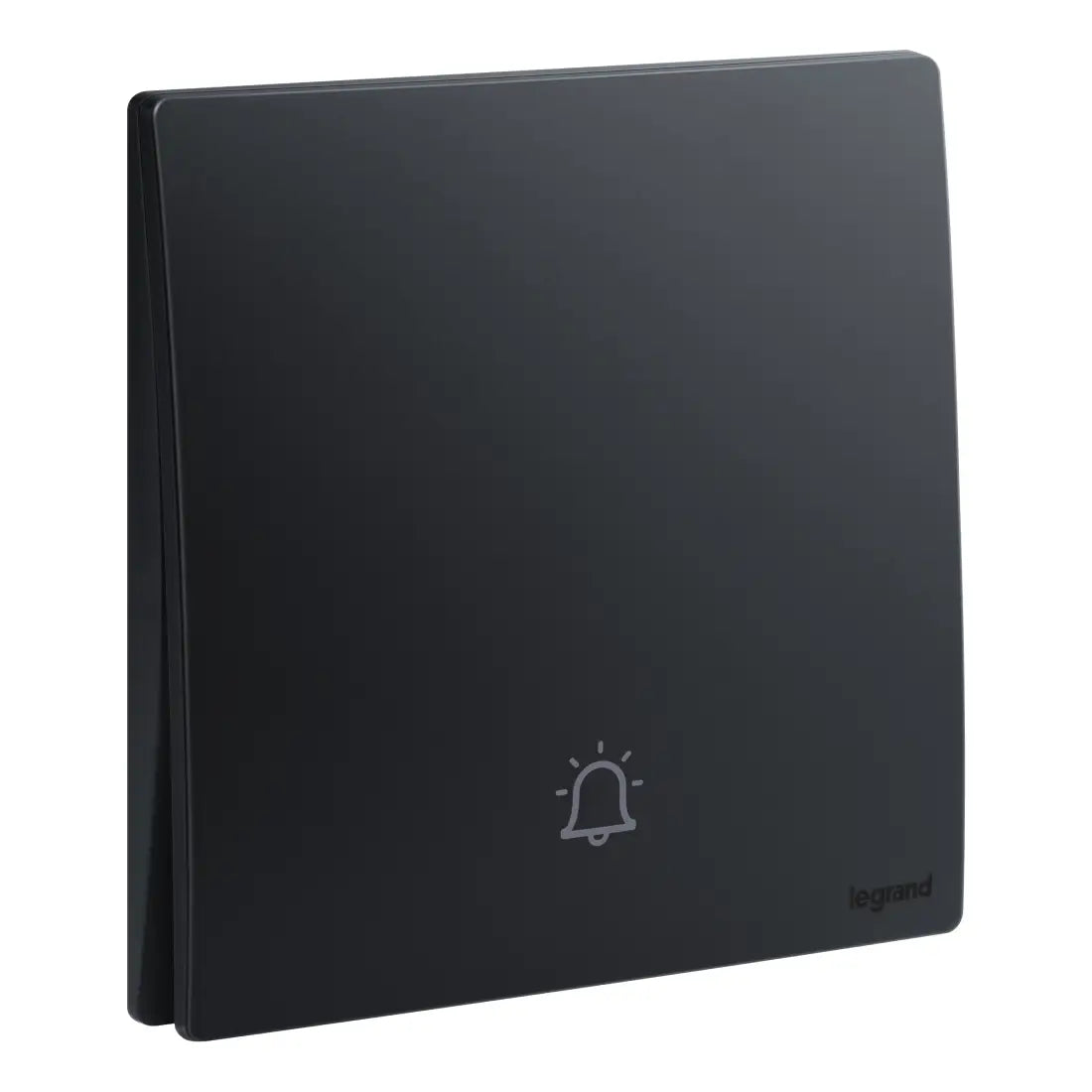

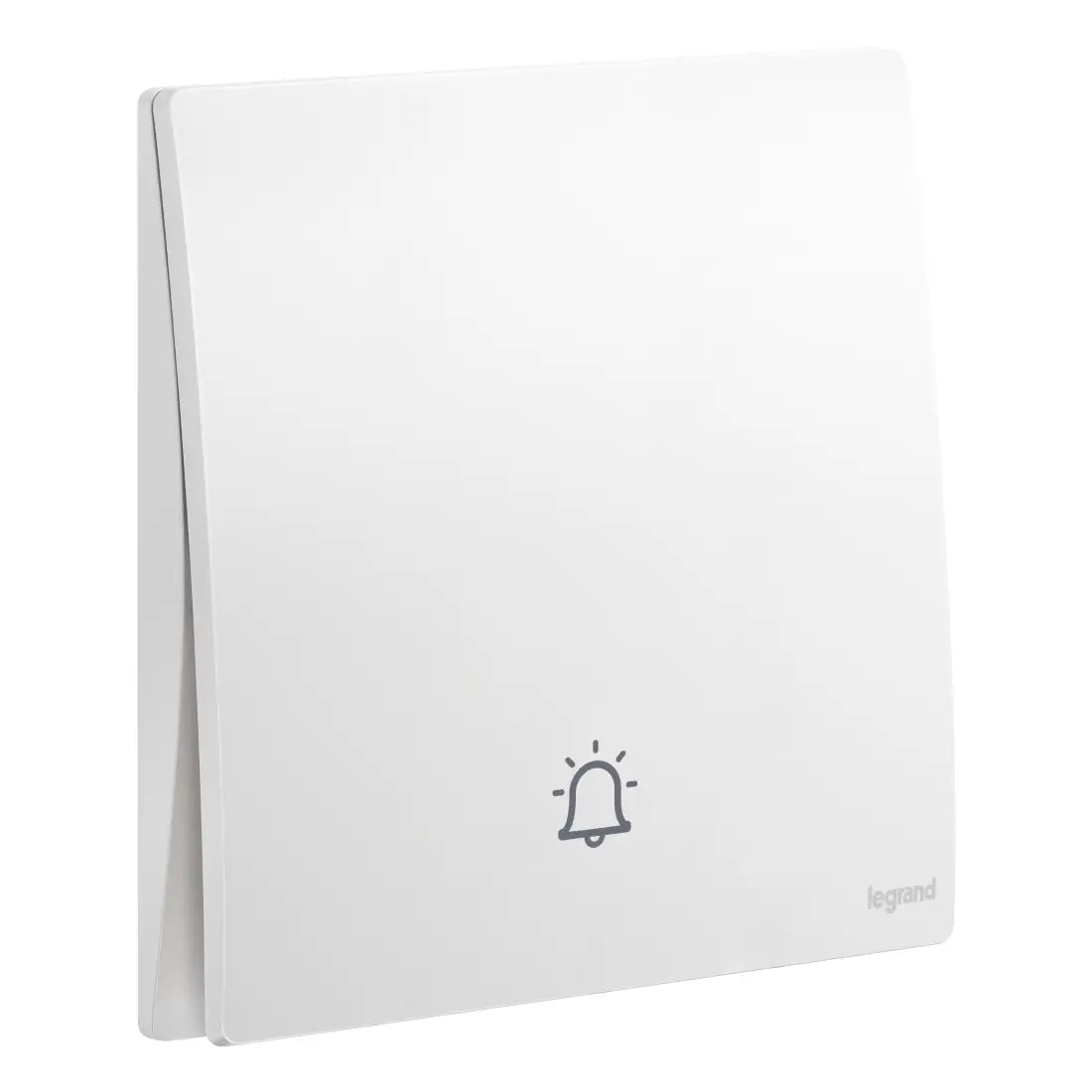

Legrand Mallia Senses 1 Gang Push Button 10A with Bell Marking 281040
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Door Bell
Description
The MALLIA SENSES 1 Gang Push Button Switch with Bell Marking (10A, 250V) is a complete, ready-to-install unit provided under a single catalog number, ideal for reliable indoor use. Featuring screw-type terminals for secure and enhanced electrical contact, along with clearly marked terminals for easy wiring, this switch ensures safe and efficient installation. Its sleek matt white finish and slim, modern profile blend seamlessly into any interior décor. Designed with a quick and easy plate-rocker clipping system, the switch offers a smooth installation experience. The soft-touch push button provides a definite tactile response with an audible click, while maintaining complete electrical safety with no accessible contacts under the rocker. Built with a robust support frame, this switch delivers both durability and refined aesthetics, making it a perfect solution for doorbell or signal control applications.
| Brand | Legrand |
| Model | Mallia Senses |
| Assembly arrangement | Basic element with complete housing |
| Model | Single push button |
| Method of operation | Rocker |
| Contactless type | No |
| Number of rockers | 1 |
| Number of poles | 1 |
| Nominal voltage | 250 V |
| Rated current | 10 A |
| With lighting | No |
| With light source | No |
| Monitoring contact | No |
| Connection type | Screwed terminal |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Label space/information surface | Yes |
| Imprint | Symbol "bell" |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 34.6 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 24.9 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
