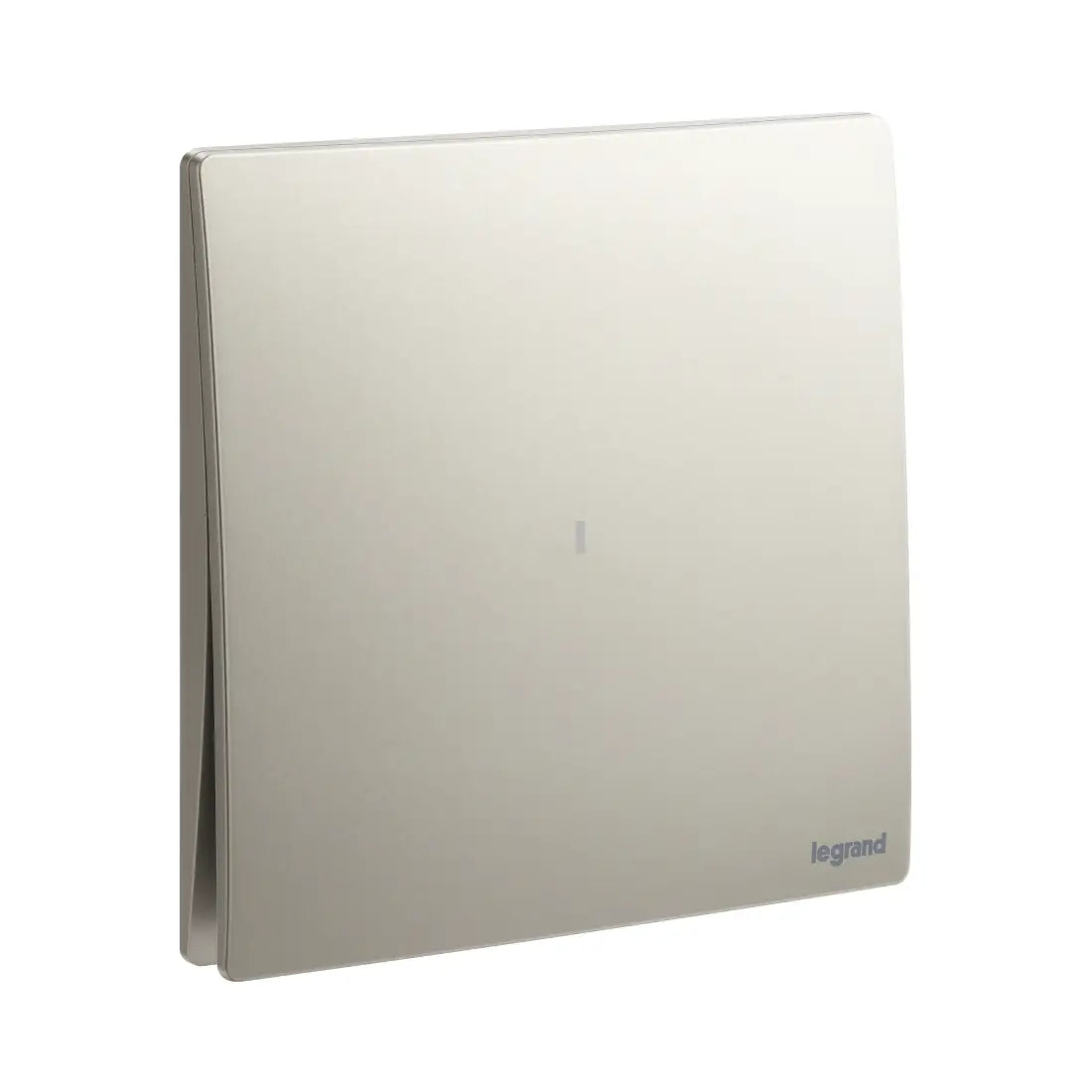

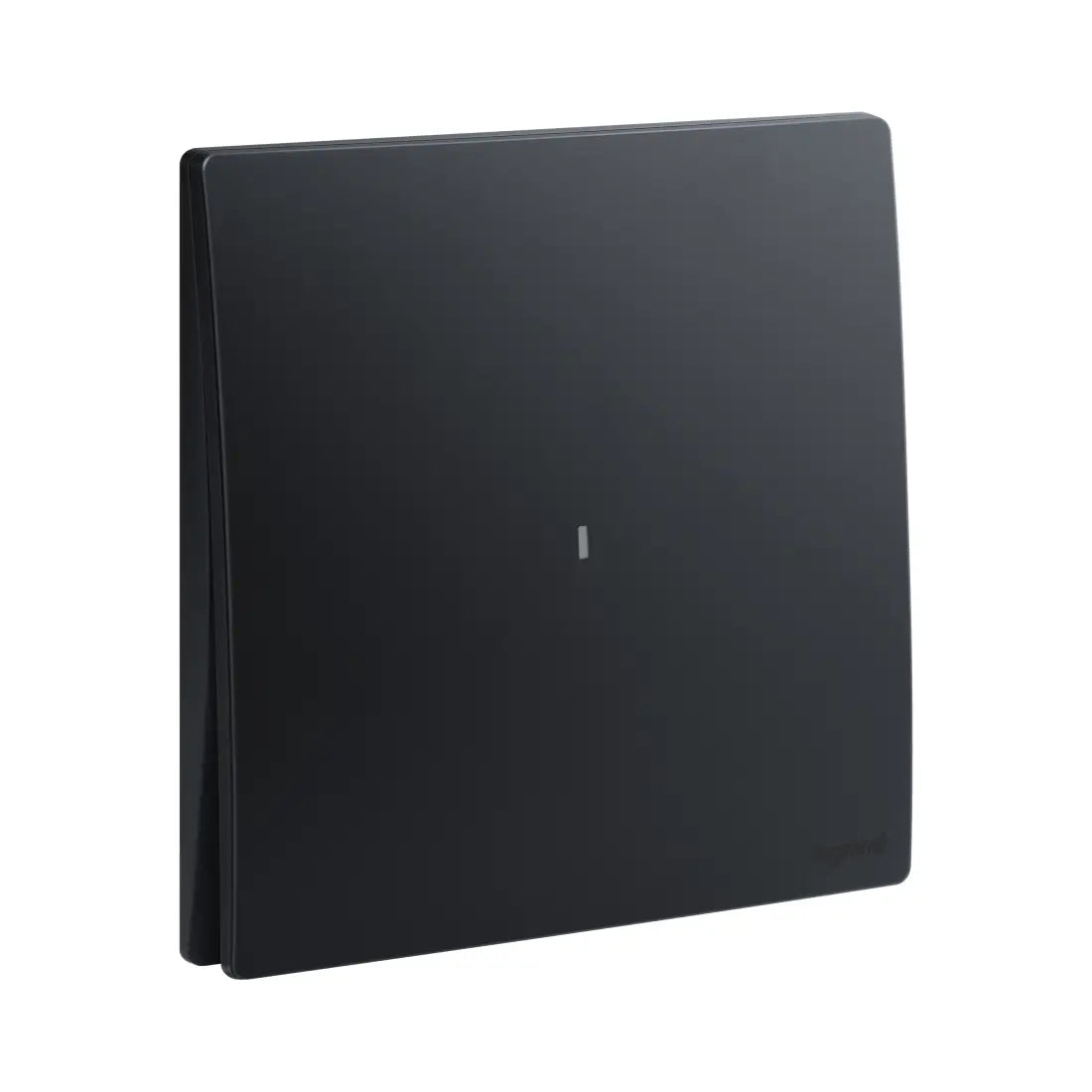

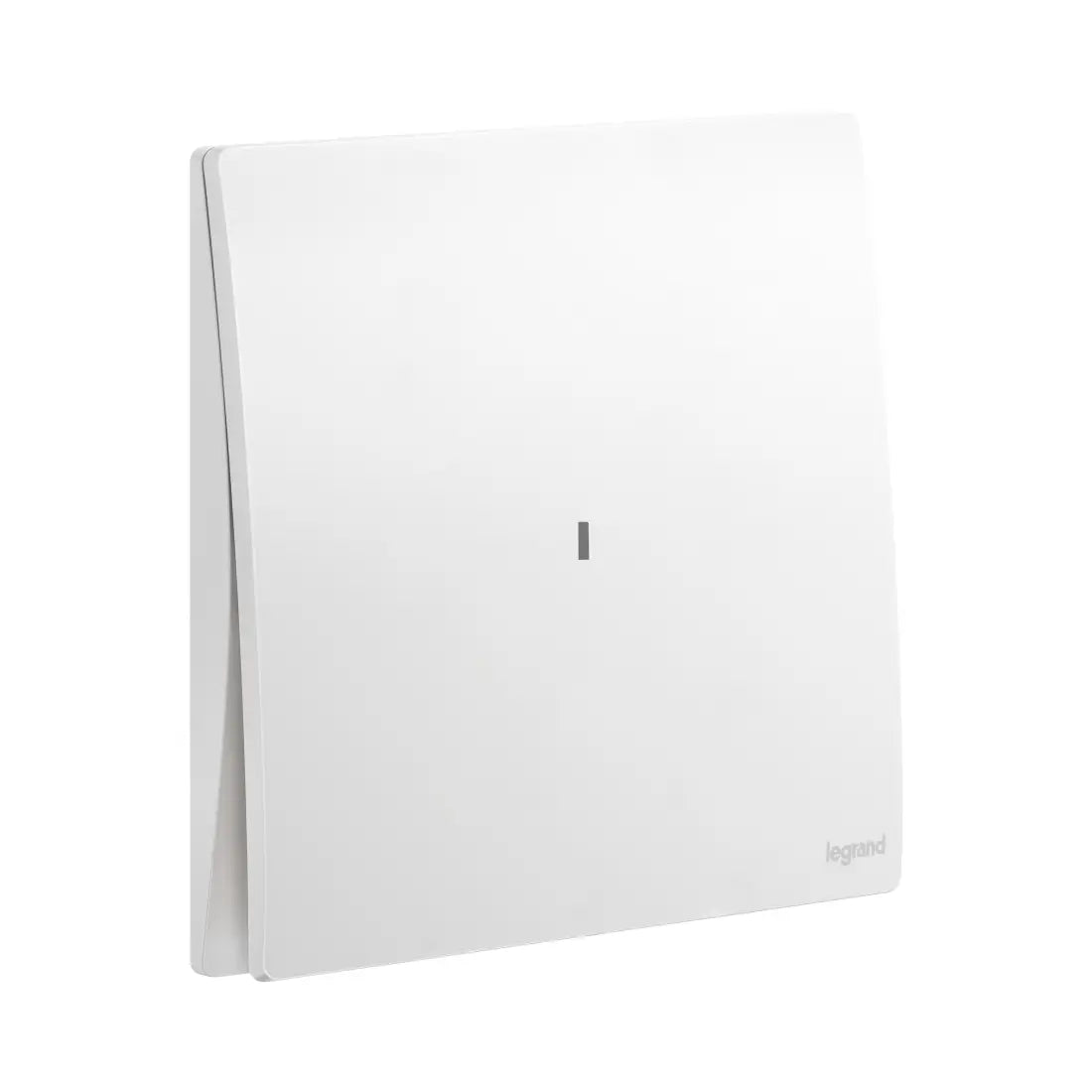

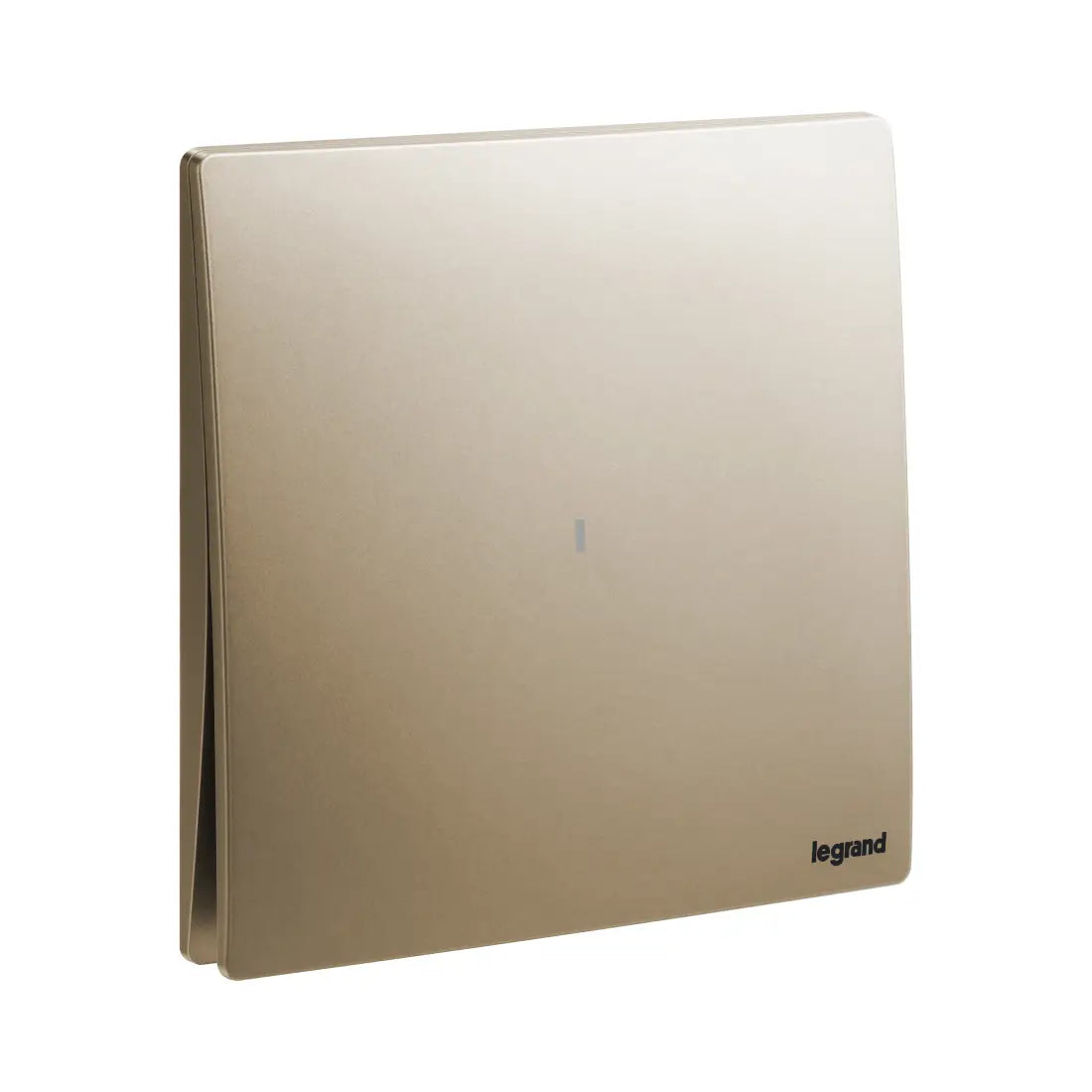

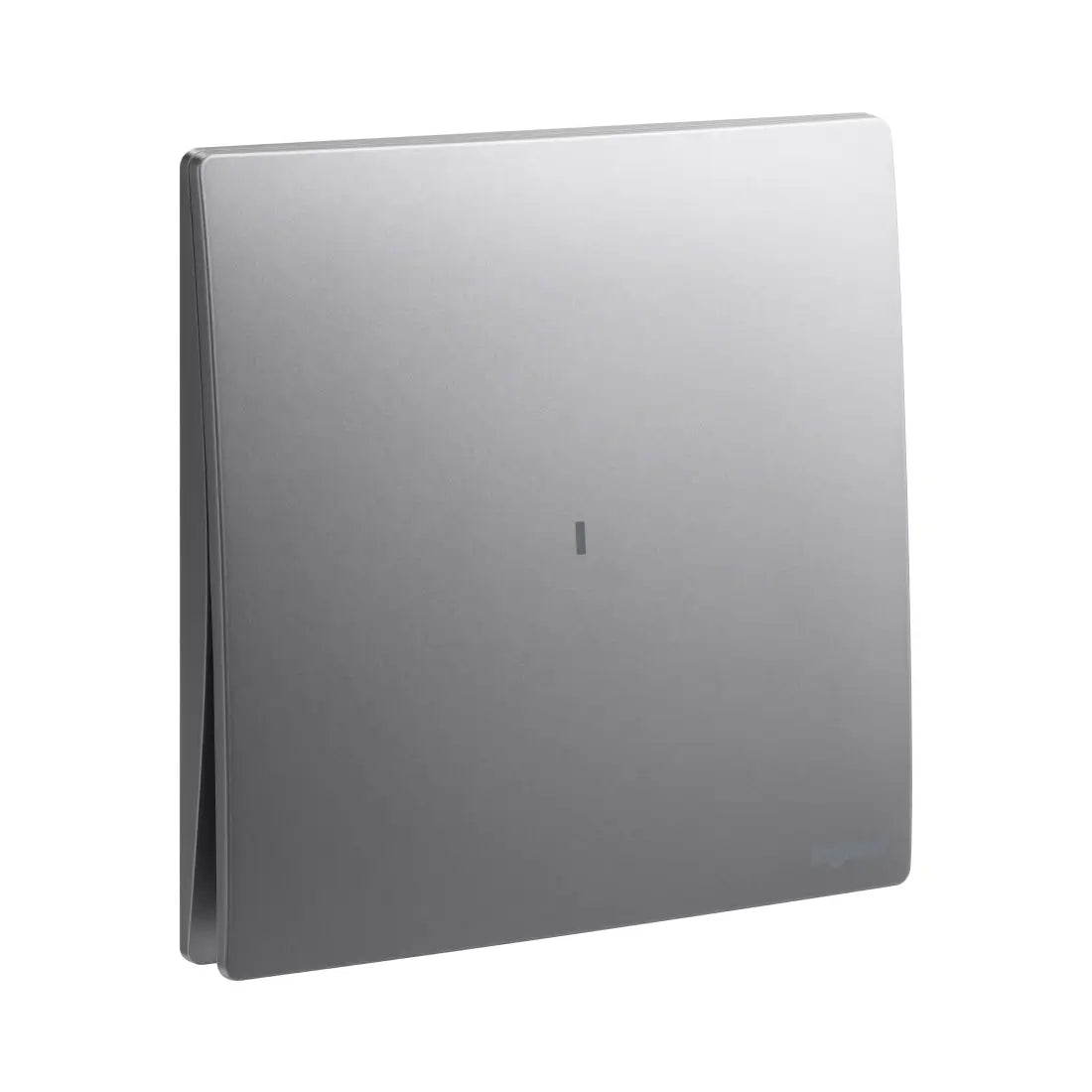

Legrand Mallia Senses 1 Gang Illuminated Intermediate Switch 16AX 281009
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
The Legrand Mallia Senses 1 Gang Illuminated Intermediate Switch 16AX 281009 is a sleek and modern electrical solution designed for both functionality and style. Operating at 16AX, 250V, it comes as a complete set under one catalogue number and features a brushed aluminium finish for a refined look. Its screw-type terminals ensure strong, reliable connections, while clearly marked terminals simplify installation. The quick and easy plate-rocker clipping system allows for hassle-free setup, and the intermediate switch function enables control of lighting from multiple points. Designed for indoor use, it offers enhanced safety with no accessible electrical contact under the rockers. With its soft-touch feel, subtle audible feedback, robust support frame, and ultra-slim design, this switch seamlessly integrates into modern interiors, providing both elegance and dependable performance.
| Brand | Legrand |
| Model | Mallia Senses |
| Wiring system | Intermediate switch |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| Lighting | Optional |
| Function lighting | Control and orientation |
| Type of lighting | LED exchangeable |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| Switching current for fluorescent lamps | 16 AX |
| Monitoring contact | No |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 35.7 mm |
| Built-in depth | 23.8 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50–60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
