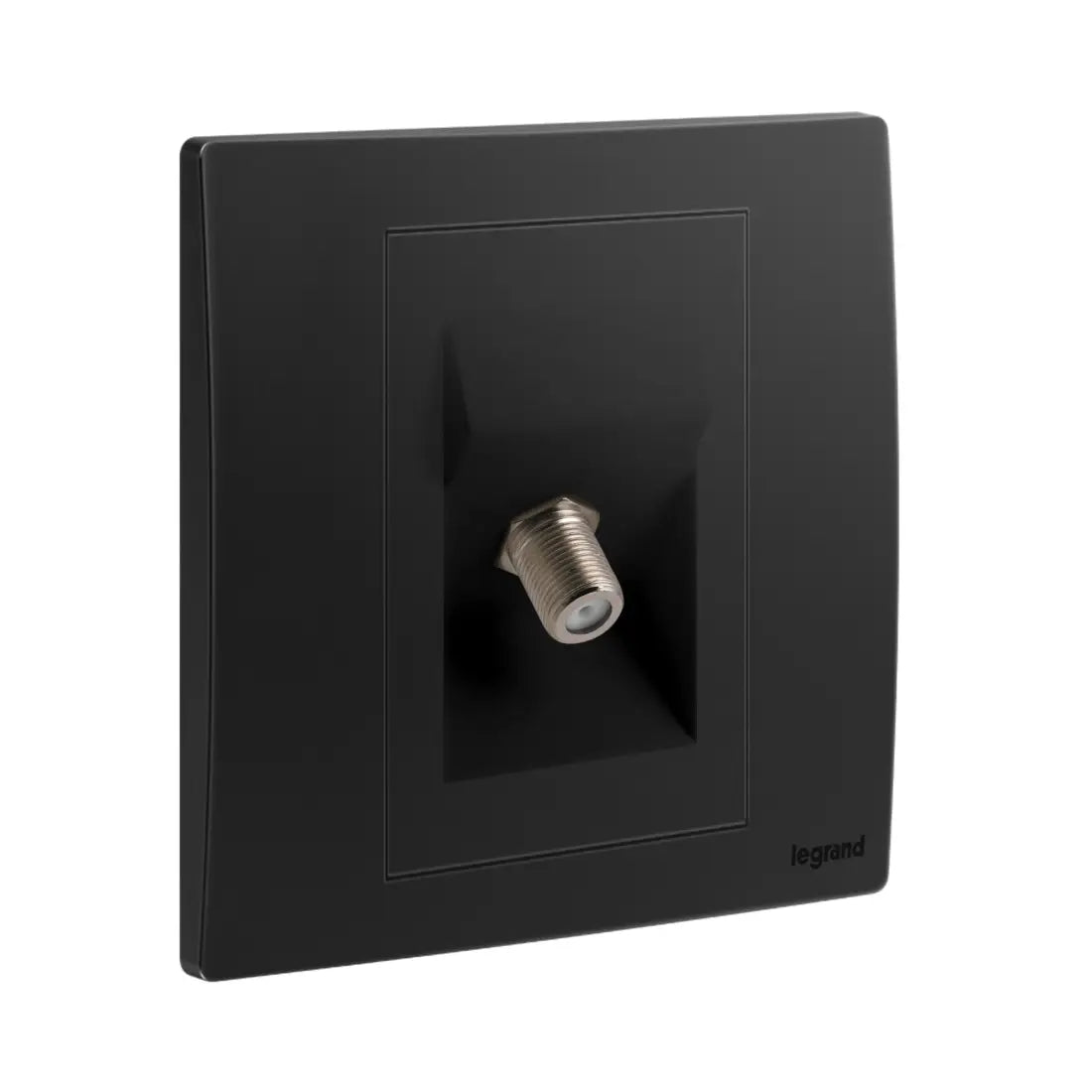

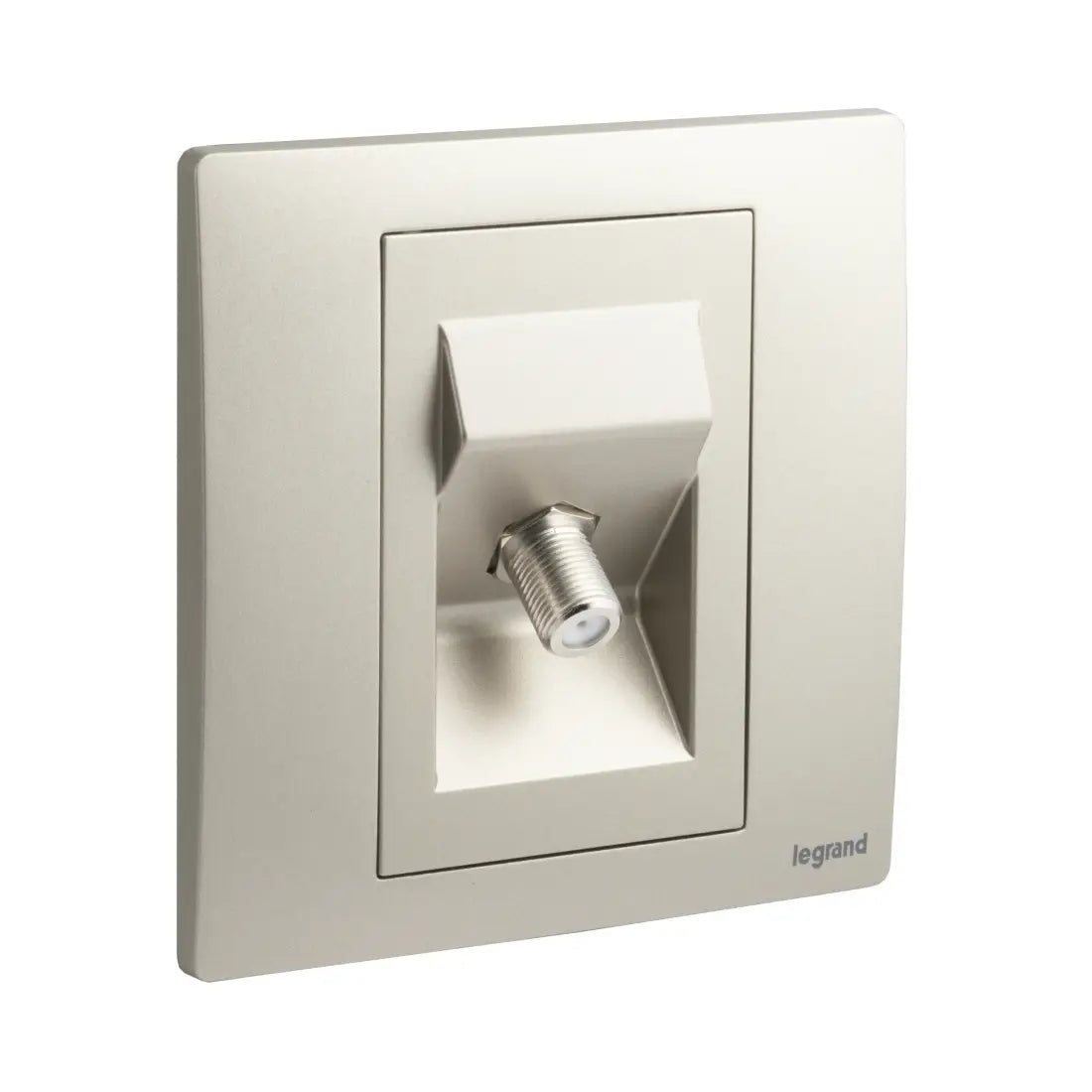

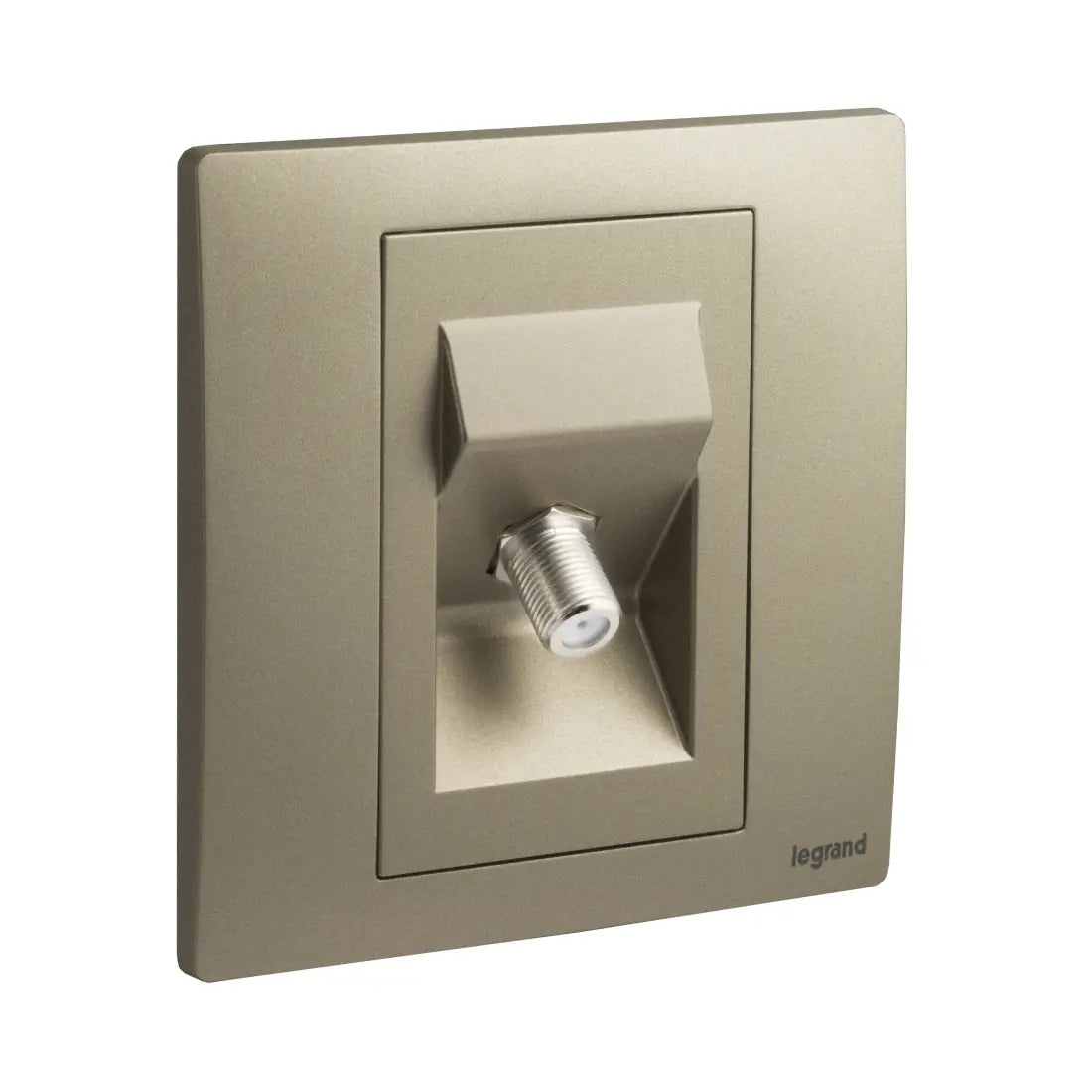

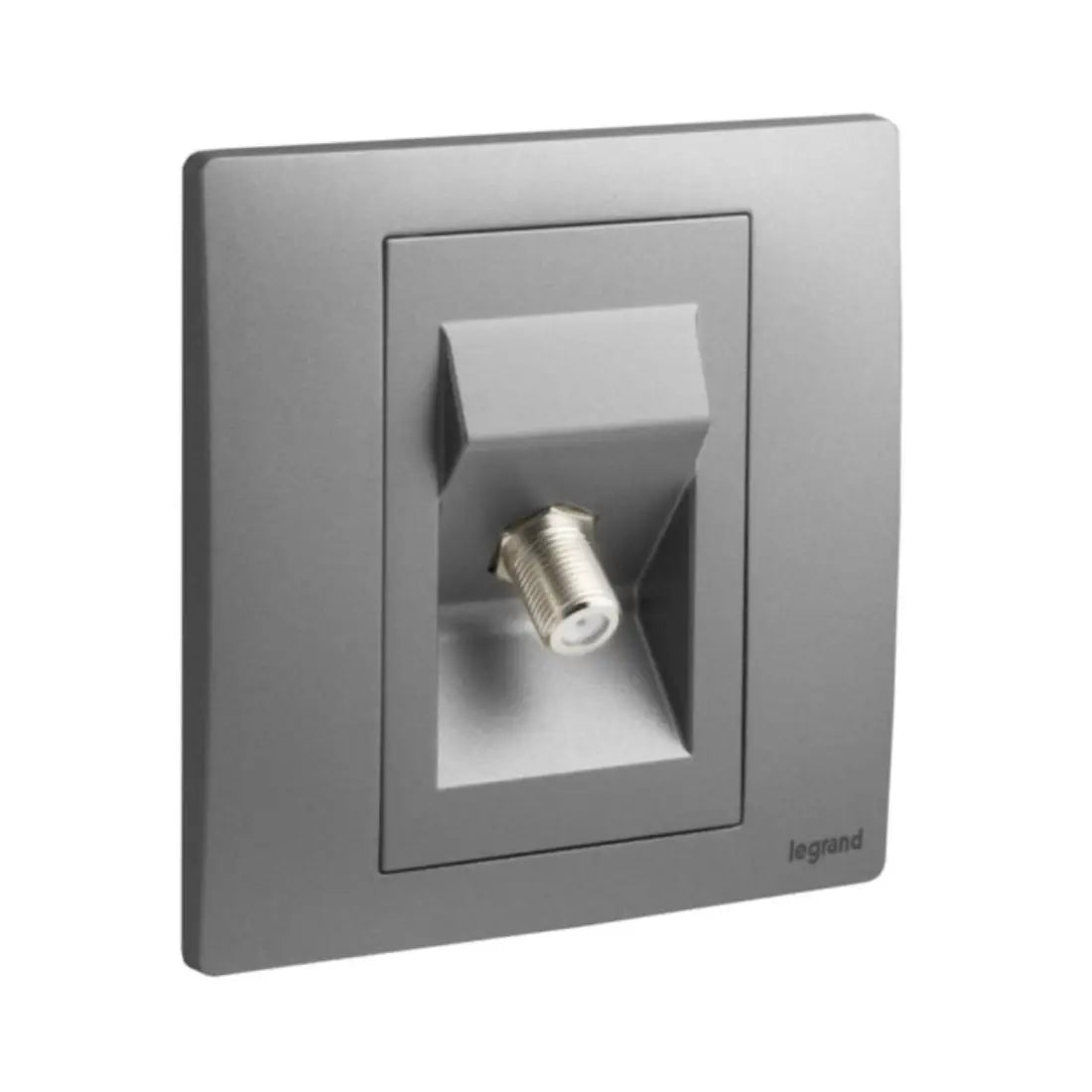

Legrand Mallia Senses 1 Gang "F" Type Terminal TV Socket Outlet 281152
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : TV Socket
Description
Allows to connect all types of televisions. With F Type connector (F screw TV Plug)
Product charateristics
- TV with F Type screw connector
- MALLIA SENSES is sold as a complete set under one cat number
- Attenuation loss = 1,5 dB
- Conform to EN-50083-4 & EN-50083-2
- Matt black finish
Recommendation / Restriction
- Looping connection unadapted. Recommended inside use only
Installation
- Visual check of the connection. Secured screw connection.
Usage
- Limited cable bend radius that lower attenuation losses
Advantages
- Low attenuation socket
- Fully protected against EMC perturbances (=3G, 4G, 5G… risk of image pixelation)
- Thin and modern design for a perfect decoration integration
| Brand | Legrand |
| Model | Mallia Senses |
| Type of socket outlet | TV |
| DAB+ | No |
| Mounting method | Flush-mounted |
| Number of modules (module system) | 1 |
| Cover | Central cover plate |
| Number of outlets | 1 |
| Through loss at 860 MHz | 1 dB |
| Type of fastening | Mounting with screw |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL-number (similar) | 9003 |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 26.9 mm |
| Min. depth of built-in installation box | 13.6 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
