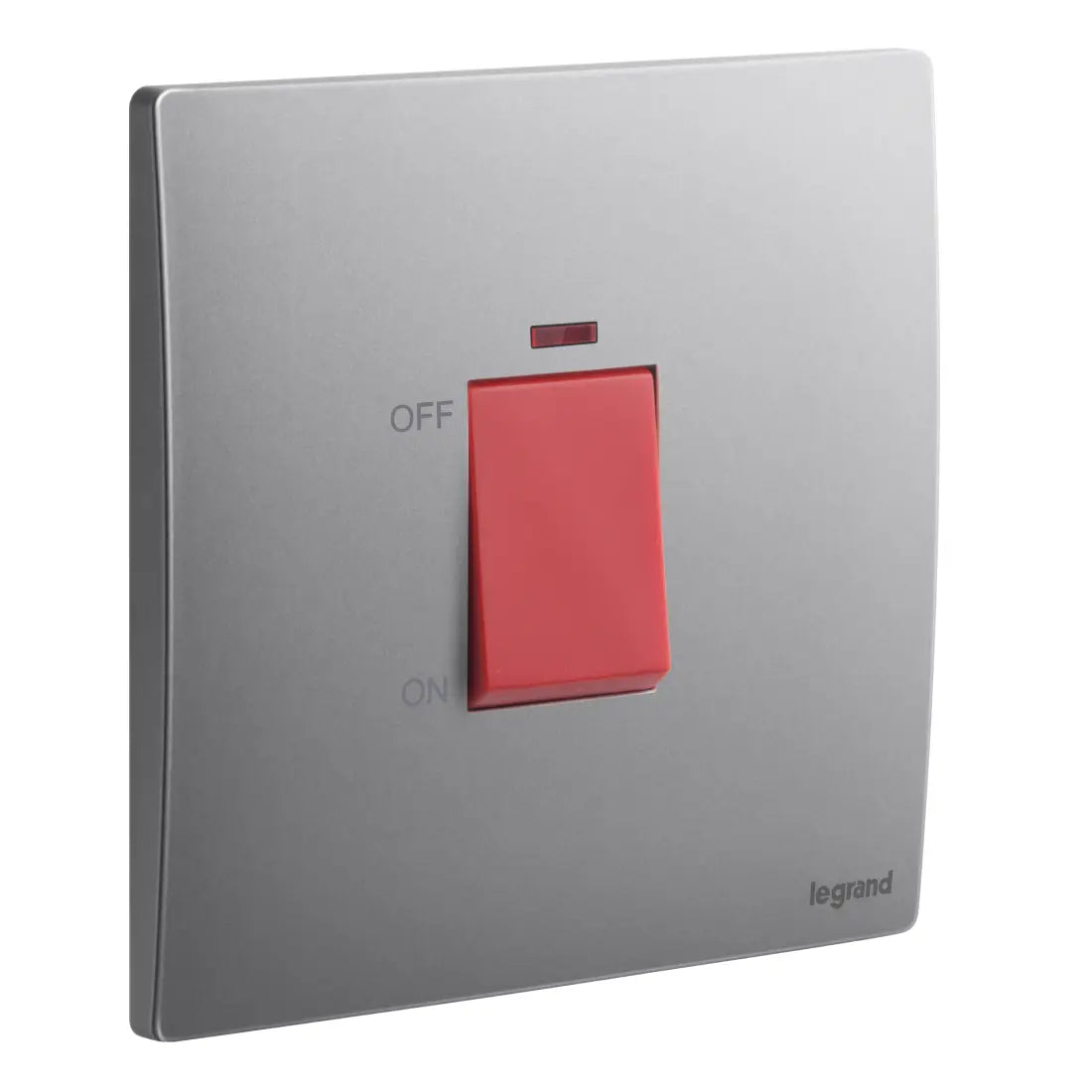

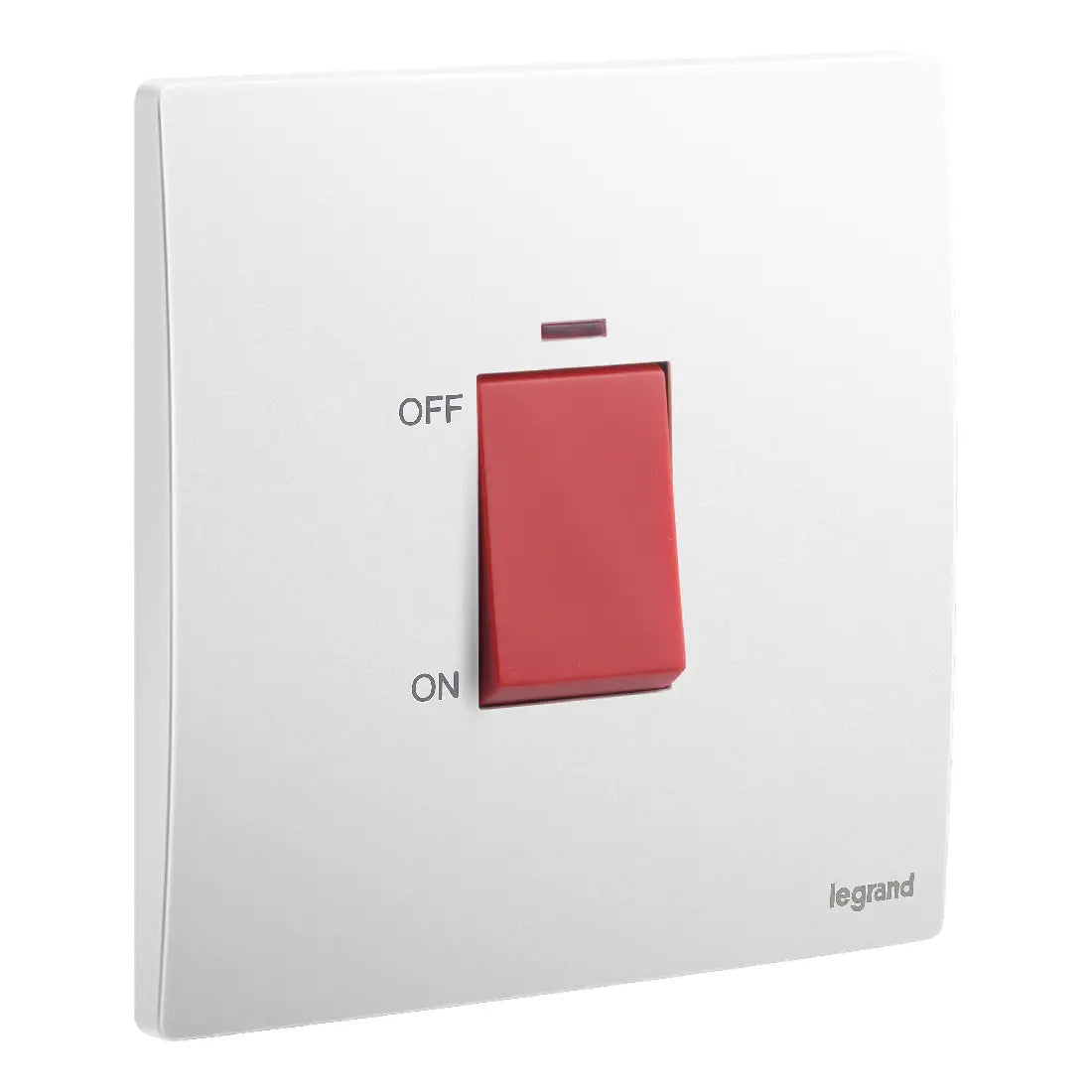

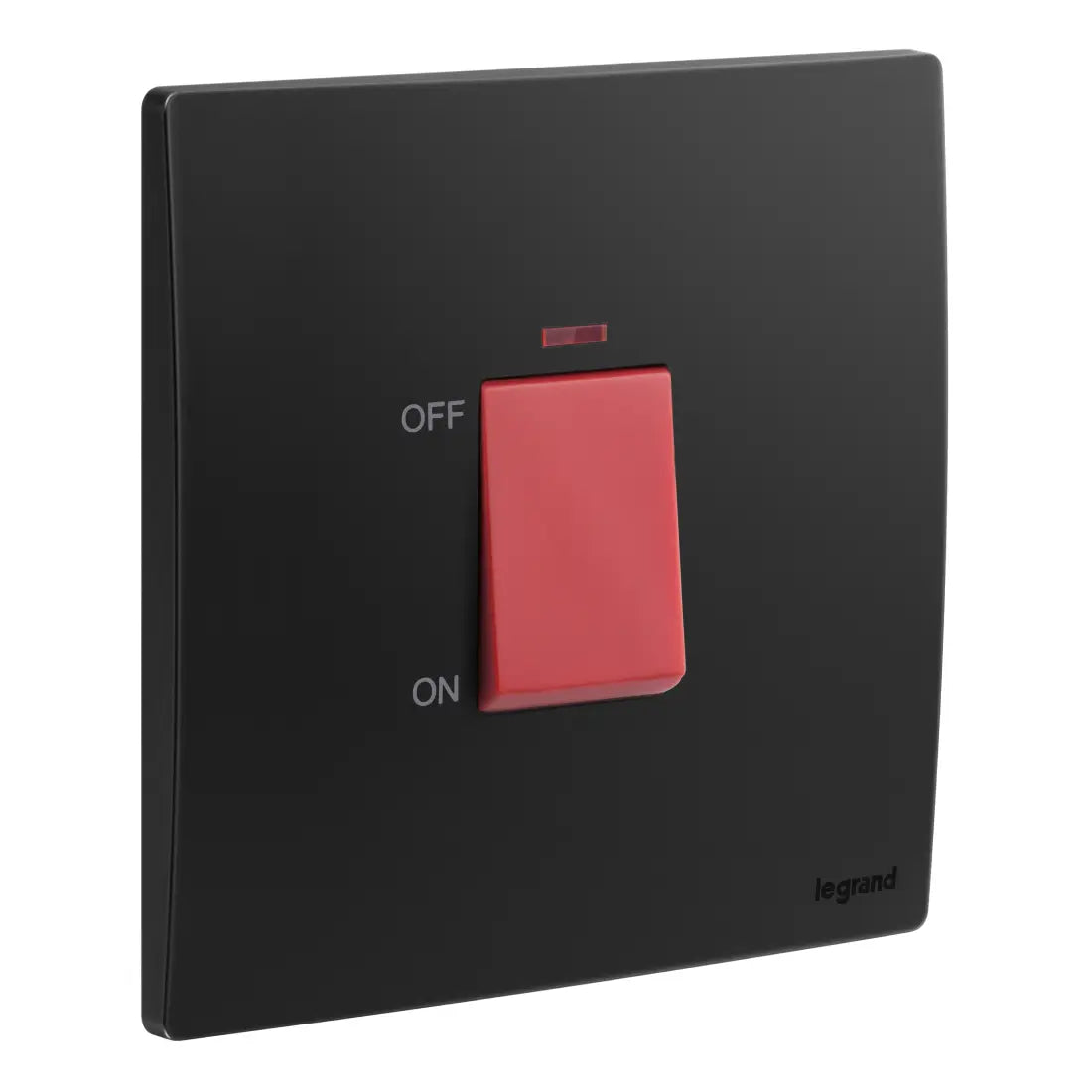

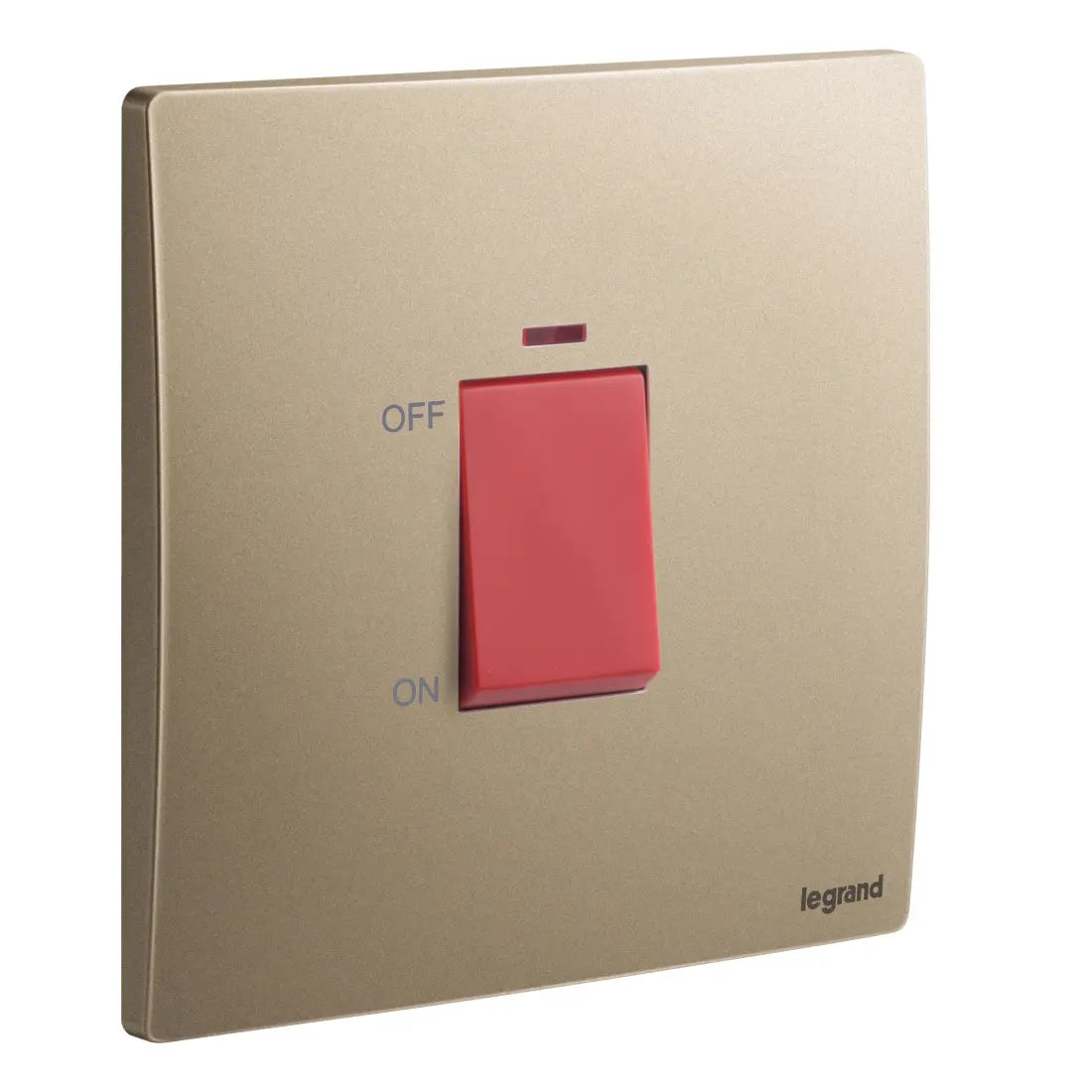

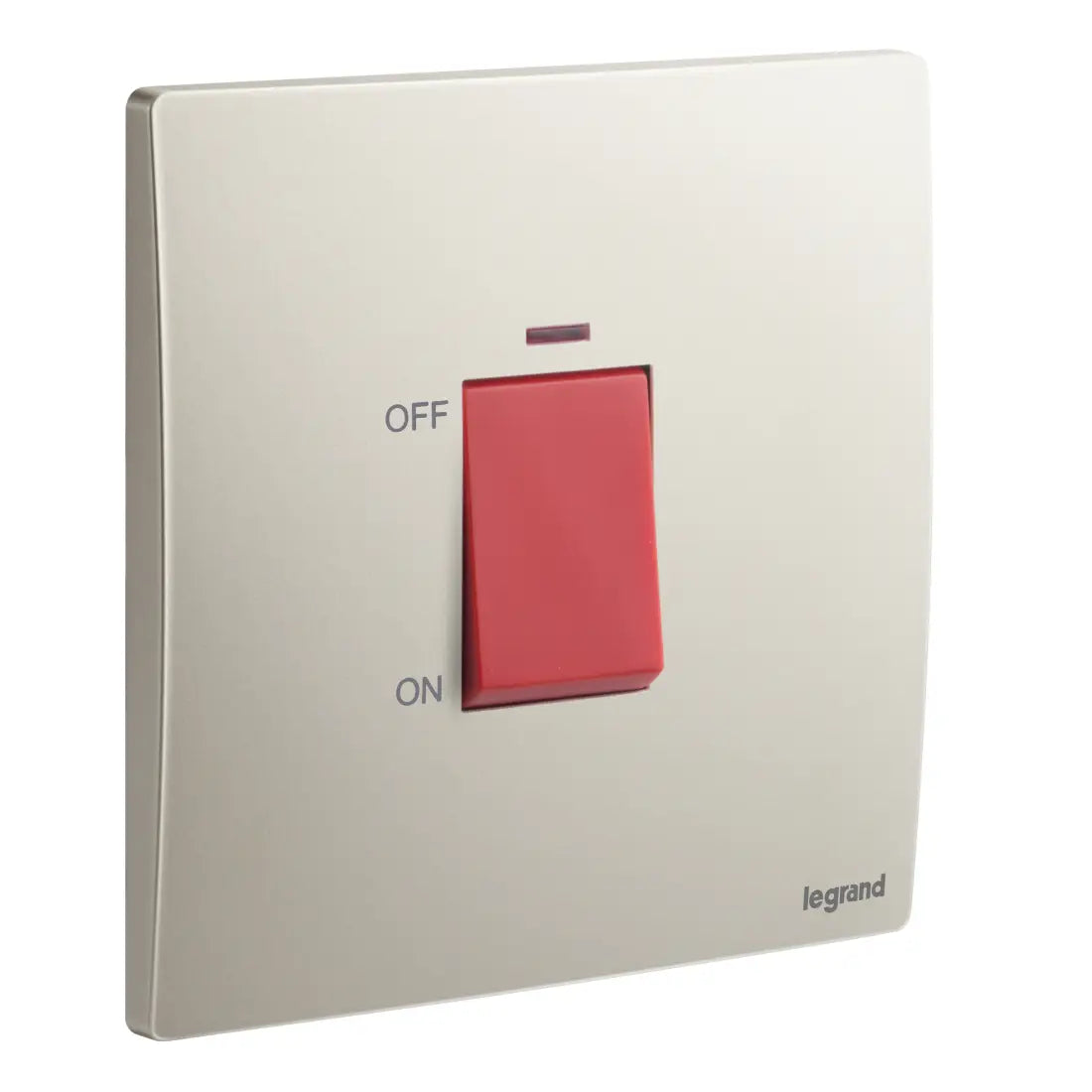

Legrand Mallia Senses 1 Gang Double Pole 45A Switch with Indicator 281071
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
The MALLIA SENSES 1 Gang Double Pole 45A Switch with Indicator (250V) is a complete, high-capacity switching solution designed for heavy-duty indoor use. Supplied under a single catalog number, it features screw-type terminals for enhanced electrical contact and clearly marked terminals for easy and accurate installation. The switch has a modern matt white finish and a slim profile that integrates seamlessly into contemporary interiors. Built to comply with British Standards for high-load applications, it includes a red indicator for clear operational visibility. The quick plate clipping system allows for fast, secure mounting, while the durable support frame ensures long-lasting performance, making it ideal for both residential and commercial environments.
| Brand | Legrand |
| Model | Mallia Senses |
| Wiring system | Off switch 2x1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL-number (similar) | 9003 |
| Colour of switch operator | Red |
| Illumination | Yes |
| Function lighting | Illuminated (on) |
| Type of lighting | LED not exchangeable |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 45 A |
| Feedback-signal contact | No |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 34.1 mm |
| Built-in depth | 22.8 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
