Legrand Mallia Senses 1 Gang 2 Way Illuminated Switch 16AX 281011
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
The Legrand Mallia Senses 16AX, 250V 1-Gang Switch delivers reliable performance and a refined user experience, ideal for indoor residential and commercial applications. Sold as a complete unit under one catalog number, it features screw-type terminals for secure connections and marked terminals for easier, error-free wiring. The quick plate-rocker clipping system allows for fast, tool-free installation. Designed with safety in mind, the switch ensures no accessible electrical contact beneath the rockers. Its precise switching mechanism provides a soft, quiet feel, enhancing user comfort. Supported by a strong internal frame and a slim, modern profile, it integrates seamlessly into contemporary interiors. Recommended for indoor use only, this switch combines safety, convenience, and sleek design.

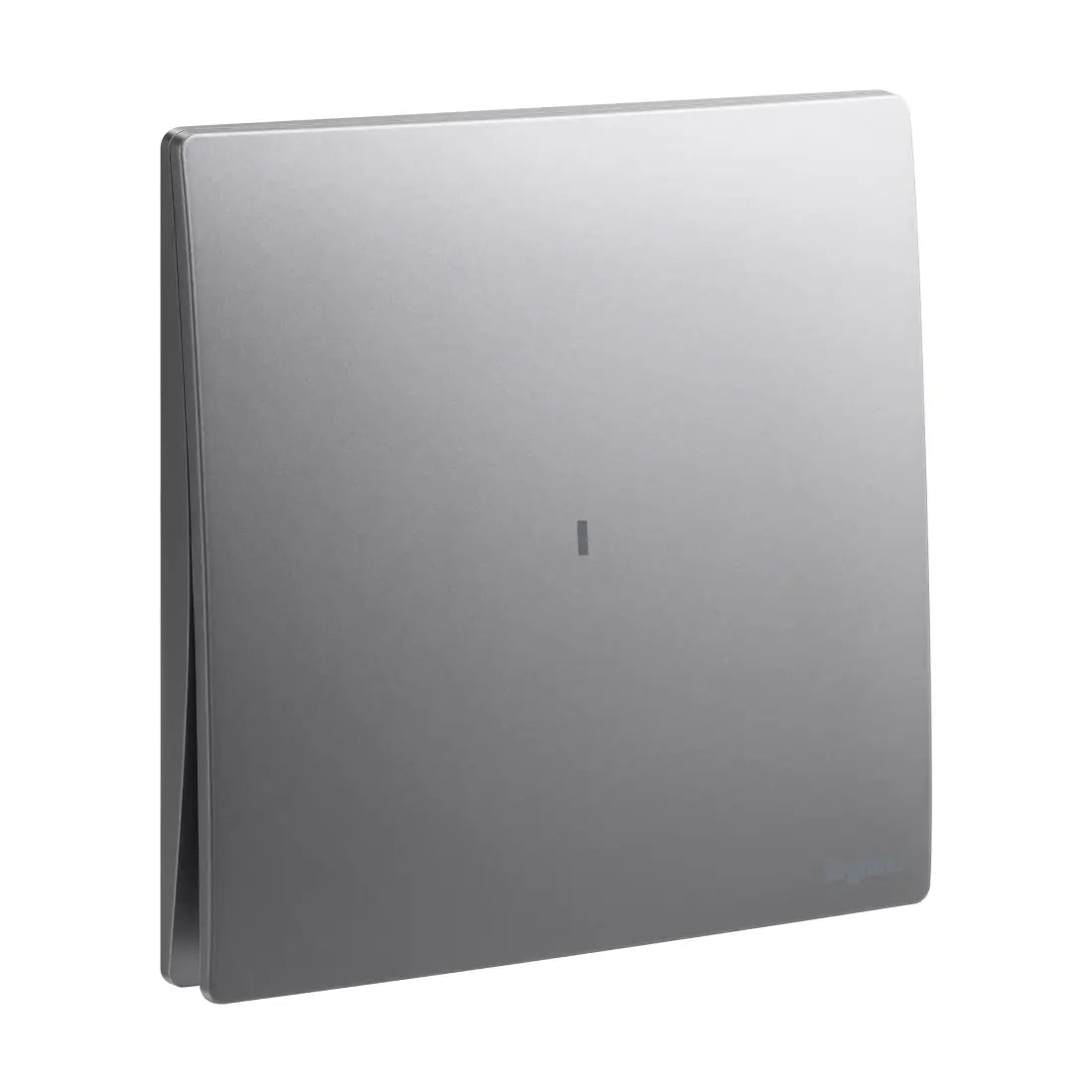

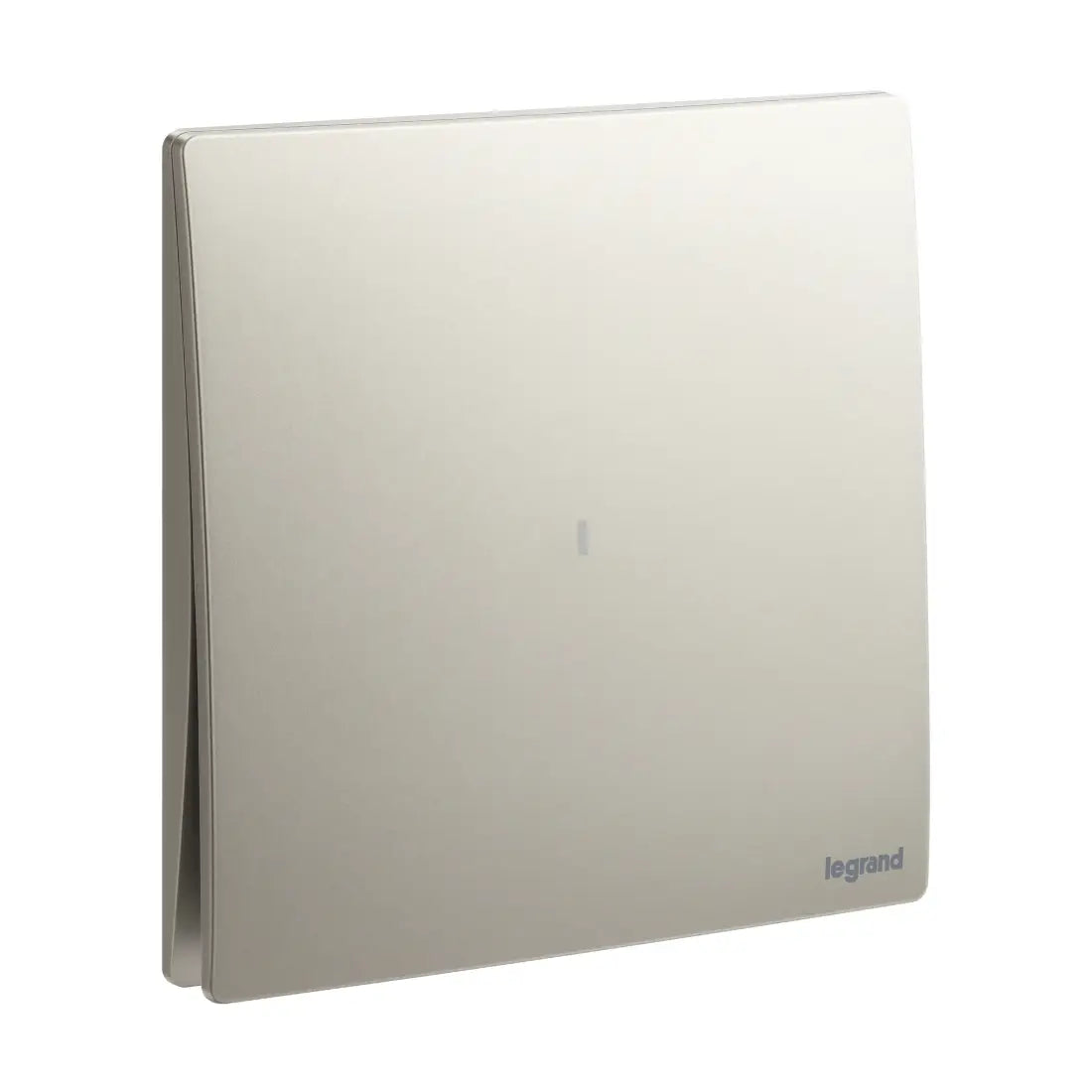

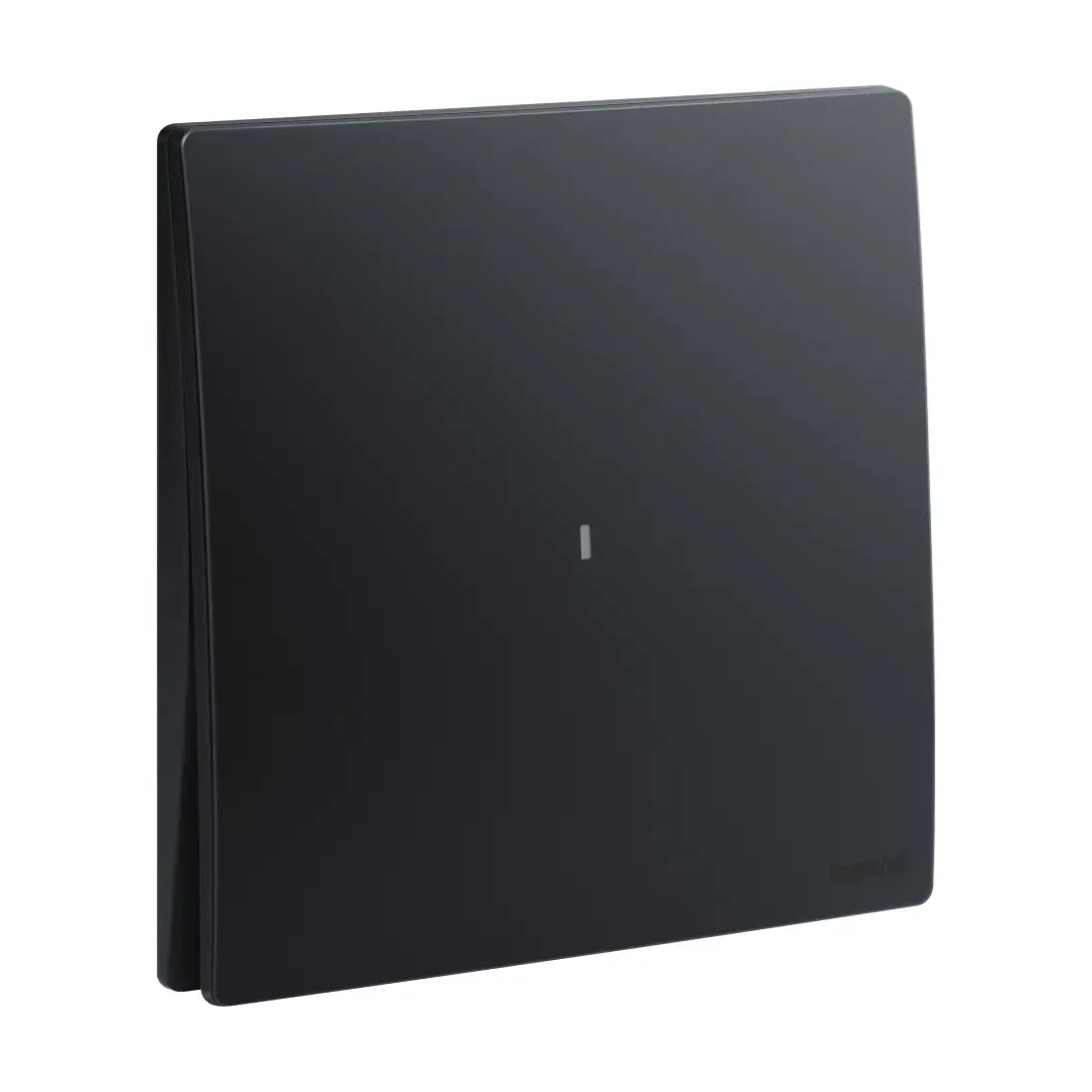

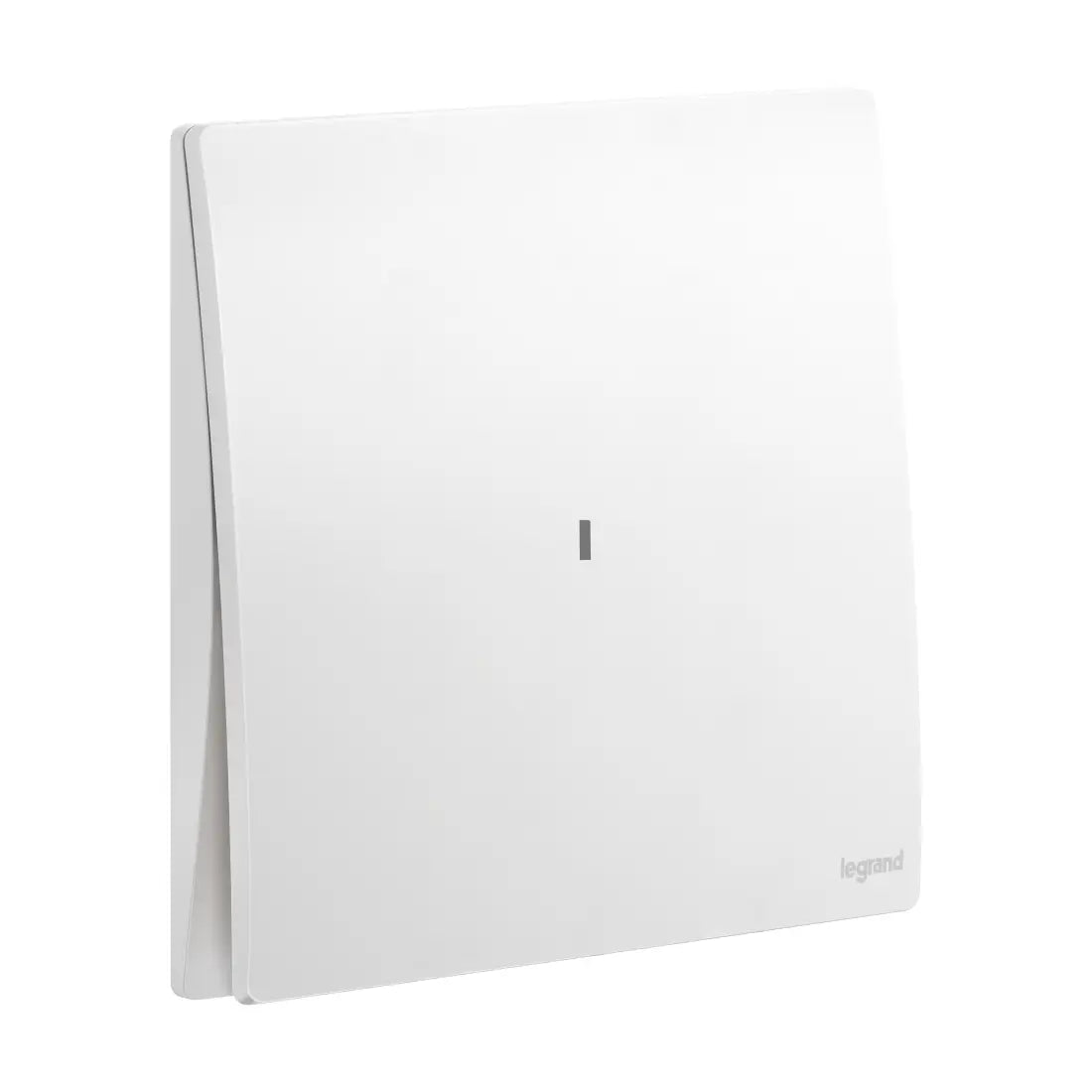

( 281011MW, 281011MB, 281011DS, 281011DB, 281011CH )
| Brand | Legrand |
| Model | Mallia Senses |
| Wiring system | Switch 1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| Lighting | Optional |
| Function lighting | Control and orientation |
| Type of lighting | LED exchangeable |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| Switching current for fluorescent lamps | 16 AX |
| Monitoring contact | No |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 36.8 mm |
| Built-in depth | 24.9 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50–60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
