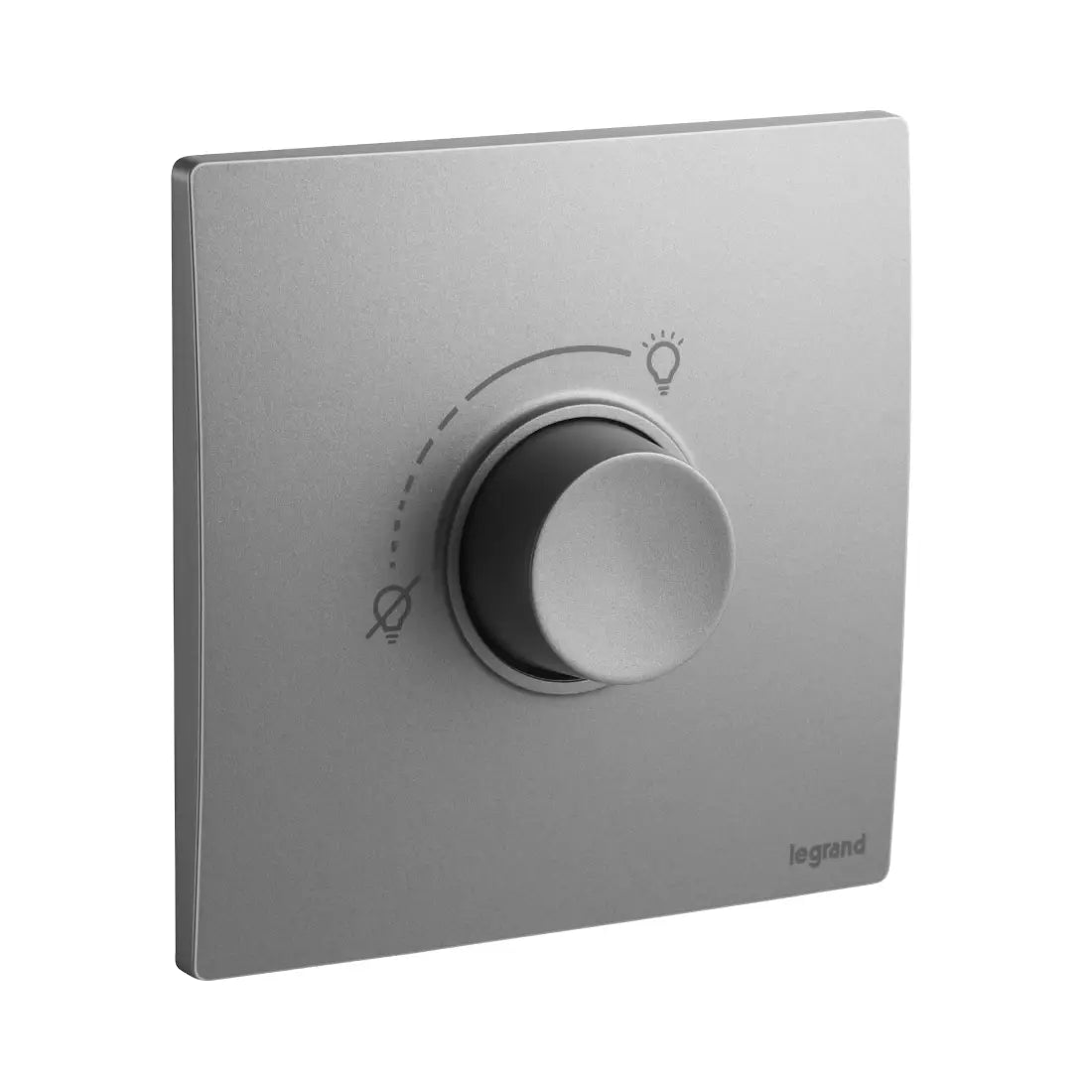

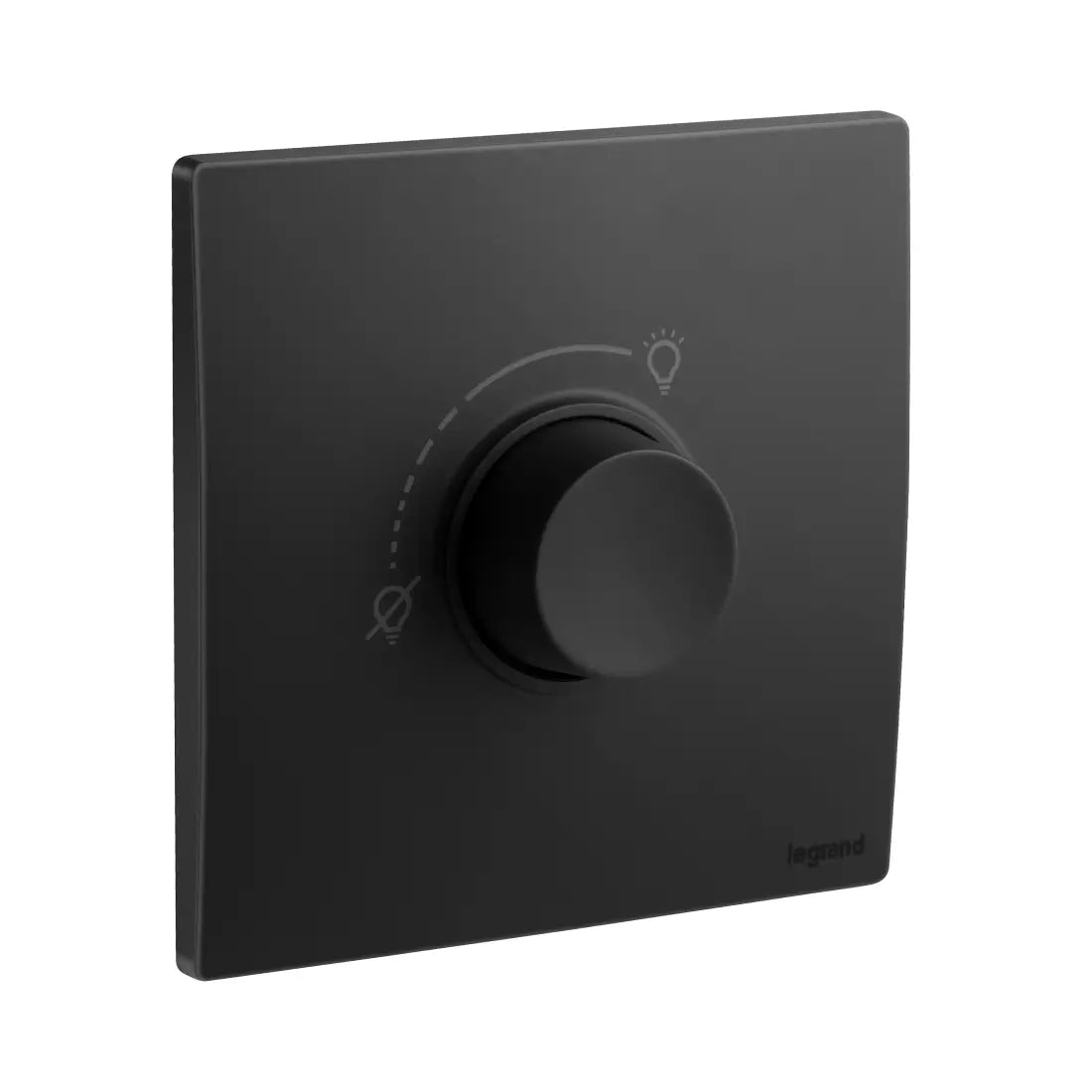

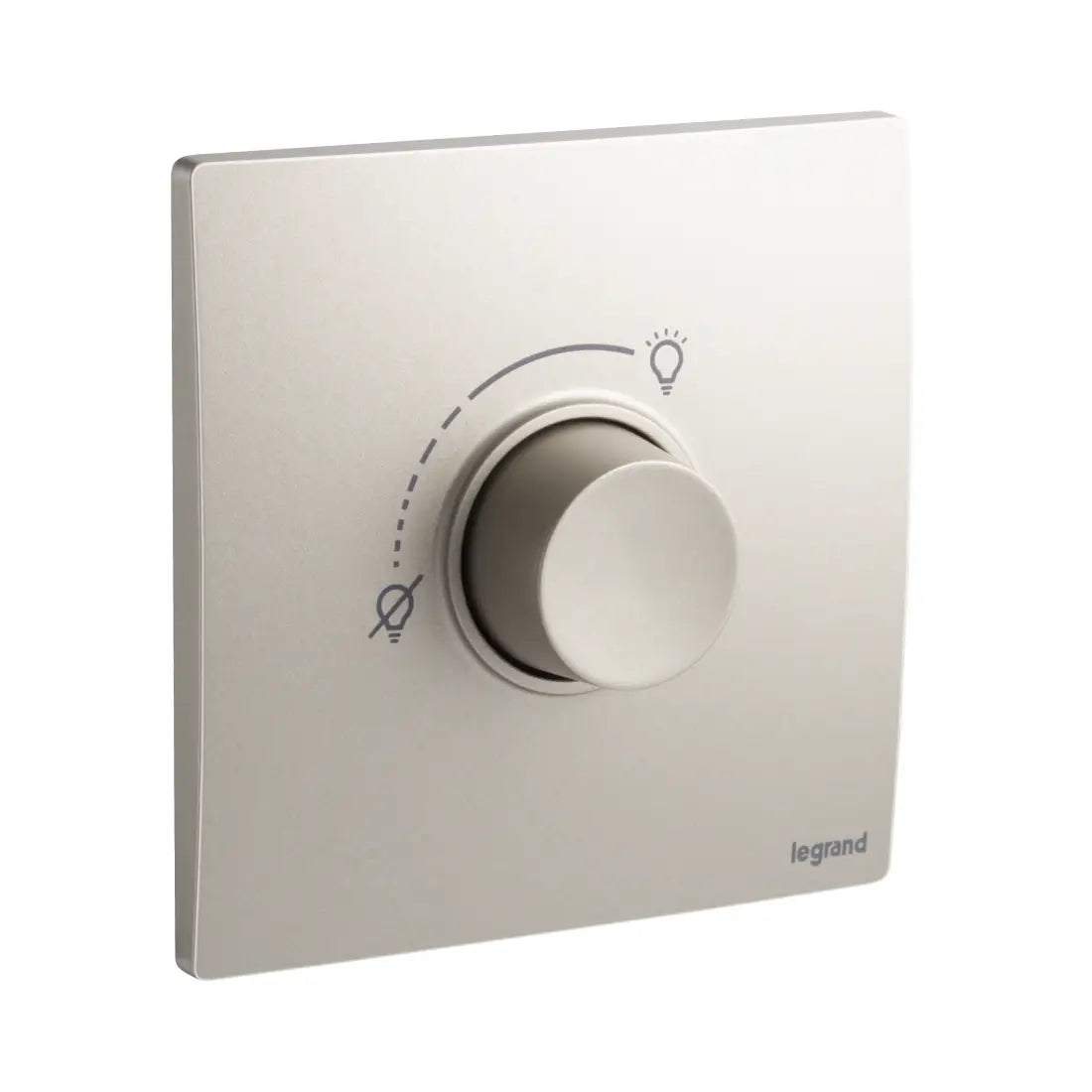

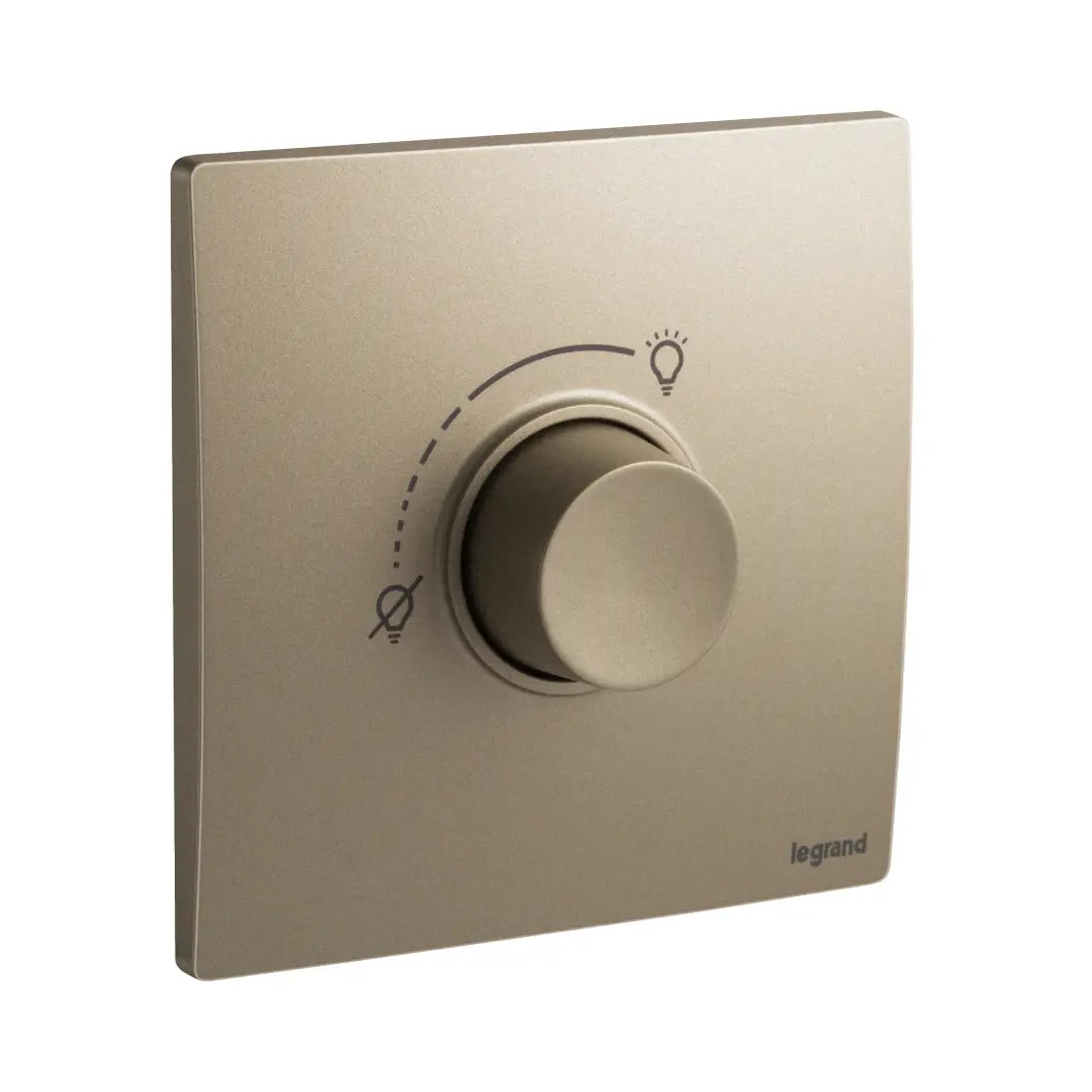

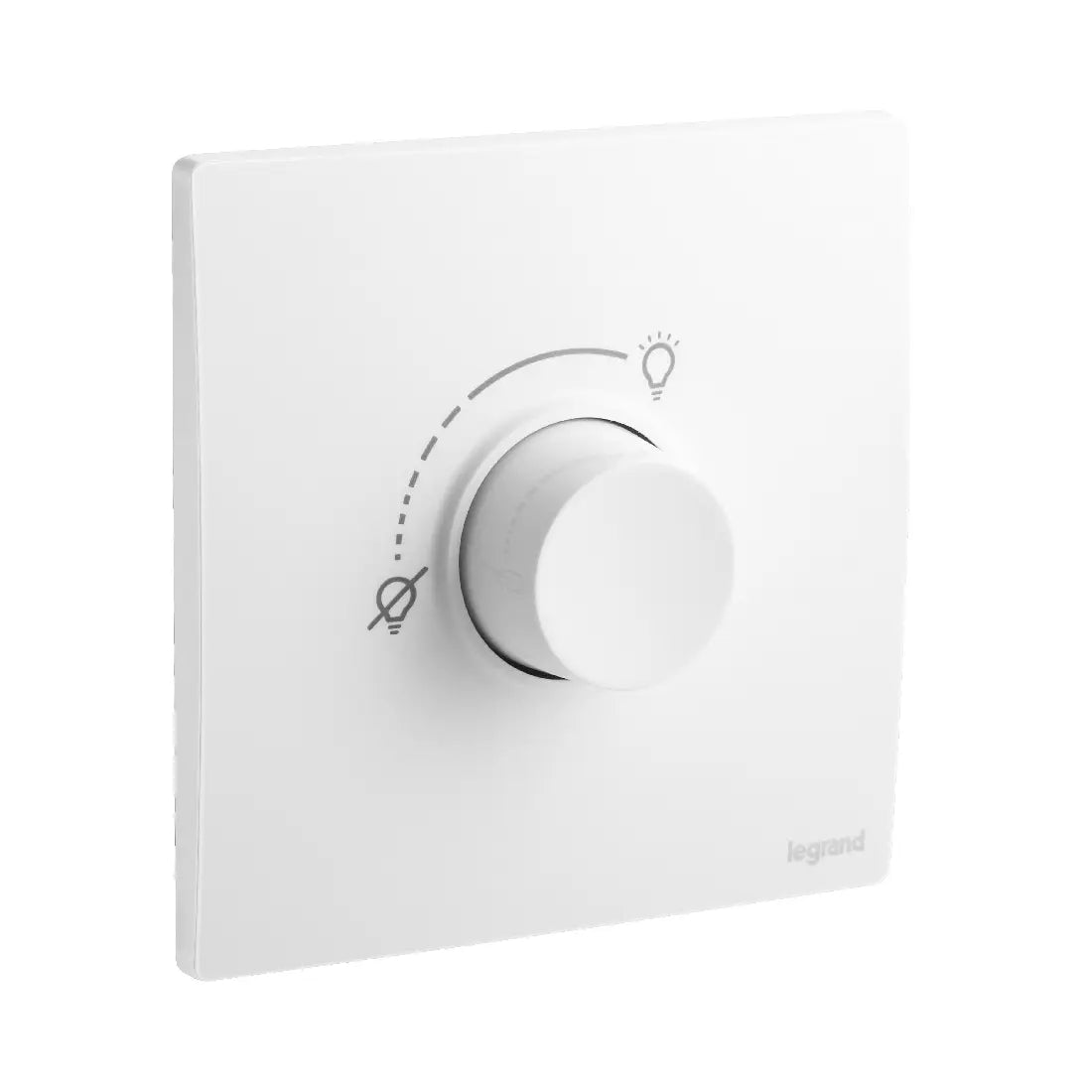

Legrand Mallia Senses 1 Gang 2 Way 40 to 500 Watts Incandescent Dimmer 230 Volts 281080
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Dimmer Switch
Description
The Legrand Mallia Senses 1 Gang 2-Way Dimmer (40 to 500W, 230V) is a complete unit supplied under one catalog number, designed for smooth dimming control of incandescent loads. It features screw-type terminals for secure and enhanced electrical contact, with clearly marked terminals for easy identification during installation. Suitable for indoor use, this dimmer can be conveniently retrofitted into existing lighting points and allows dimming of compatible loads from 10% to 100%. Its rotary button includes a stop position for ease of use, while the robust support frame ensures long-lasting performance. With a slim, modern design that aligns with the entire Mallia Senses range, it integrates seamlessly into contemporary interiors.
| Brand | Legrand |
| Model | Mallia Senses |
| Assembly arrangement | Basic element with adaptor plate |
| Method of operation | Turn button |
| App control via Bluetooth | No |
| Dimming phase cut-on (leading edge) | Yes |
| Dimming phase cut-off (trailing edge) | Yes |
| Serial dimmer | Yes |
| Type of load | Resistive load |
| Substation input | No |
| Light value memory | No |
| Applicable with button | No |
| Applicable with movement sensor | No |
| Applicable with presence indicator | No |
| Applicable with time switch/timer | No |
| Applicable with transmission button | No |
| Applicable with infrared button | No |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| Transparent | No |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 230–230 V |
| Frequency | 50–60 Hz |
| Control voltage | 200–240 V |
| Nominal power resistive load | 60–500 W |
| Connection type | Screwed terminal |
| Cable section | 1–4 mm² |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 54 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 33.2 mm |
| Operating / setting temperature | -5 to 35 °C |
| Storage temperature | -20 to 70 °C |
| Voltage type | AC |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Stress test conformity (1000V) | Yes |
| Antimicrobial treatment | No |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
