Legrand Mallia Senses 1 Gang 13A Unswitched Fused Connection Unit with LED Power Indicator and Cord Outlet 281149
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Cord Outlet
Description
The Legrand Mallia Senses 13A 1 Gang Unswitched Fused Connection Unit with LED power indicator and cord outlet is a complete set supplied under one catalog number, offering reliable performance and refined design. It features screw-type terminals for secure and enhanced connections, with clearly marked terminals to simplify installation. Built to comply with British Standards, it supports heavy loads and ensures user safety with no accessible electrical contact under the plate. The unit includes a quick and easy plate clipping system and a robust support frame for durability. Designed to match the aesthetic of the entire Mallia Senses range, it is recommended for indoor use only and integrates seamlessly into any modern setting.

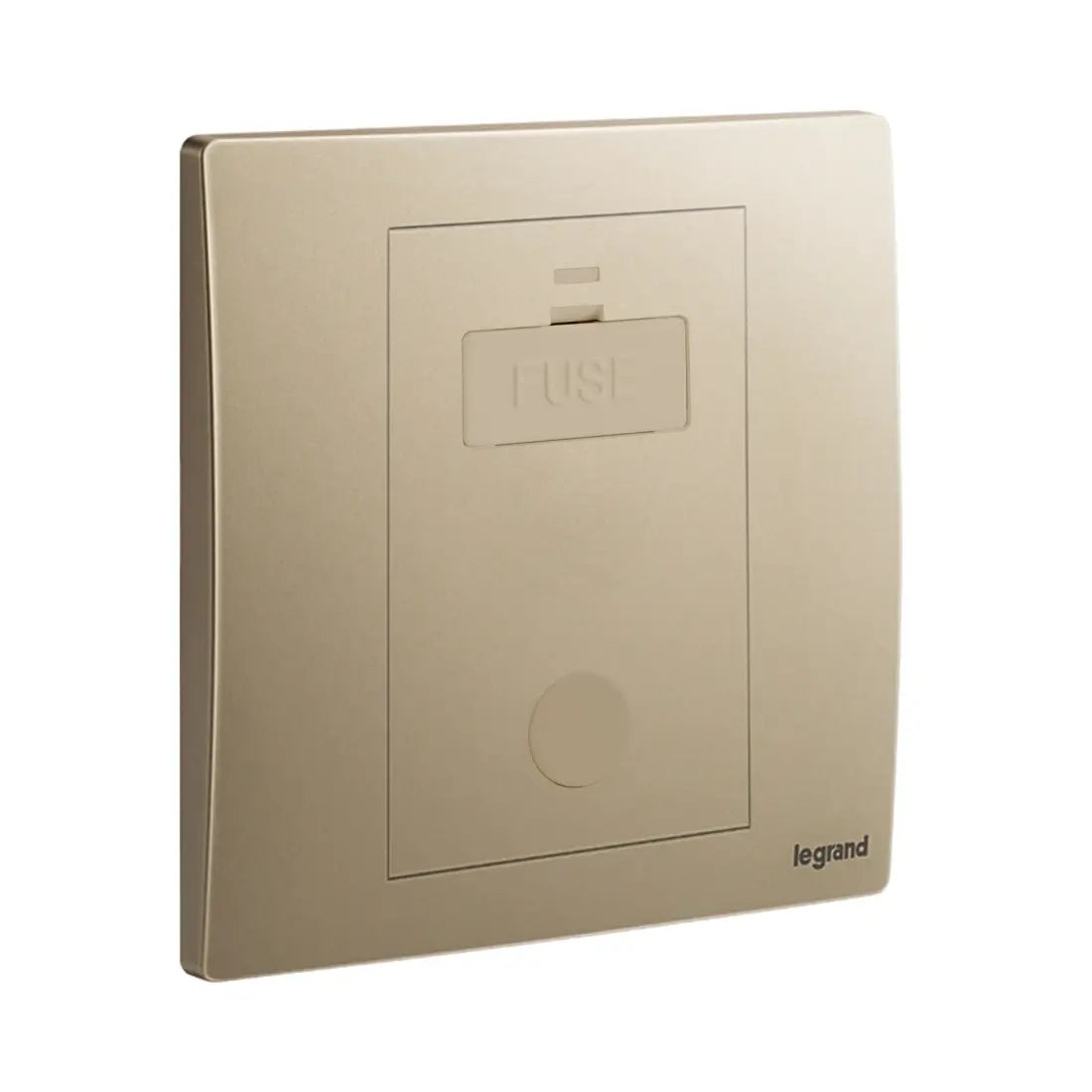

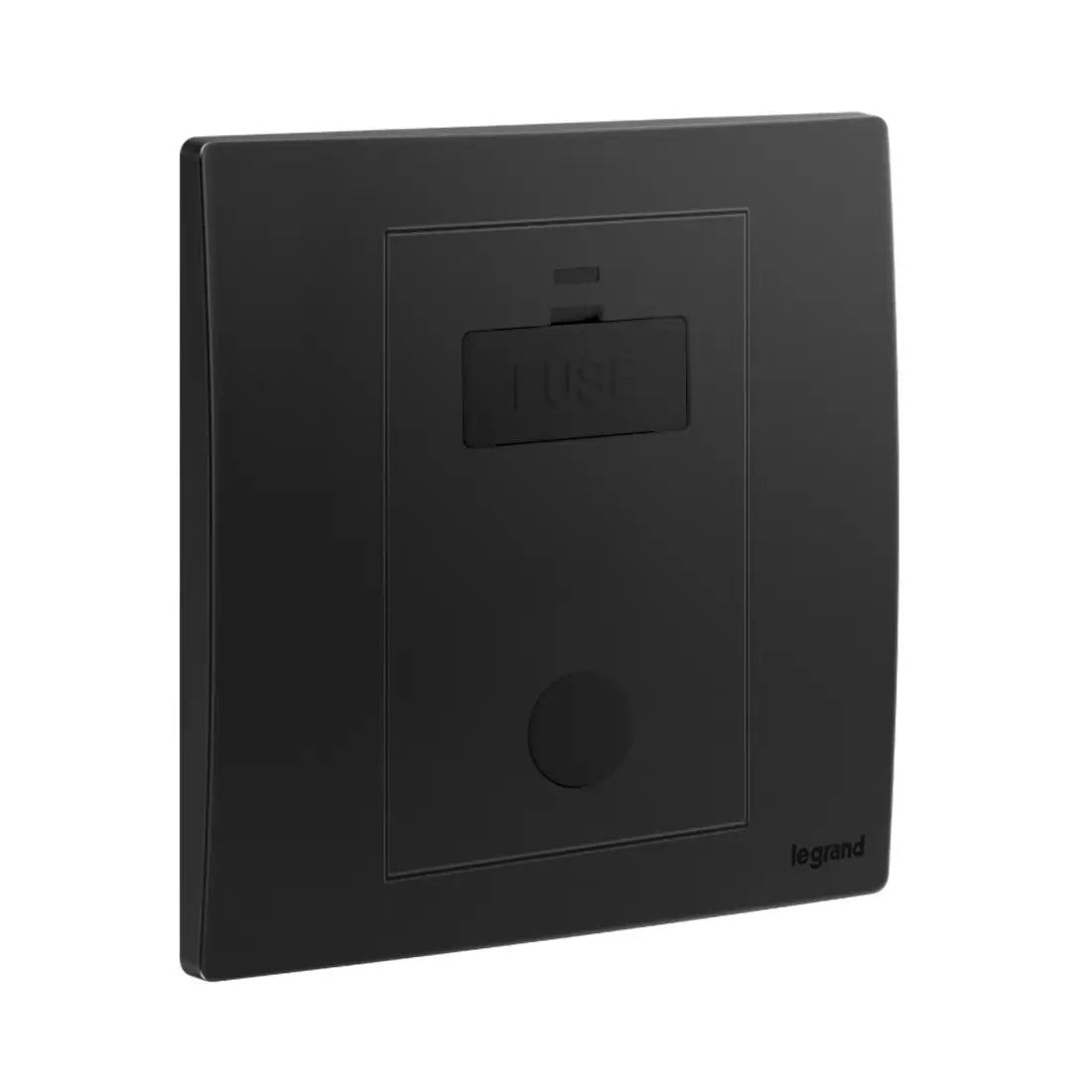

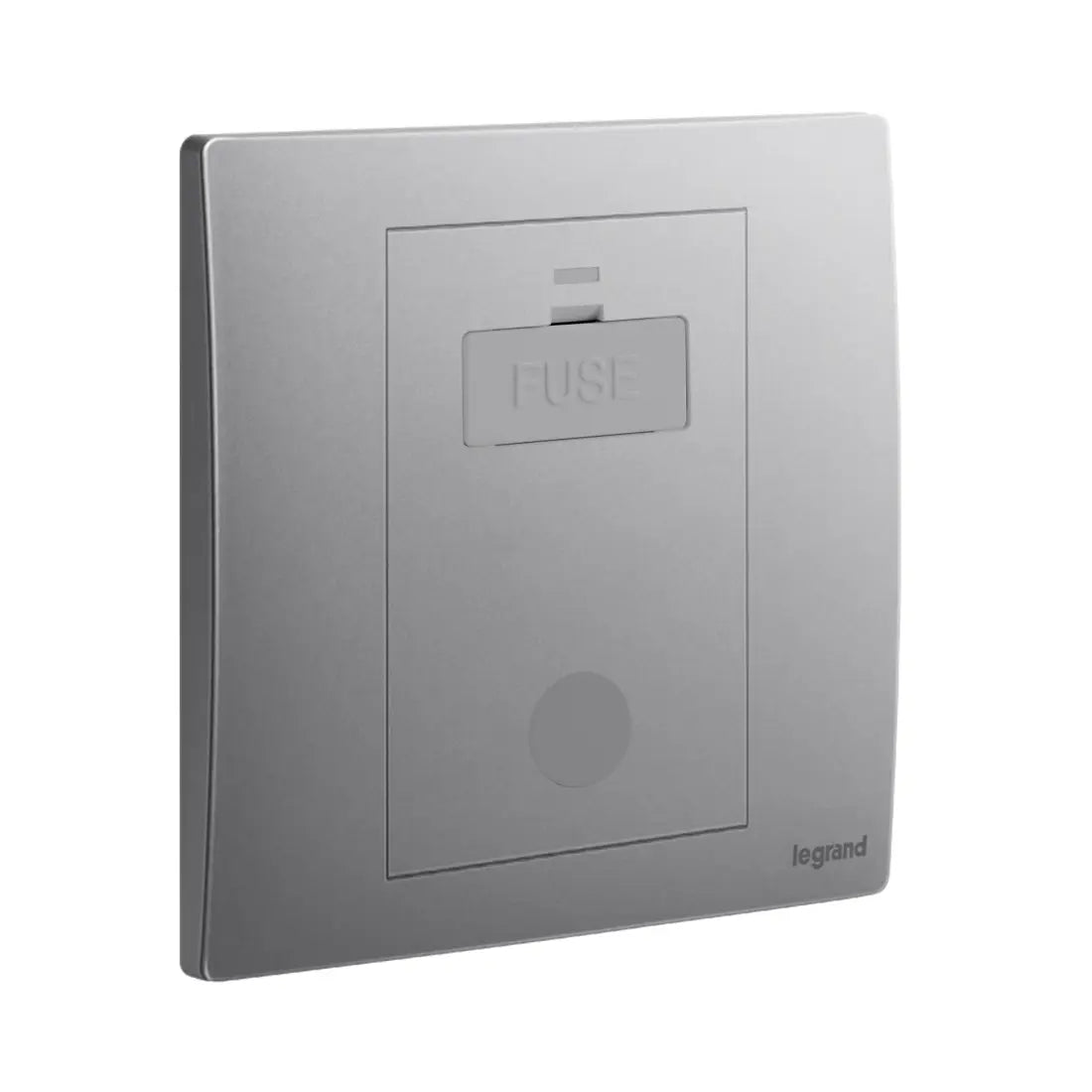

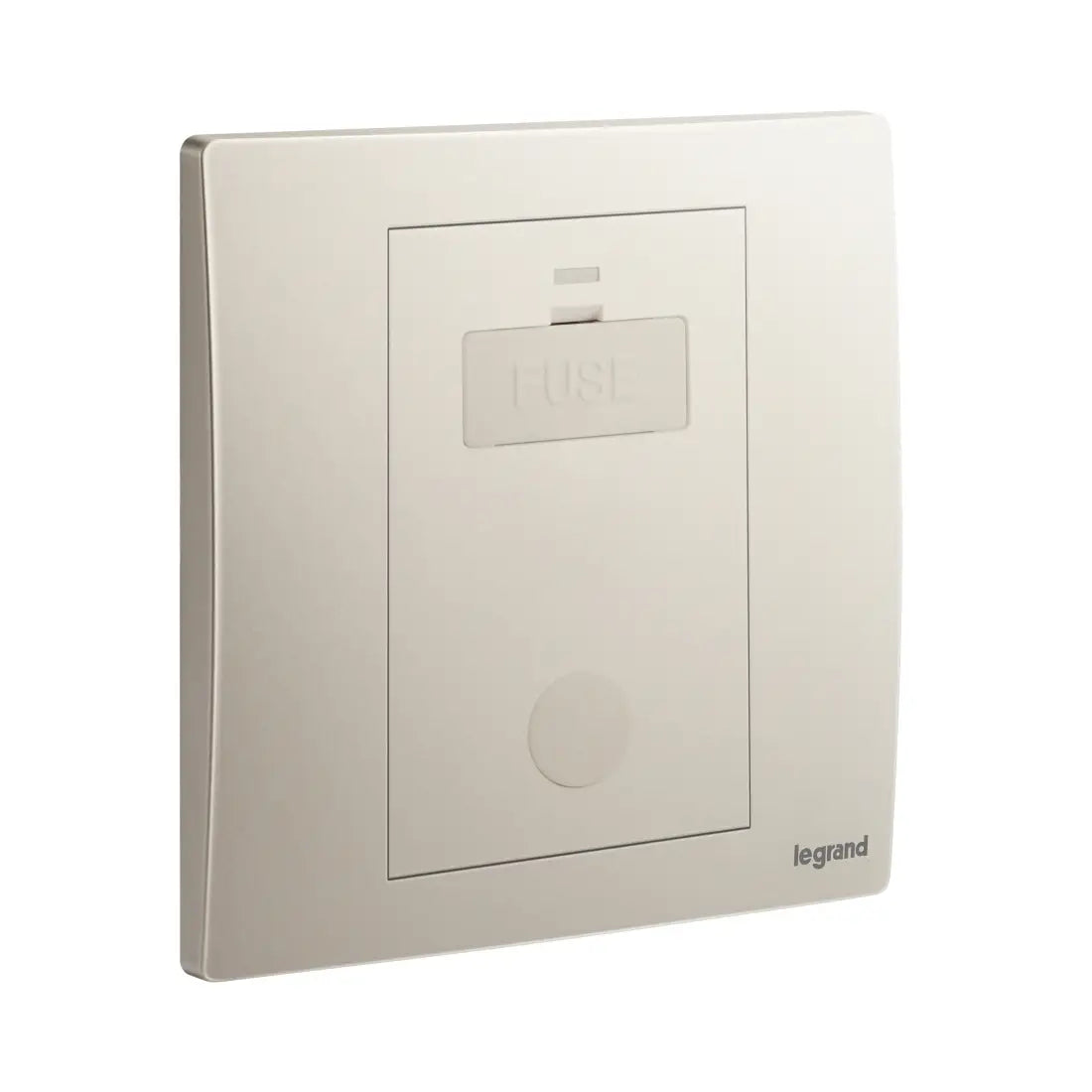

Available models :- 281149MW | 281149MB | 281149DS | 281149DB | 281149CH
| Brand | Legrand |
| Model | Mallia Senses |
| Connection type | Screw connection |
| Mounting method | Other |
| Type of current | AC |
| Rated current | 13 A |
| Rated voltage | 250 V |
| Dimensions glass fuse | 5x25 mm |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 32 mm |
| Built-in depth | 25.1 mm |
| Degree of impact strength (IK) | IK04 |
| Degree of protection (IP) | IP20 |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Nominal voltage | 250–250 V |
| Supply current | 13–13 A |
| Frequency | 50–60 Hz |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Number of terminals | 5 |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
