Legrand Mallia Senses 1 Gang 13A Unswitched Fused Connection Unit with Cord Outlet 281140
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Cord Outlet
Description
The Legrand Mallia Senses 13A switch offers a reliable and elegant solution for everyday electrical control needs, sold as a complete unit under one catalog number. Designed for secure and efficient performance, it features screw-type terminals for enhanced contact and clearly marked terminals to ensure easy and accurate installation. Intended for indoor use, it complies with British Standards for handling heavy loads while maintaining complete safety with no accessible electrical contact under the plate. The quick and easy plate clipping system streamlines the installation process, and its slim, modern profile blends seamlessly with other Mallia Senses functions to ensure visual consistency across interiors. Built with a durable support frame, it combines style, safety, and lasting performance in one sleek design.

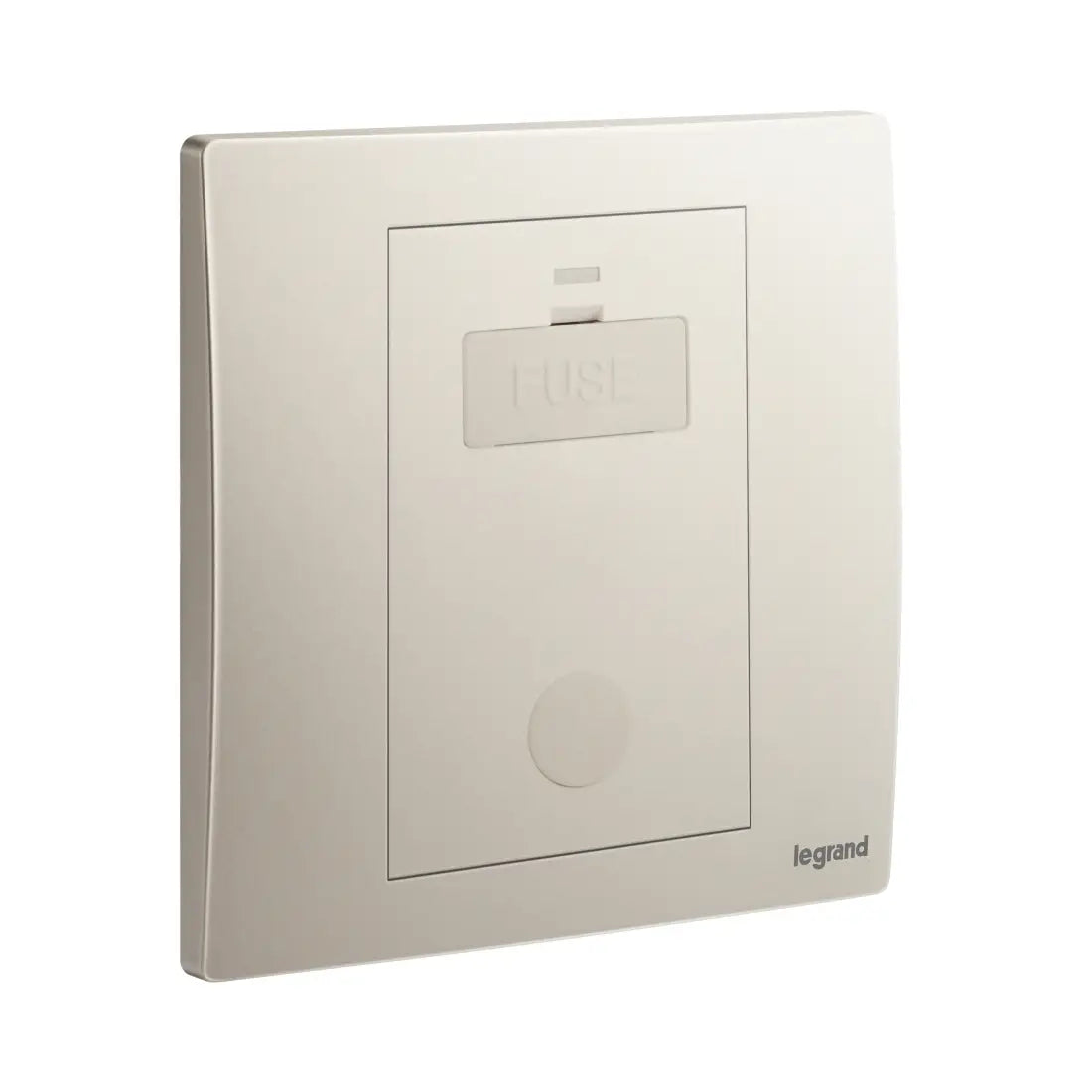

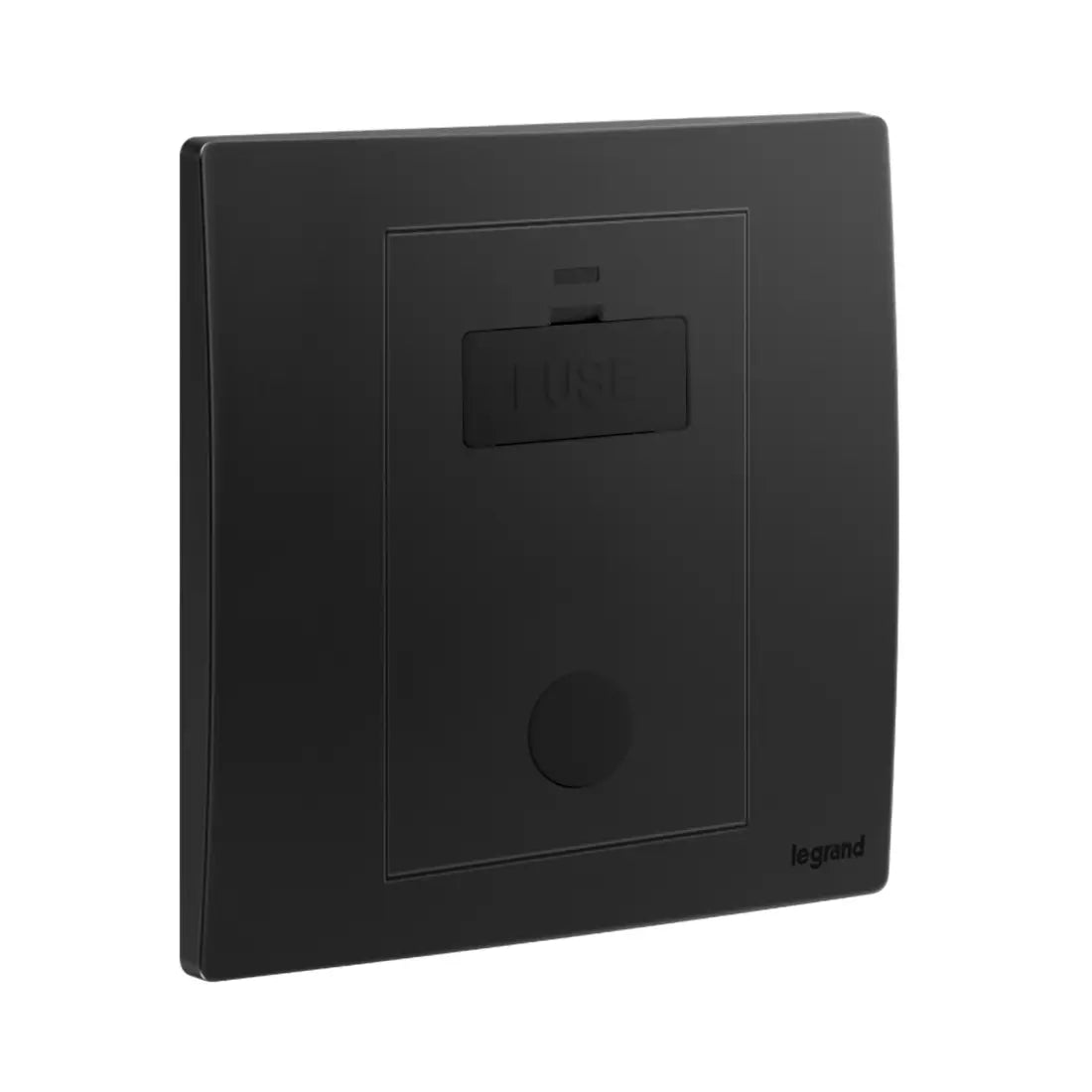

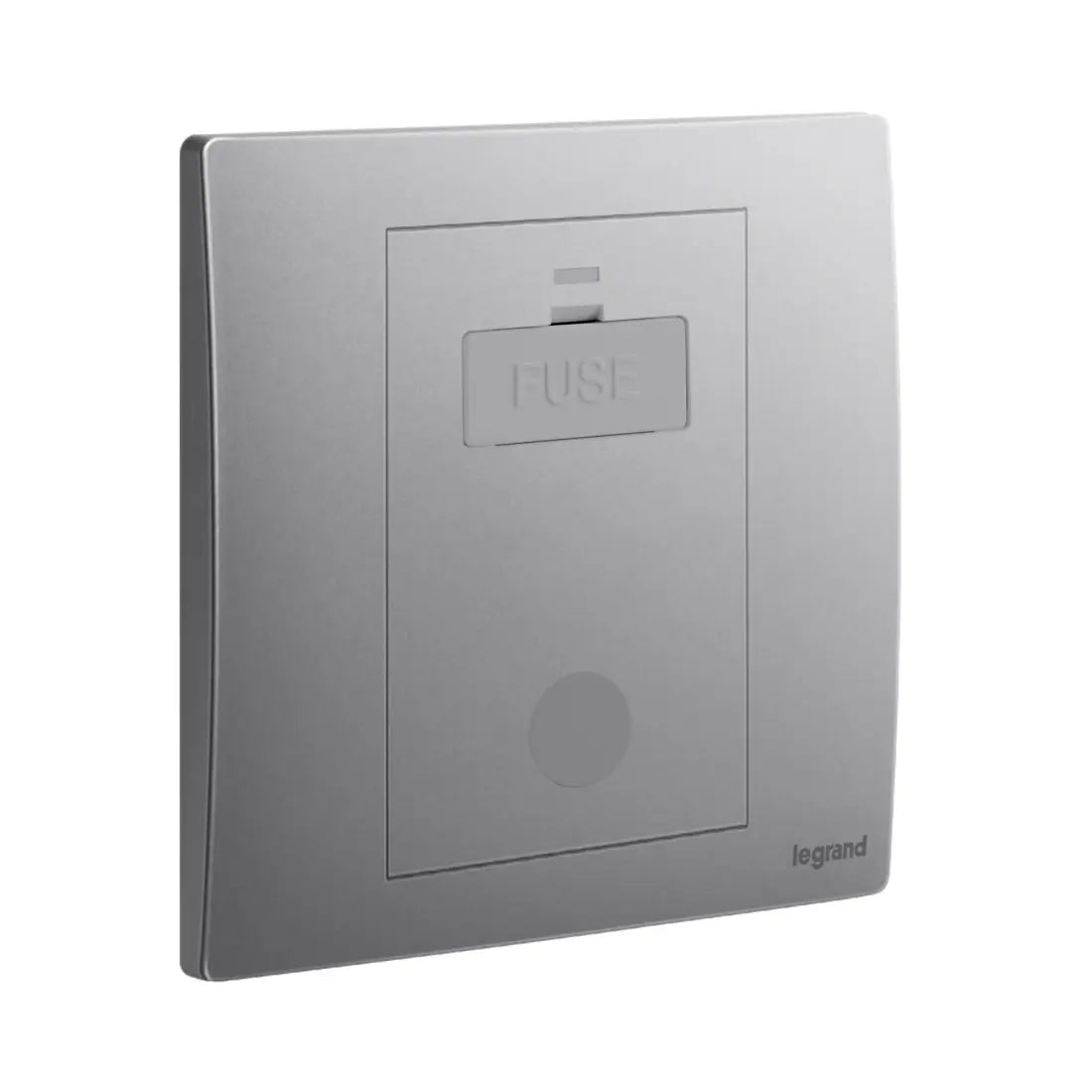

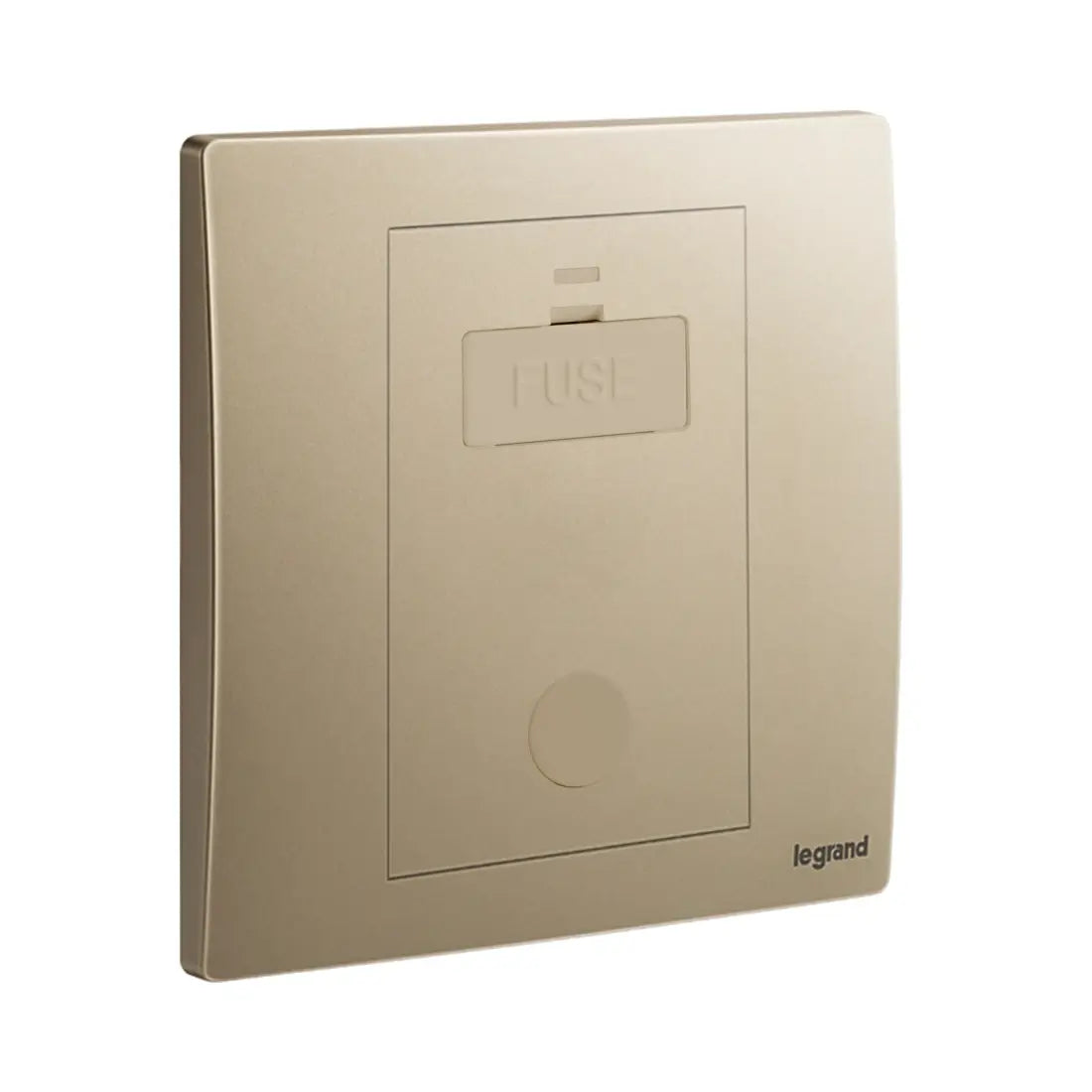

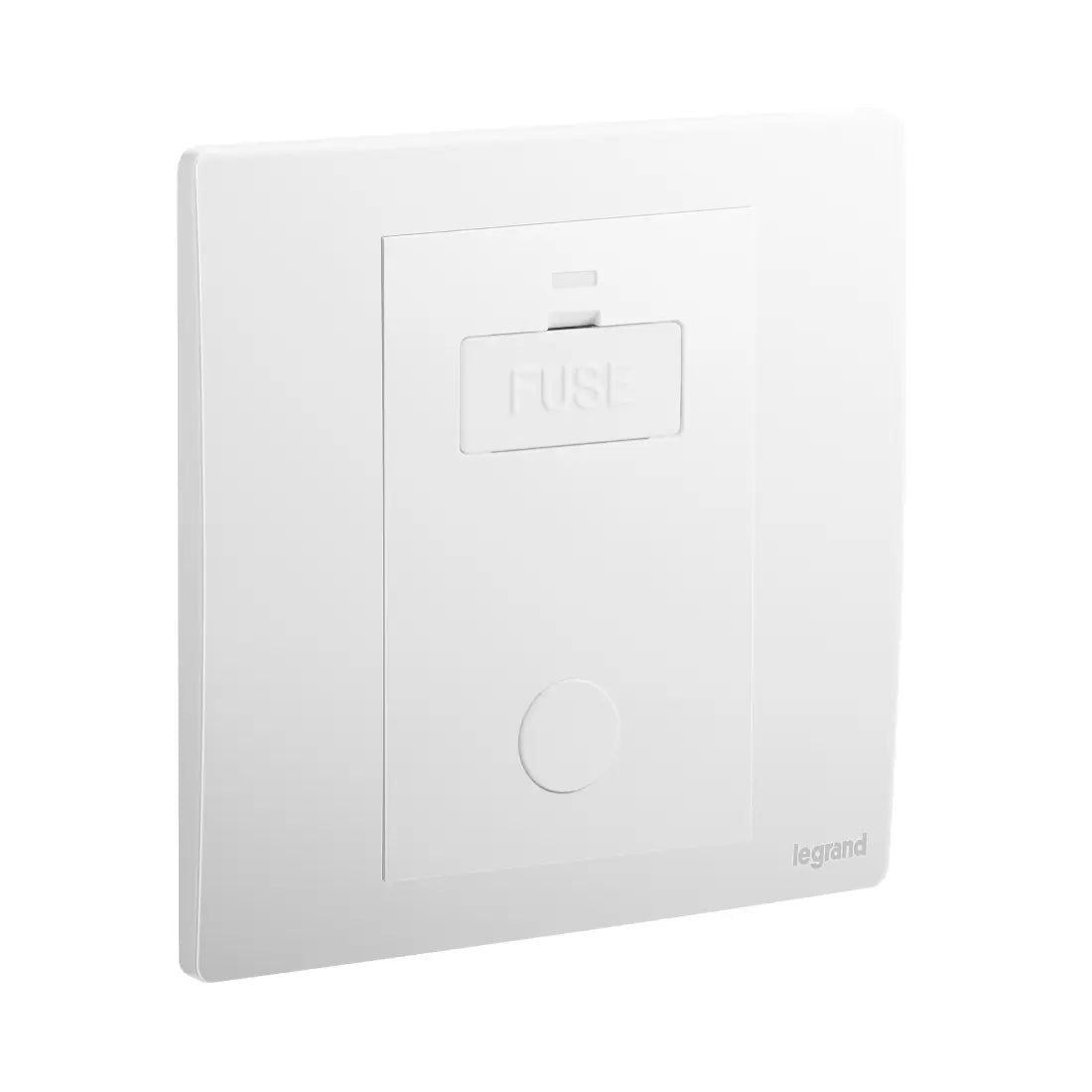

available models:-281140MW | 281140MB | 281140DS | 281140DB | 281140CH
| Brand | Legrand |
| Model | Mallia Senses |
| Connection type | Screw connection |
| Mounting method | Other |
| Type of current | AC |
| Rated current | 13 A |
| Rated voltage | 250 V |
| Dimensions glass fuse | 5x25 mm |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 32 mm |
| Built-in depth | 25.1 mm |
| Degree of impact strength (IK) | IK04 |
| Degree of protection (IP) | IP20 |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Nominal voltage | 250-250 V |
| Supply current | 13-13 A |
| Frequency | 50-60 Hz |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL-number | 9003 |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Number of terminals | 5 |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
