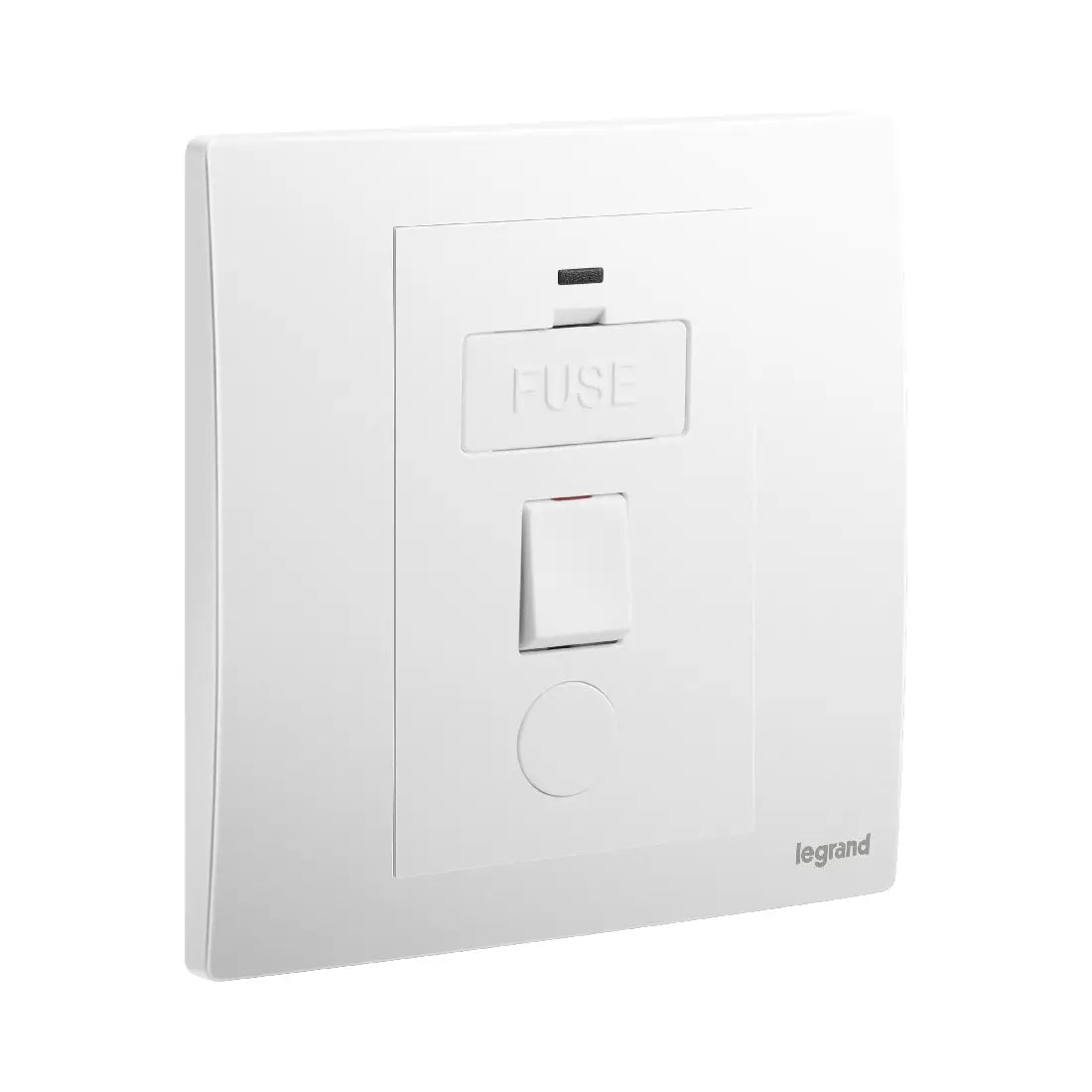

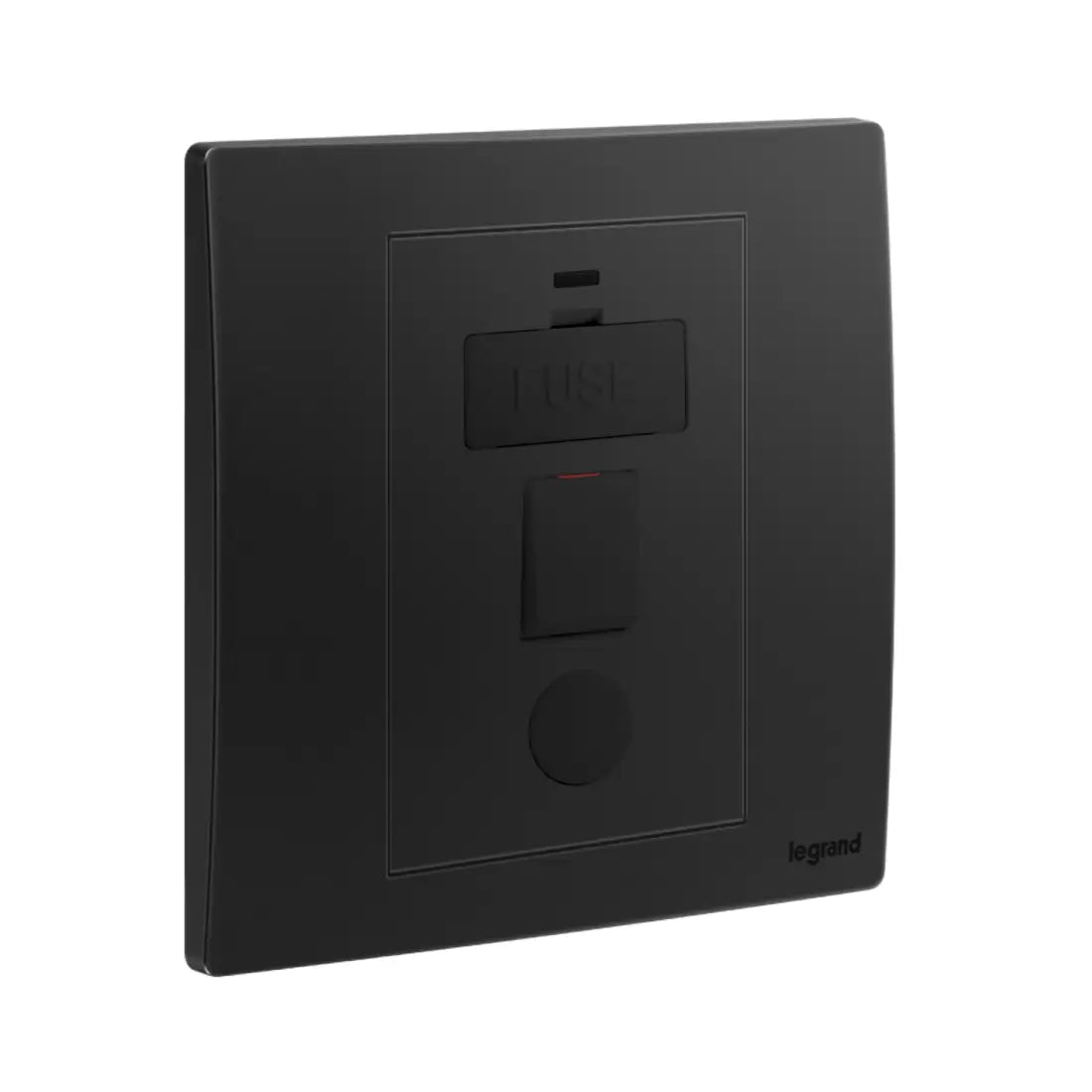

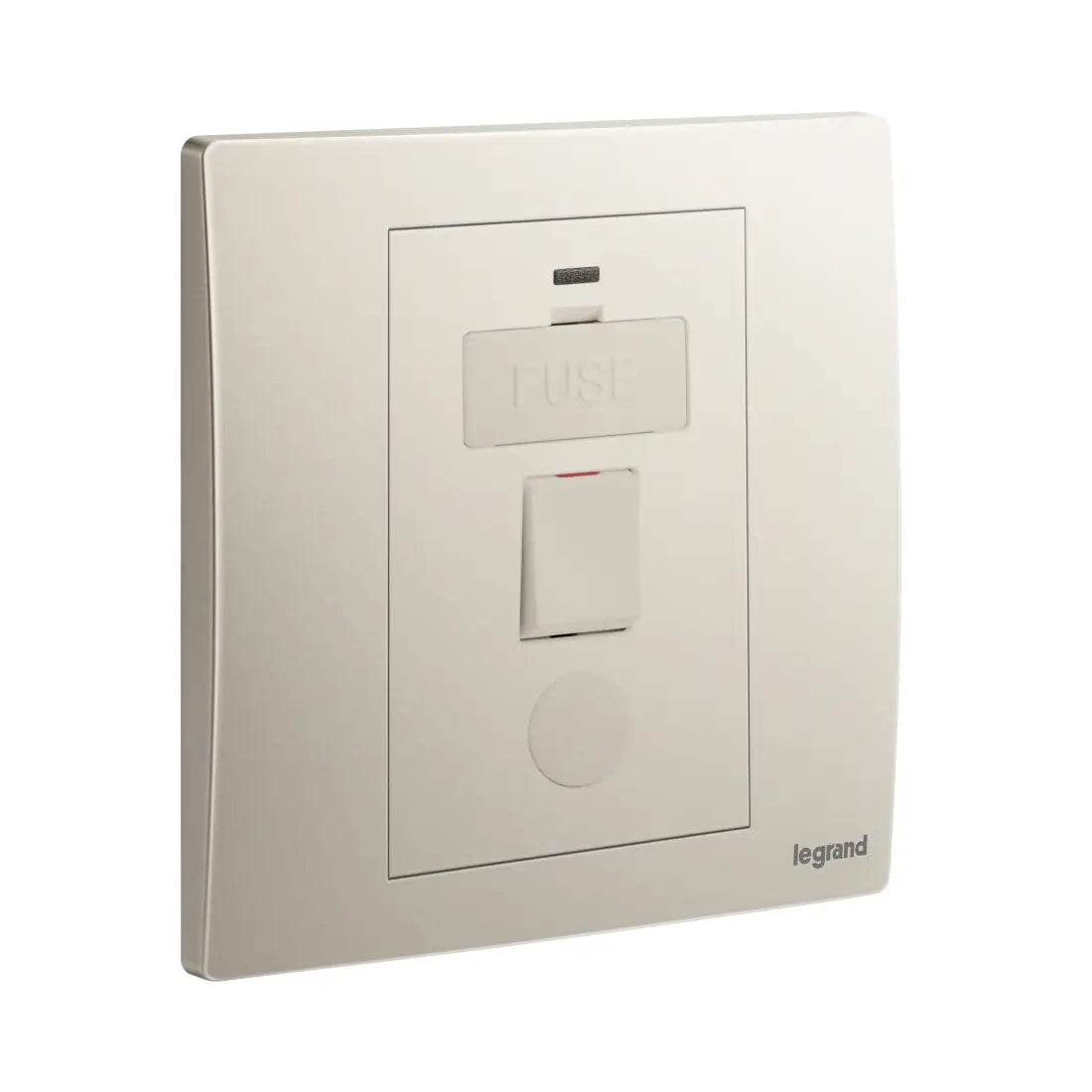

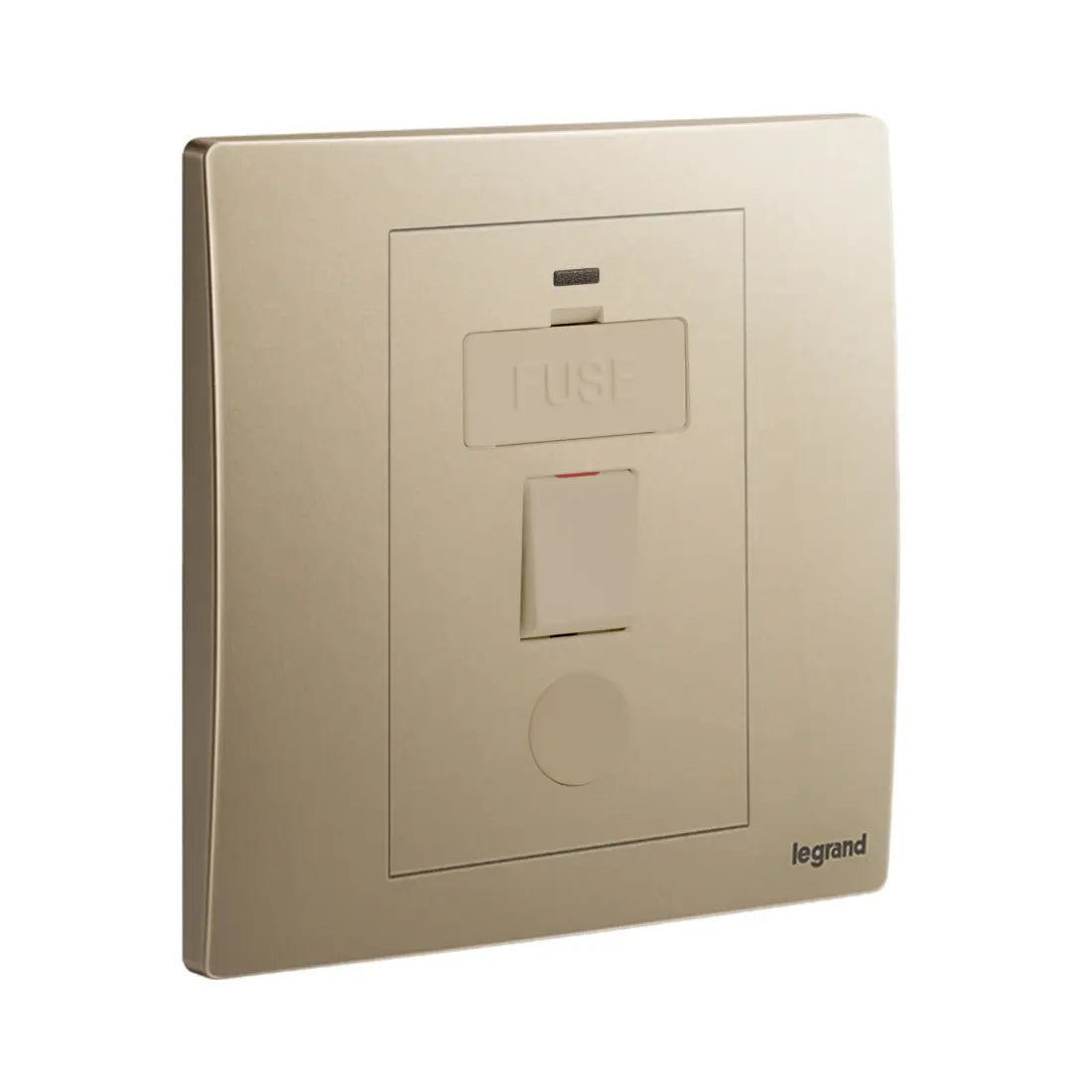

Legrand Mallia Senses 1 Gang 13A Switched Fused Connection Unit with LED Power Indicator and Cord Outlet 281142
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : Cord Outlet
Description
The Legrand Mallia Senses 13A unit is a complete solution delivered under a single catalog number, offering both technical reliability and a unified design. It features screw-type terminals for secure and enhanced electrical connections, with clearly marked terminals that make installation straightforward. The quick and easy plate clipping system adds to the user-friendly setup. Built for safety and performance, it complies with British Standards and supports heavy loads while ensuring no accessible electrical contact under the plate. Designed with a slim profile and robust support frame, it maintains visual consistency with other functions in the Mallia Senses range. Ideal for indoor use only, it integrates seamlessly into modern interiors.
| Brand | Legrand |
| Model | Mallia Senses |
| Connection type | Screw connection |
| Mounting method | Other |
| Type of current | AC |
| Rated current | 13 A |
| Rated voltage | 250 V |
| Dimensions glass fuse | 5x25 mm |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 32 mm |
| Built-in depth | 25.1 mm |
| Degree of impact strength (IK) | IK04 |
| Degree of protection (IP) | IP20 |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Nominal voltage | 250–250 V |
| Supply current | 13–13 A |
| Frequency | 50–60 Hz |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL number | 9003 |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Number of terminals | 5 |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
