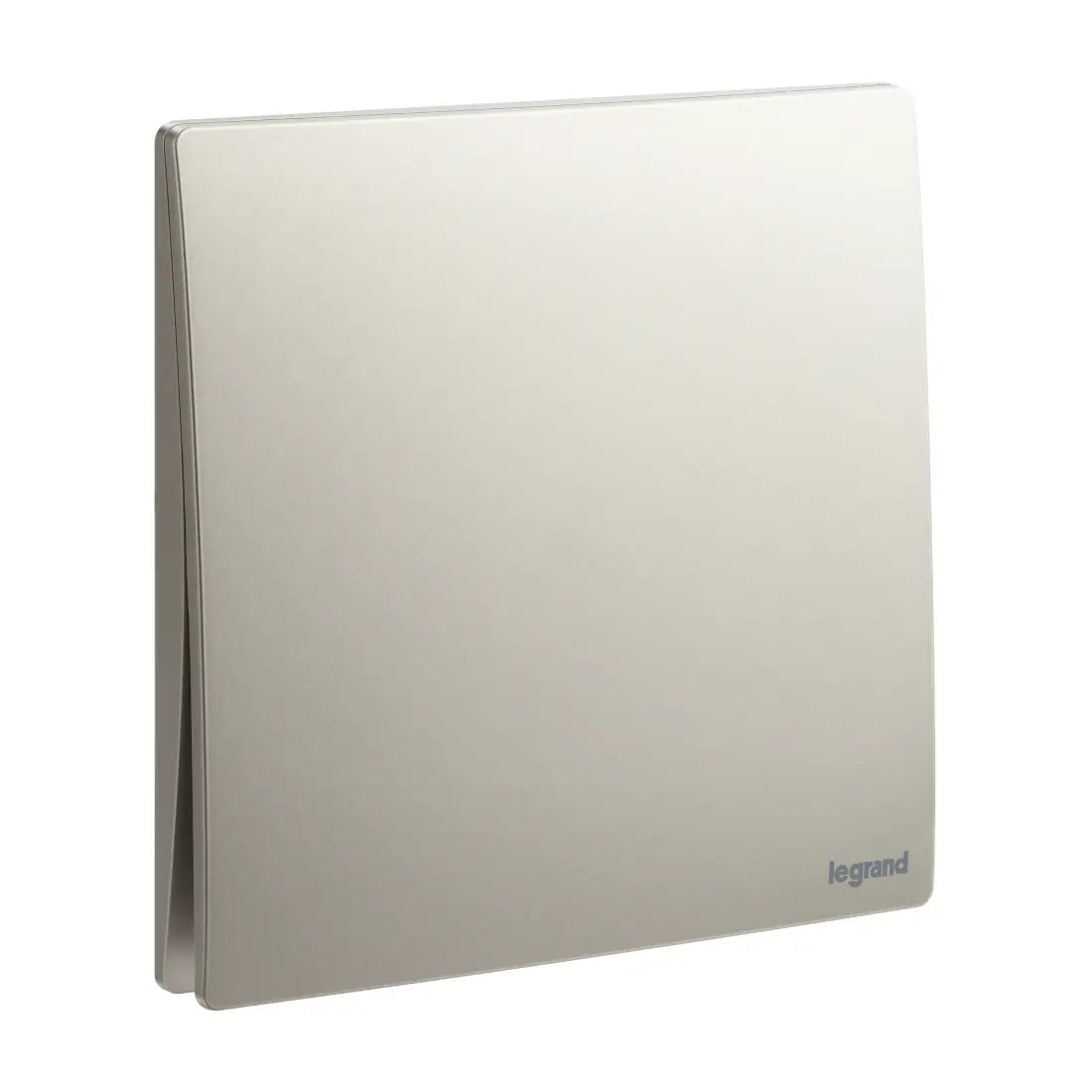

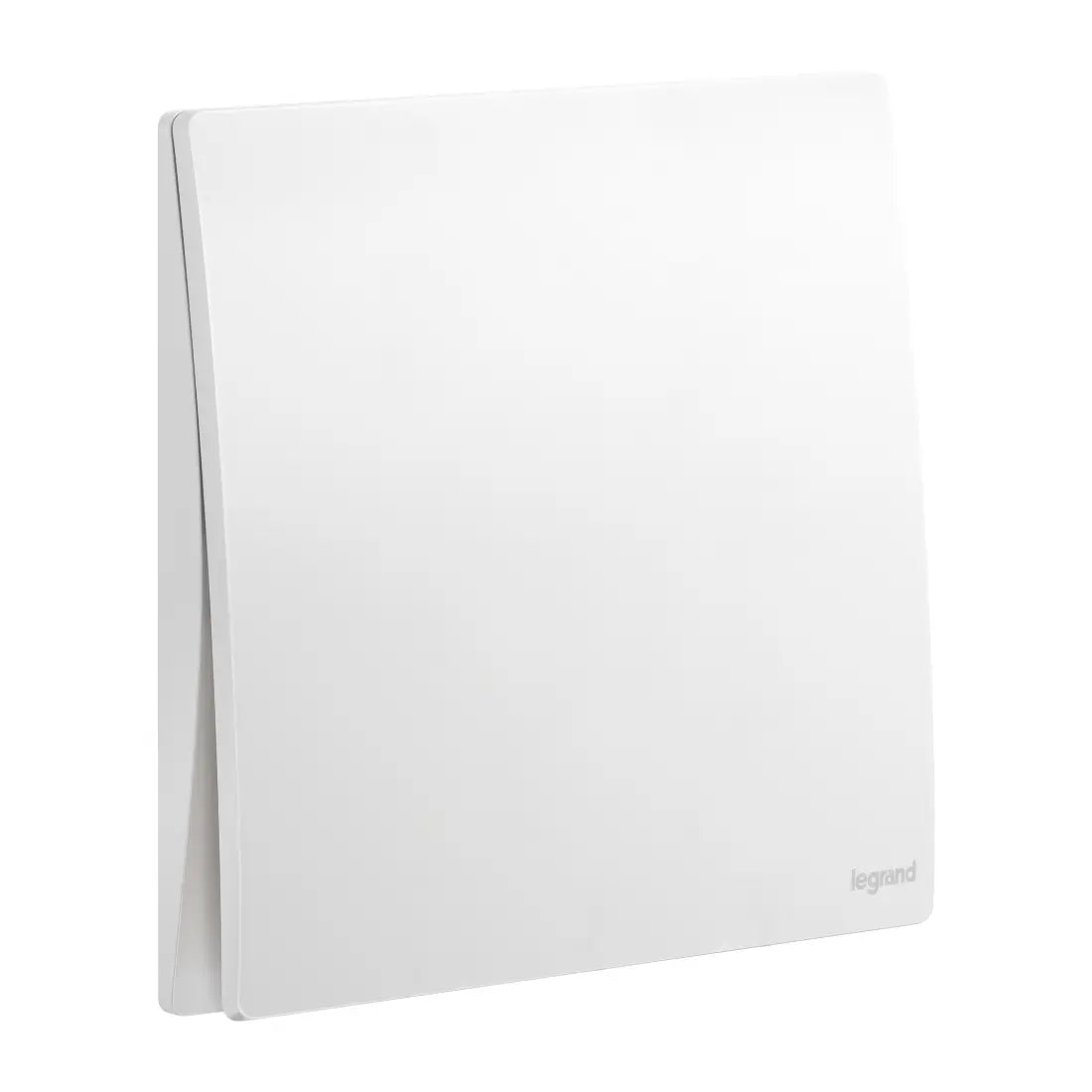

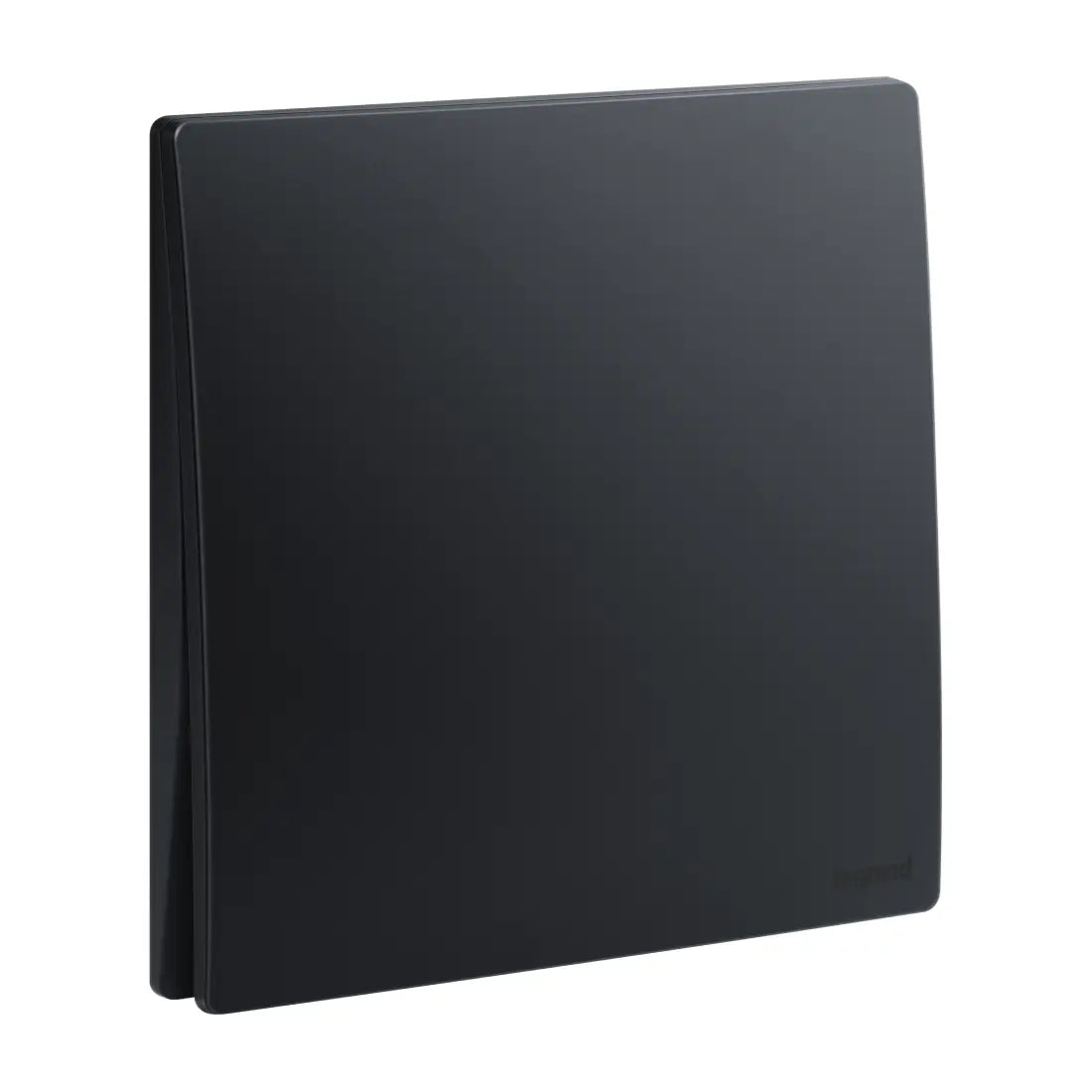

Legrand Mallia Senses 1 Gang 1 Way Switch 16AX 281000
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
Mallia Senses 16AX, 250V switch is a complete set offered under a single catalog number, designed for both practicality and modern aesthetics. It features screw-type terminals with marked identification for easy wiring and enhanced contact reliability. The quick and easy plate-rocker clipping system simplifies installation, while the single-point lighting control offers convenience in everyday use. With a soft-touch feel and audible feedback, the switch delivers a satisfying user experience. Its robust support frame ensures durability, and the thin, streamlined design allows seamless integration into any modern interior. Recommended for indoor use only, it combines technical reliability with elegant functionality.
Brand | Legrand |
Model | Mallia Senses |
Wiring system | Off switch 1-pole |
Method of operation | Rocker lever |
Assembly arrangement | Basic element with full cover plate |
Push button switch | No |
Number of rockers | 1 |
Mounting method | Flush-mounted |
Type of fastening | Screw mounting |
With mounting plate | Yes |
Material | Plastic |
Material quality | Thermoplastic |
Halogen free | Yes |
Antimicrobial treatment | No |
Surface protection | Lacquered |
Surface finishing | Matt |
Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
RAL-number (similar) | 9003 |
Illumination | No |
Suitable for degree of protection (IP) | IP20 |
Degree of impact strength (IK) | IK04 |
Nominal voltage | 250 V |
Rated current | 16 A |
Switching current for fluorescent lamps | 16 AX |
Feedback-signal contact | No |
Connection type | Screwed terminal |
Heating switch | No |
Washing machine switch | No |
Device width | 86 mm |
Device height | 86 mm |
Device depth | 34.6 mm |
Built-in depth | 24.9 mm |
Min. depth of built-in installation box | 35 mm |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
Operating / setting temperature | -5 to 50 °C |
Storage temperature | -10 to 70 °C |
Voltage type | AC |
Frequency | 50-60 Hz |
Mandatory neutral | No |
Terminal marking indication | Yes |
Terminals capacity | 1-4 mm² |
Cable nature for connection | Flexible or rigid |
Cable section | 1-4 mm² |
