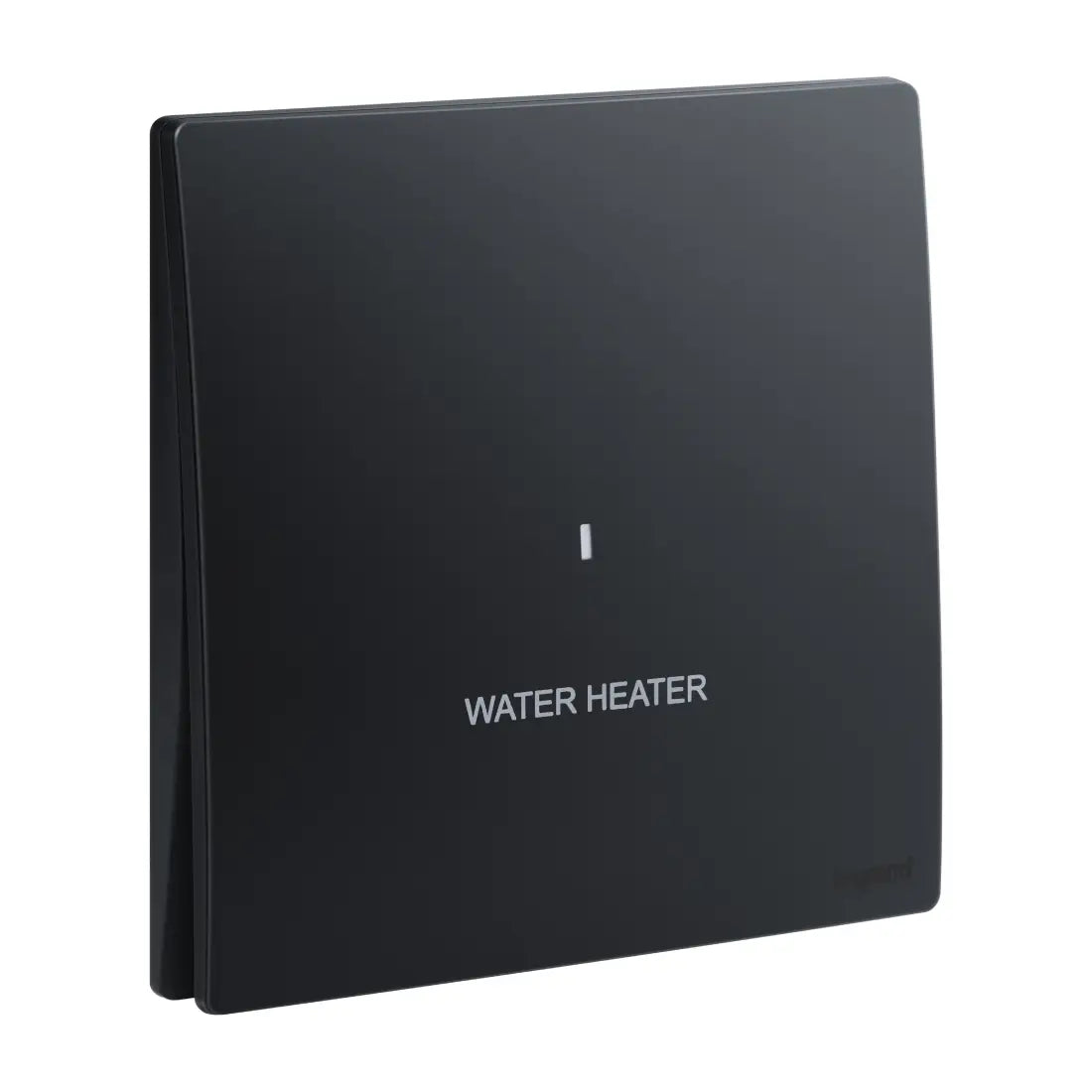

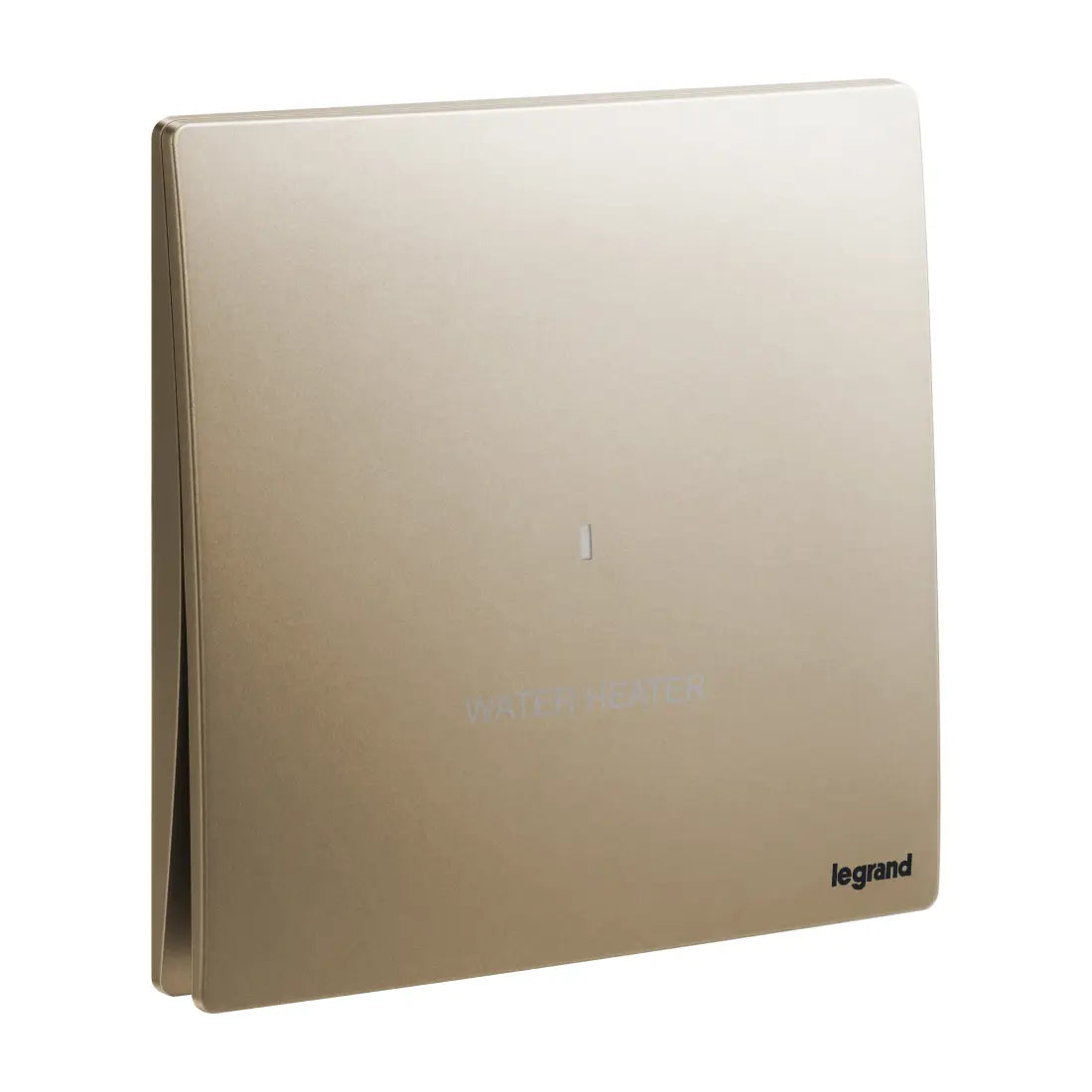

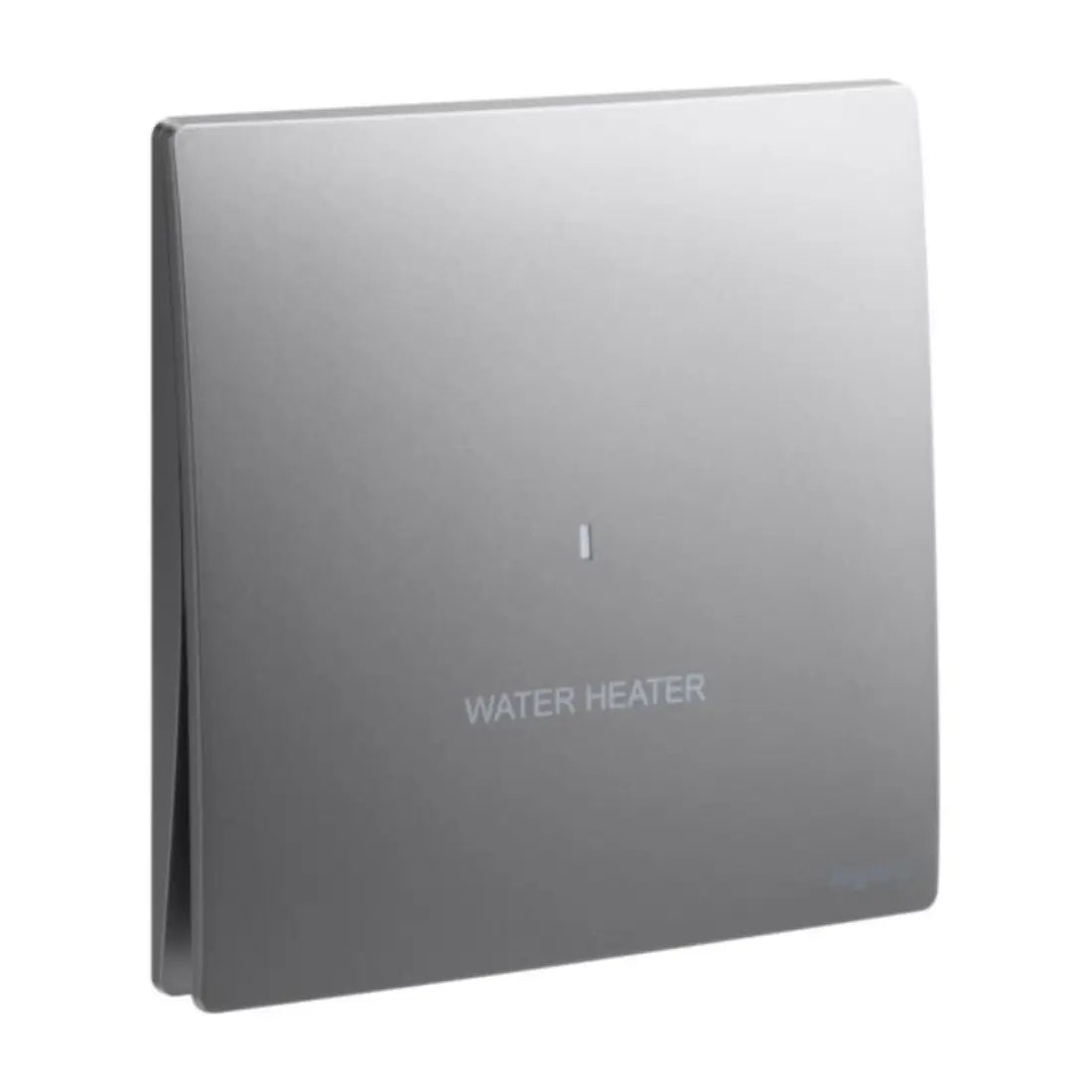

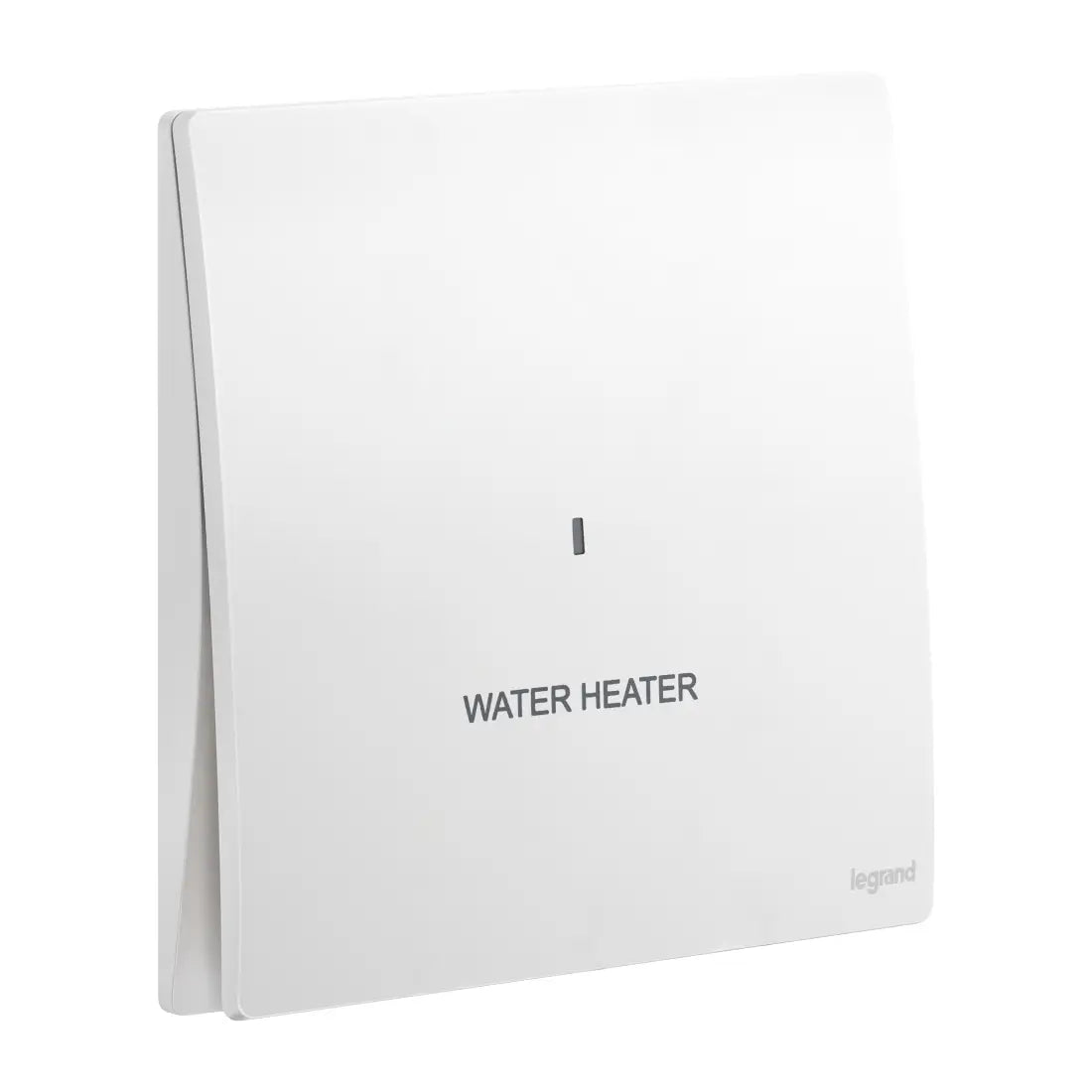

Legrand Mallia Senses 1 Gang 1 Way Double Pole Switch 20AX with Water Heater Marking and Red Power Indicator 281062
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
The Legrand Mallia Senses 20AX, 250V switch is a high-performance solution designed for dependable control of heavy electrical loads, meeting British Standards for safety and reliability. Supplied as a complete unit under one catalog number, it features screw-type terminals that ensure enhanced electrical contact, along with clearly marked terminals for straightforward installation. Ideal for indoor environments, the switch includes a quick and easy plate-rocker clipping system for fast setup, while the robust support frame offers exceptional strength and durability. With a smooth, defined motion and subtle tactile feedback, it provides a refined user experience. Its slim, modern design integrates seamlessly into various interior styles, making it suitable for residential, hospitality, or light commercial applications.
| Brand | Legrand |
| Model | Mallia Senses |
| Wiring system | Off switch 2x1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL-number (similar) | 9003 |
| Lighting | Yes |
| Function lighting | Illuminated (on) |
| Type of lighting | LED not exchangeable |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 20 A |
| Switching current for fluorescent lamps | 20 AX |
| Monitoring contact | No |
| Connection type | Screwed terminal |
| Heating switch | Yes |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 41.1 mm |
| Built-in depth | 29.6 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
