Brand : Legrand
Type : Switch
Description

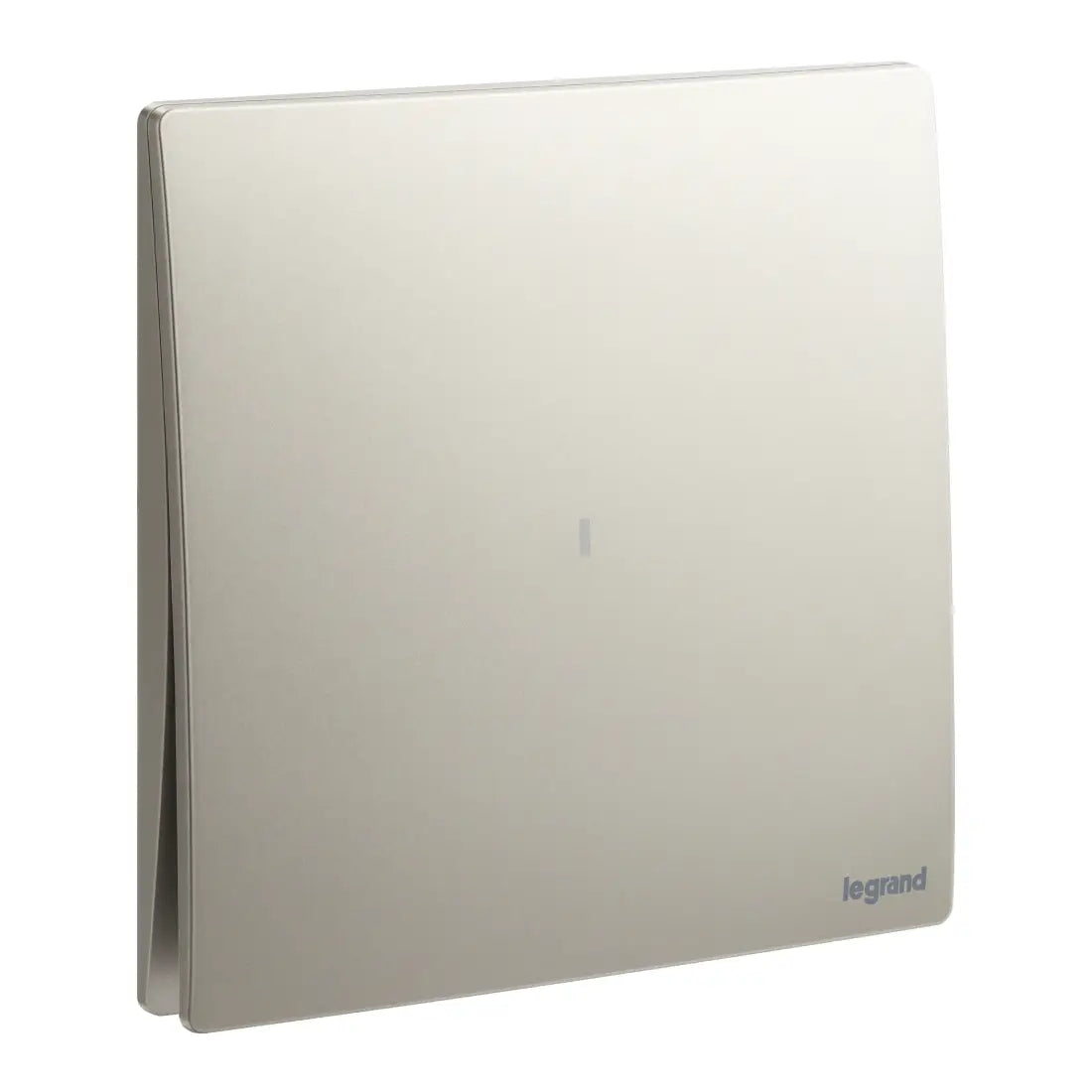

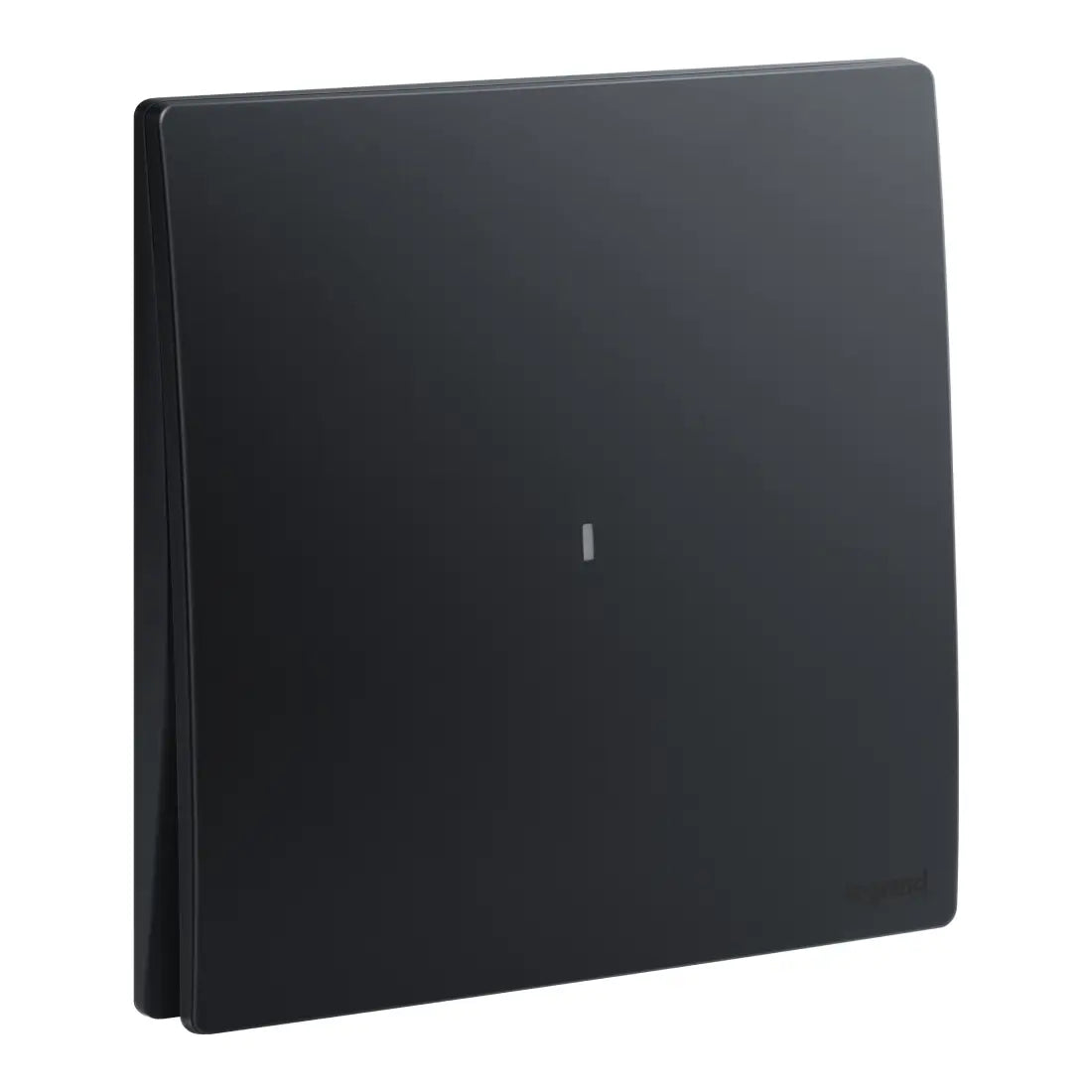

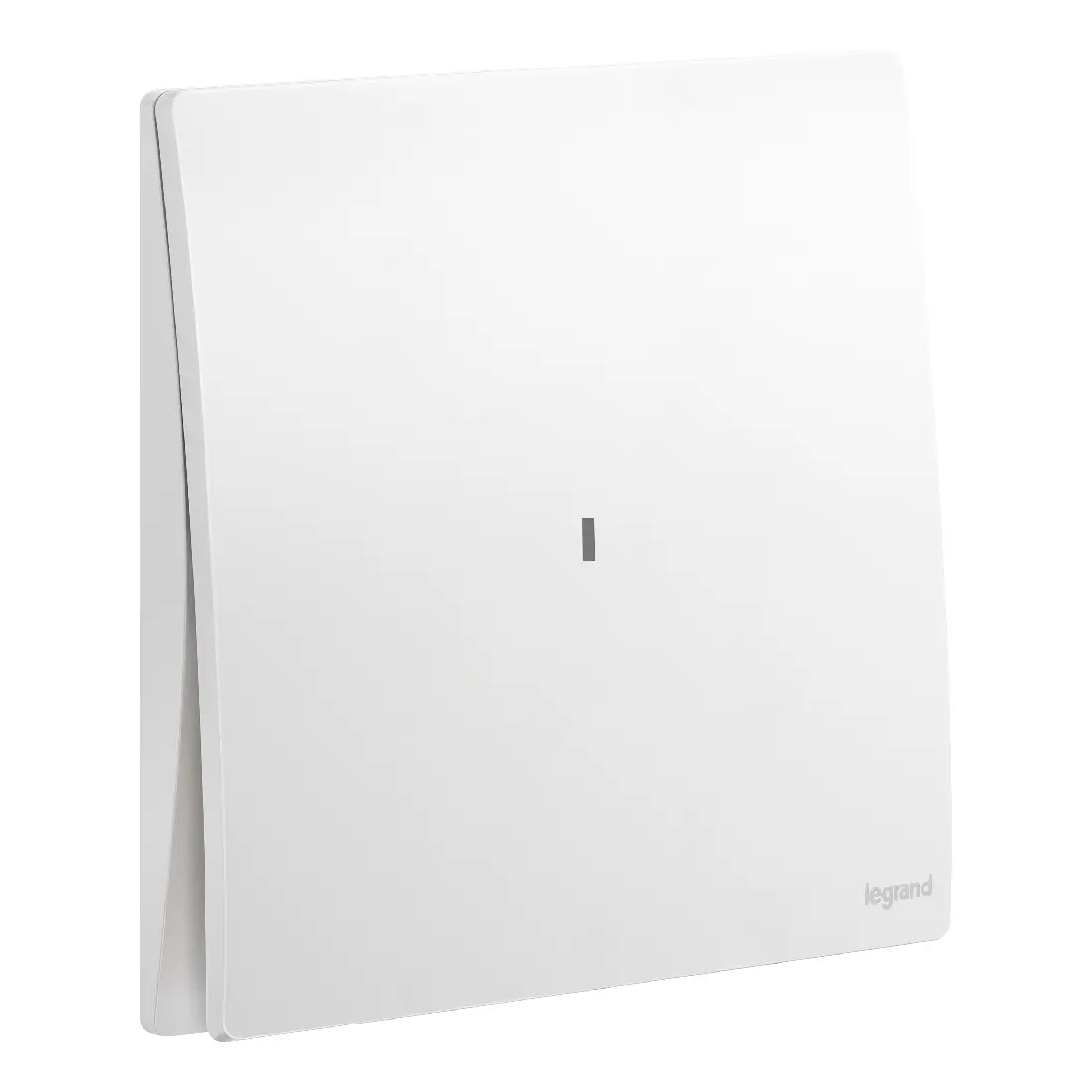

The MALLIA SENSES 1 Gang 1 Way Double Pole Switch (20AX, 250V) with Red Indicator is a complete and reliable solution for heavy-duty indoor switching, sold under a single catalog number. Designed with screw-type terminals for enhanced electrical contact and clearly marked for easy installation, it ensures safety and efficiency during setup. The switch features a sleek matt white finish and a slim, modern profile that blends seamlessly with any décor. Its quick plate-rocker clipping system allows for fast and secure mounting, while the soft-touch rocker delivers a defined motion with audible feedback. Built to handle heavy loads in compliance with British Standards, and supported by a robust frame, this switch is both technically durable and visually refined—ideal for both residential and commercial applications.
| Brand | Legrand |
| Model | Mallia Senses |
| Wiring system | Off switch 2x1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL-number (similar) | 9003 |
| Lighting | Yes |
| Function lighting | Illuminated (on) |
| Type of lighting | LED not exchangeable |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 20 A |
| Switching current for fluorescent lamps | 20 AX |
| Monitoring contact | No |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 41.1 mm |
| Built-in depth | 29.6 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
