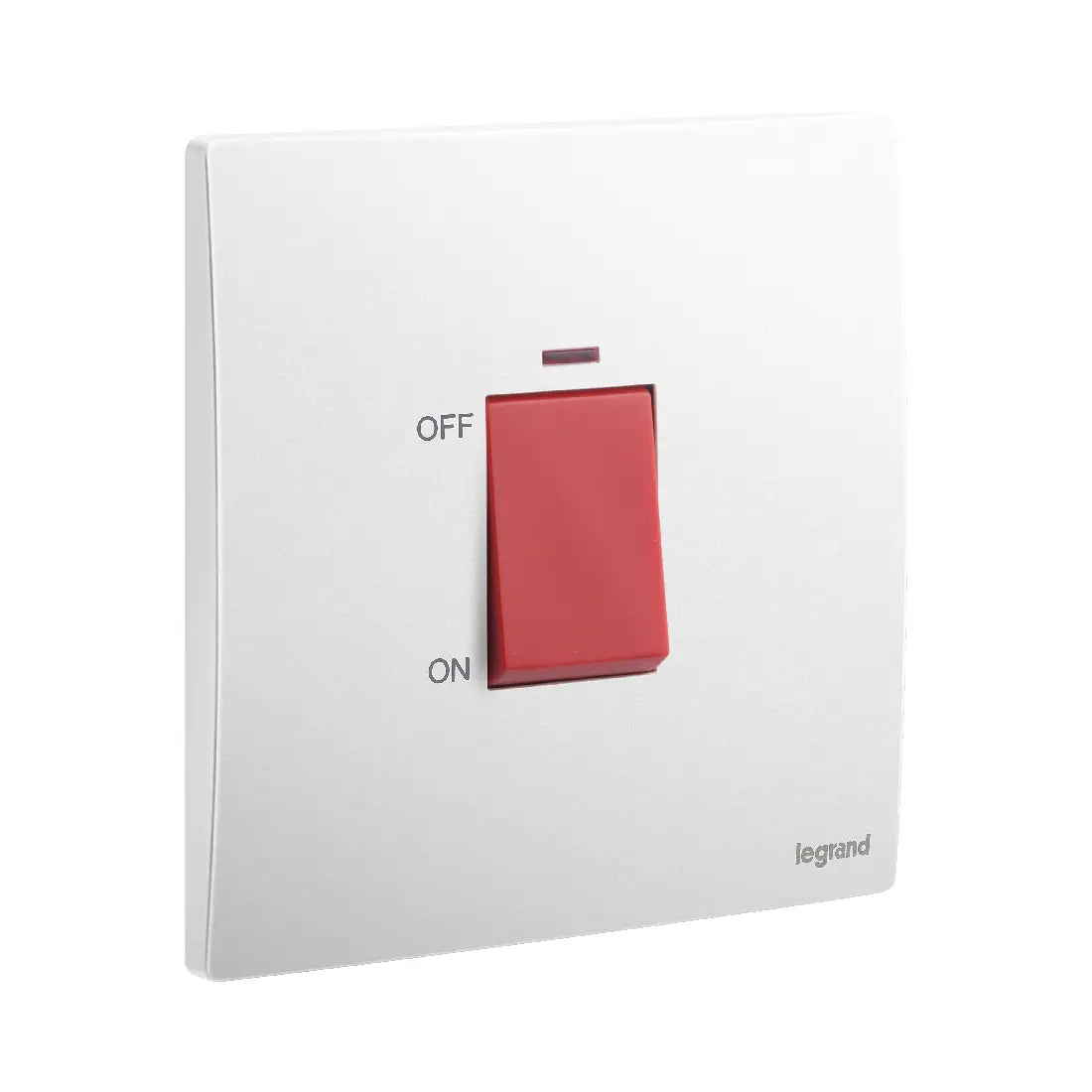

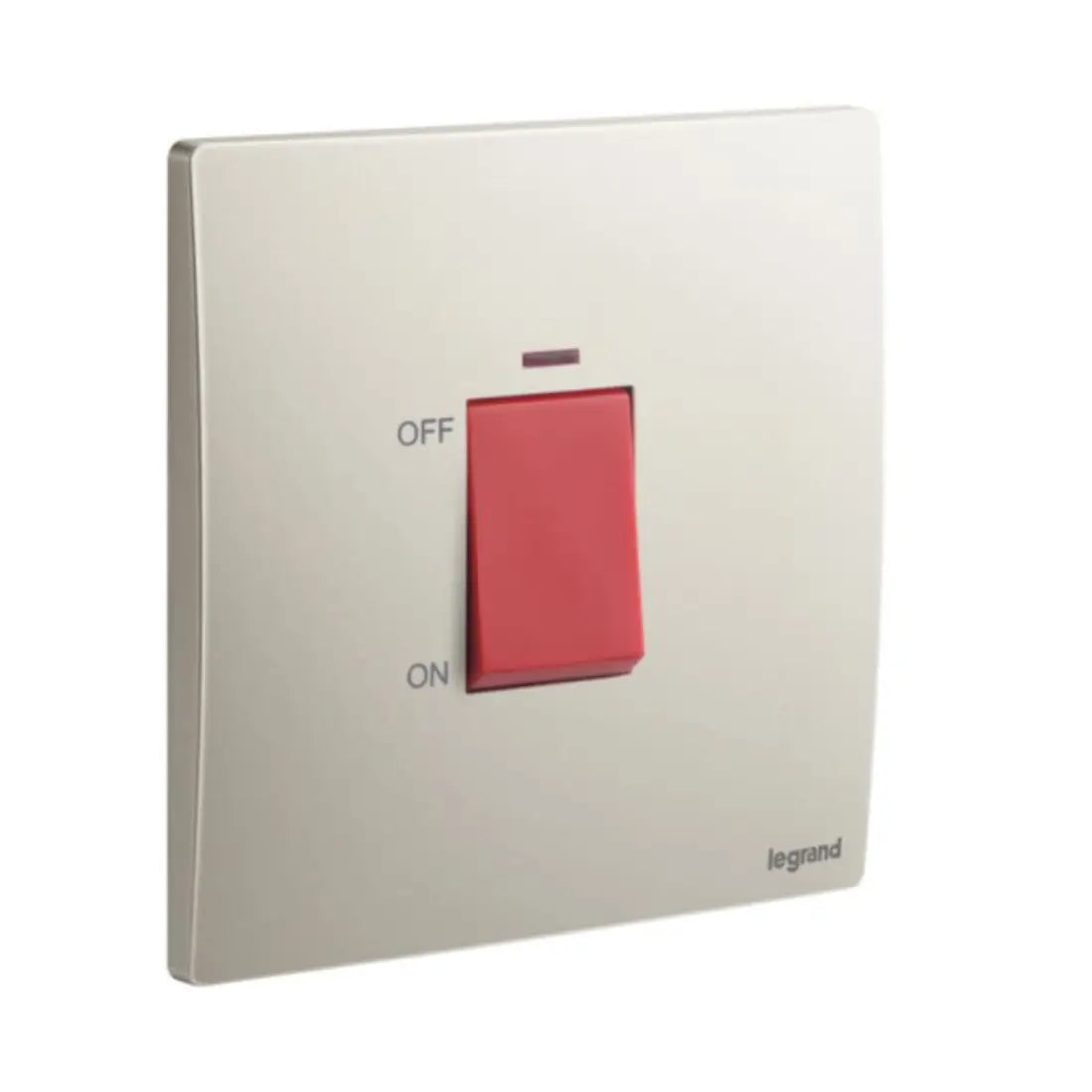

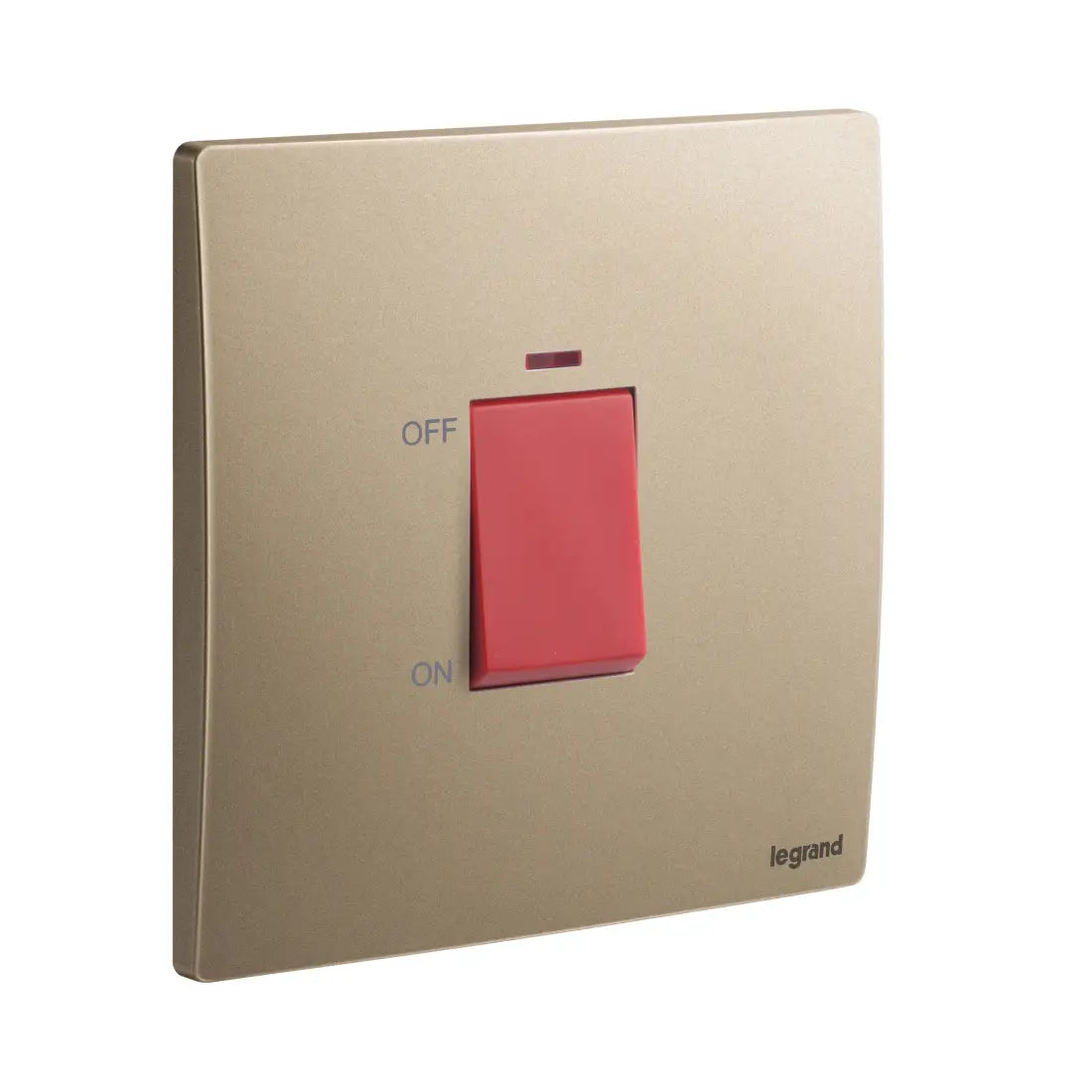

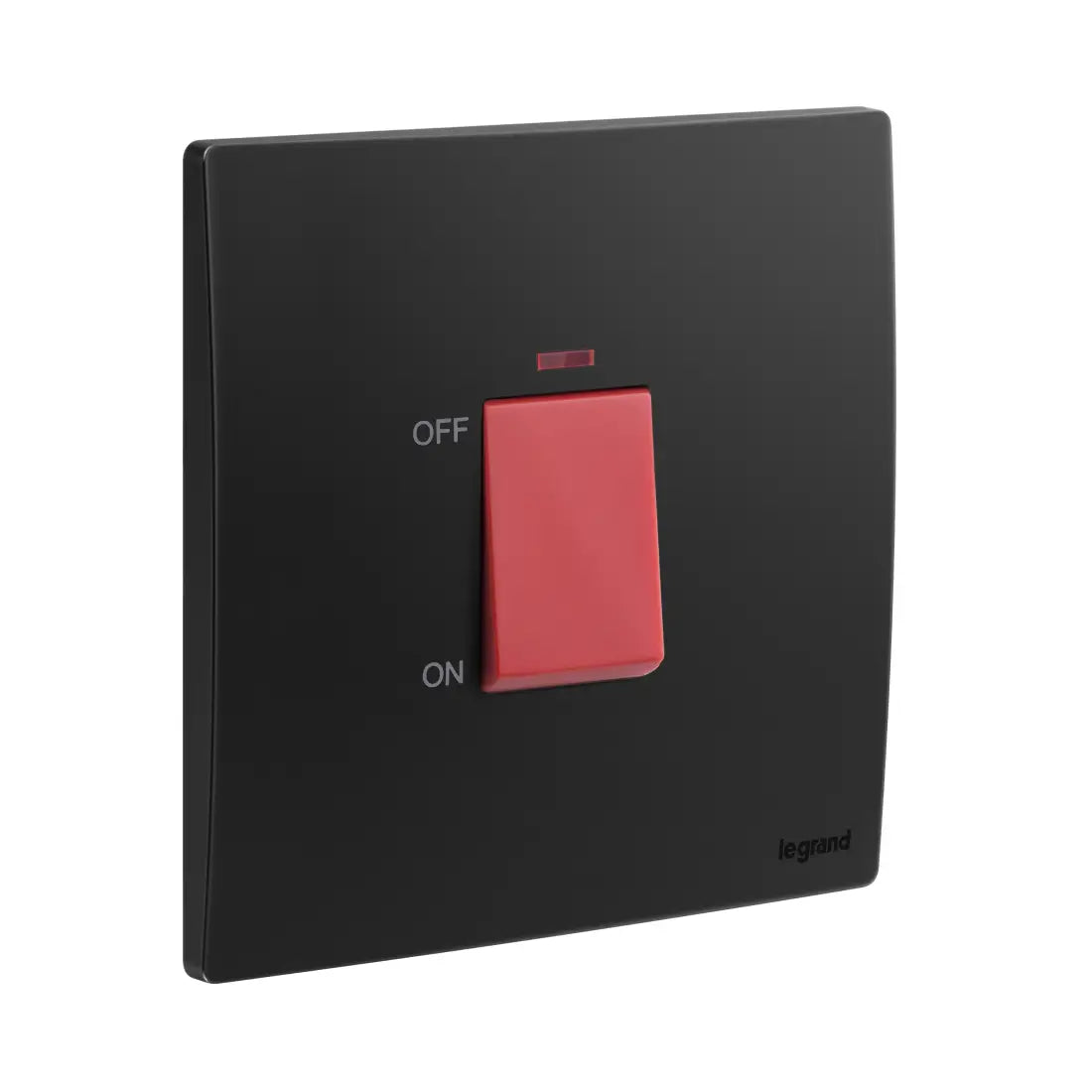

Legrand Mallia Senses 1 Gang 1 Way Double Pole 32A Switch with Red Power Indicator 281074
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
The Legrand Mallia Senses 32A, 250V switch is a complete, high-capacity solution designed for safe and efficient electrical control in indoor environments. Supplied as a full unit under one catalog number, it features a red power indicator on the rocker for easy visual status, along with clearly marked terminals for fast and error-free wiring. Engineered with safety in mind, the switch design ensures there is no accessible electrical contact beneath the rocker. The quick and easy plate clipping system simplifies installation, and it comes with a protective shell to guard against paint and dust during the setup phase. Built on a robust support frame, its thin and modern profile integrates seamlessly into contemporary interiors, delivering both functionality and style.
| Brand | Legrand |
| Model | Mallia Senses |
| Wiring system | switch 2x1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Matt White, Matt Black, Dark Silver, Dark Bronze, Champagne |
| RAL-number (similar) | 9003 |
| Colour of switch operator | Red |
| Lighting | Yes |
| Function lighting | Illuminated (on) |
| Type of lighting | LED not exchangeable |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 32 A |
| Monitoring contact | No |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 34.1 mm |
| Built-in depth | 22.8 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
