Legrand Galion 4 Gangs 2 Way Switch 16AX 282407
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
The Galion 4 Gang 2 Way Switch (16AX, 250V~) is a complete and ready-to-install solution for controlling four lighting points with enhanced flexibility and style. Designed with screw-type terminals for secure and reliable connections, it features clearly marked terminals and a strip length indicator to simplify installation and reduce wire wastage. Recommended for indoor use, the switch includes a robust honeycomb support frame that ensures rigidity and long-term durability. Its modern full-plate rocker design is complemented by a sleek silver bar that matches the color of the cover, giving it a refined, contemporary look. Ideal for both residential and commercial interiors, it is delivered with paint and dust protection, along with screws suitable for flush-mounted or surface-mounted boxes—plastic or metal.
( 282407, 282407-C, 282407-C1, 282407-C2, 282407-C3 )
| Brand | Legrand |
| Model | Galion |
| Wiring system | Switch 1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 4 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Lacquered |
| Surface finishing | Matt |

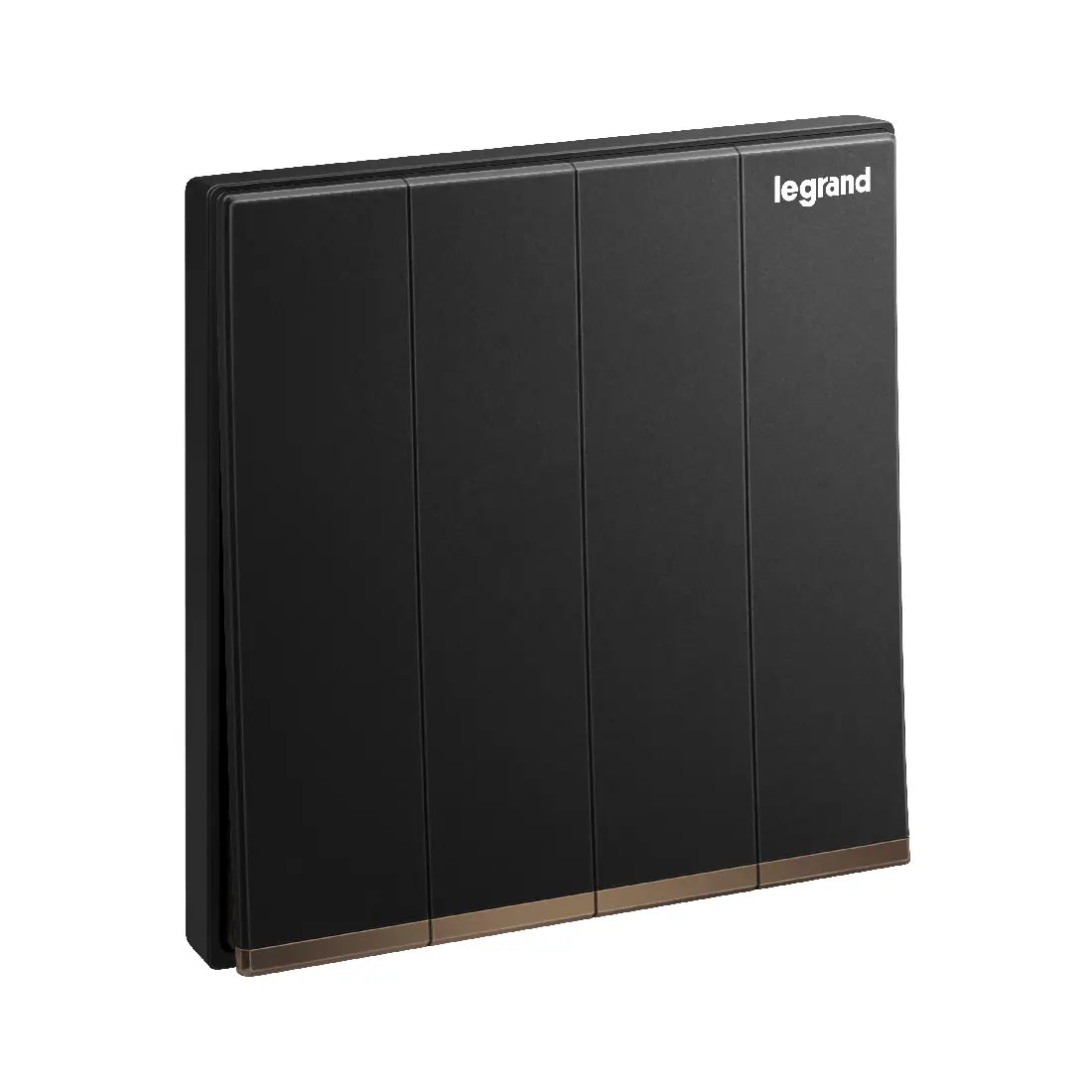

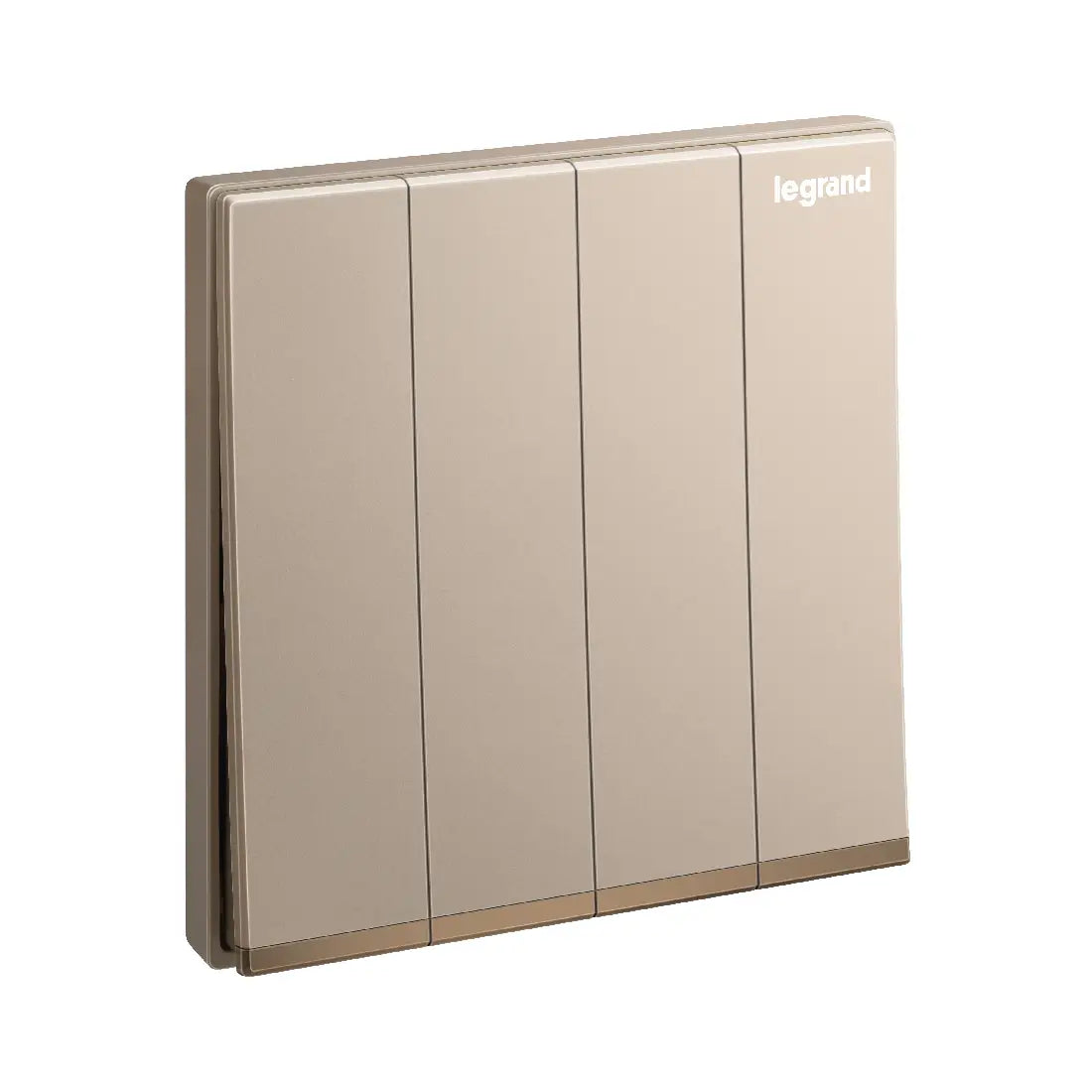

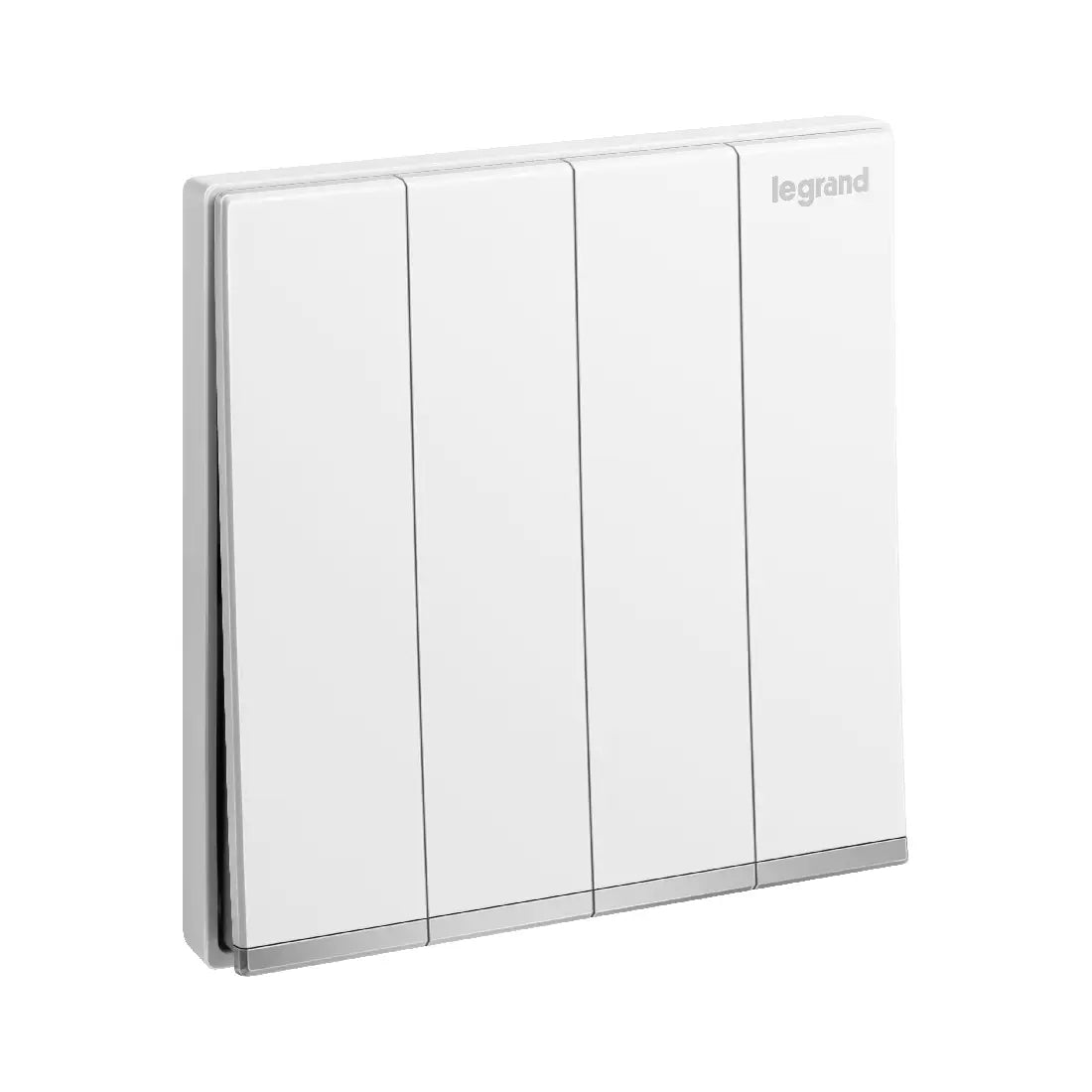

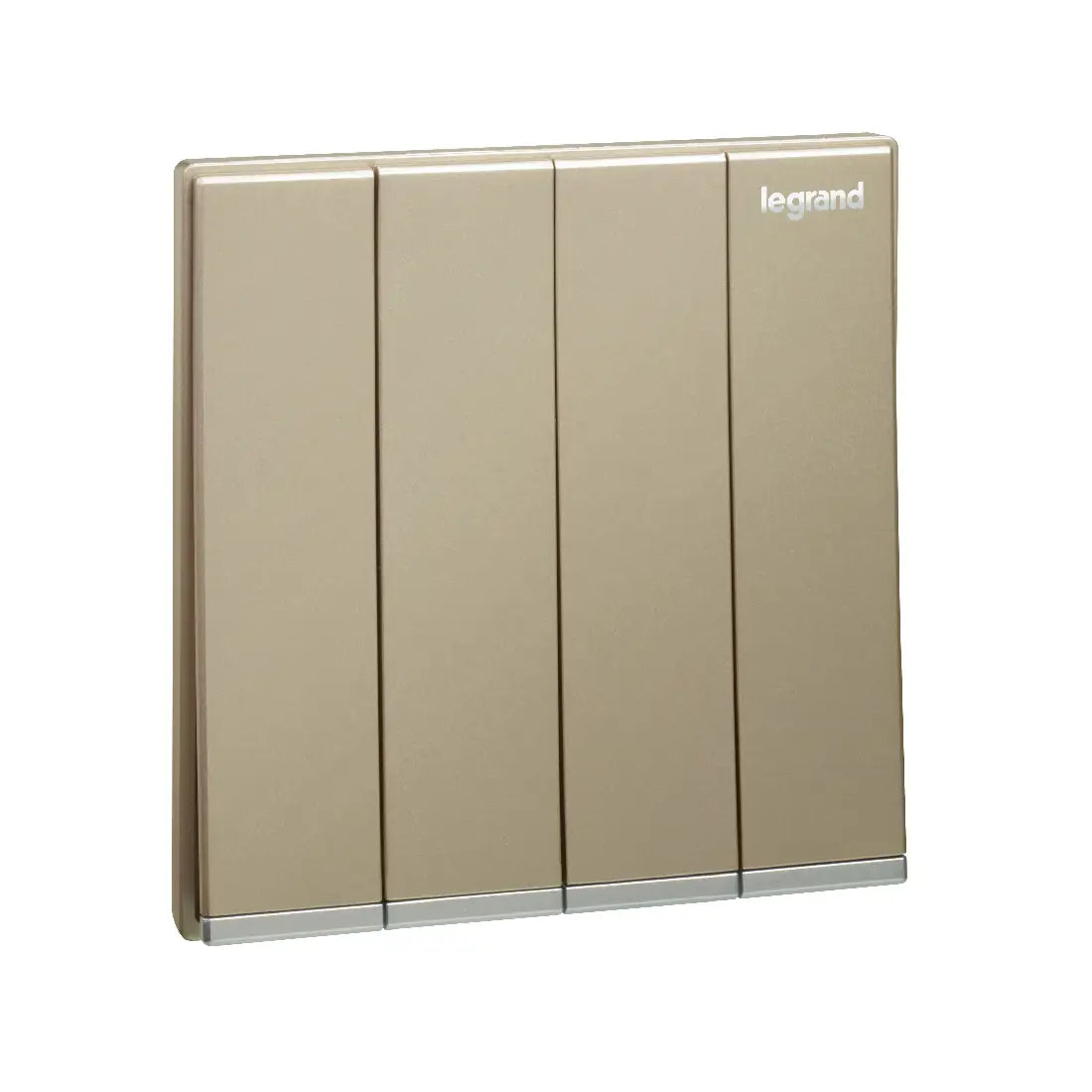

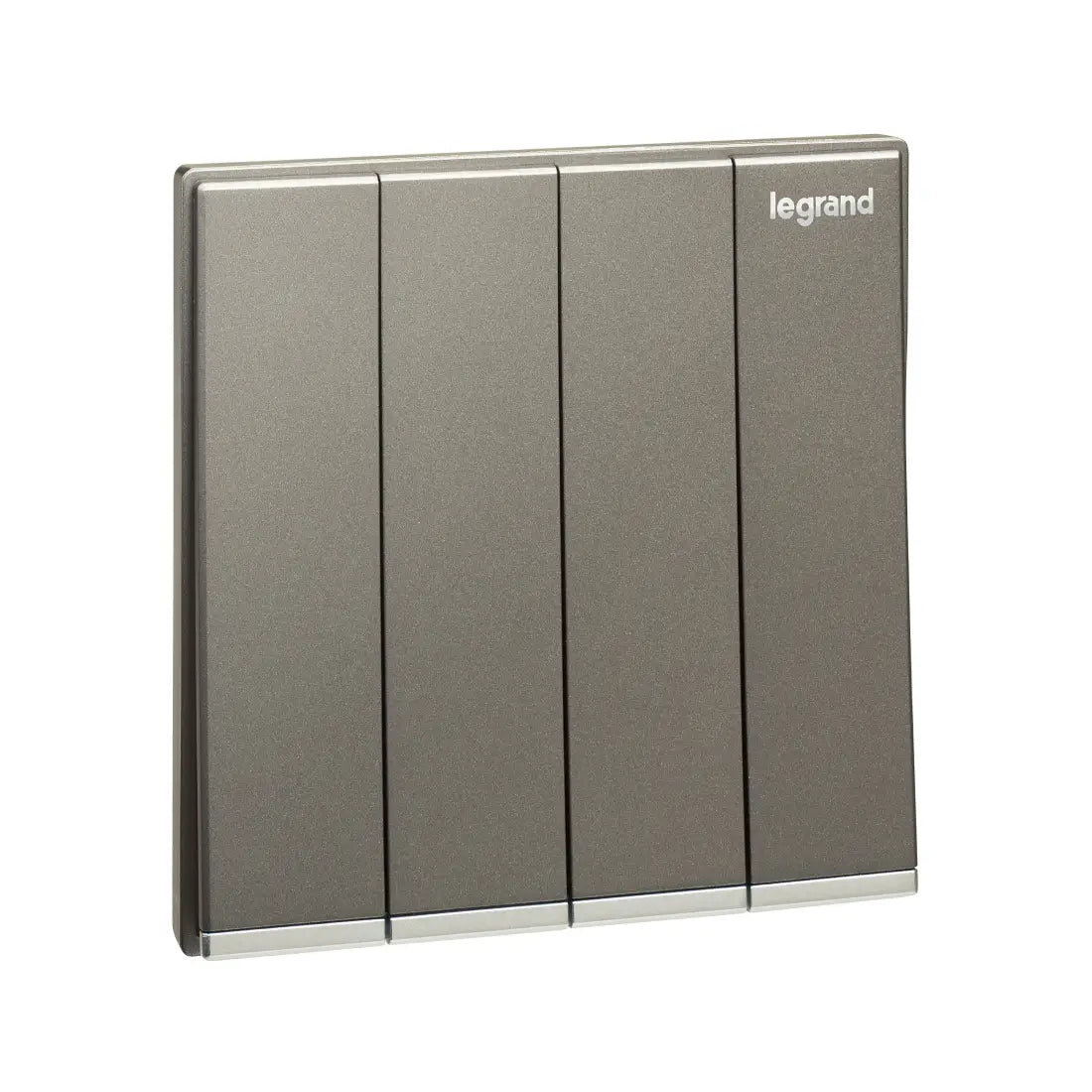

| Colour | White(282407), Black(282407-C), Rose Gold(282407-C1), Champagne(282407-C2), Dark Silver(282407-C3) |
| Lighting | No |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 38.4 mm |
| Built-in depth | 24 mm |
| Min. depth of built-in installation box | 30 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
