Legrand Galion 4 Gangs 1 Way Switch 16AX 282406
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switch Socket
Description
The Galion 4 Gang 1 Way Switch (16AX, 250V~) offers a complete and practical solution for multi-point lighting control, all in one modern and durable unit. Sold under a single catalog number and ready to install, it features screw-type terminals for secure connections, clearly marked terminals for easy identification, and a strip length indicator to reduce wiring waste. Built with a strong honeycomb design support frame, it ensures stability and rigidity during installation. Ideal for controlling four individual lighting points from one sleek plate, the switch is recommended for indoor use only. Its full-plate rocker design is complemented by a silver bar that matches the cover color, giving it a clean, modern aesthetic. The product is delivered with paint and dust protection and includes screws suitable for both flush-mounted and surface-mounted boxes, whether plastic or metal.
( 282406, 282406-C, 282406-C1, 282406-C2, 282406-C3 )
| Brand | Legrand |
| Model | Galion |
| Wiring system | Switch 1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 4 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Lacquered |
| Surface finishing | Matt |

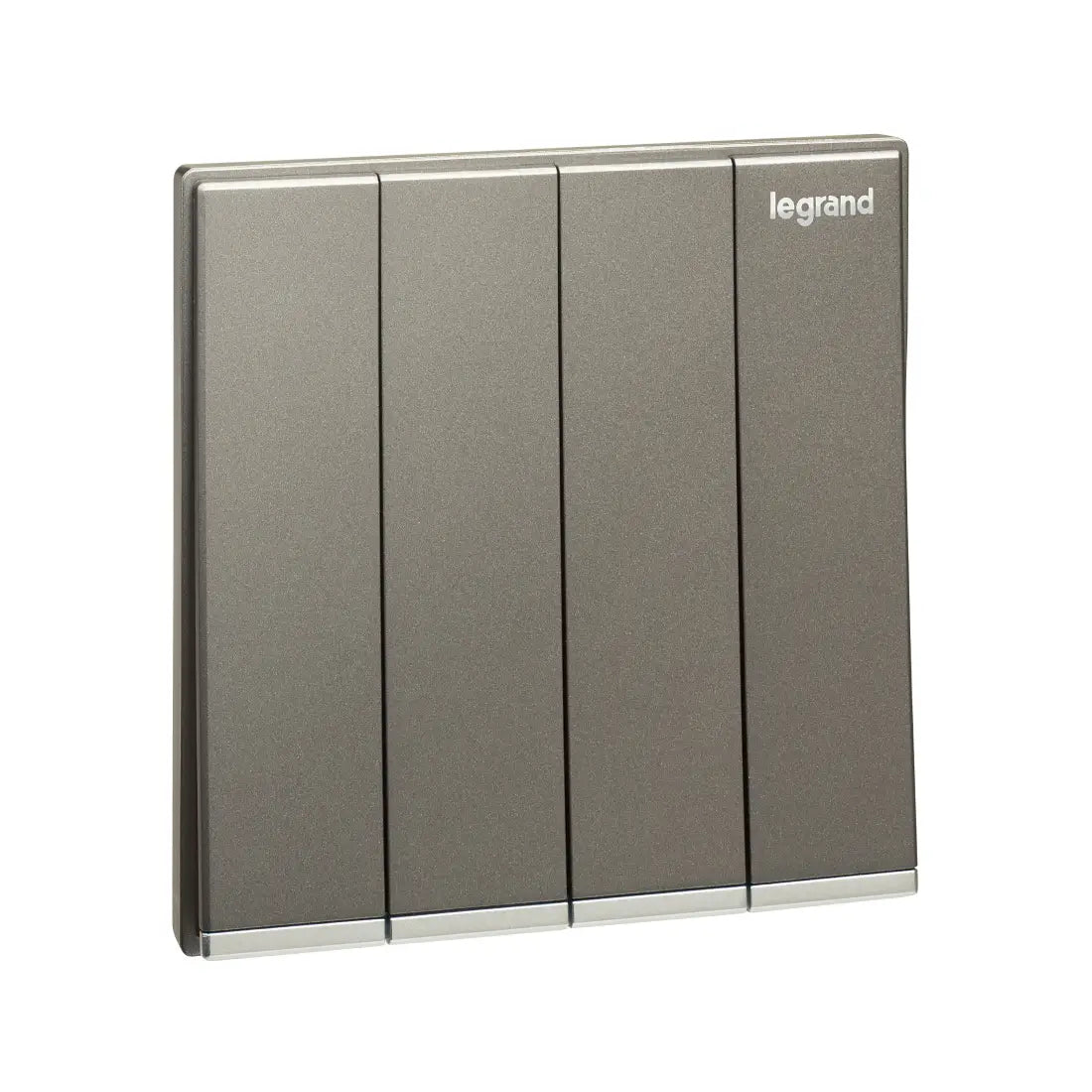

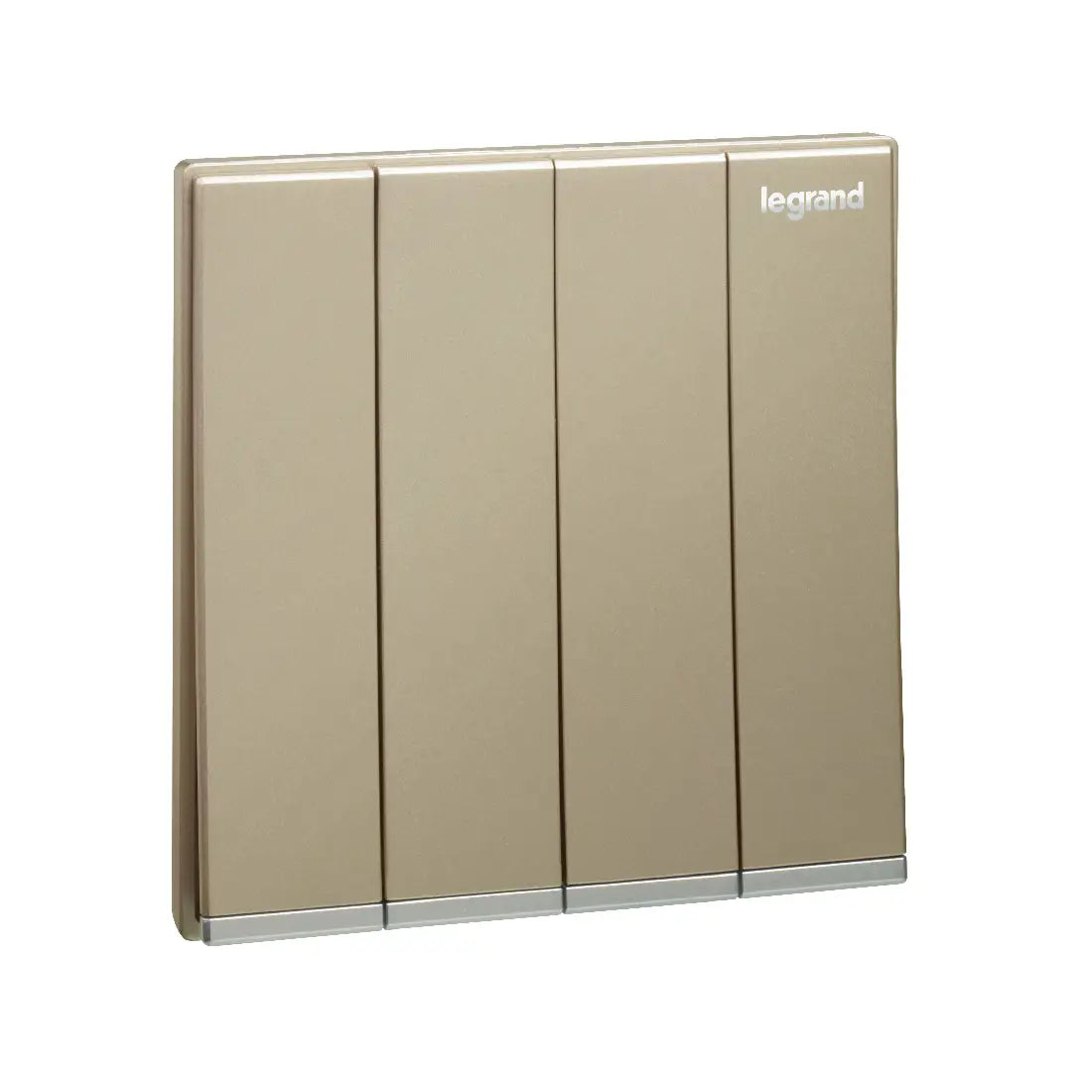

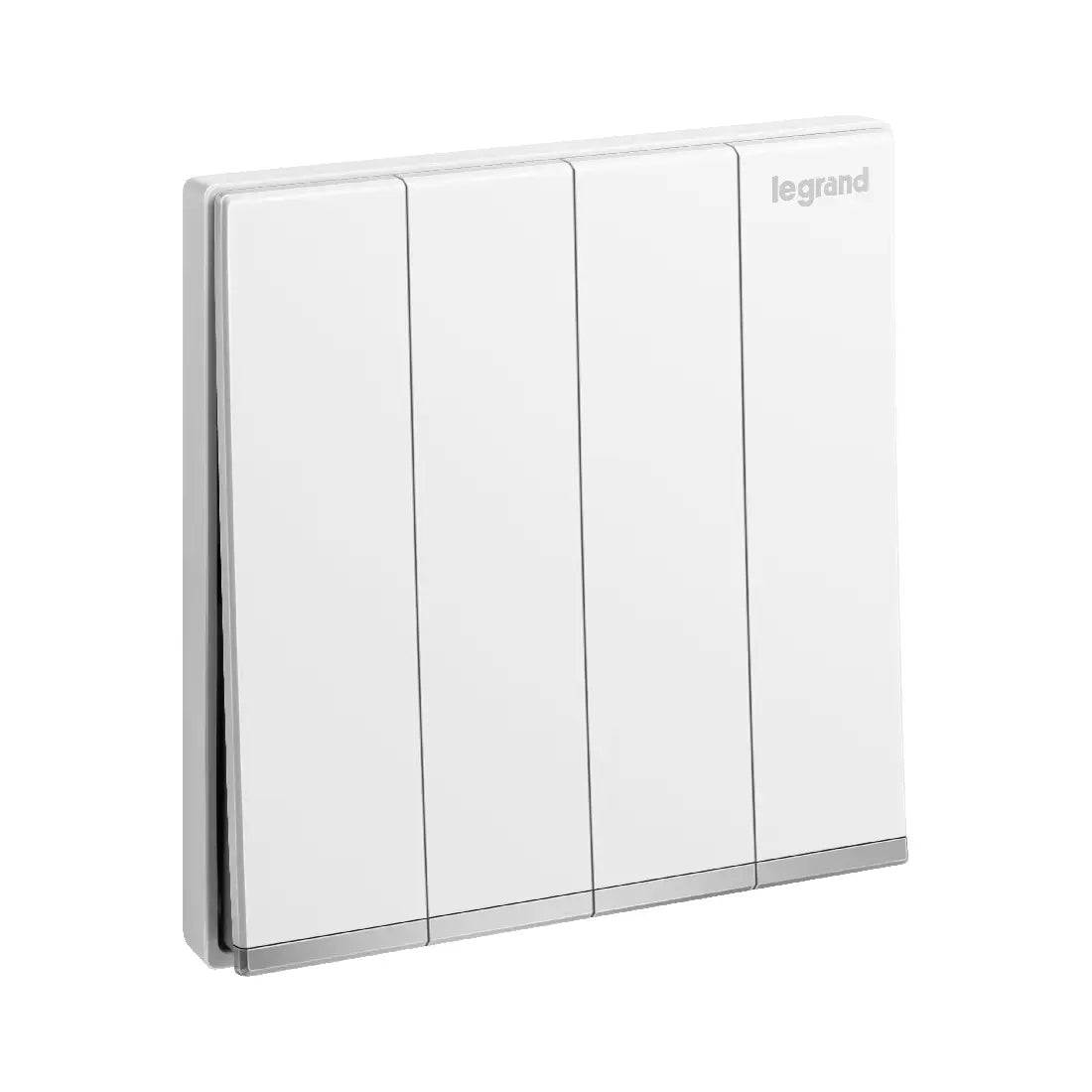

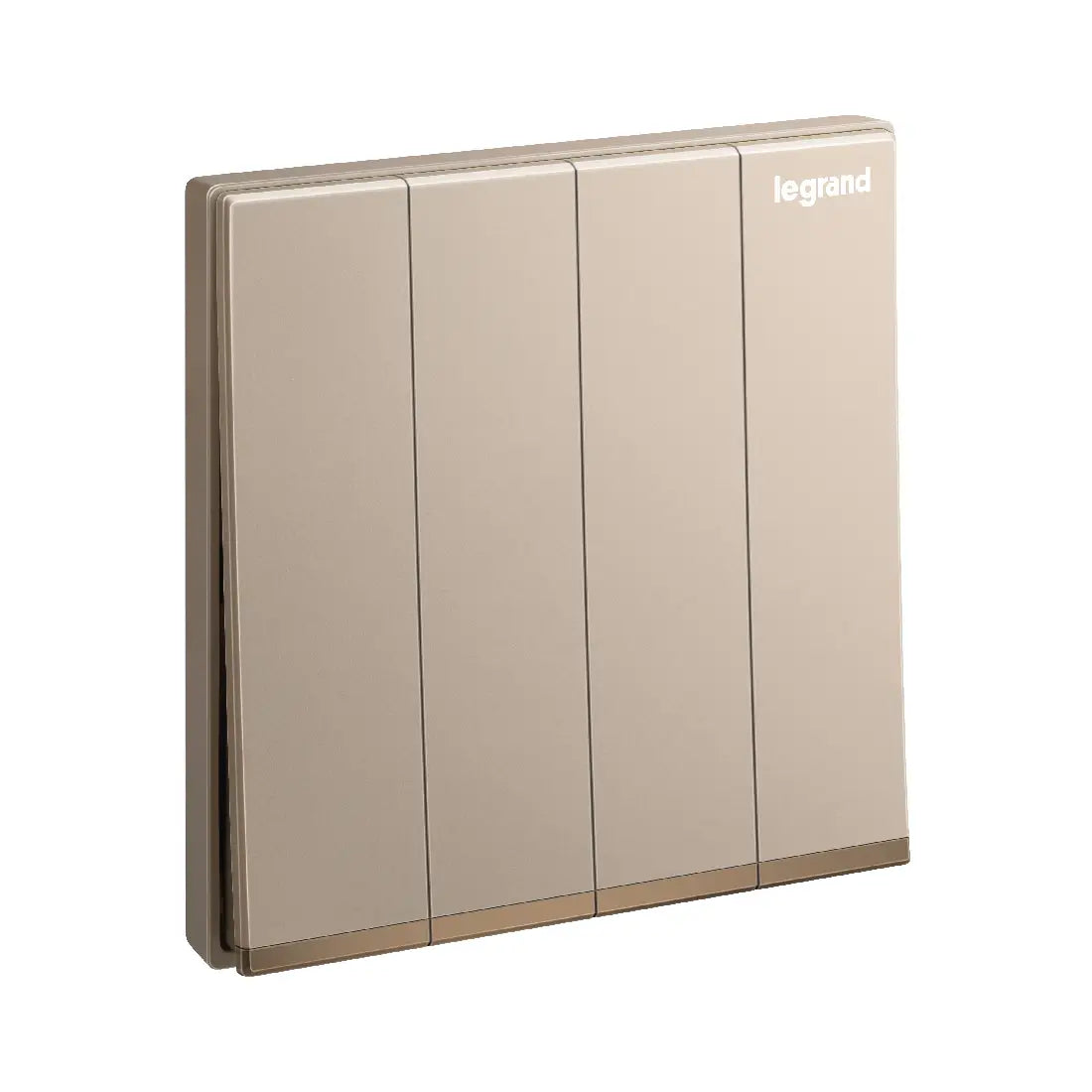

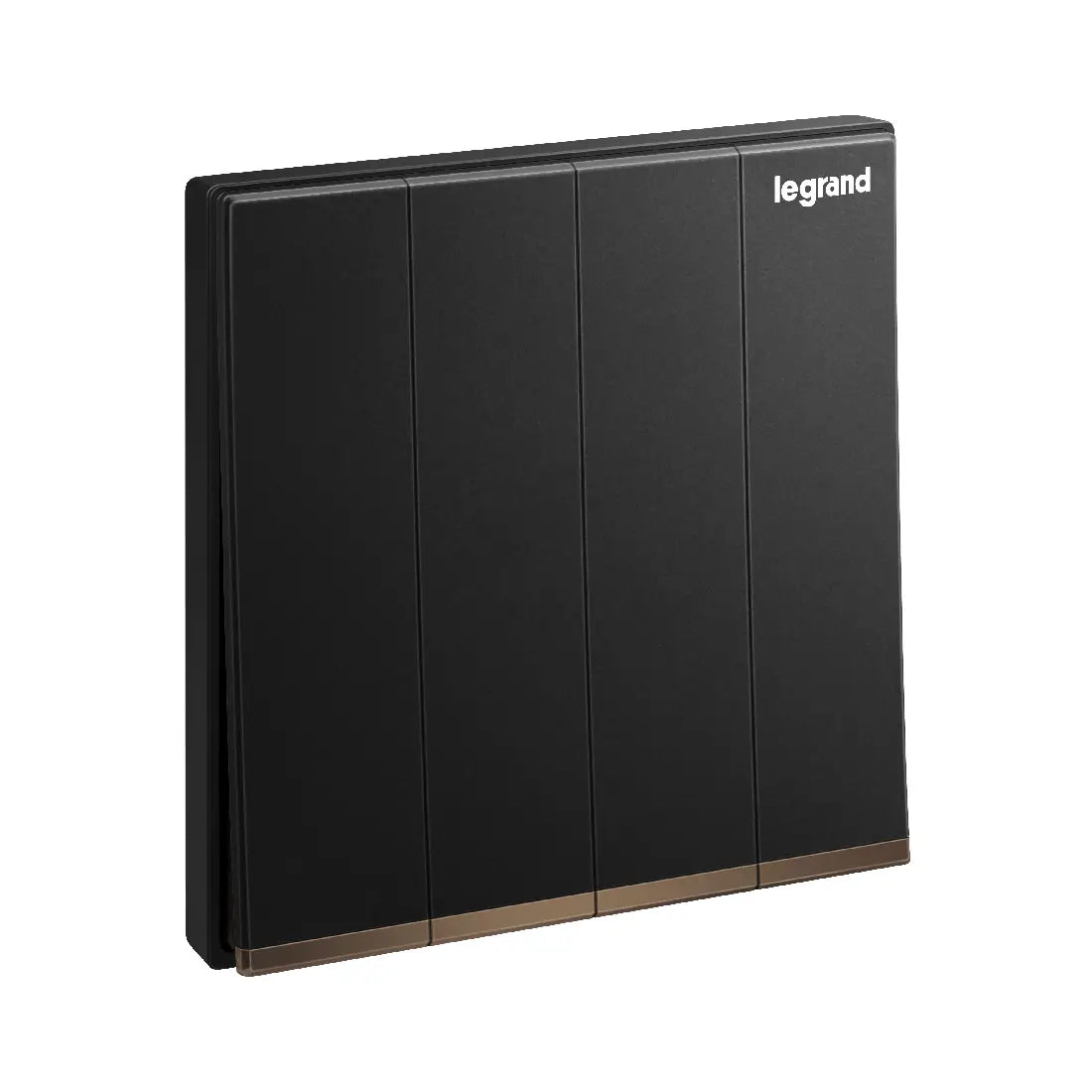

| Colour | White(2824060), Black(282406-C), Rose Gold(282406-C1), Champagne(282406-C2), Dark Silver(282406-C3) |
| Lighting | No |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 38.4 mm |
| Built-in depth | 24 mm |
| Min. depth of built-in installation box | 30 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
