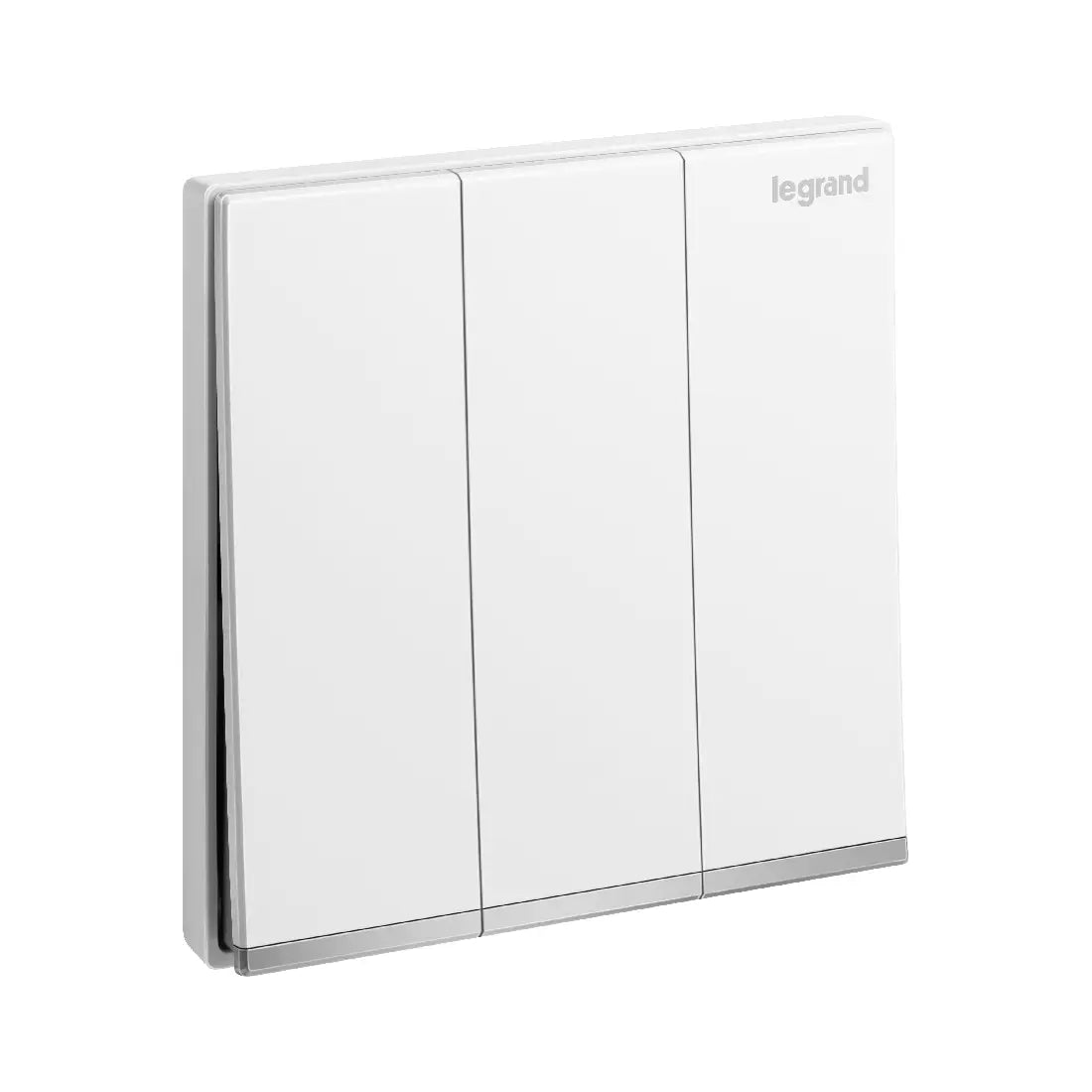

Legrand Galion 3 Gangs 2 Way Switch 16AX 282405
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : Switch Socket
Description
The Galion 3 Gang 2 Way Switch (16AX, 250V~) is a reliable and stylish lighting control solution, sold complete under one catalog number and ready to install. Designed with screw-type terminals for strong electrical contact, clearly marked terminals for easy wiring, and a strip length indicator to minimize wire wastage, it ensures a smooth installation experience. Featuring a sturdy honeycomb support frame, this switch provides stable mounting, while enabling practical 3-point lighting control from a single plate. Its modern full-plate rocker design is enhanced with an elegant electroplated bar, blending perfectly with the cover color for a sleek finish. Recommended for indoor use, the switch is delivered with protective coverings against paint and dust, and includes screws suitable for both flush-mounted and surface-mounted boxes, whether plastic or metal.
( 282405, 282405-C, 282405-C1, 282405-C2, 282405-C3 )
| Brand | Legrand |
| Model | Galion |
| Wiring system | Switch 1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 3 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Lacquered |

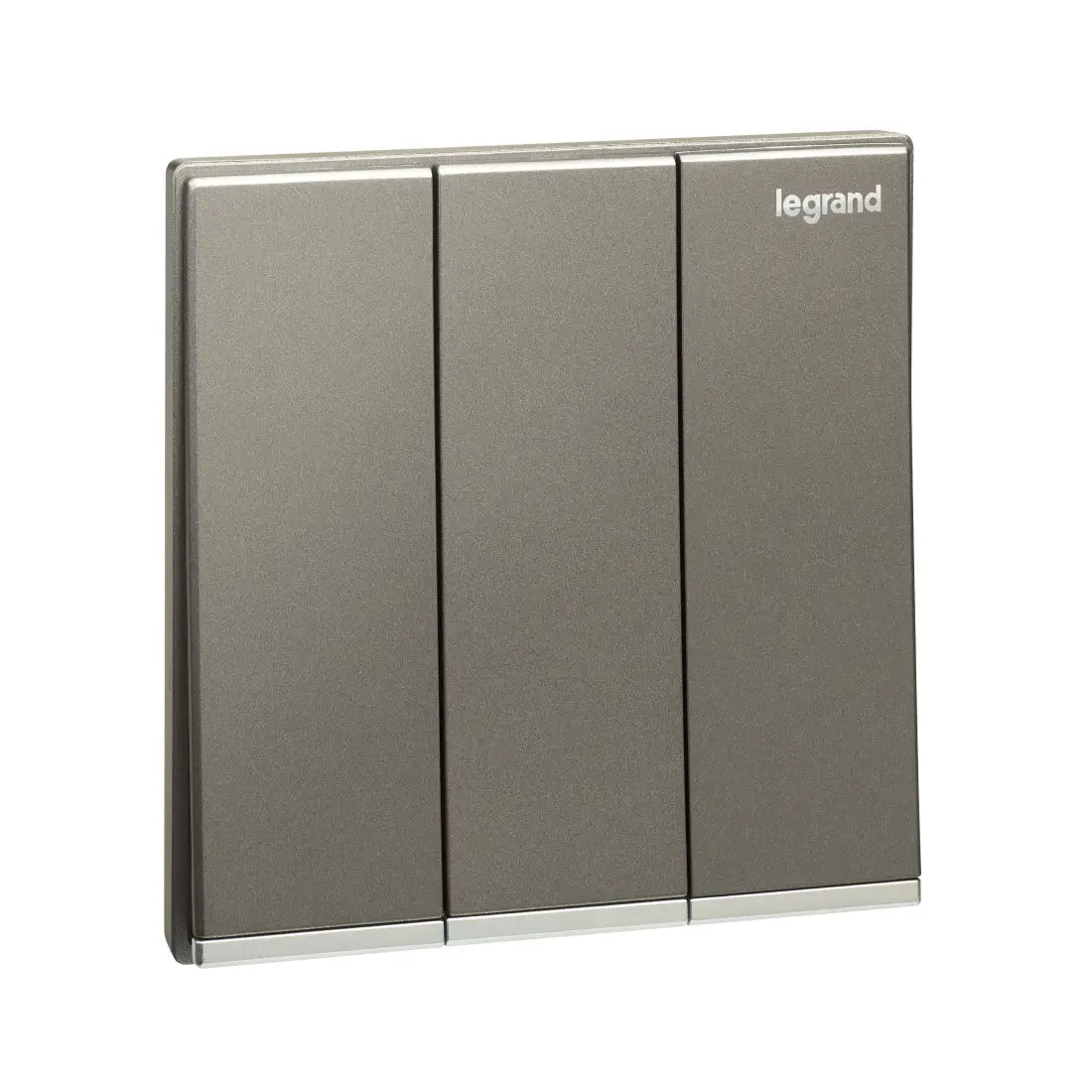

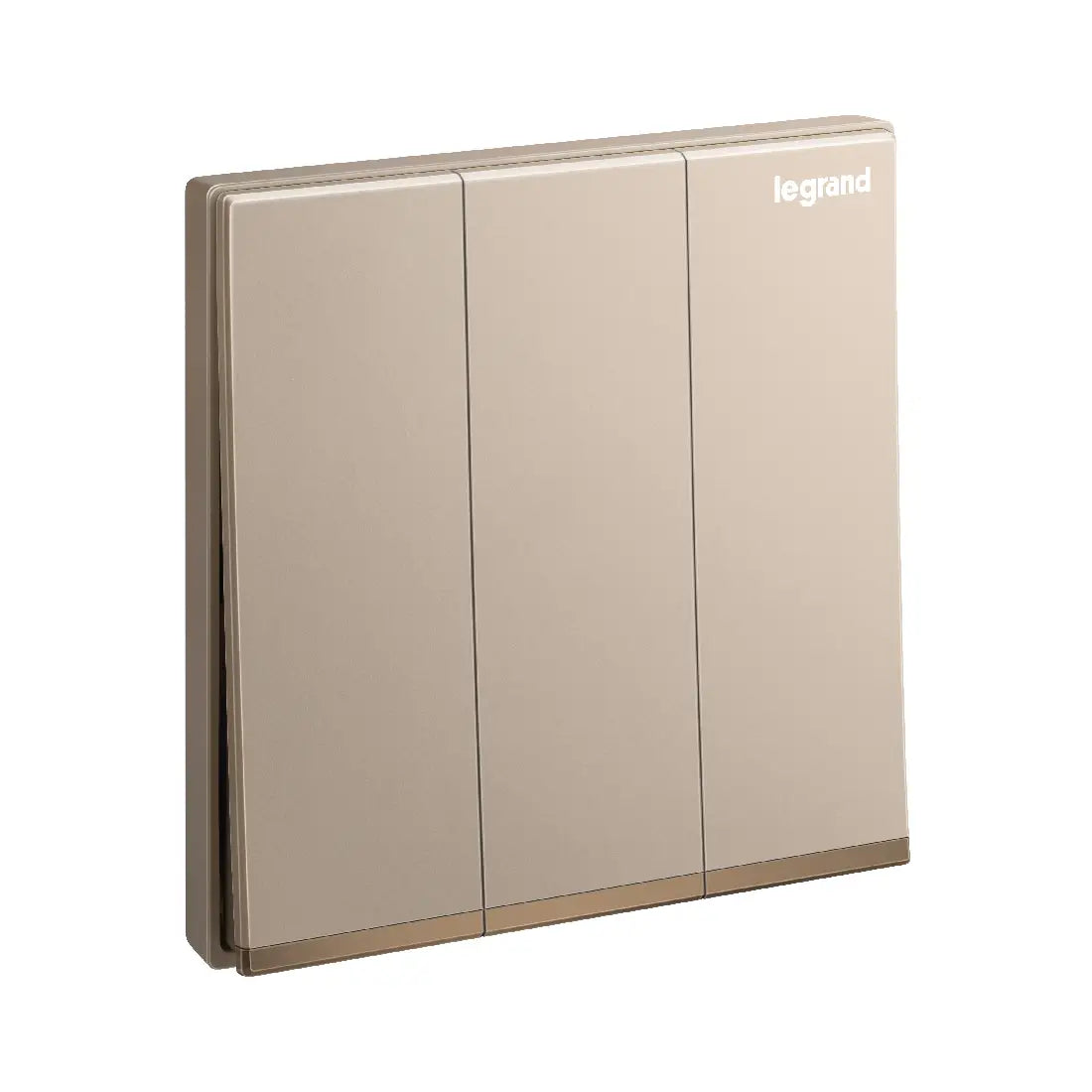

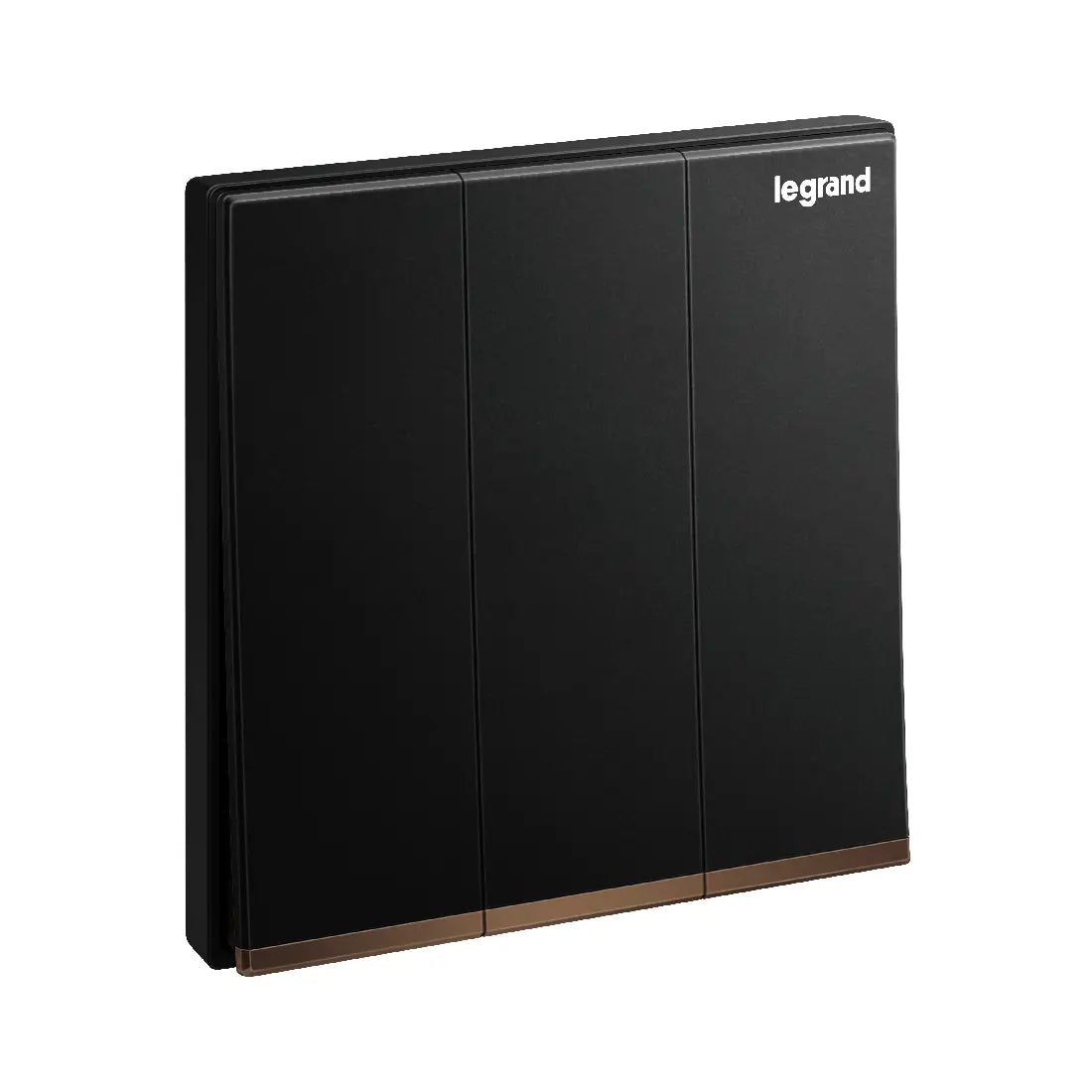

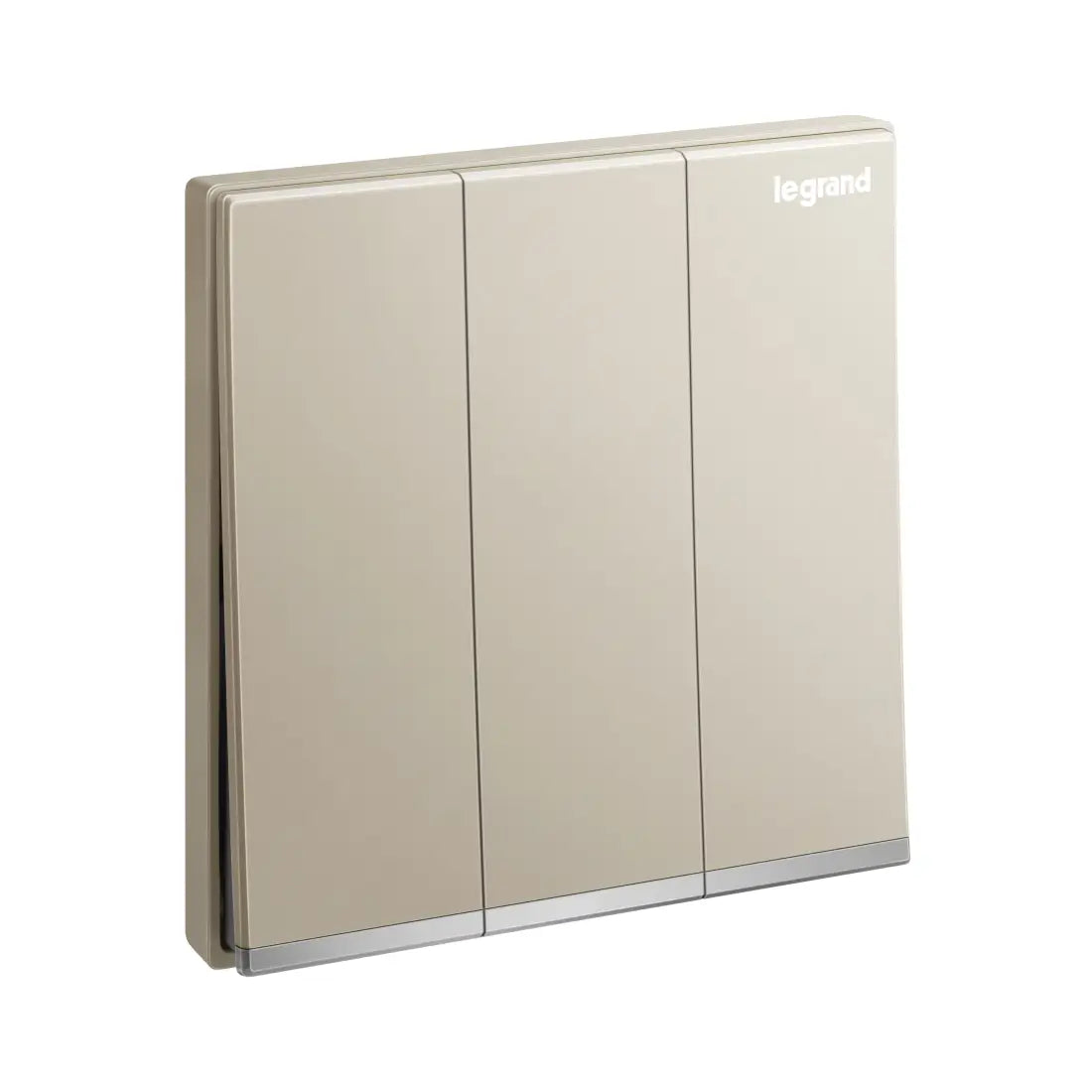

| Colour | White(282405), Black(282405-C), Rose Gold(282405-C1), Champagne(282405-C2), Dark Silver(282405-C3) |
| Lighting | No |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 38.4 mm |
| Built-in depth | 24 mm |
| Min. depth of built-in installation box | 30 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
