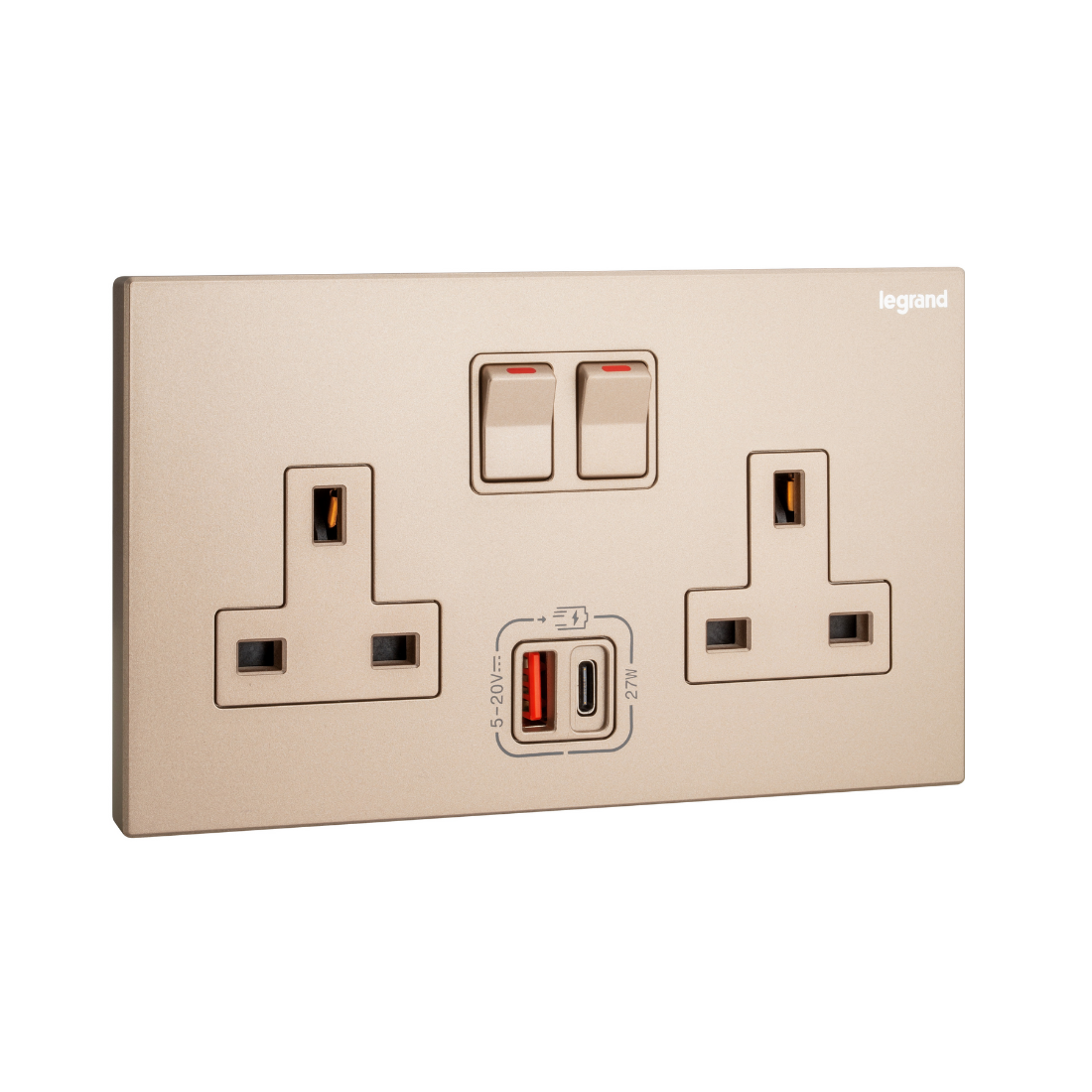

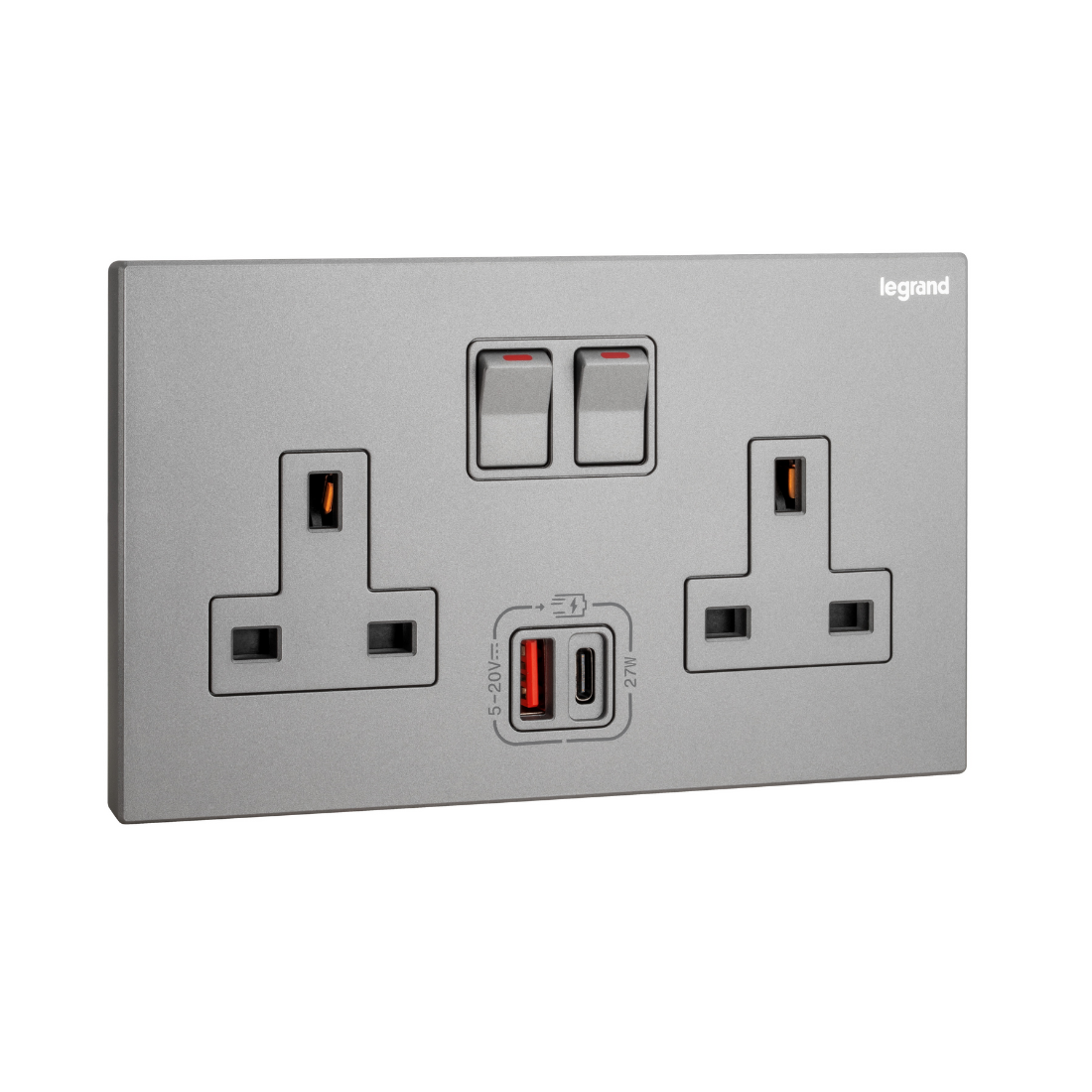

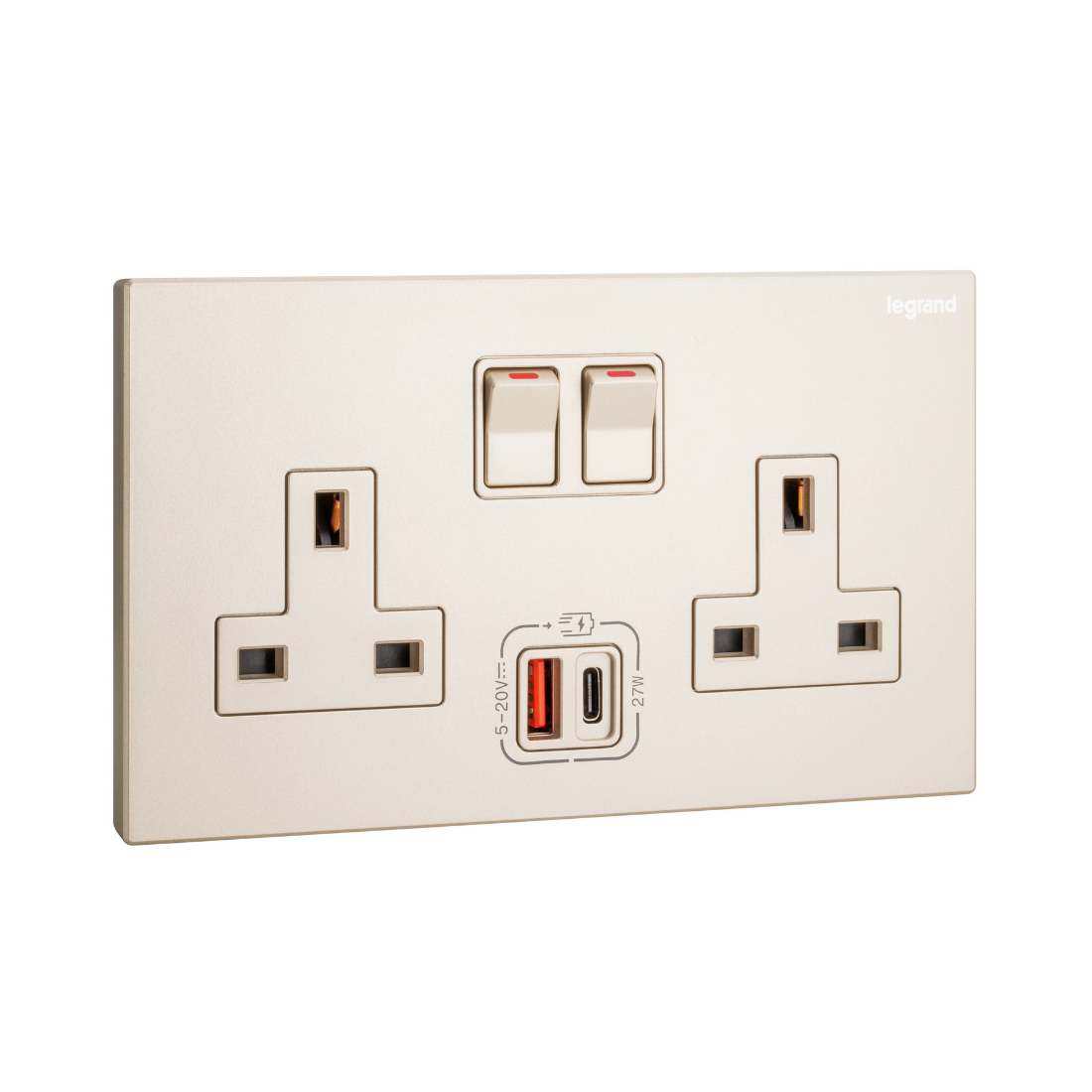

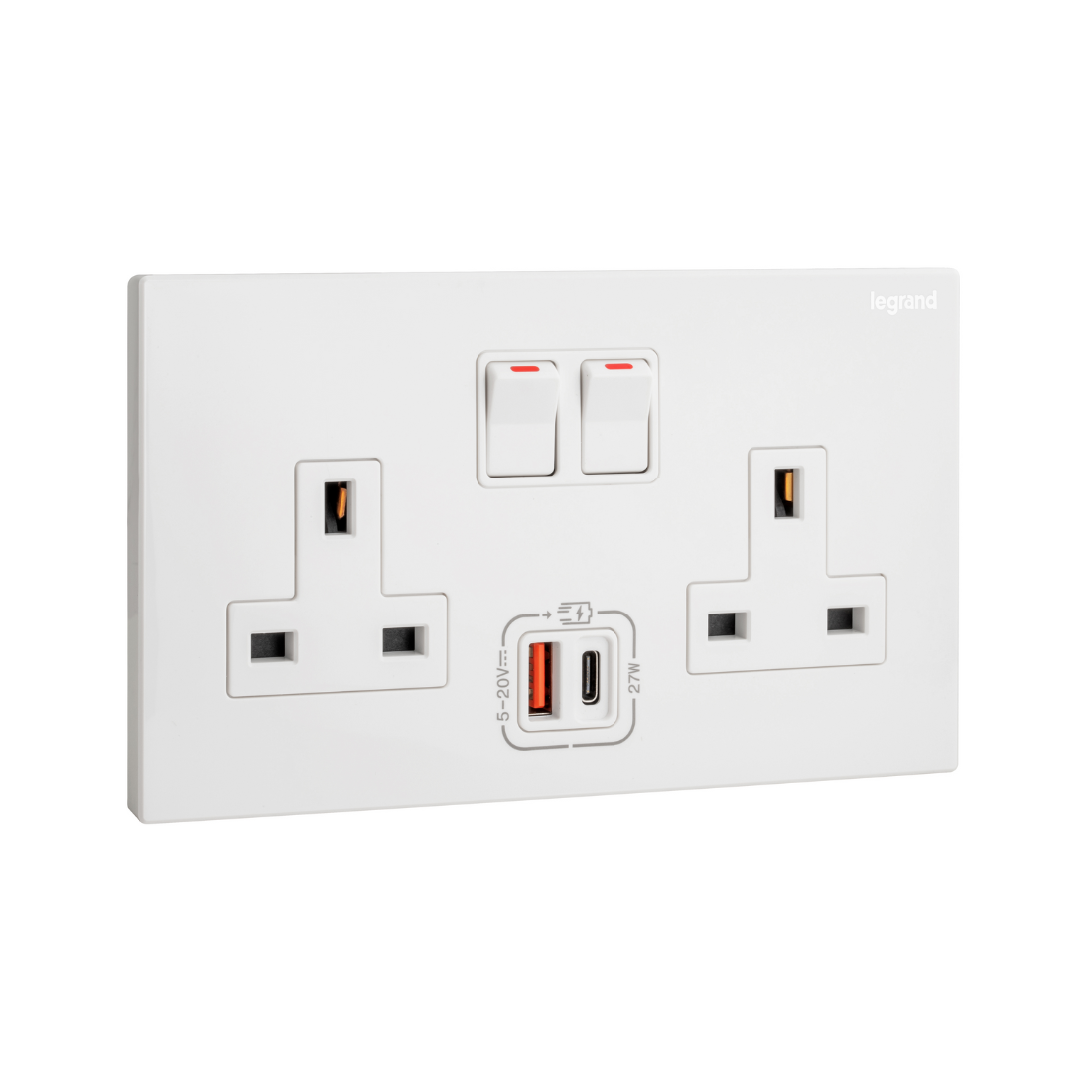

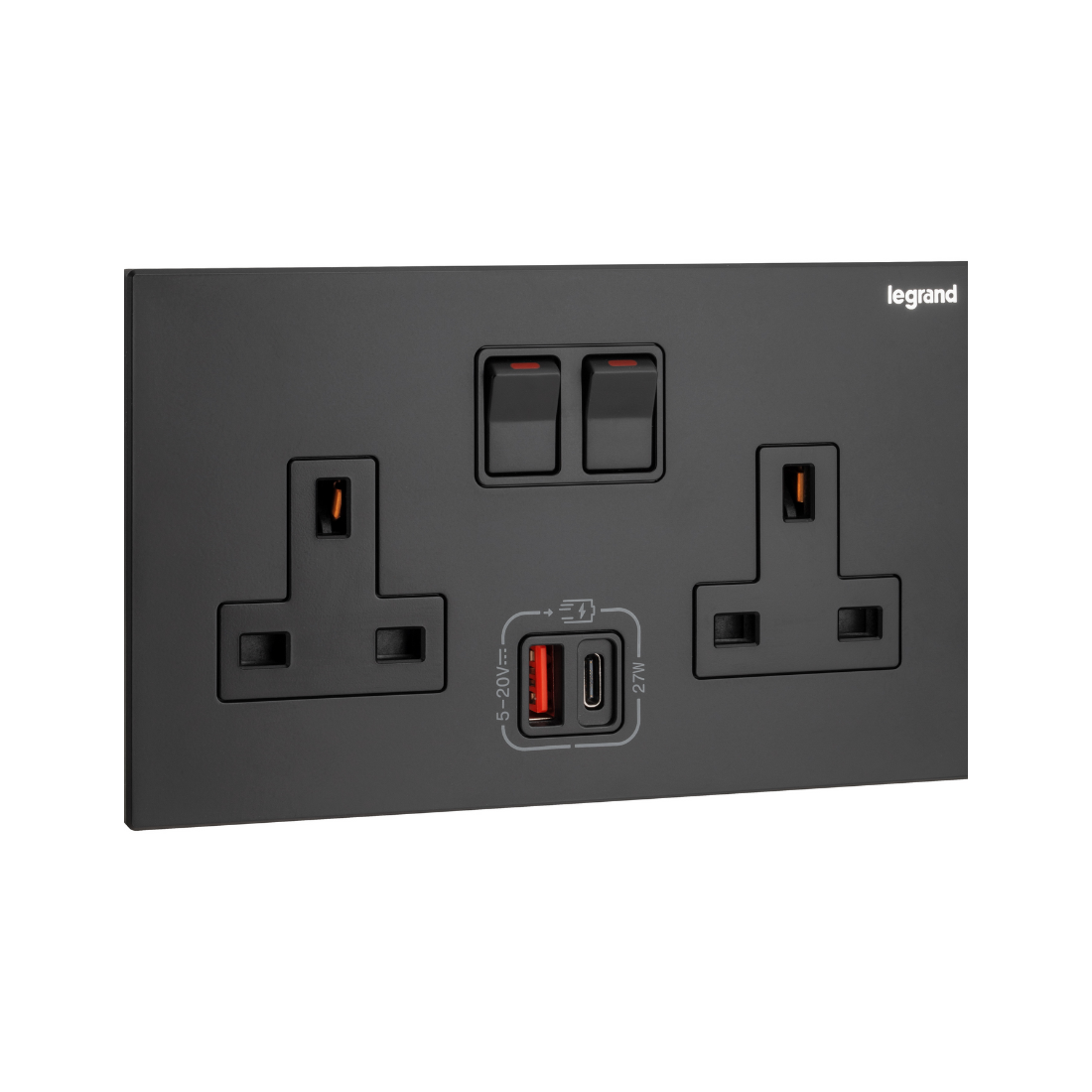

Legrand Galion 2 Gangs Single Pole Switched Socket Outlets with 27W USB Type A and C Charger 282336
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : Switchsocket Outlet
Description
The Legrand 282336 is a premium 2-gang British Standard switched socket outlet from the Galion series, featuring integrated fast charging via USB-A and USB-C ports with a combined output of 27W. Designed for flush mounting, it offers two 13A single-pole switched sockets along with high-speed charging for modern devices. Built with halogen-free thermoplastic and rated IP20 with IK04 impact resistance, it ensures both safety and durability for residential and commercial use. The socket supports cables from 1–4 mm² and comes with screw terminals for secure installation. Available in multiple stylish finishes like glossy white, matt black, and champagne, it’s ideal for those looking to combine functionality with a sleek, modern aesthetic.
( 282336, 282336-C, 282336-C1, 282336-C2, 282336-C3 )
| Brand | Legrand |
| Model | Galion |
| Concurrently switching neutral conductor | No |
| Number of active contacts (square) | 2 |
| Assembly arrangement | Basic element with full cover plate |
| With complementary luminous signal | No |
| Number of ports USB-A | 1 |
| Number of ports USB-C | 1 |
| Max. current rating of USB power supply | 3 A |
| Number of socket outlets | 6 |
| Number of modules (module system) | 4 |
| Number of socket outlets switchable | 2 |
| Number of phases | 1 |
| Imprint/indication | Other |
| Connection type | Screwed terminal |
| With enhanced contact protection | No |
| Label space/information surface | Yes |
| Color | White(282336), Black(282336-C), Rose Gold(282336-C1), Champagne(282336-C2), Dark Silver(282336-C3) |
| Transparent | No |
| Lockable | No |
| Eject-mechanism | No |
| Insulated mounting | Yes |
| With function lighting | No |
| With orientation lighting | No |
| Overvoltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | None |
| Mounting method | Flush-mounted |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Antimicrobial treatment | No |
| With loop through function | No |
| Number of loop throughs | 0 |
| With on/off switch | Yes |
| Rotated central insert | No |
| Nominal current | 13 A |
| Nominal voltage | 250 V |
| Frequency | 50-60 Hz |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 146 mm |
| Device height | 86 mm |
| Device depth | 30.5 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in Bluetooth speaker | No |
| For heavy conditions according to VDE | No |
| Compliant with UK Building Regulations Part M | Yes |
| Built-in depth | 18.8 mm |
| Operating / setting temperature | -5–35 °C |
| Storage temperature | -10–70 °C |
| Voltage type | AC |
| Power Delivery | Yes |
| USB Output Power | 27 W |
| Terminal marking indication | Yes |
| Prewired | No |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
| Connected object | No |
