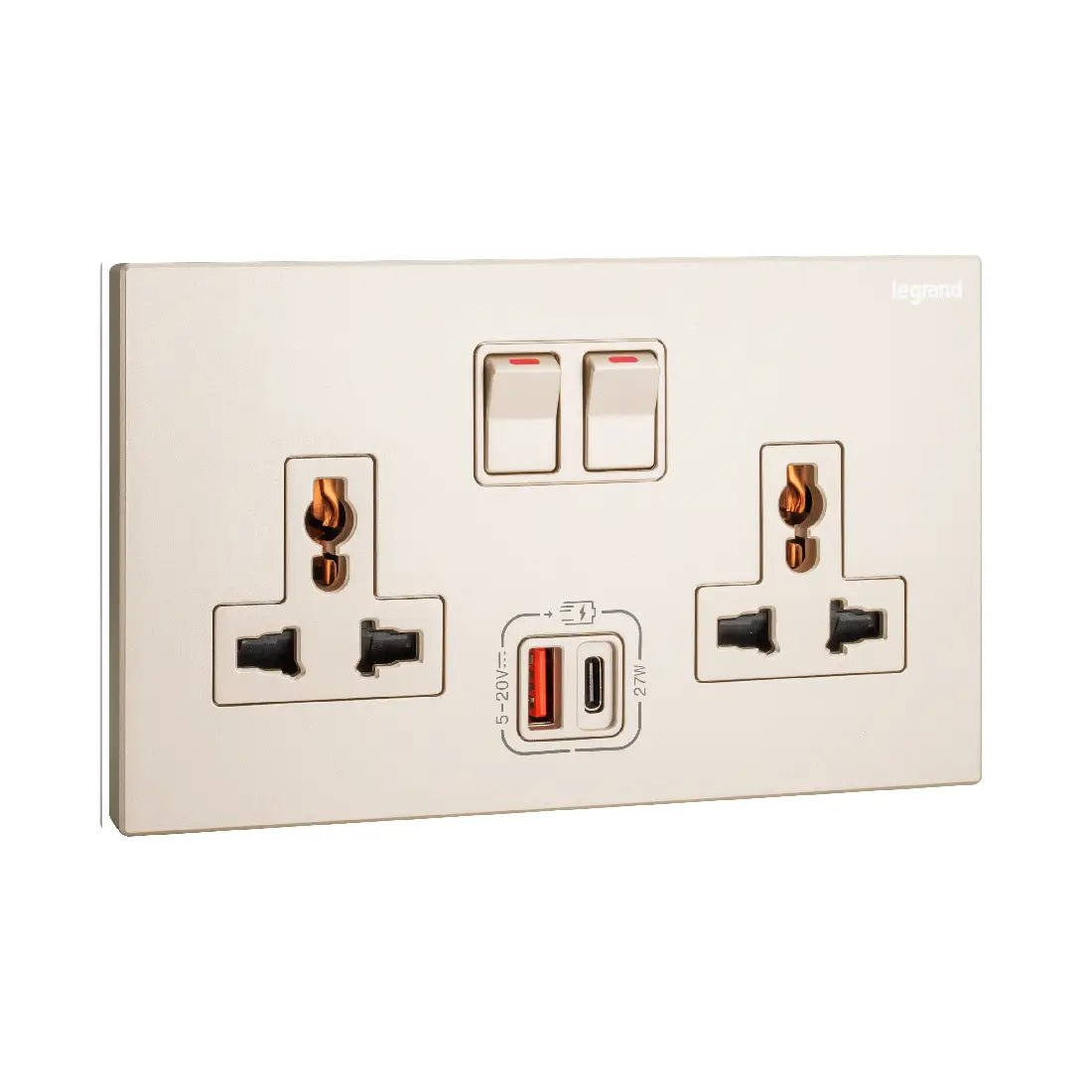

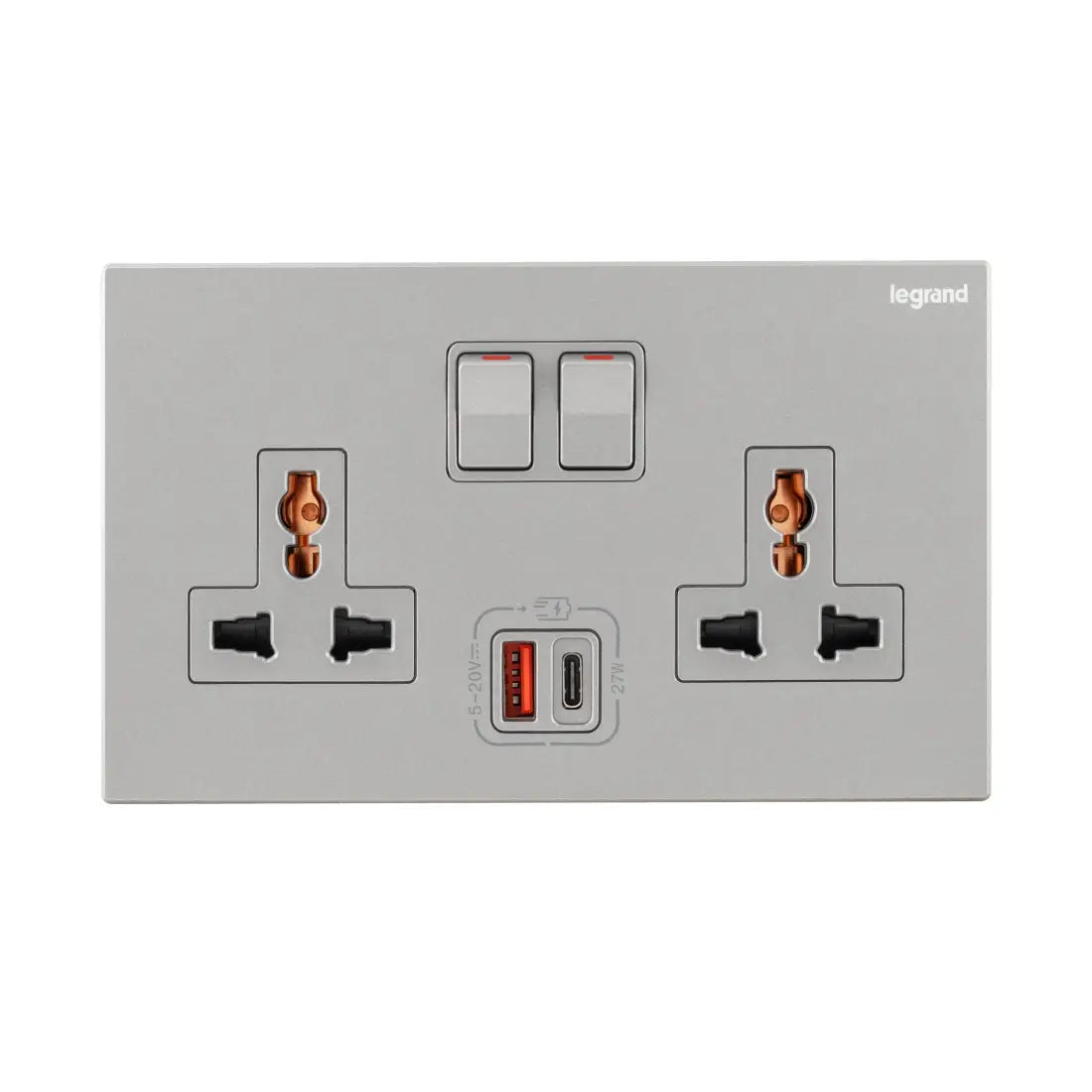

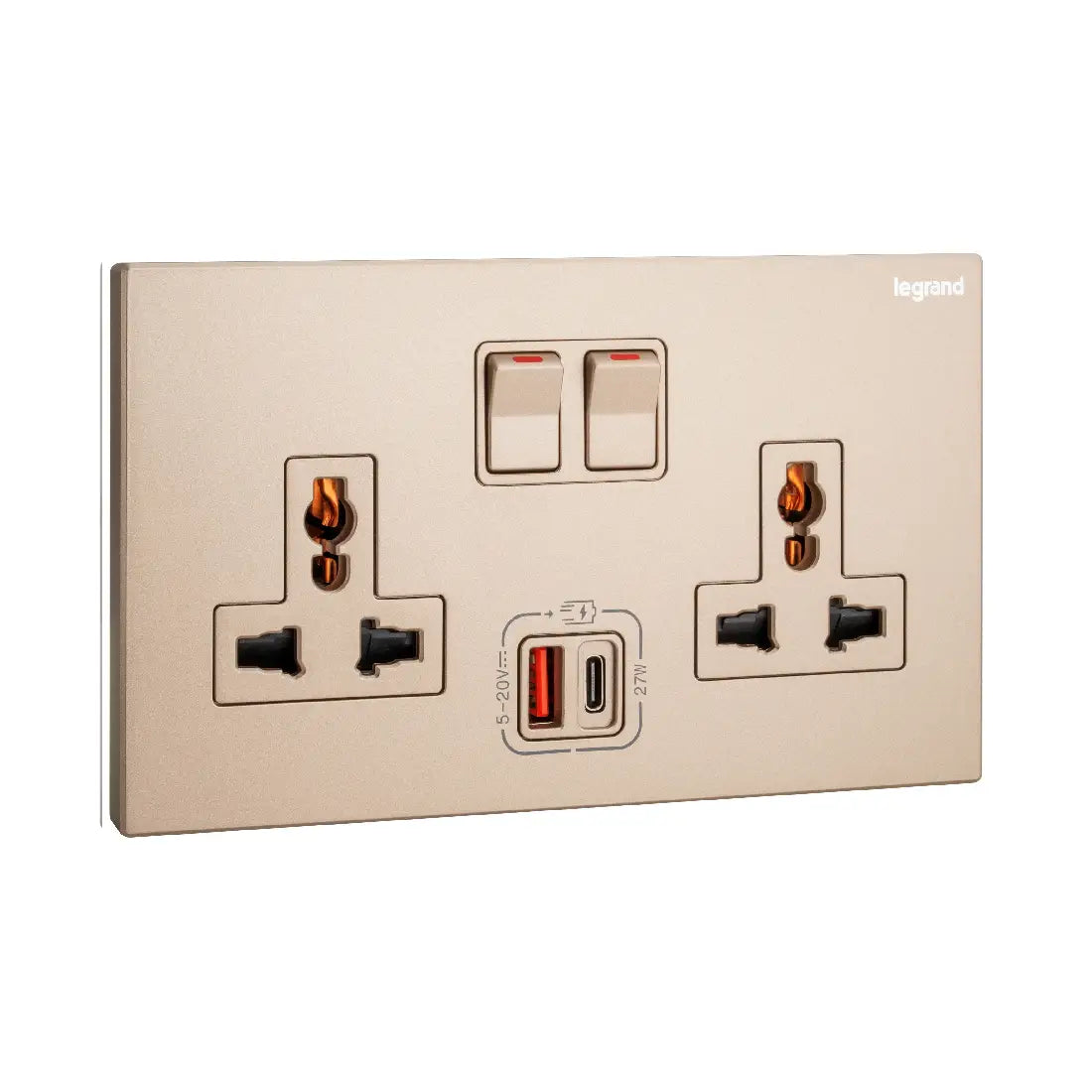

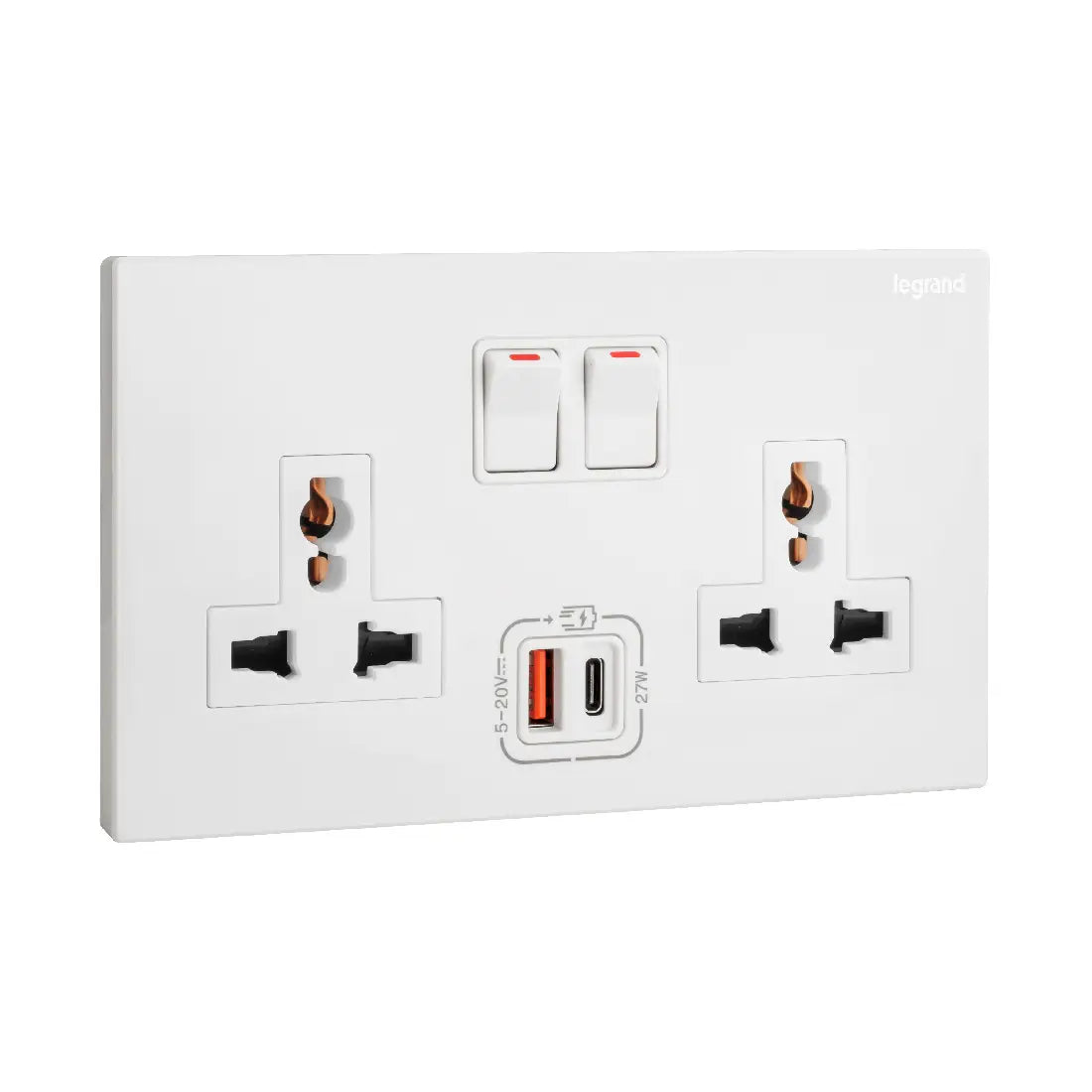

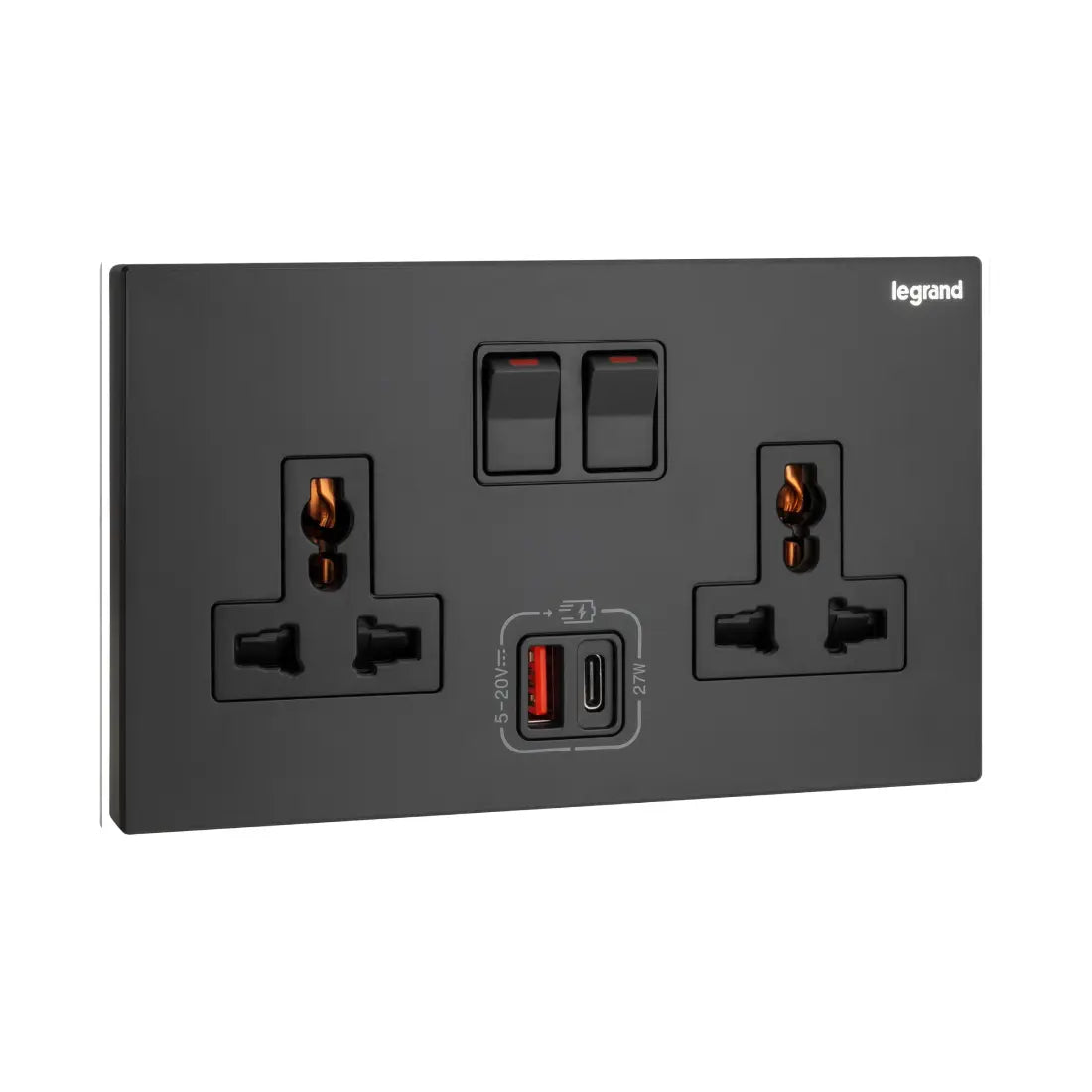

Legrand Galion 2 Gangs Multistandard Switched Socket Outlets with 27W USB Type A and C Charger 282337
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switchsocket Outlet
Description
The Galion 2 Gang Multistandard Switched Socket Outlet with integrated USB A & C chargers (27W) is a smart, space-saving solution for modern interiors. Featuring 2 x 2P+E British Standard sockets (16A, 250V~), it combines traditional power outlets with fast USB charging, making it ideal for home or office use. Sold complete under one catalog number and ready to install, it comes equipped with screw-type terminals for secure, enhanced contacts, marked terminals for easy wiring, and a strip length indicator to minimize wire waste. Designed for indoor use, this dual-function unit features safety shutters for child protection and a 27W USB charger for quickly powering smartphones, tablets, or other USB devices. The product is delivered with paint and dust protection and includes screws for flush or surface mounting on plastic or metal boxes.
( 282337, 282337-C, 282337-C1, 282337-C2, 282337-C3 )
| Brand | Legrand |
| Model | Galion |
| Concurrently switching neutral conductor | No |
| Assembly arrangement | Basic element with full cover plate |
| With complementary luminous signal | No |
| Number of ports USB-A | 1 |
| Number of ports USB-C | 1 |
| Max. current rating of USB power supply | 3 A |
| Number of socket outlets | 6 |
| Number of modules (module system) | 4 |
| Number of socket outlets switchable | 2 |
| Number of phases | 1 |
| Imprint/indication | Other |
| Connection type | Screwed terminal |
| With enhanced contact protection | No |
| Label space/information surface | Yes |
| Colour | White(282337), Black(282337-C), Rose Gold(282337-C1), Champagne(282337-C2), Dark Silver(282337-C3) |
| Transparent | No |
| Lockable | No |
| Eject-mechanism | No |
| Insulated mounting | Yes |
| With function lighting | No |
| With orientation lighting | No |
| Overvoltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | None |
| Mounting method | Flush-mounted |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Antimicrobial treatment | No |
| With loop through function | No |
| Number of loop throughs | 0 |
| With on/off switch | Yes |
| Rotated central insert | No |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Frequency | 50-50 Hz |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 146 mm |
| Device height | 8 mm |
| Device depth | 20.7 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in Bluetooth speaker | No |
| For heavy conditions according to VDE | No |
| Compliant with UK Building Regulations Part M | Yes |
| Built-in depth | 20.7 mm |
| Operating / setting temperature | 0–35 °C |
| Storage temperature | -10–70 °C |
| Voltage type | AC |
| Power Delivery | Yes |
| USB Output Power | 27 W |
| Terminal marking indication | Yes |
| Prewired | No |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
| Connected object | No |
