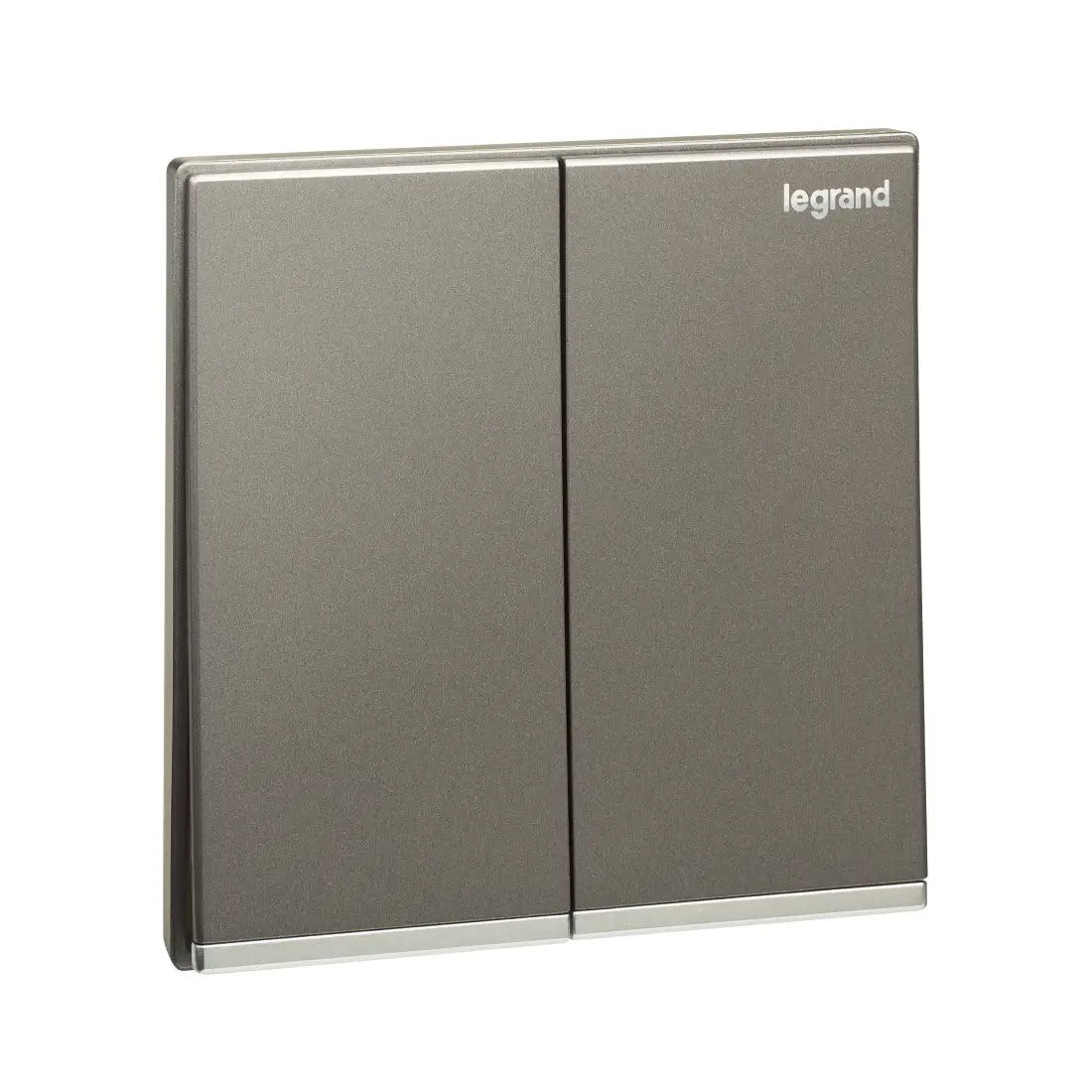

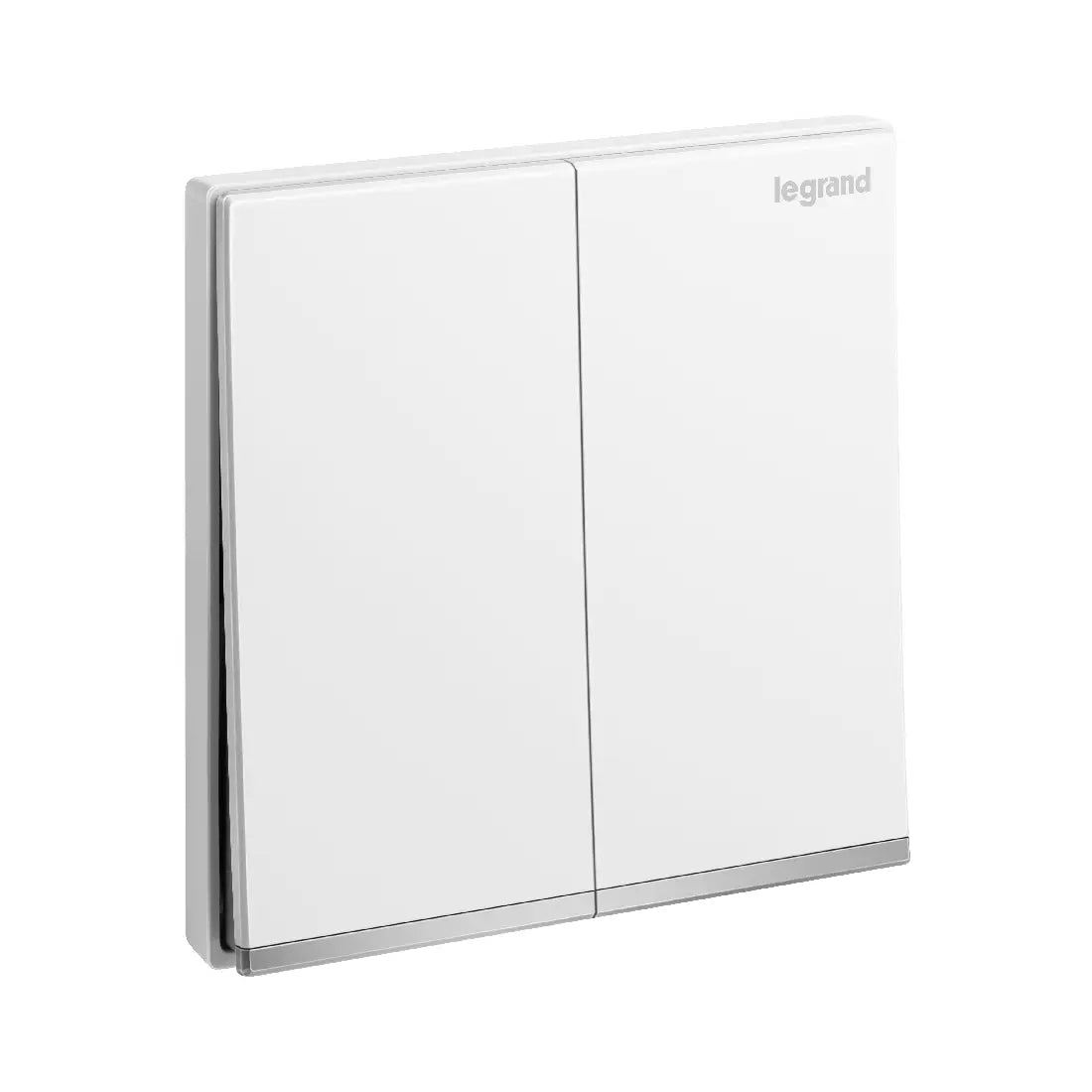

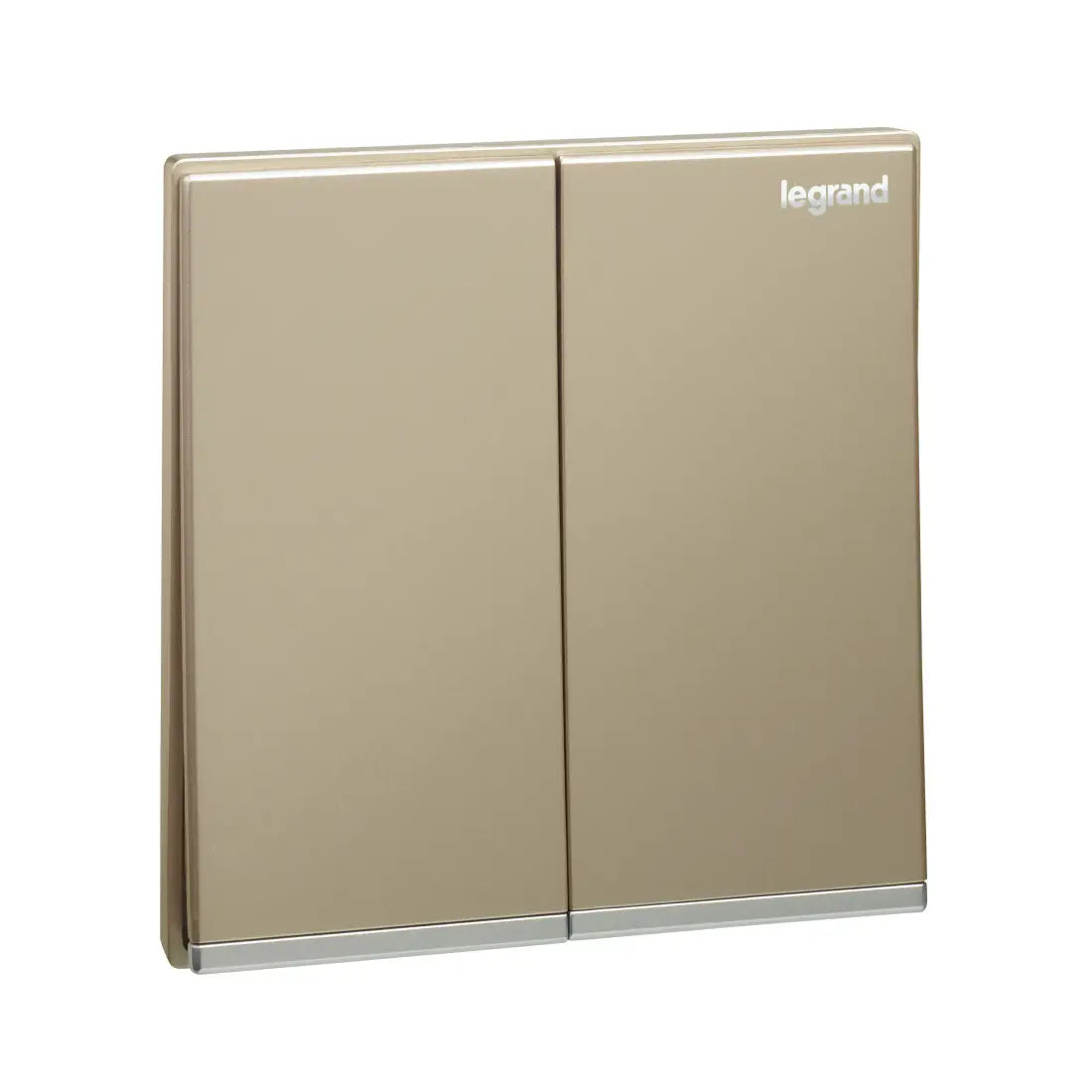

Legrand Galion 2 Gangs 2 Way Switch 16AX 282403
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switch Socket
Description
The Galion 2 Gang 2 Way Switch 16AX, 250V~ is a reliable and stylish lighting solution designed for controlling lights from two locations. Sold complete under a single catalog number and ready for installation, it features screw-type terminals for secure connections, marked terminals for easy identification, and a strip length indicator to minimize wire wastage. Ideal for indoor use, it incorporates a honeycomb supporting frame to enhance stability and durability during installation. The sleek full-plate rocker with an electroplated barre complements the color of the cover, offering a modern and elegant appearance. The product is delivered with protective coverings against paint and dust and includes screws suitable for both flush- and surface-mounted boxes, whether plastic or metal.
| Brand | Legrand |
| Model | Galion |
| Wiring system | Off switch 1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 2 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Colour | White, Black, Rose Gold, Champagne, Dark Silver |
| Illumination | No |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 38.4 mm |
| Built-in depth | 24 mm |
| Min. depth of built-in installation box | 30 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50–60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
