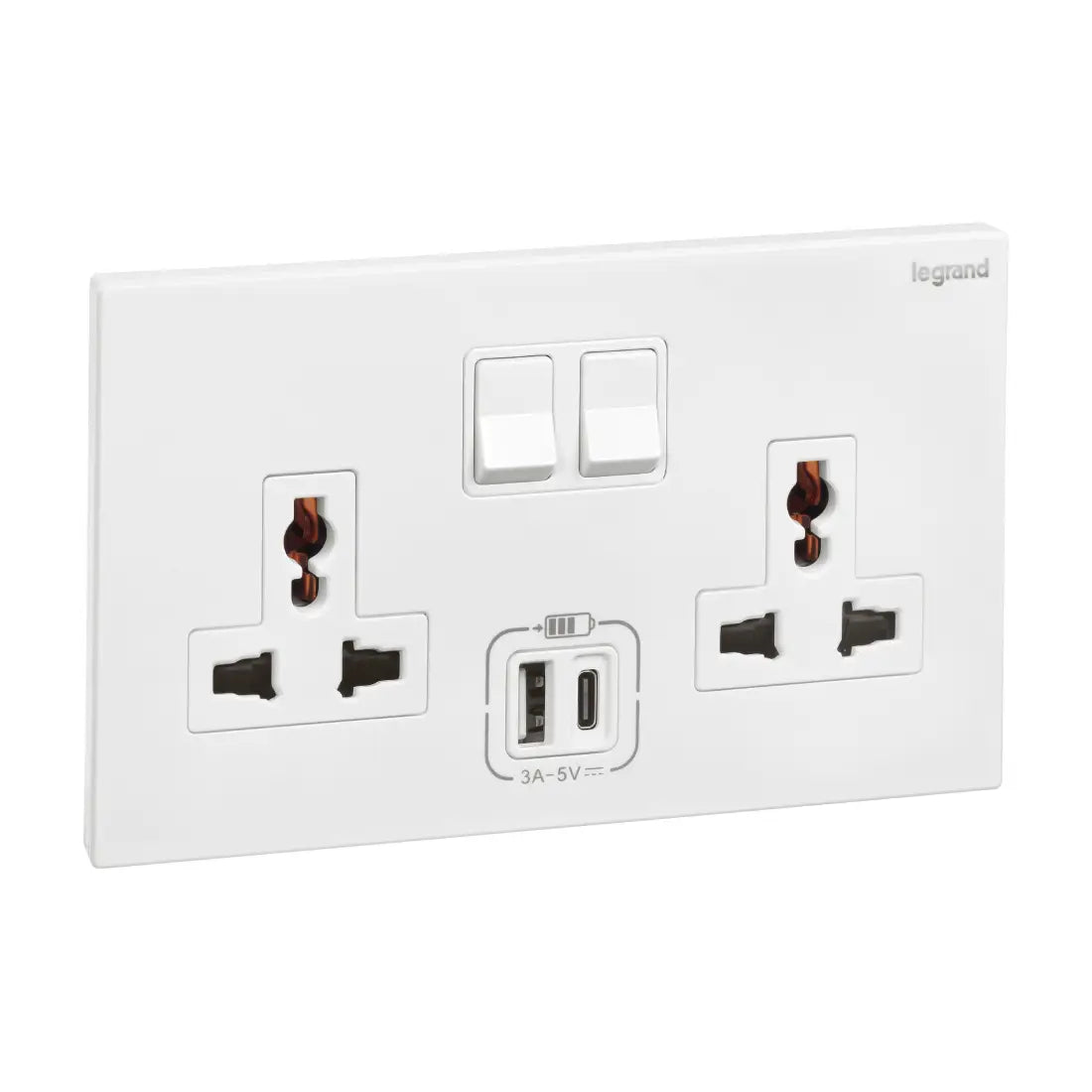

Legrand Galion 2 Gang Multistandard Switched Socket Outlet with 3A Type A and Type C USB Chargers 282444
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switchsocket Outlet
Description
The Galion 2 Gang Multistandard Switched Socket Outlet with USB-A & USB-C Chargers offers a practical and modern solution by combining two 2P+E multistandard 16A, 250V~ power sockets with integrated 3A USB Type-A and Type-C chargers (5VDC, 15W total), ideal for charging smartphones and tablets. Designed for easy and safe installation, it is sold complete under one catalog number and includes screw-type terminals for secure connections, marked terminals for easy identification, and a strip length indicator to reduce wire waste. The honeycomb design supporting frame ensures added strength and stability, while safety shutters on the power outlets enhance child protection. Recommended for indoor use, it comes with protective covers and screws suitable for both flush and surface mounting on plastic or metal boxes, making it a reliable, stylish, and space-saving power and charging solution.
( 282444, 282444-C, 282444-C1, 282444-C2, 282444-C3 )
| Brand | Legrand |
| Model | Galion |
| Protective contact | Other |
| With complementary luminous signal | No |
| Number of ports USB-A | 1 |
| Number of ports USB-C | 1 |
| Number of socket outlets switchable | 2 |
| Number of phases | 2 |
| Imprint/indication | Scannable symbol/barrier free |
| Connection type | Screwed terminal |
| With hinged lid | No |
| With enhanced contact protection | Yes |

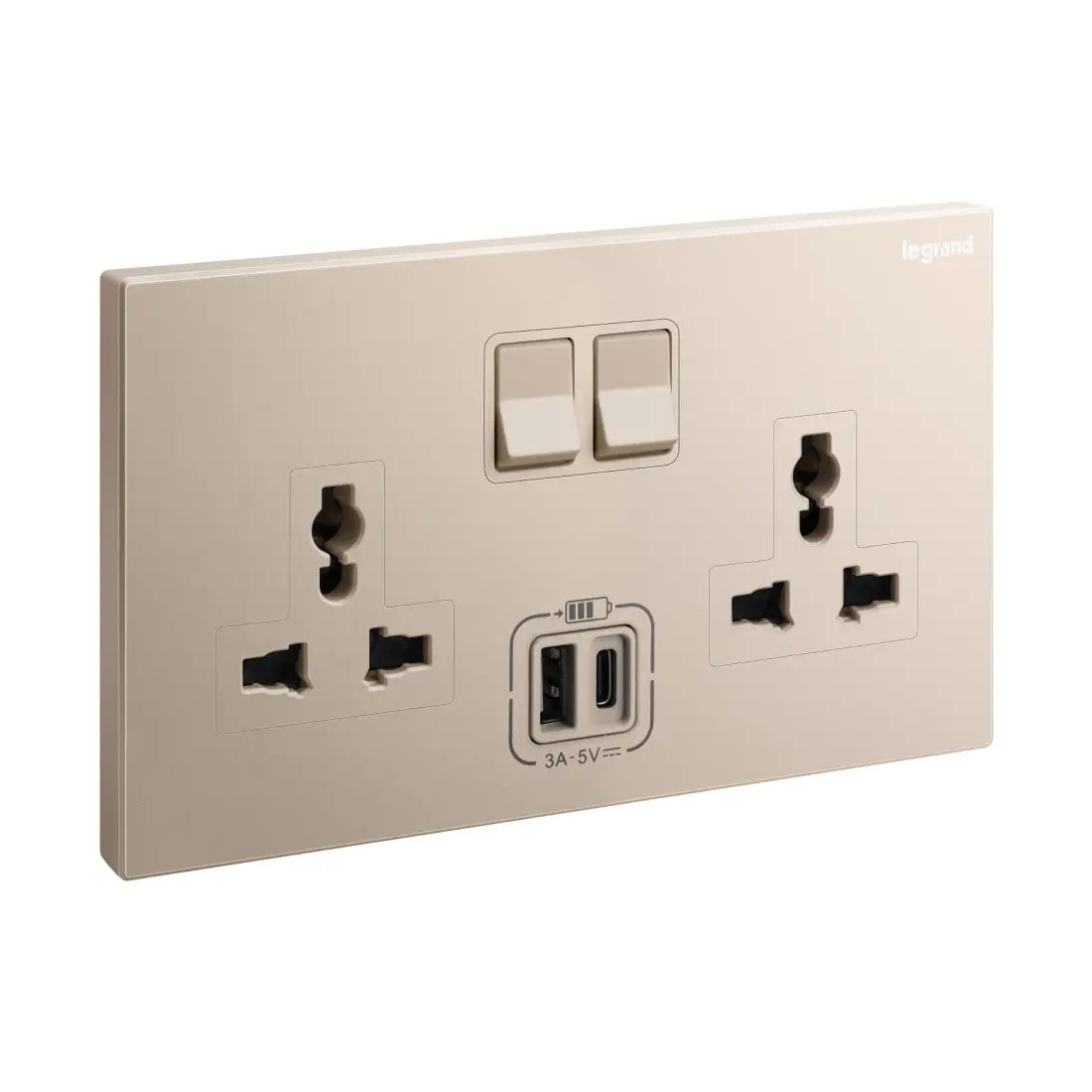

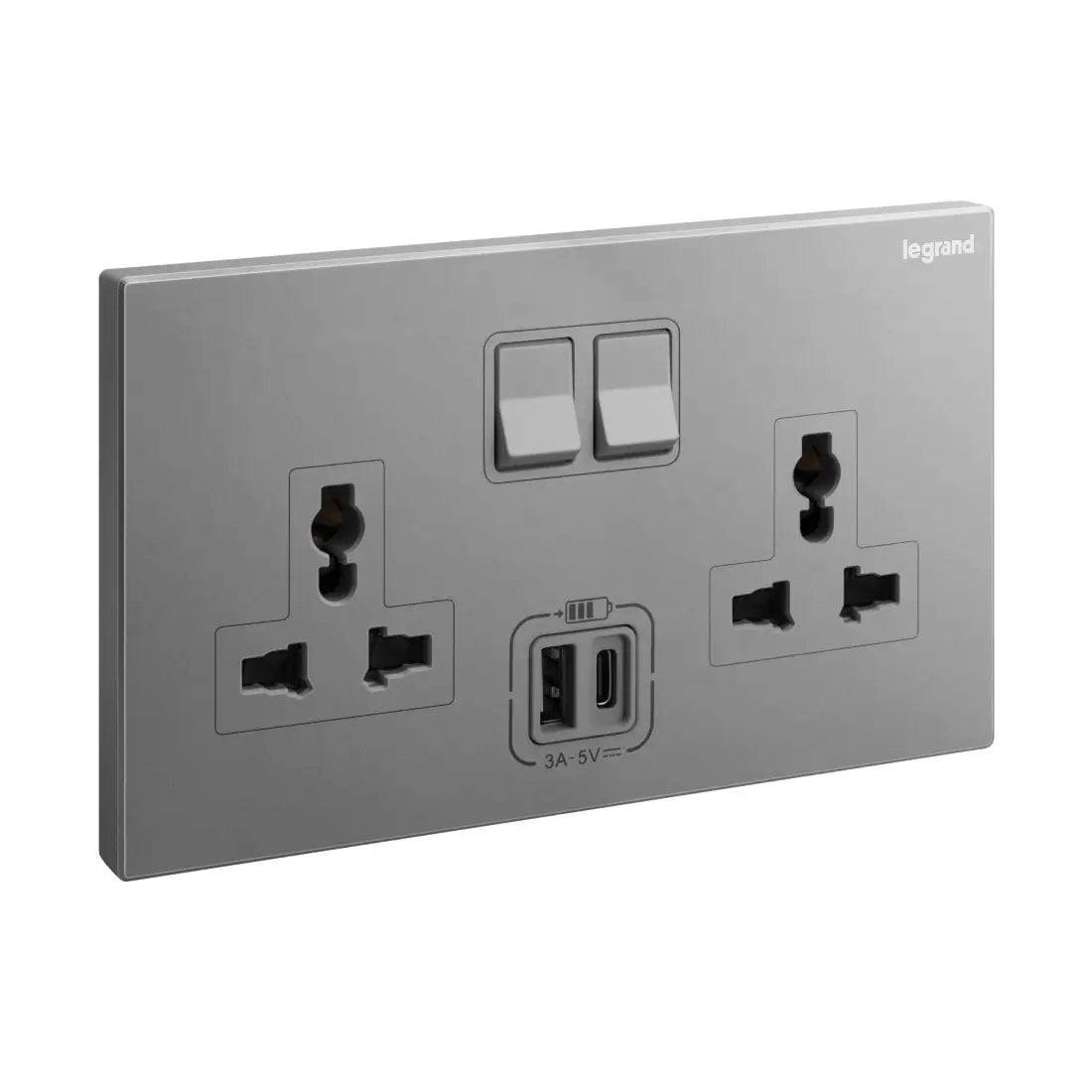

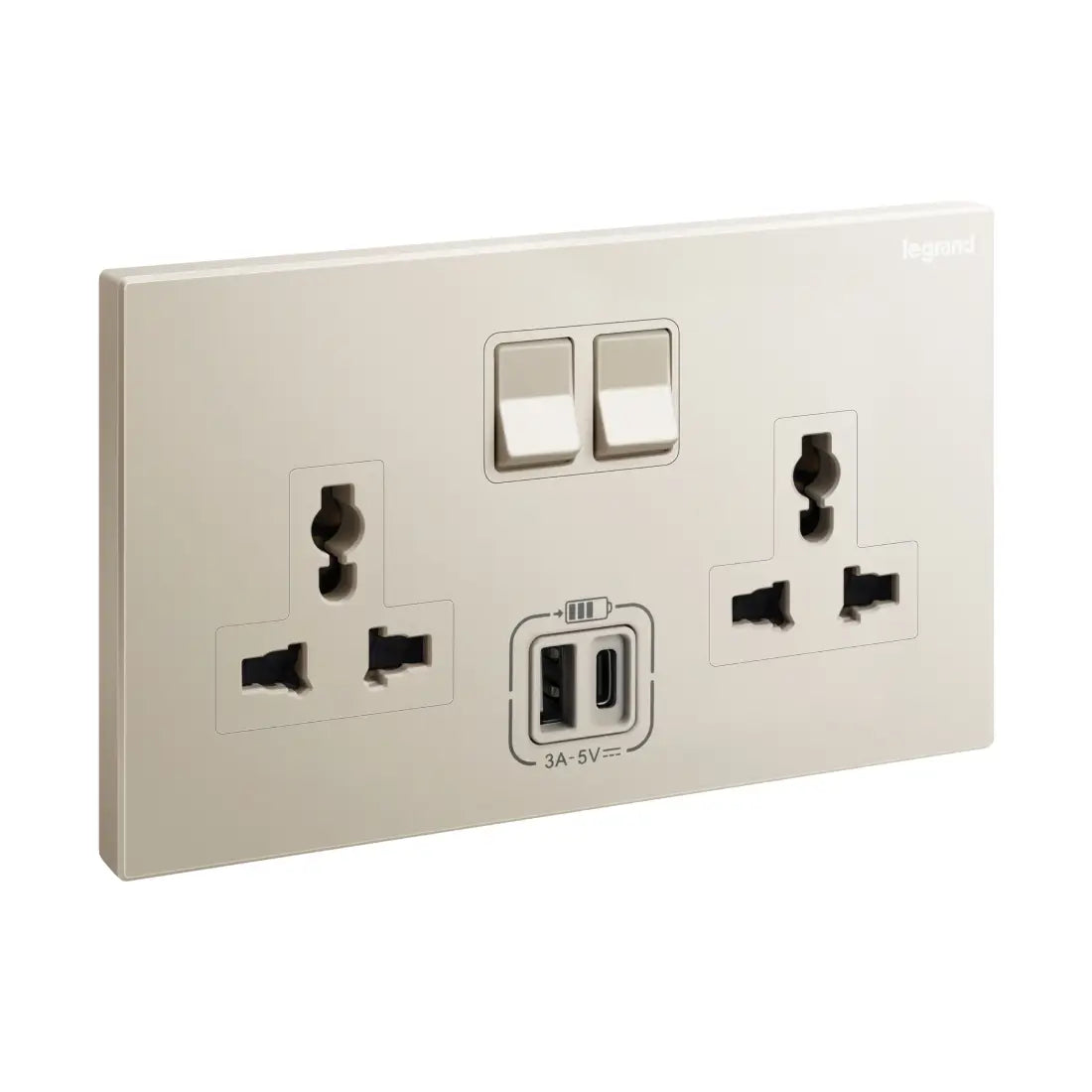

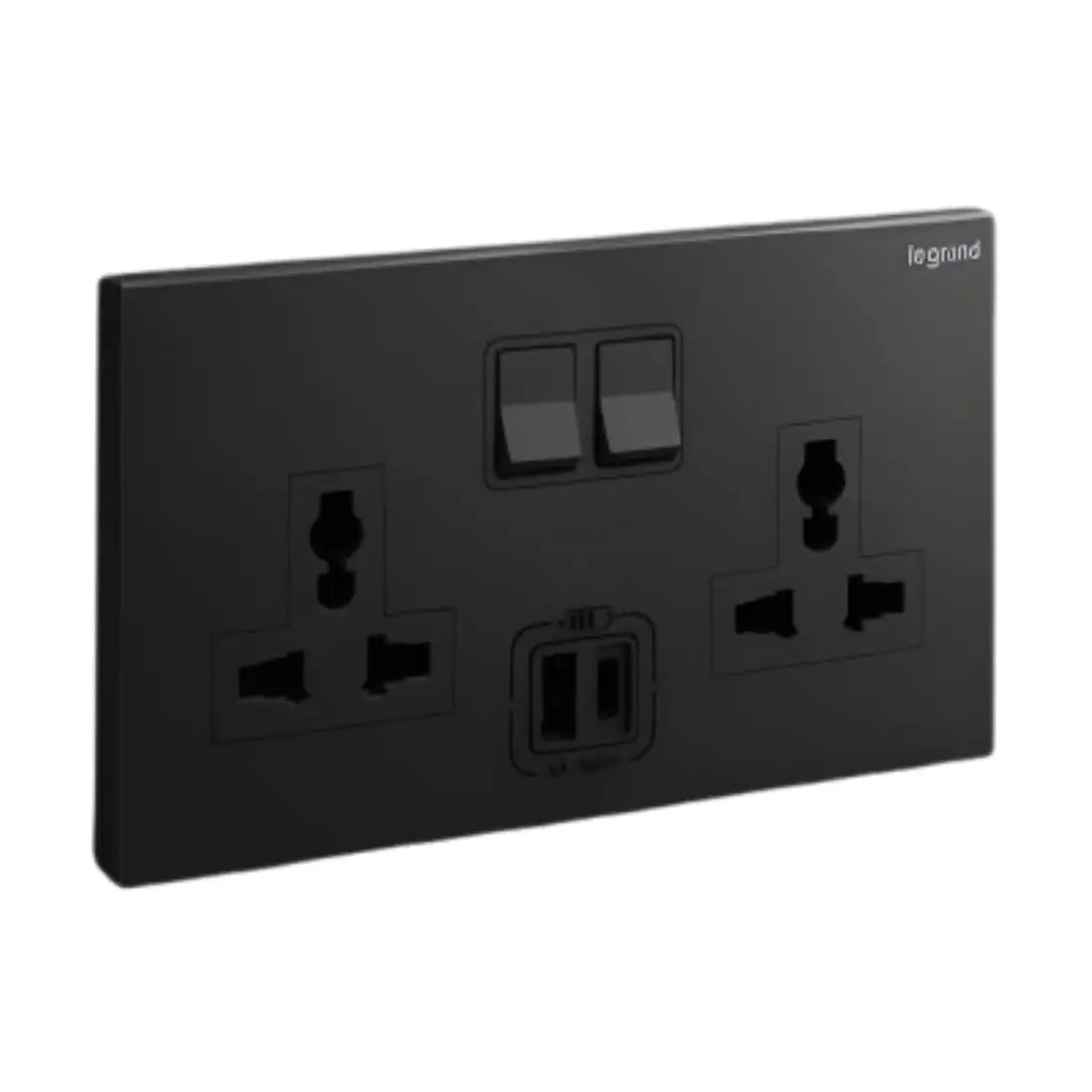

| Colour | White(282444), Black(282444-C), Rose Gold(282444-C1), Champagne(282444-C2), Dark Silver(282444-C3) |
| Metallic colour | No |
| Transparent | No |
| Lockable | No |
| Eject-mechanism | No |
| Insulated mounting | No |
| With function lighting | No |
| With orientation lighting | No |
| Overvoltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | No special power supply |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Antimicrobial treatment | No |
| With on/off switch | Yes |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Frequency | 50–60 Hz |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 146 mm |
| Device height | 88 mm |
| Device depth | 30.2 mm |
| Min. depth of built-in installation box | 25 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in Bluetooth speaker | No |
| Built-in depth | 18.2 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Power Delivery | No |
| USB Output Power | 15 W |
| Terminal marking indication | Yes |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
| Connected object | No |
